Description

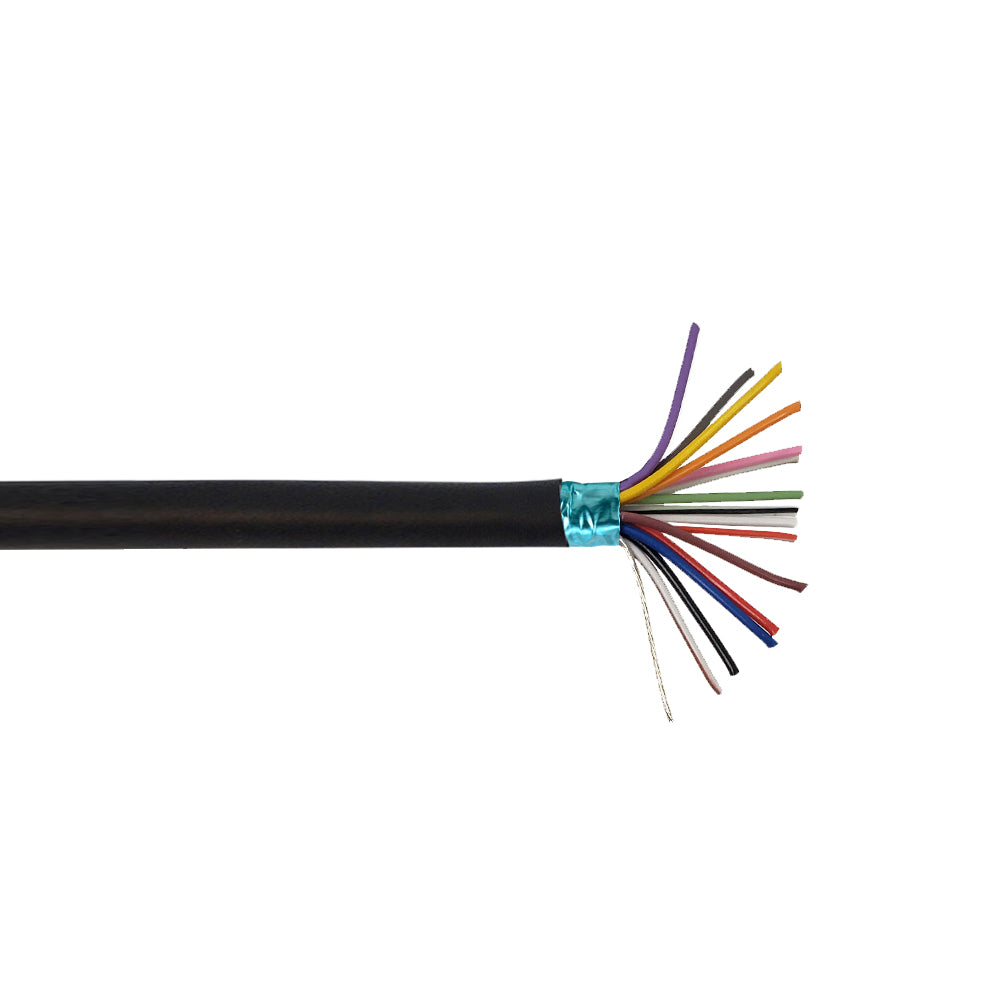

This bulk data cable is 1000ft in length and consists of 15 conductors of 24 gauge stranded wire. It is typically used to interconnect RS-232 data applications.
| Physical Characteristics | ||||
|---|---|---|---|---|
| Cable Length | 1000 foot [304m] | |||
| Color | Black | |||
| Cable OD | 5.20mm | |||
| Conductor Construsction | 7/0.20±0.005 mm | |||
| Number of Conductors | 15 Conductors | |||
| Wire Gauge | 24AWG | |||
| Conductor Material | 100% Bare Copper | |||
| Insulation Diameter | 1.10±0.05mm | |||
| Insulation Thickness | 0.25mm | |||
| Drain Construction | 7/0.200±0.008mm | |||
| Jacket Material | PVC - Polyvinyl Chloride | |||
| Jacket OD | 6.50±0.15 mm | |||
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] | |||
| Insulation Thickness | 0.51mm | |||
| Cable Shielding | 100% Mylar Foil | |||
| Temperature Rating | 80℃ | |||
| Voltage Rating | 30V | |||
| Insulation Resistance | 100 M (OHMS*KM MIN at 20℃) | |||
| Approvals | ||||
| c(UL)us | No | |||
| Environmental | ||||
| RoHS | Yes | |||
| Packaging Information | ||||
| Package Quantity | 1 | |||
| Product Weight | 35.2 lbs | |||
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-DT15C24-BK | 35.2 lb |
