Description

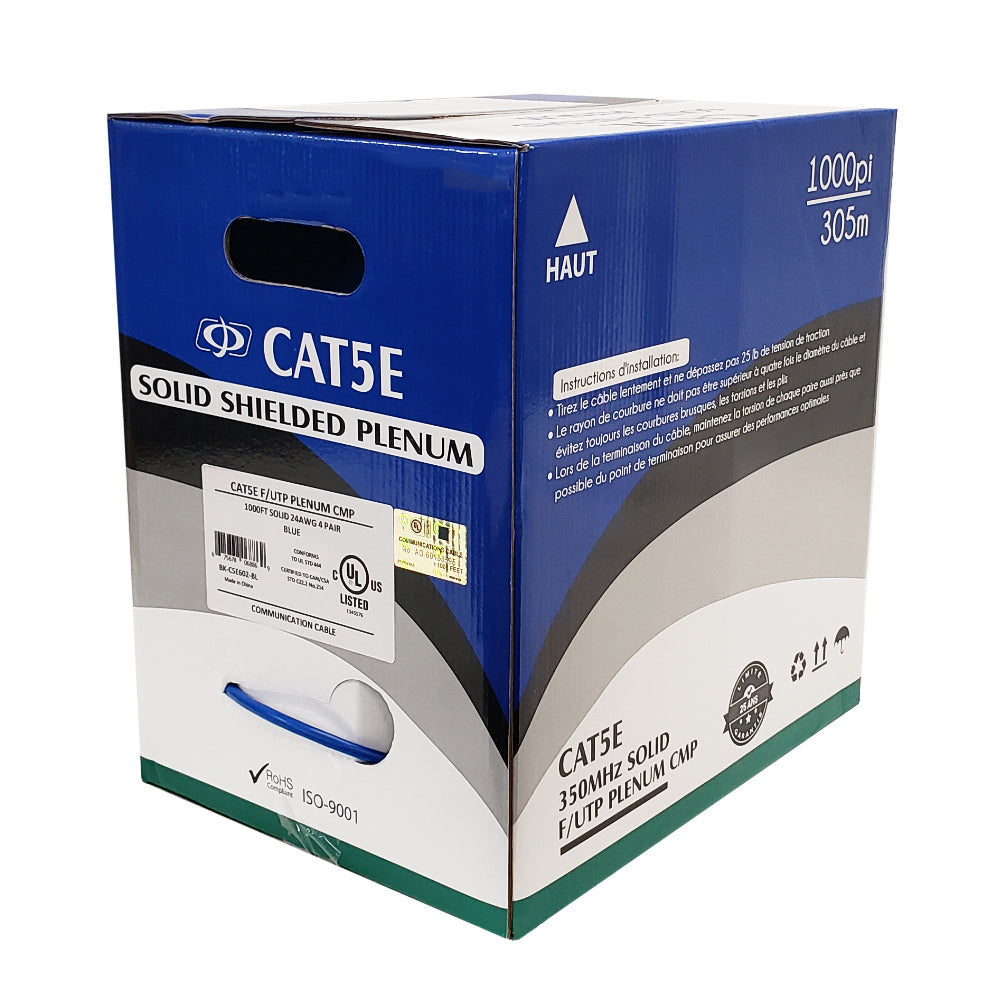

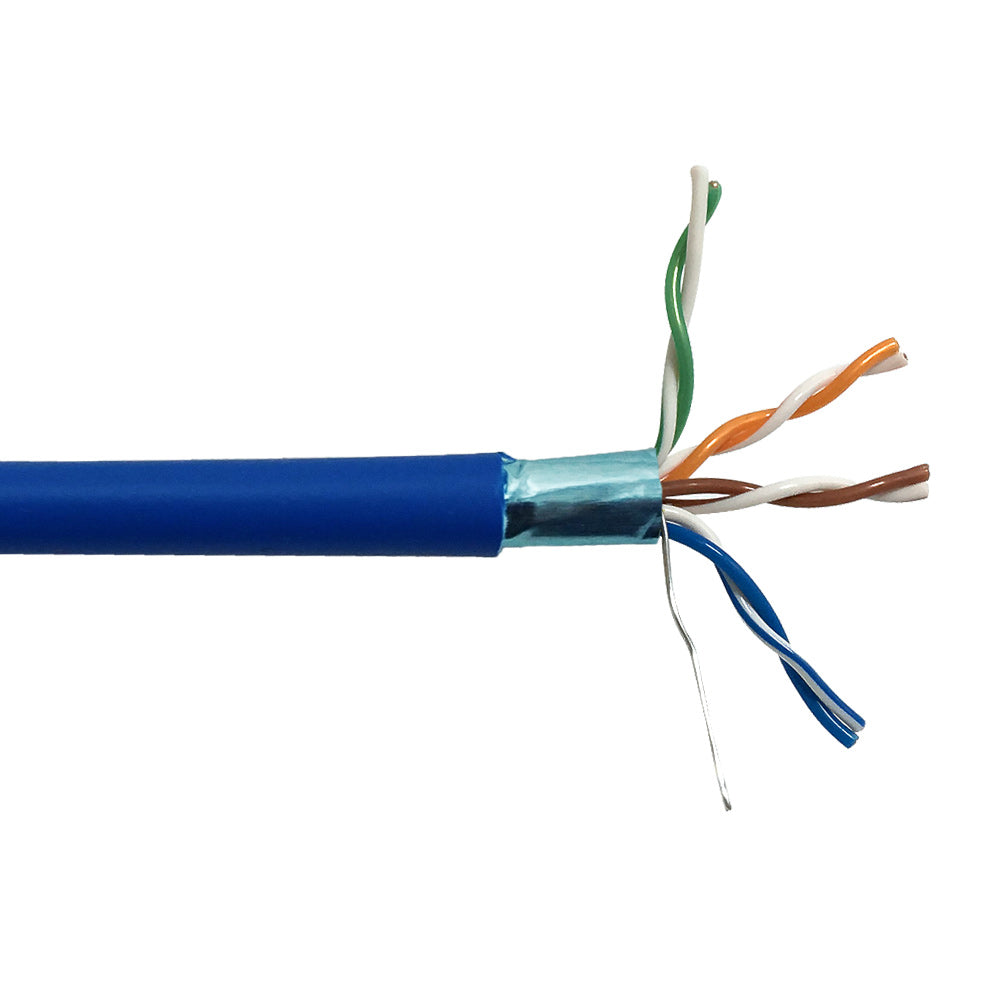

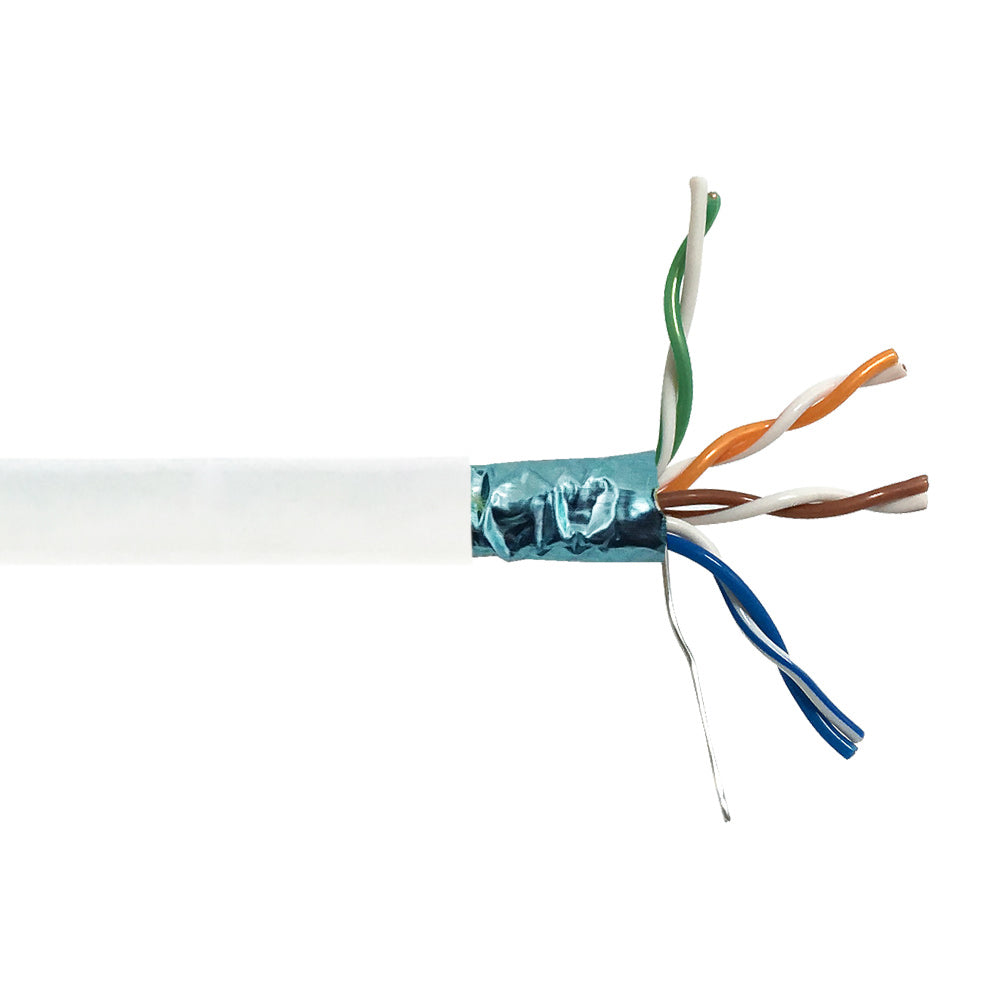

This bulk plenum rated Cat5e cable is 1000 feet in length and consists of 4 pairs of 24AWG solid wires with an overall foil shield. It is typically used in a plenum environment as premise wiring and terminated from a patch panel to a Cat5e jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.30 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Nominal Thickness | 0.0197 inches [0.50mm] |
| Jacket Rating | CMP/FT6[Plenum Rated] |
| Cable Shielding | 100% Aluminum Foil Shield |
| Insulation Material | FEP |
| Insulation Outer Diameter | 0.0378 inches [0.96±0.05mm] |
| Drain Wire | 24AWG Solid Tinned Copper |
| Ripcord | Kevlar |
| Temperature Rating | -20 deg C to +80 deg C |
| Electrical Characteristics | |
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Velocity of Propagation | ≥65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ≦5% |
| Performance | |
| Fluke CAT5e Permalink | Pass |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 35.62 lbs [16.15 kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |

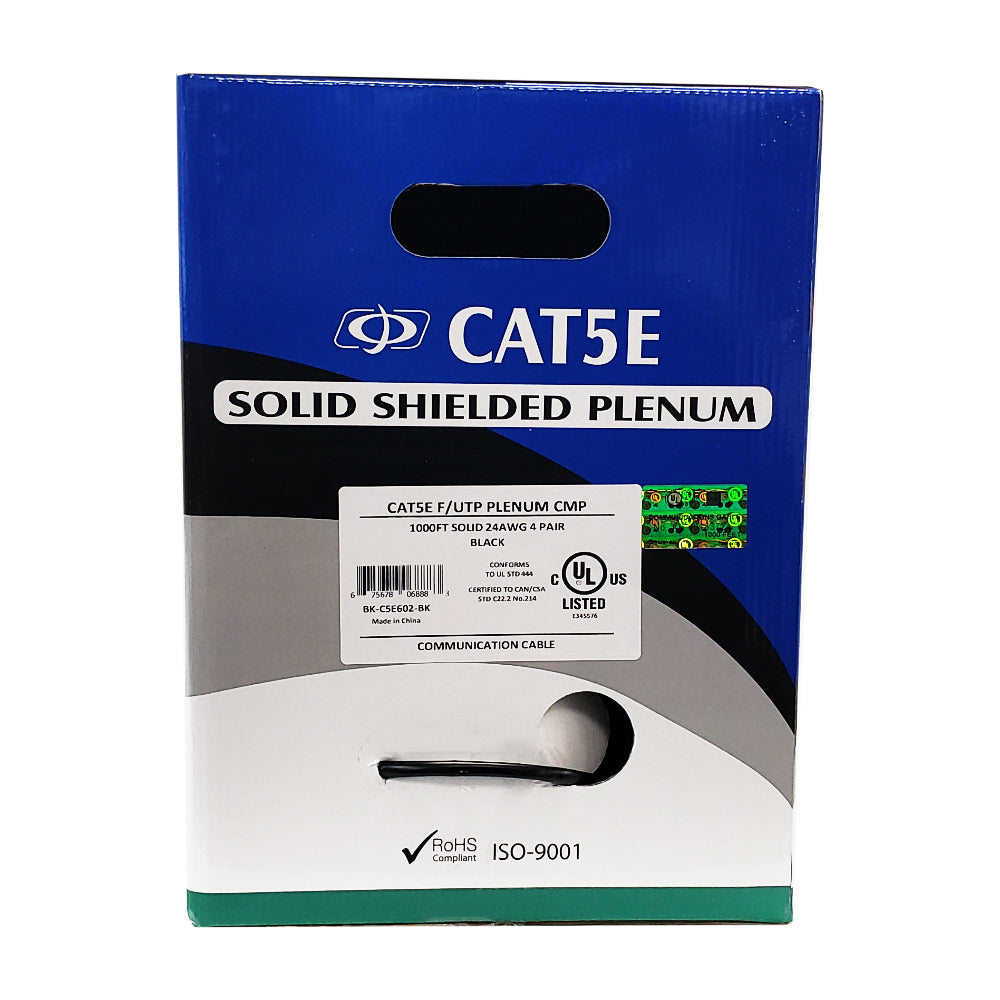

| BK-C5E602-BK | Black | 34.0 lb |

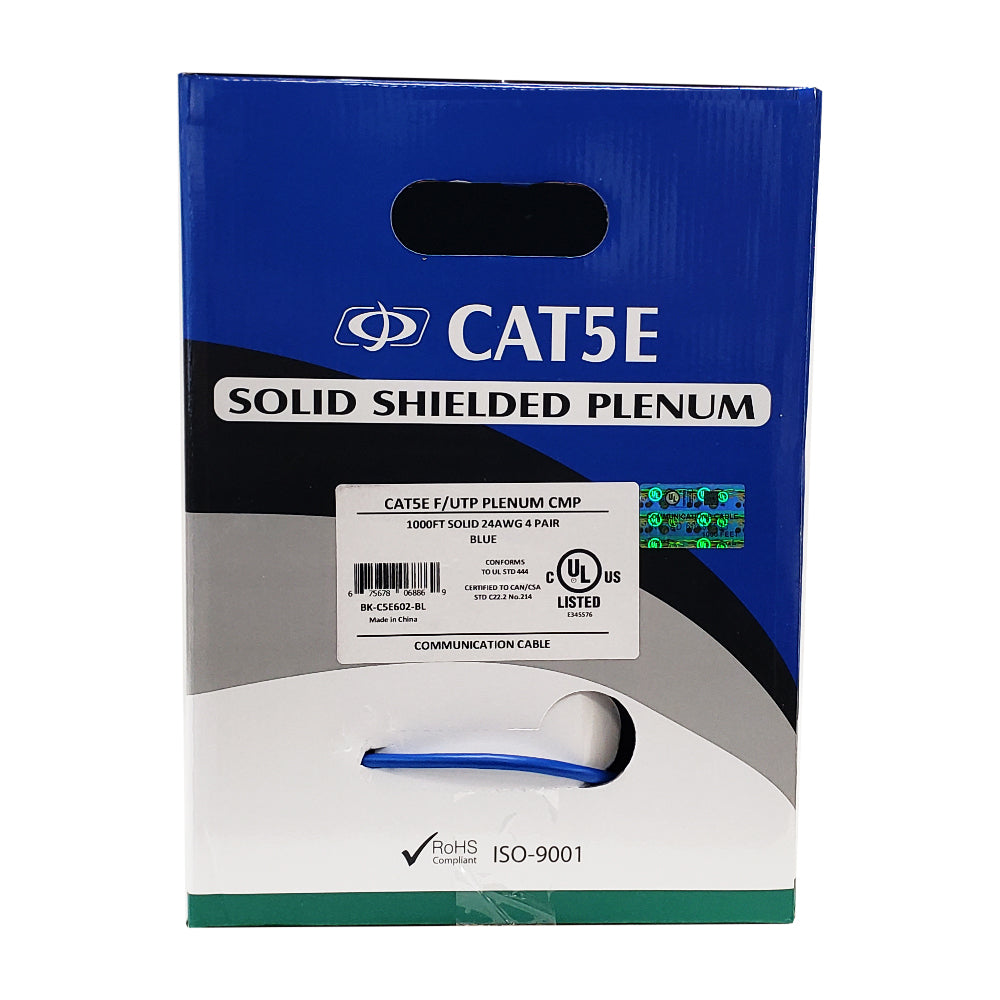

| BK-C5E602-BL | Blue | 34.0 lb |

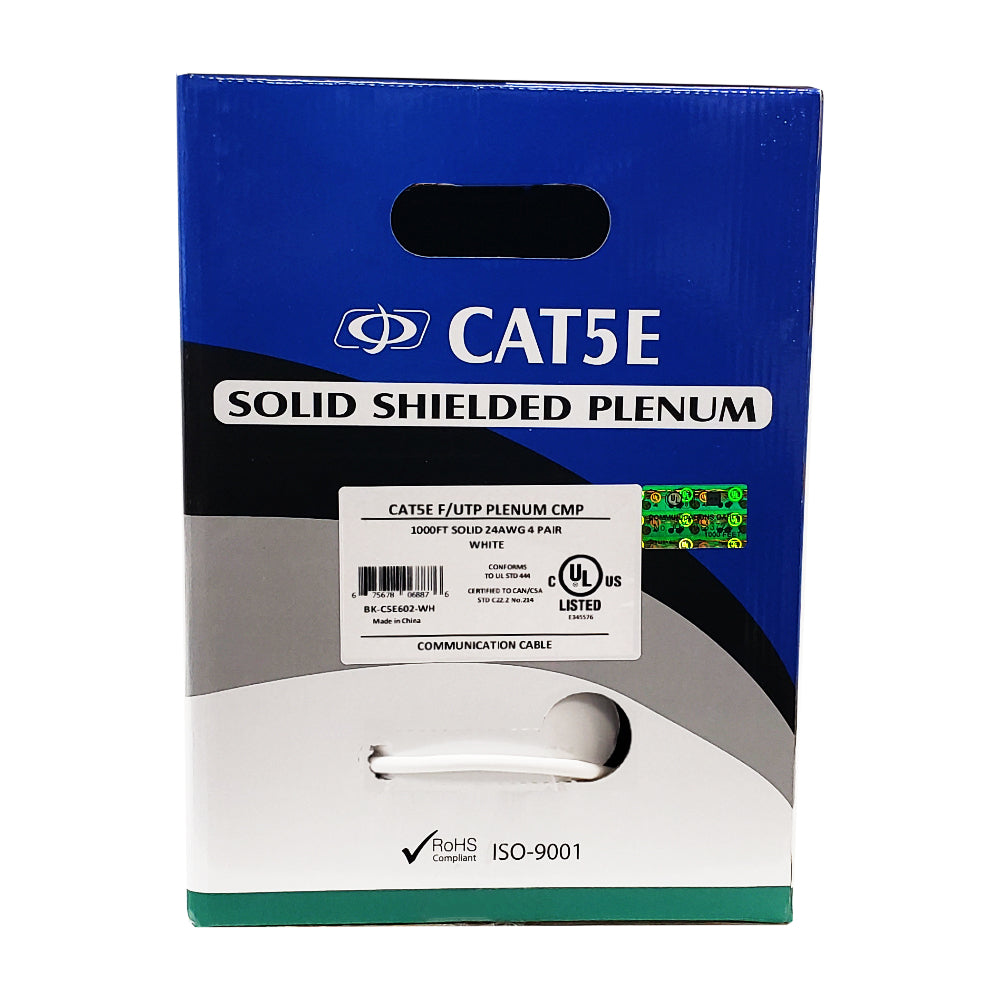

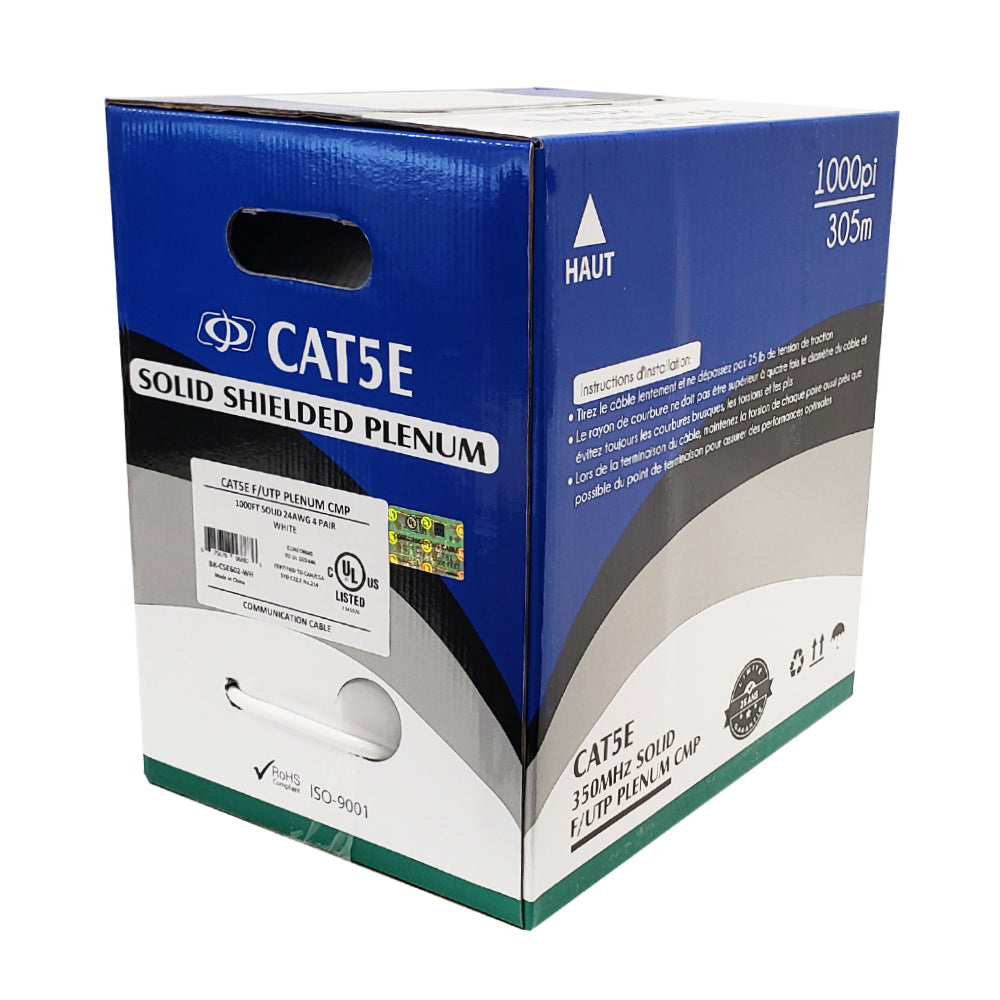

| BK-C5E602-WH | White | 34.0 lb |
