Description

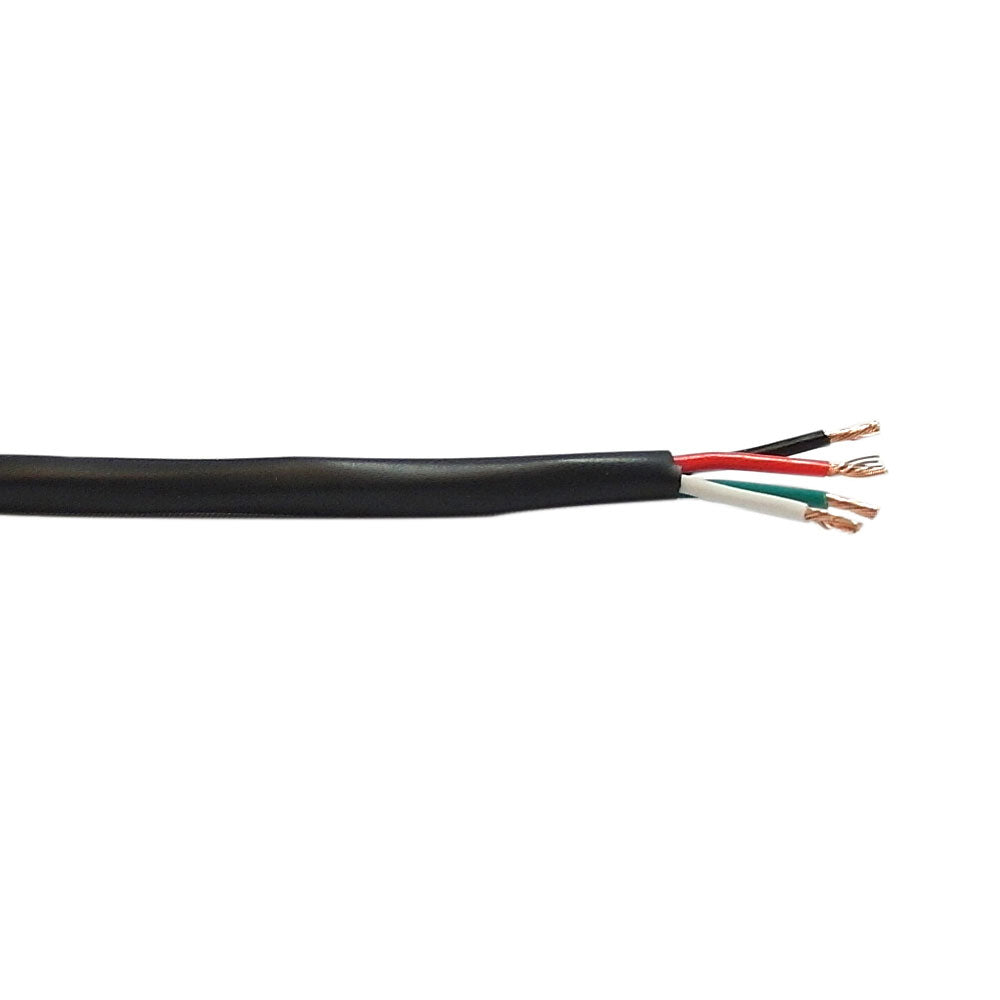

This 4 conductor 18AWG stranded unshielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|

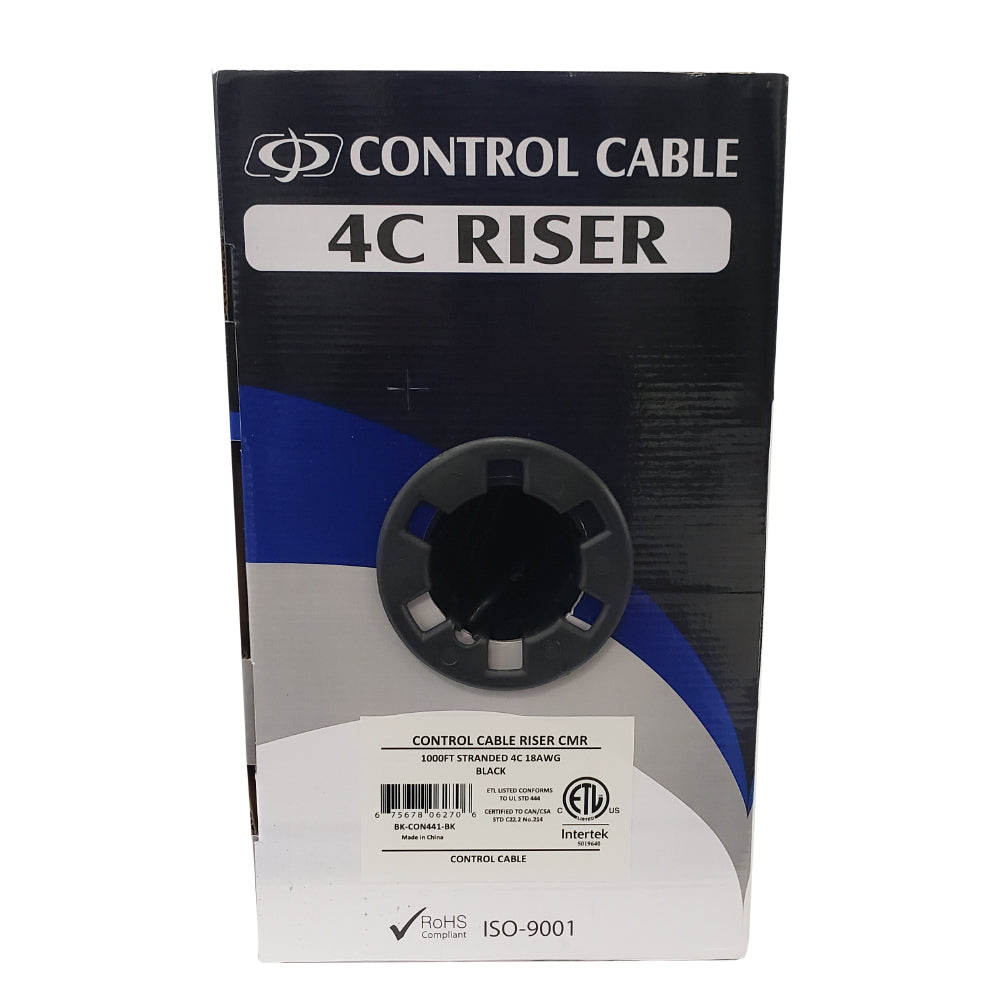

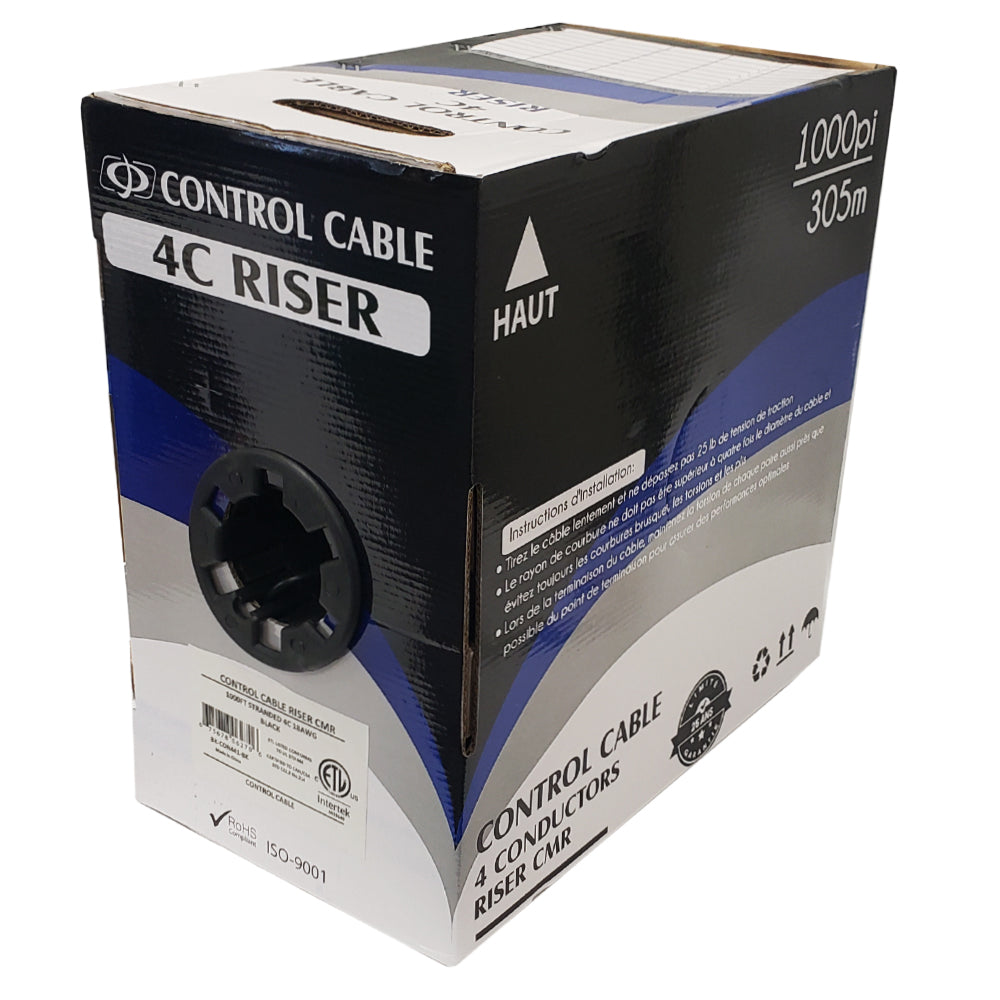

| Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | Black |

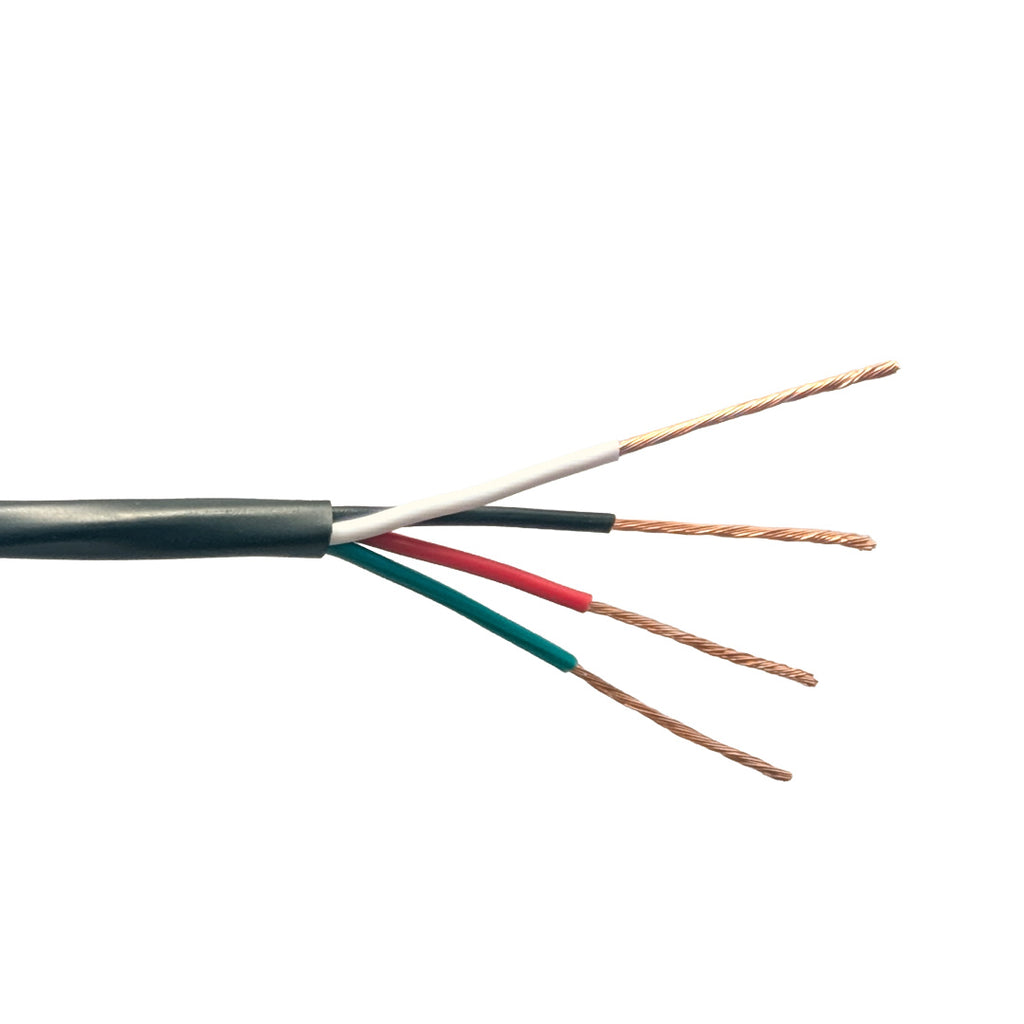

| Number of Conductors | 4 Conductors (Black/Red/White/Green) Oxygen Free Bare Copper |
| Insulation Material | PVC |
| Jacket Thickness | 0.45mm |
| Wire Gauge | 18 AWG |
| Stranding | 16*0.25mm |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Ripcord | Nylon |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Certifications | |
| RoHS | Yes |
| c(ETL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 37.94 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON441-BK | 37.0 lb |
