Description

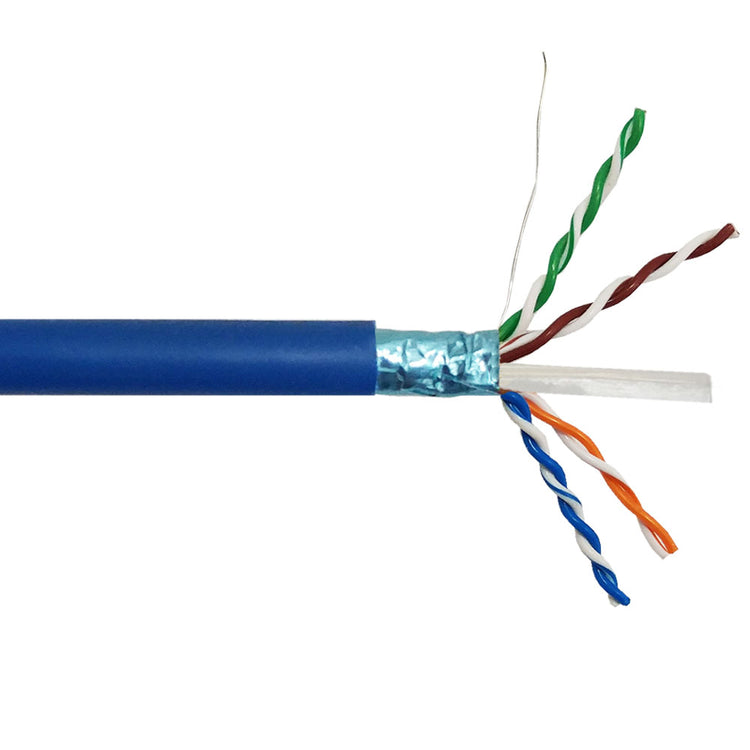

This bulk plenum rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires with an overall foil shield. It is typically used as in-wall premise wiring and terminated from a patch panel to a Cat6a jack.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black / Blue / White |
| Number of Pairs | 4 Pairs 1.Brown * White/Brown 2.Blue * White/Blue 3.Orange * White/Orange 4.Green * White/Green |
| Wire Gauge | 23 AWG Solid |
| Conductor Material | 100% Bare Copper |
| Conductor Size | 0.023 inches [0.585±0.006mm] |
| Insulation Outer Diameter | 0.044 inches [1.12±0.05mm] |
| Tape Drain Wire | 24AWG Solid Tinned Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Nominal Thickness | 0.0197 inches [0.50mm] |
| Jacket Outer Diameter | 0.2756±0.012 inches [7.0±0.3mm] |
| Jacket Rating | CMP/FT6 [Plenum Rated] |
| Cable Shielding | Aluminum/Poly Tape 100% coverage with 25% overlapping |
| Separator | SAMP® FEP CROSSWEB |
| Ripcord | Kevlar |
| Temperature Rating | -20℃ ~ +80℃ |
| Electrical Characteristics | |
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Characteristic Impedance | 1-100MHz,100±15%;101-250MHz,100±22%;251-550MHz,100±25% |
| Velocity of Propagation | ≥65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ≦5% |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 46.18 lbs [20.8kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-C6A602-BK | Black | 53.0 lb |
| BK-C6A602-BL | Blue | 53.0 lb |
| BK-C6A602-WH | White | 53.0 lb |
