Description

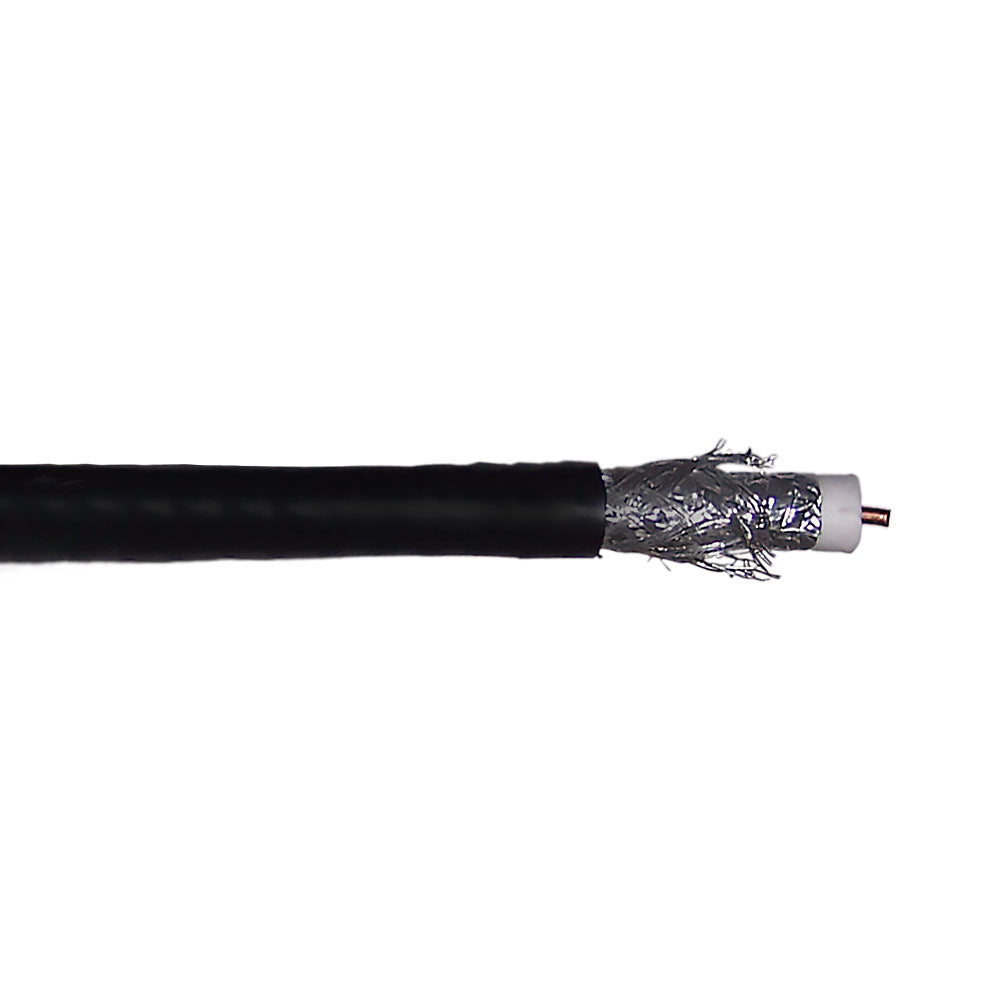

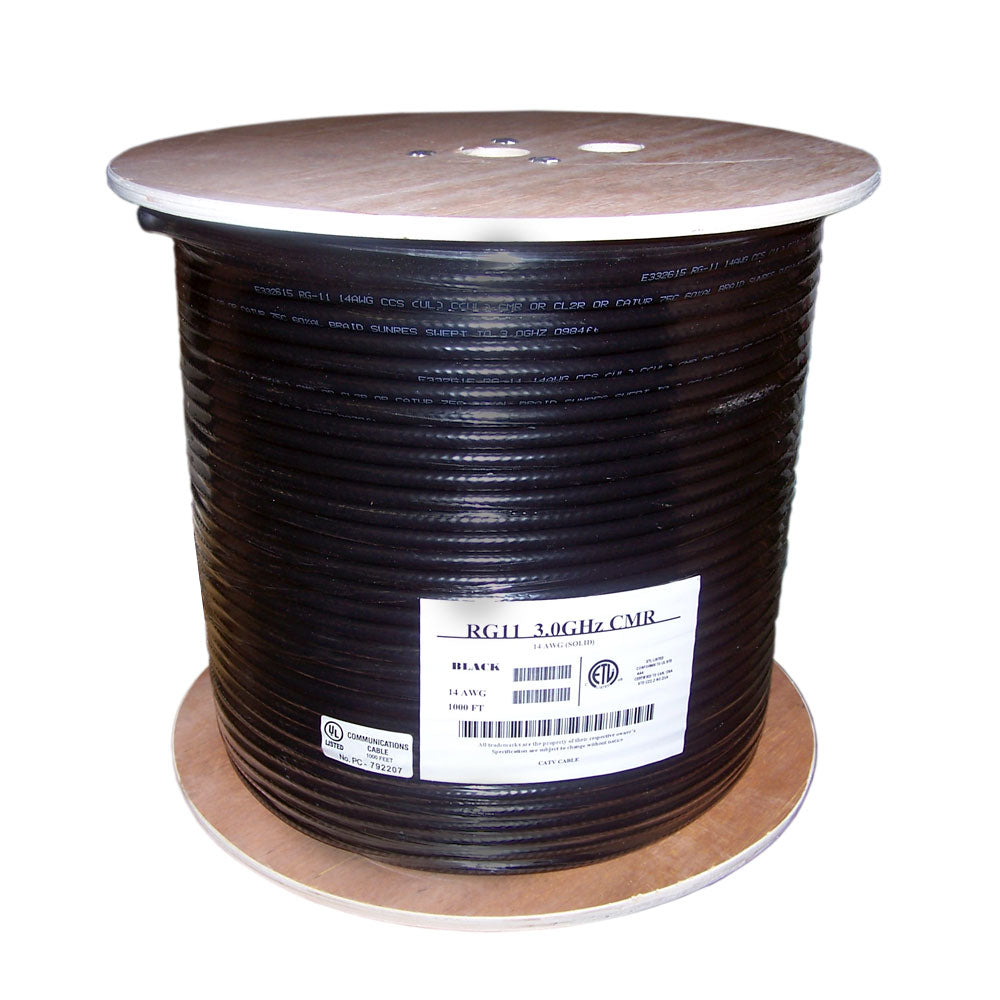

This bulk RG11 cable is 1000 feet in length and consists of a 14AWG solid center conductor. It is ideal for long run CATV video applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 10.16mm |
| Wire Gauge | 14AWG |
| Conductor Material | 1/1.63mm Copper Clad Stee |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | 60%Braid + 100% Bonded Aluminum Foil |
| Insulation | 7.11mm Foamed Polyethylene |
| Operating temperature | -20~ 75℃ |
| Performance | |
| Impedance | 75 Ohm |
| Max. Attenuation | 1GHz |
| Capacitance | 54±3pF/m |
| Return Loss | 20dB Min |
| Approvals | |
| c(ETL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 60 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CXRG11 | 60.0 lb |
