Description

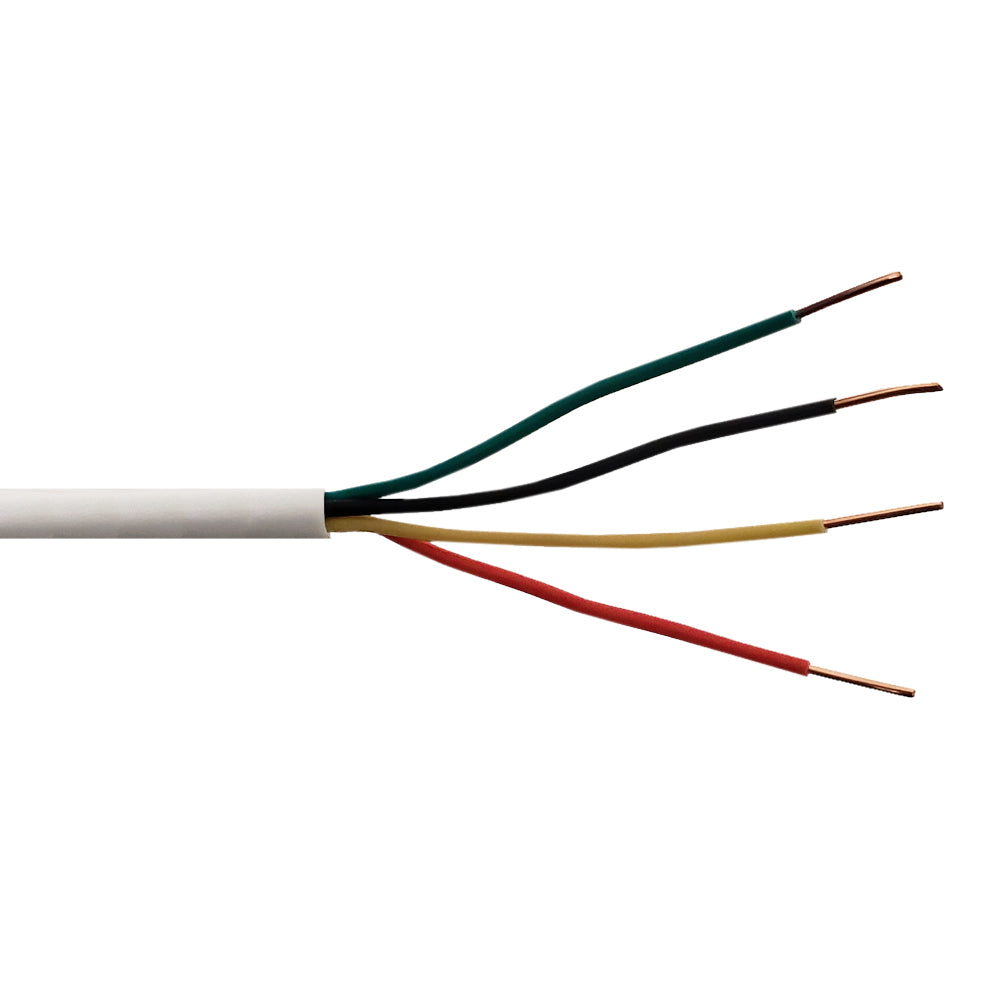

This bulk riser rated security alarm cable consists of 4 conductors of 22 gauge wire. It is ideal for wiring for security systems, intercoms and power-limited controls. The cable is riser (CMR) rated, ETL listed and RoHS Compliant. Ideal for use in cable runs within a vertical riser or within an area designated specifically as a non-plenum environment.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black/White |
| Cable Diameter | 3.0 mm |
| Number of Conductors | 4 Conductors |
| Wire Gauge | 22AWG |
| Conductor Material | 100% Bare Copper - Oxygen-Free |
| Insulation | 1.0mm PE |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] |
| Cable Shielding | None |
| Temperature Rating | -20℃ ~ 75℃ |
| Approvals | |
| c(ETL)us | Yes |
| ISO/IEC 9001 | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 18.2 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-SEC440-BK | Black | 15.0 lb |
| BK-SEC440-WH | White | 15.0 lb |
