Description

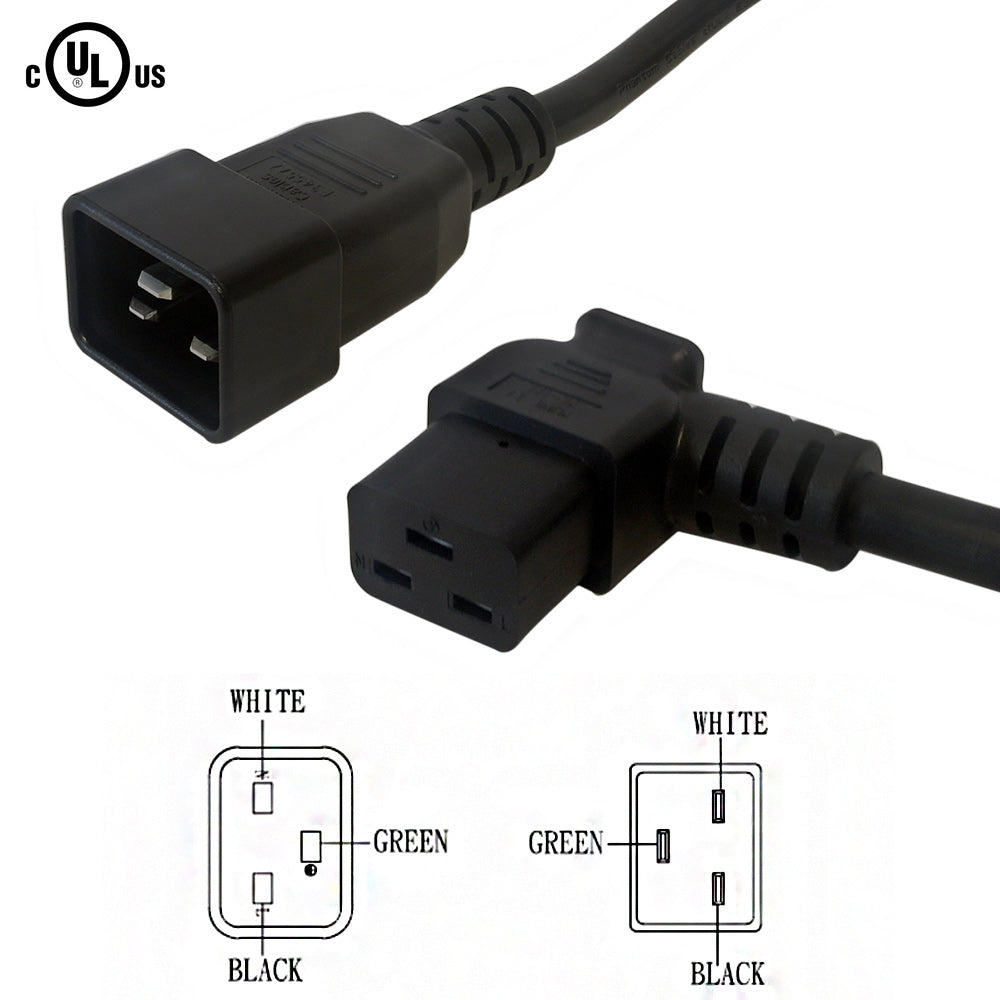

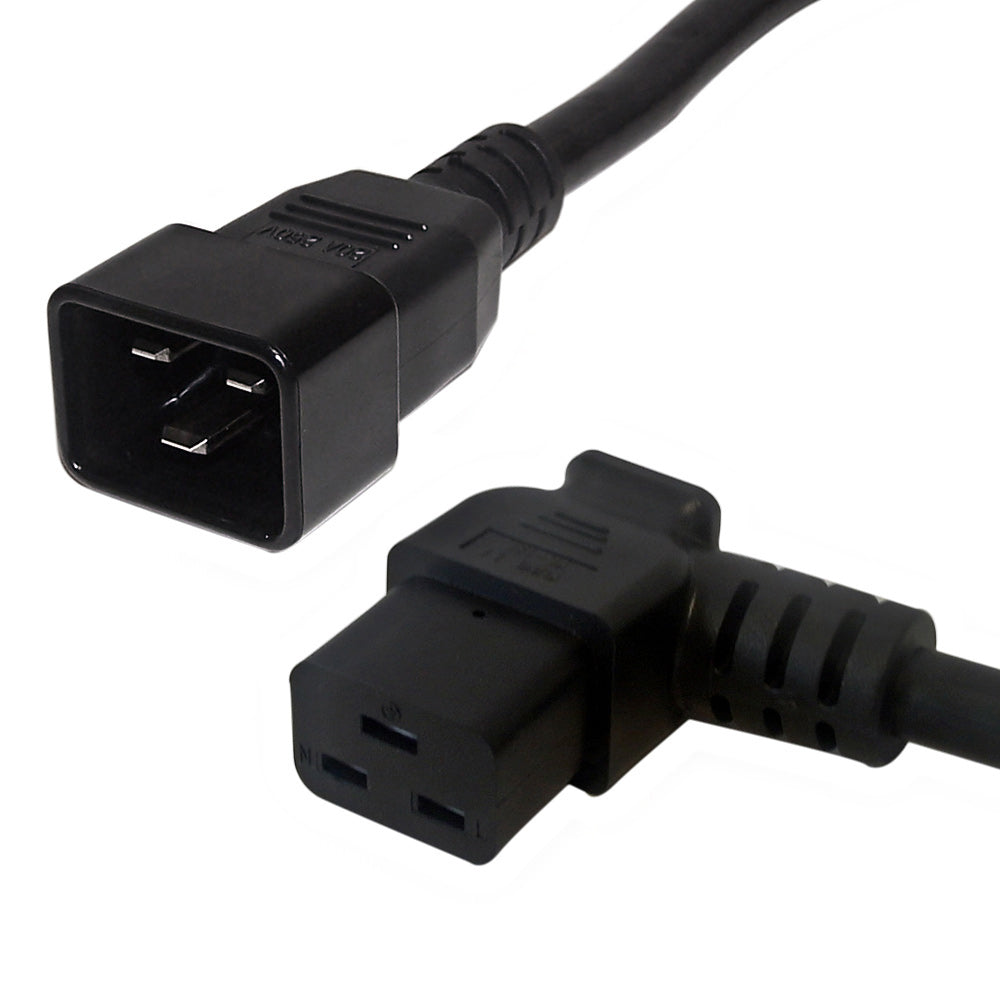

This power cord consists of a C20 male on one end and a C19 left angle female on the other end. It is typically used to connect a server to a PDU in a data center environment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Cable Length | 12 foot [3.6m] |
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 12 AWG |
| Jacket | Heavy duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20℃ to 105℃ |
| Connector(s) | |
| Connector A | IEC 60320 C19 Left Angle |
| Connector B | IEC 60320 C20 |
| Performance | |
| Power Rating | 20 Amp / 250 Volt |
| Approvals | |
| C19 | c(UL)us |
| C20 | c(UL)us |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.85 lbs [0.8kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
| SKU | Weight | |
| PW-125L9-12 | 1.23 lb |
