Description

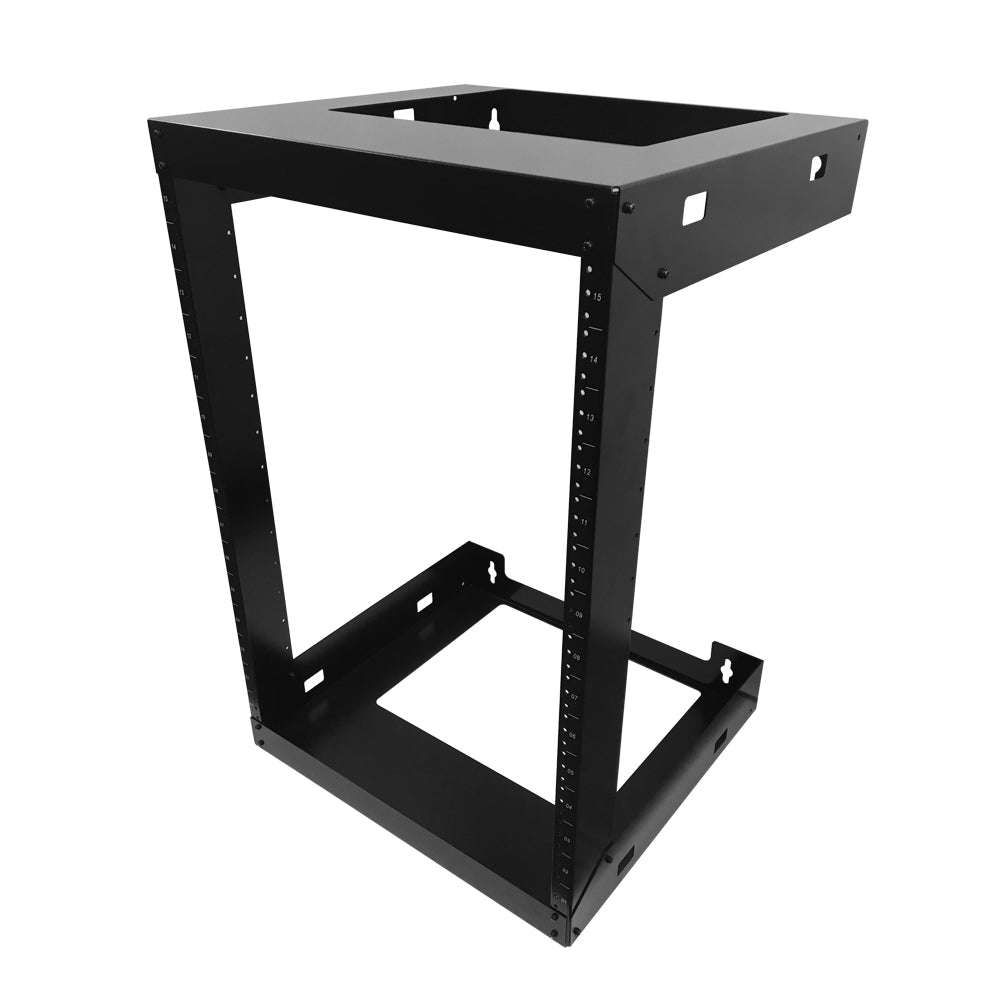

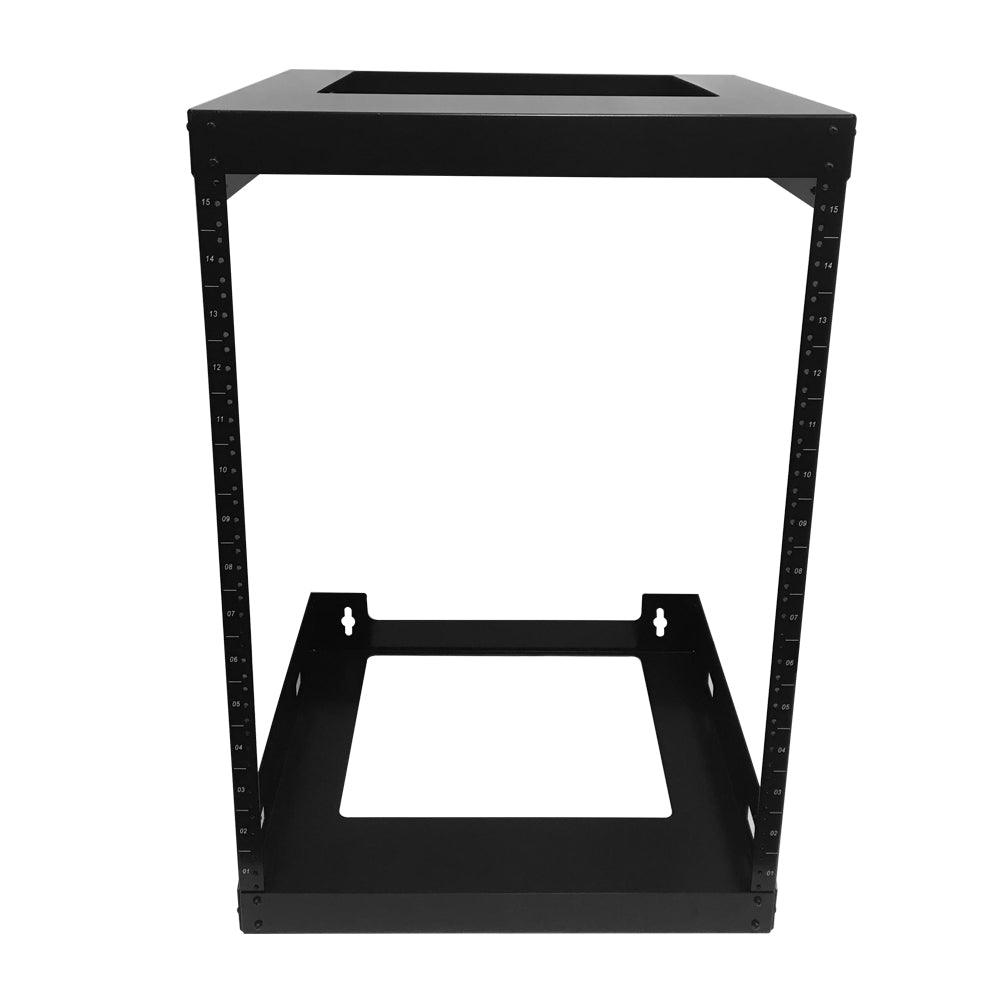

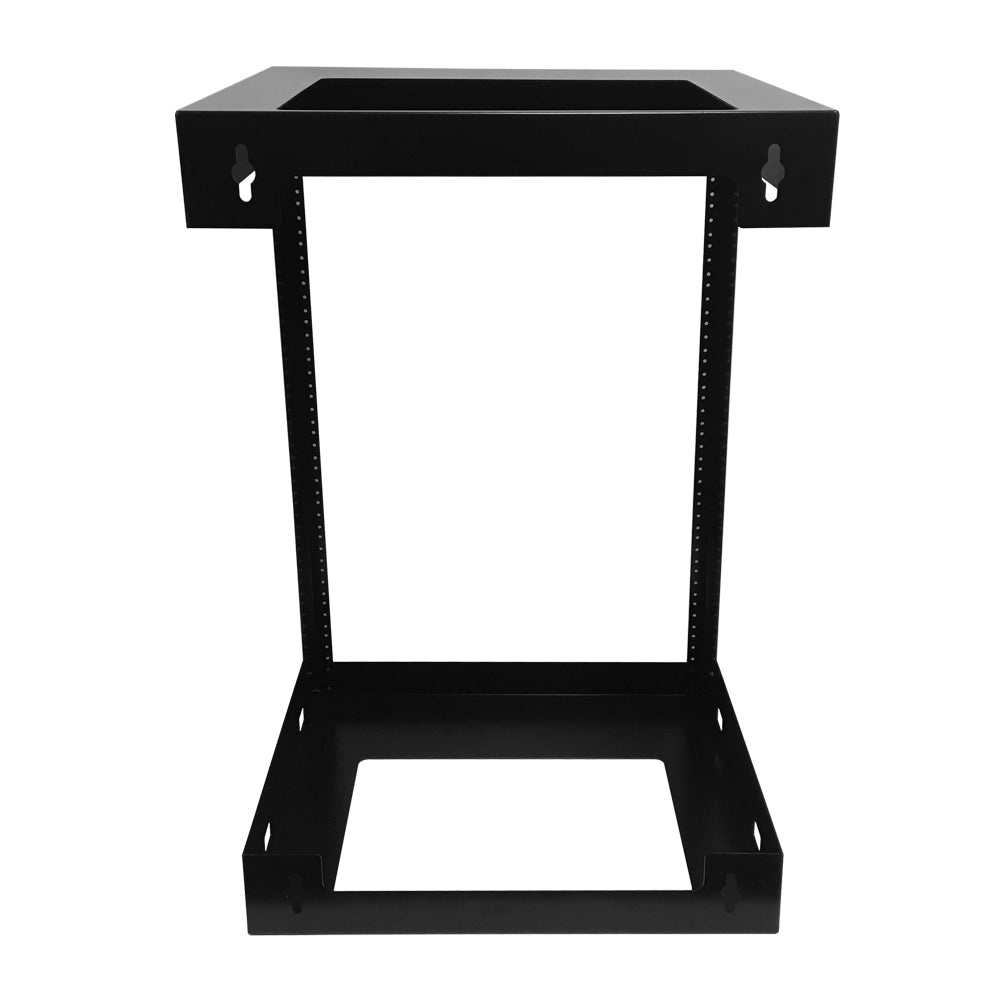

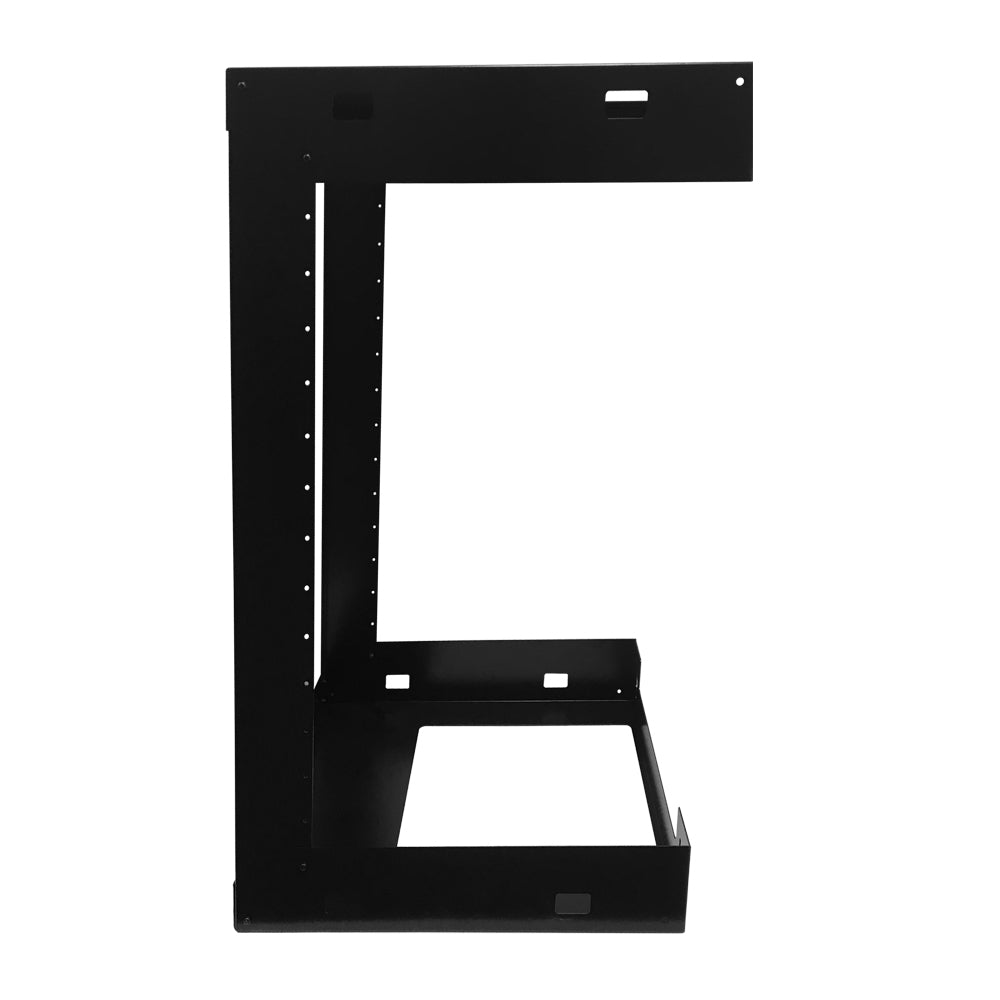

This open frame wall mount rack is 15U in height and 18 inch in depth. It is used for mounting 19 inch wide networking equipment.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | SPCC Cold Rolled Steel |
| Material Thickness | Rails:2.0mm, Others: 1.5mm |
| Mounting Height in units | 15U |
| Mounting Height in inches | 26.25 inch |
| Mounting Depth | 18 inch |

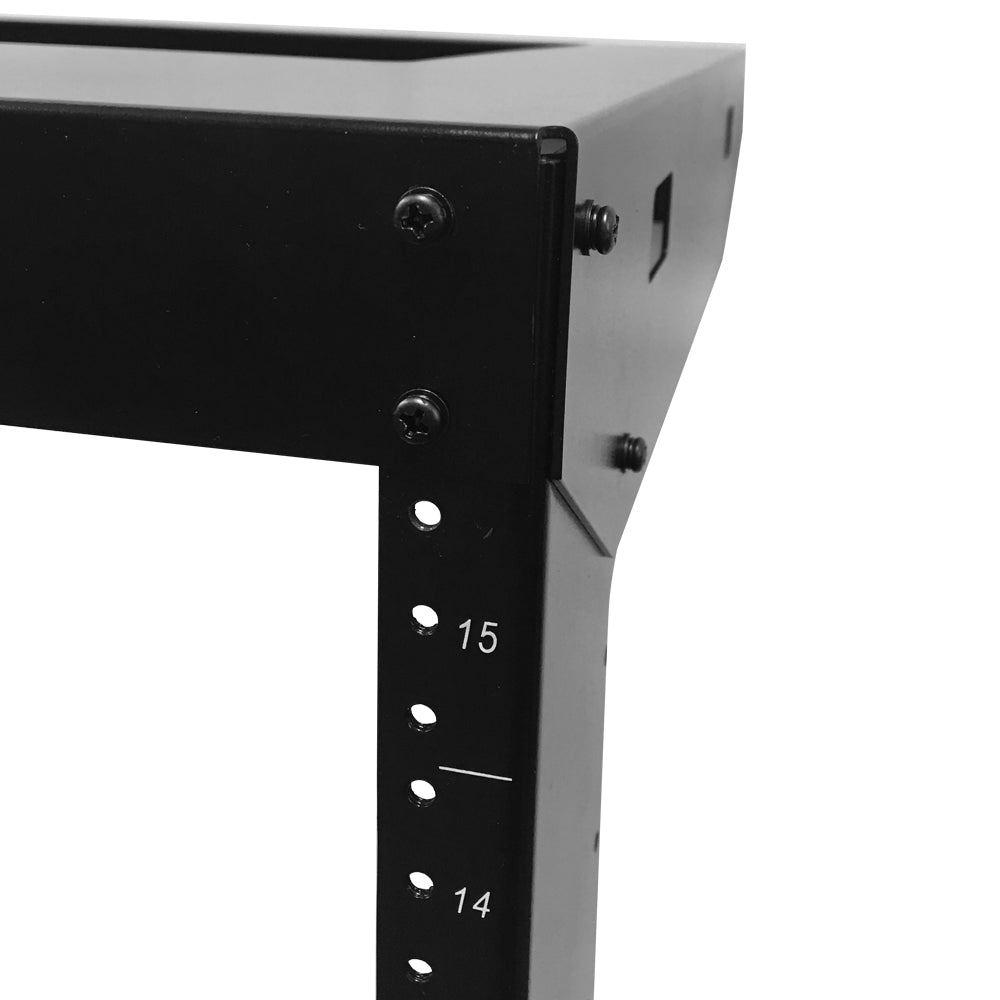

| Rail Mounting Style | 10-32 Threaded Hole |

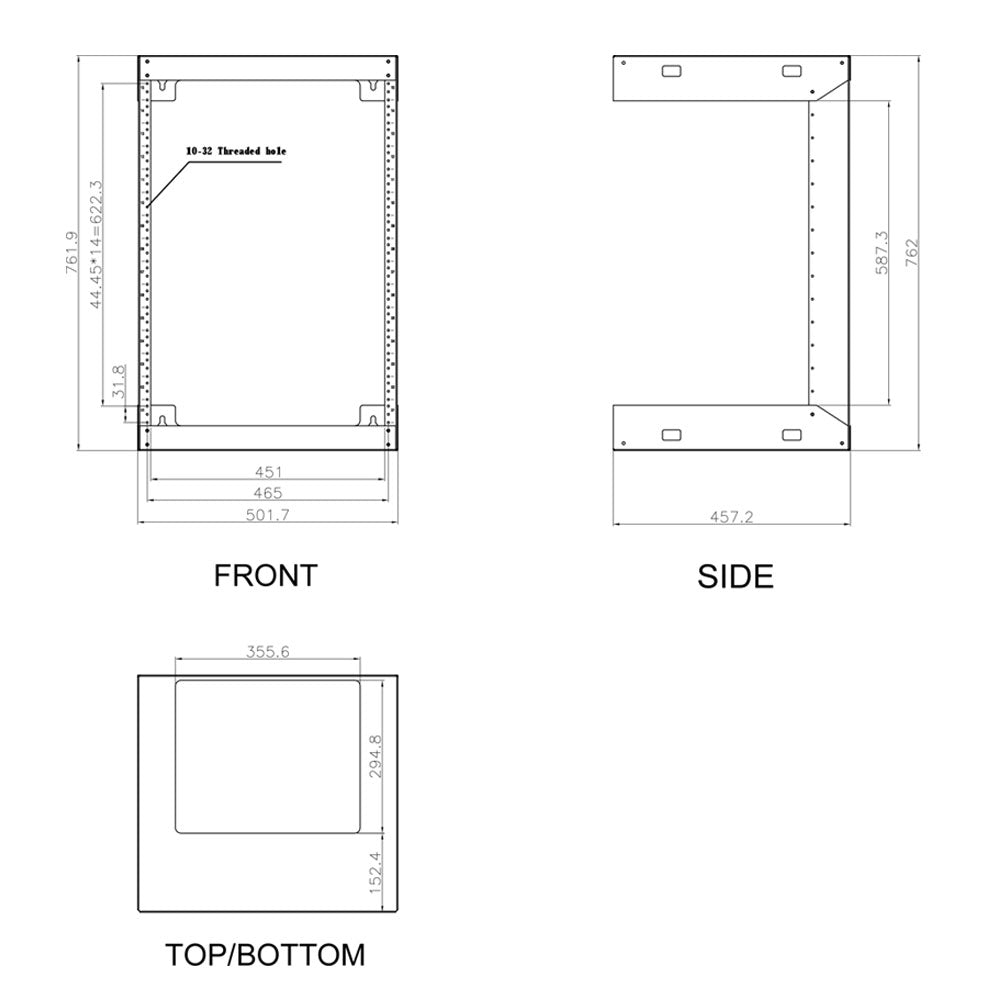

| Overall Dimensions | 30(H) x 19.75(W) x 18(D) inch |
| Load Capacity | 150 lbs [68 kg] |
| Wall Mounting Hardware | Not Included |
| Equipment Mounting Hardware |
Included |
| Approvals | |
| ANSI/EIA Compliant | Yes |
| RS-310-DCompliant | Yes |
| IEC60297-2Compliant | Yes |
| DIN41494Compliant | Yes |
| PART1Compliant | Yes |
| PART7Compliant | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 25.35 lbs [11.5 kg] |
| Contents | |
| Included in Package | 1 - Wall Mount Bracket (Un-Assembled, Flat Packed) |
| 16 - Assembly Screws | |
| 20 - 10/32 Screws | |
Spec Sheets
Product Weights
| SKU | Weight | |
| RM-230-15U | 25.35 lb |
