1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0
1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0

1x4 HDMI 4K Extender over CAT5E/6 (70m) - HDBaseT - YUV 4:2:0

Video ExtendersSKU: VE-HDBT-216
Price:
$1,494.55 CAD
Stock:
In stock


Description

This 1x4 HDBase-T HDMI extender allows you to extend four displays up to 230ft (70m) away from your source device over Cat5e/6 cables at a resolution of 4K@60Hz or 328ft (100m) at a resolution of 1080P@60Hz.

Physical Characteristics
Color Black
Housing Metal Enclosure
Operating Temperature -5° ~ 35°C
Power
Input Voltage 125 V
Power Supply (Transmitter) 12 Volt DC Converter
Connector(s)
Transmitter HDMI Input Female, RJ45 Female
Receiver HDMI Output Female, RJ45 Female
Performance
Video Resolution (70m) Maximum 4K*2K@60Hz
Video Resolution (100m) Maximum 1080p@60Hz
HDCP Compliant Yes, HDCP 2.2/1.4
3D Compliant Yes
IR Control Yes, Wide-Band Bi-Directional IR control (38 ~ 56 kHz)
POC Yes, Receiver Powered by HDBaseT Splitter
EDID Management Yes
Environmental
RoHS Yes
Certification(s)
CE Yes
FCC Yes
Packaging Information
Package Quantity 1
Product Weight 5.6 lbs [2.5kg]
Package Weight 10.4lbs [4.7 kg]

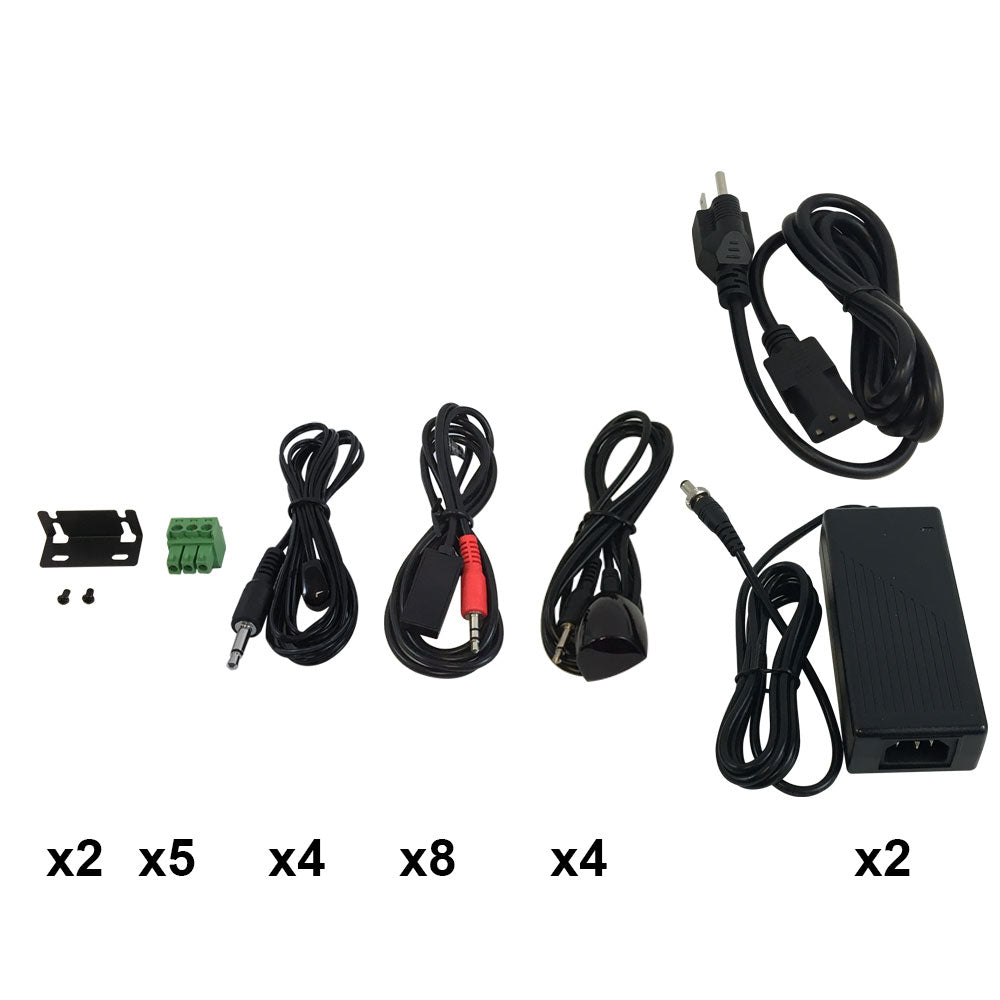

Contents
Included in Package 1 – Extender
4 – Receiver
8 - IR Tx
8 - IR Rx
2 - DC12V Power Adapter
5 - RS232 Cable Termination Phoenix Plugs
1 - Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VE-HDBT-216 10.4 lb
