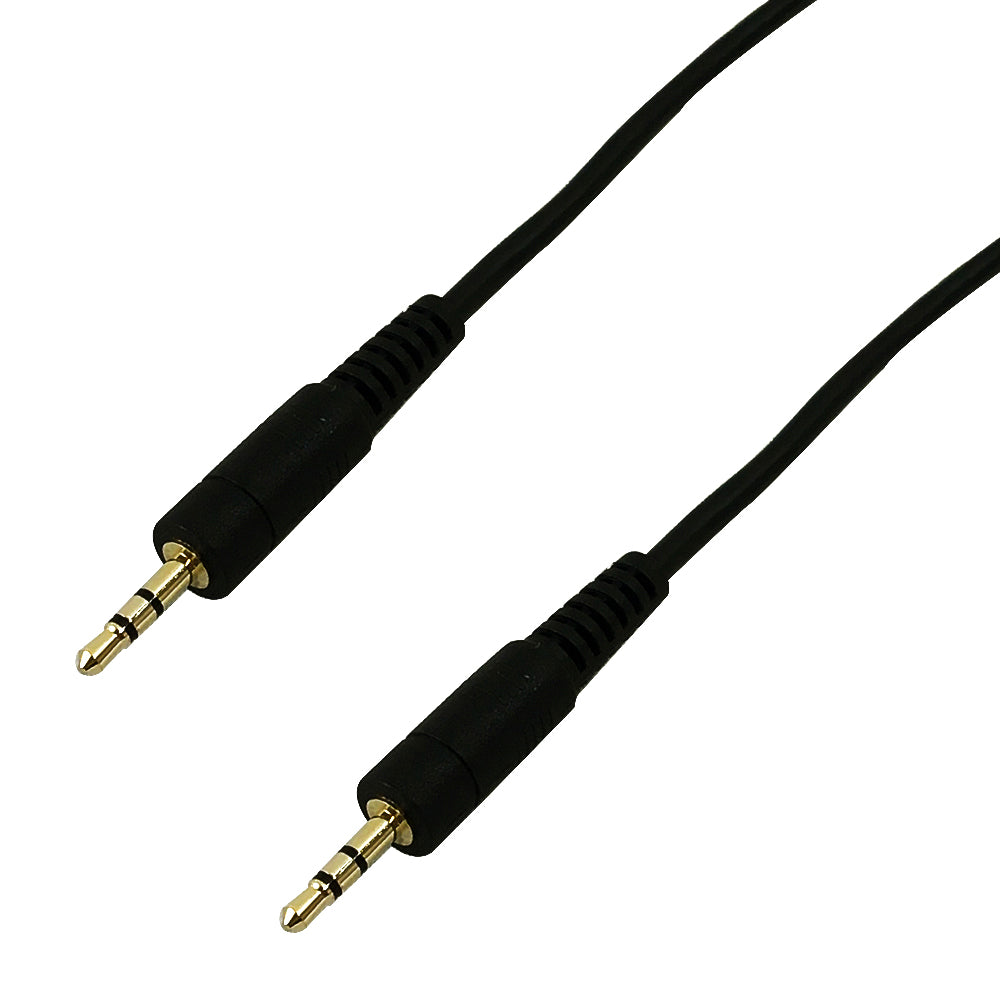

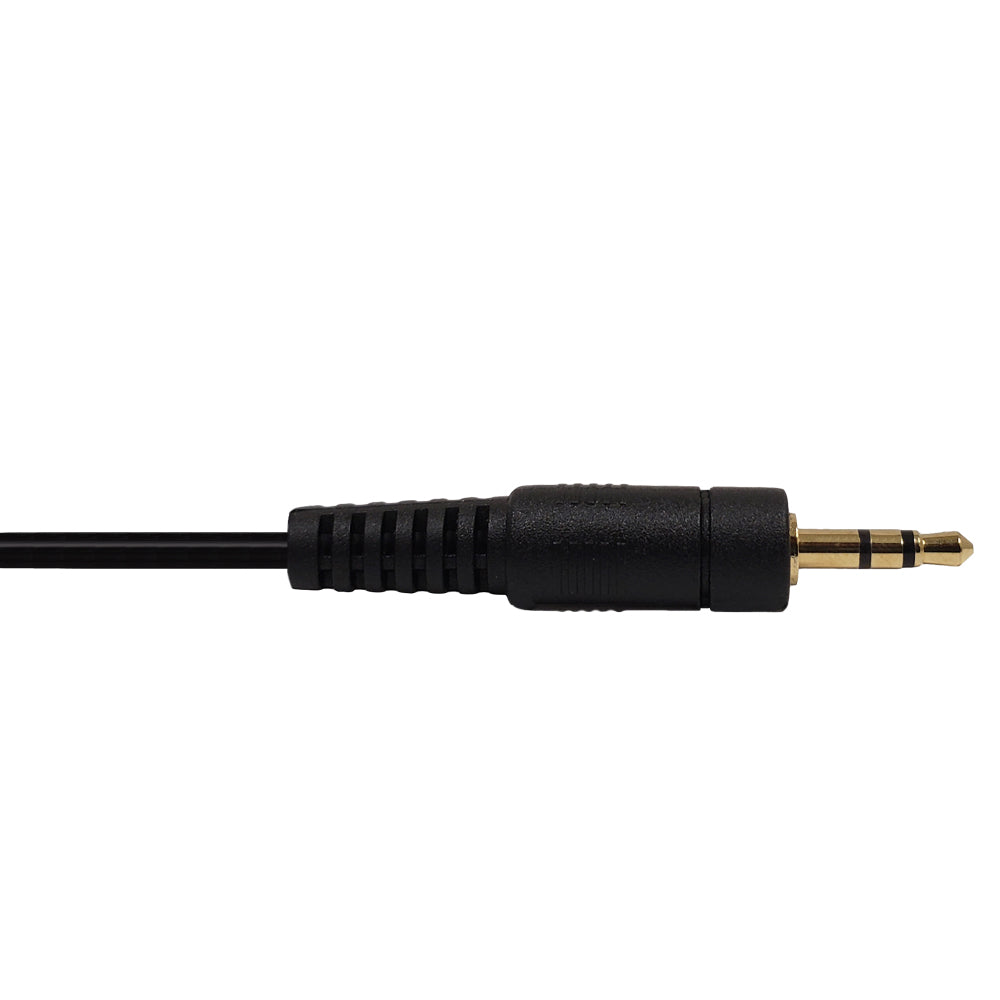

2.5mm Stereo Male to Male Cable - Riser Rated CMR/FT4

2.5mm CablesSKU: AUD-120-01

Length: 1ft
Color: Black
Price:
Sale price$1.75 CAD
Stock:
In stock


Description

Overview

This ultra slim stereo audio cable has a 2.5mm male on one end and a 2.5mm male on the other. It is typically used to connect 2.5mm mobile devices such as some MP3 players and smart phones to 2.5mm stereo inputs. The ultra slim connectors and cable are designed to be lightweight, durable and fit perfectly in mobile devices. They also work with most protective cases.

Slim Connector Design

The connector moldings have a slim profile to fit properly in today's compact electronic devices.

Flexible Cable Shielding

This audio cable features 85% tin copper spiral braid cable shielding for increased flexibility.

Ultra-Thin Cable with a Riser Fire Rated Jacket

The ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use.

Specifications

Physical Characteristics
Connector Plating Gold
Cable Diameter 2.8mm
Wire Gauge 28AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 85% Bare Copper Spiral
Strain Relief Molded PVC
Storage Temperature -10 „ƒ to +70 „ƒ
Operating Temperature 0 „ƒ to + 45 „ƒ
Connectors
Connector A 2.5mm Stereo Male
Connector B 2.5mm Stereo Male
Connector A Diameter 7.6mm
Connector B Diameter 7.6mm
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft 25ft 35ft 50ft
0.02 lbs 0.06 lbs 0.07 lbs 0.10 lbs 0.15 lbs 0.25 lbs 0.30 lbs 0.45 lbs
SKU Options Weight
AUD-120-01 1ft / Black 0.07 lb
AUD-120-01WH 1ft / White 0.07 lb
AUD-120-03 3ft / Black 0.15 lb
AUD-120-03WH 3ft / White 0.15 lb
AUD-120-06 6ft / Black 0.21 lb
AUD-120-06WH 6ft / White 0.21 lb
AUD-120-10 10ft / Black 0.33 lb
AUD-120-10WH 10ft / White 0.33 lb
AUD-120-15 15ft / Black 0.5 lb
AUD-120-15WH 15ft / White 0.5 lb
AUD-120-25 25ft / Black 0.77 lb
AUD-120-25WH 25ft / White 0.77 lb
AUD-120-35 35ft / Black 1.1 lb
AUD-120-35WH 35ft / White 1.1 lb
AUD-120-50 50ft / Black 1.55 lb
AUD-120-50WH 50ft / White 1.55 lb
