Overview

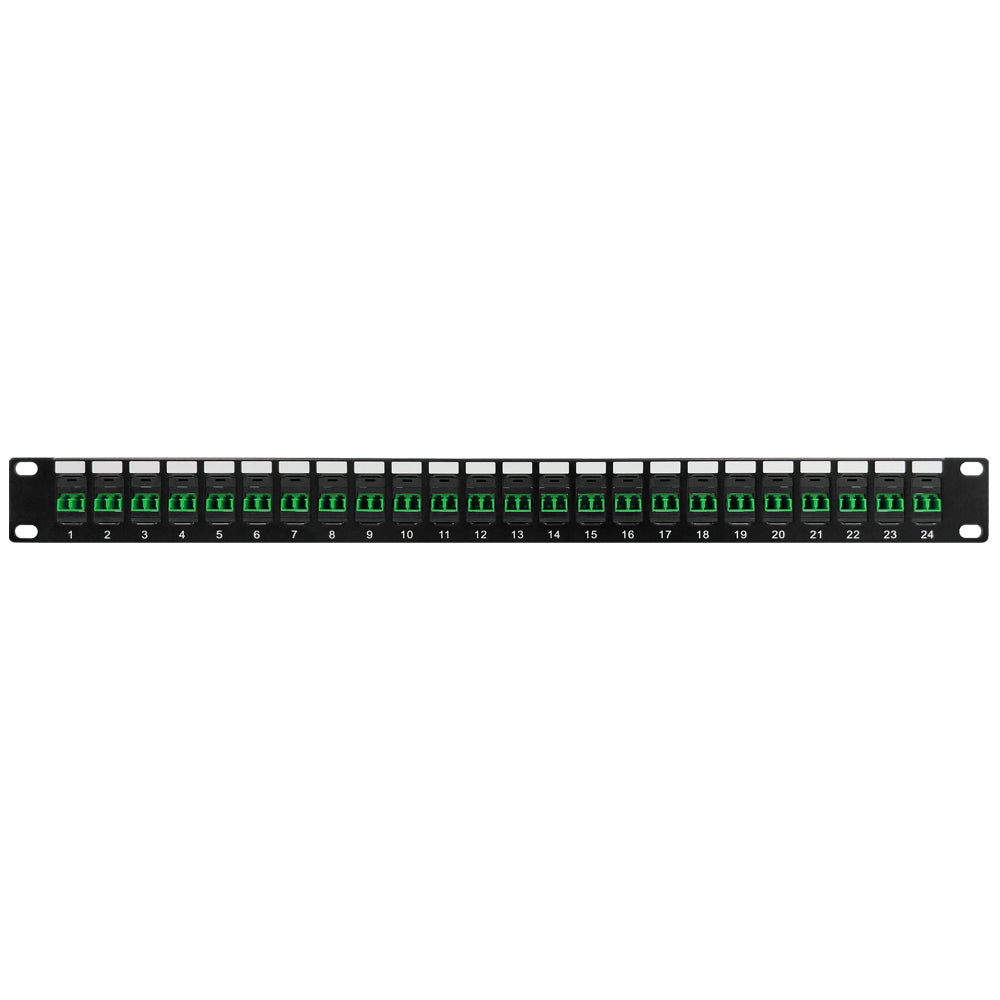

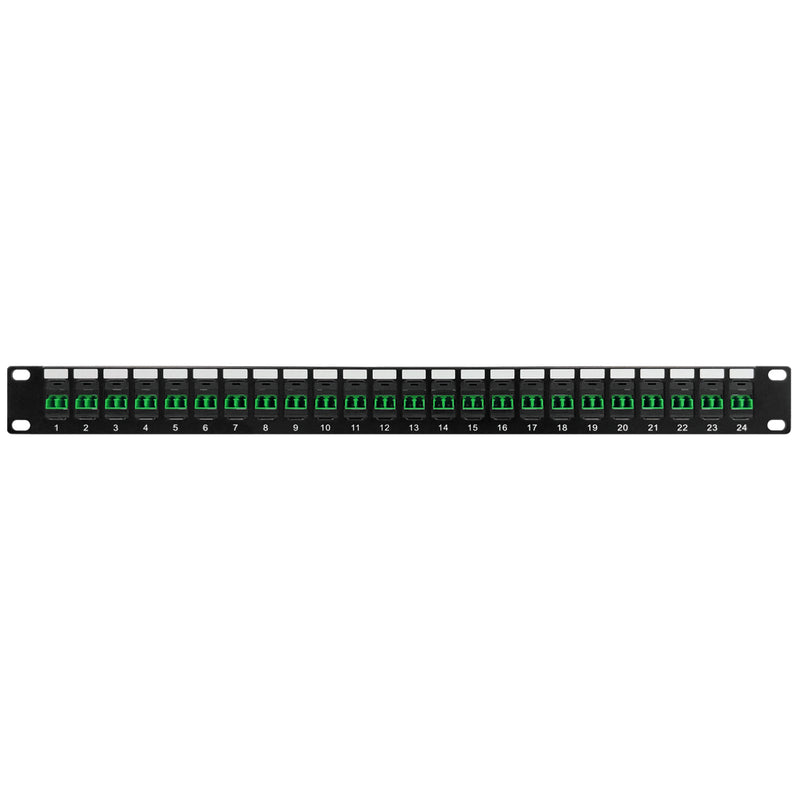

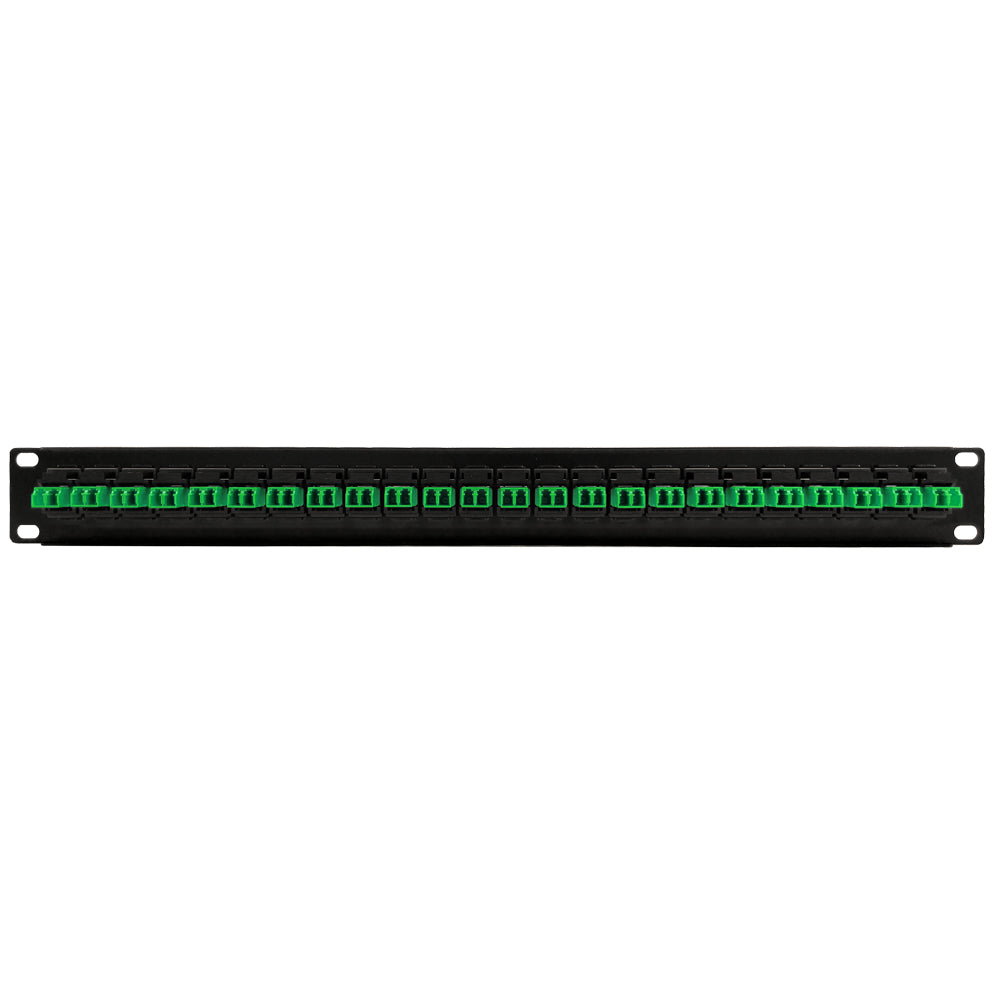

This 24 port patch panel comes loaded with 24 duplex LC APC 9 micron singlemode female to female couplers. It provides a quick and easy solution for patching terminated fiber cables. It is 1U in height and meant to be mounted on a 19" rack or cabinet.
|
Compact, Economical DesignThis 19 inch rackmount patch panel provides an affordable and compact solution for rackmount fiber applications. It has 24 slots for patching duplex LC APC singlemode fiber cables, while using only 1U of rack space. It is ideal for high density applications. Quick Patching of Terminated Fiber CablesThis fiber optic patch panel is equipped with female jacks on both the front and back to provide easy connection for fiber cables. The front of the panel is labeled for quick identification. The Quality and Convenience You NeedThe preloaded couplers can be easily snapped out and replaced with any standard keystone jacks for easy customized solution. The patch panel is made of cold rolled steel which offers durability and long lasting quality, It also has standard mounting holes for installation on any 19 inch rackmount.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Steel |
| Ports | 24 |
| Fiber Classification | 9 micron Singlemode |
| Product Dimensions | 19" W x 1.75" H [48 cm W x 4.45 cm H] |
| Height in Units | 1U |
| Rackmountable | Yes, 19" Rack or Cabinet |
| Connectors | |
| Front | 24 - LC/LC APC Singlemode Duplex Female |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.9 lbs [0.86 |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
| SKU | Weight | |
| PP-FO208A-24 | 1.9 lb |
