Overview

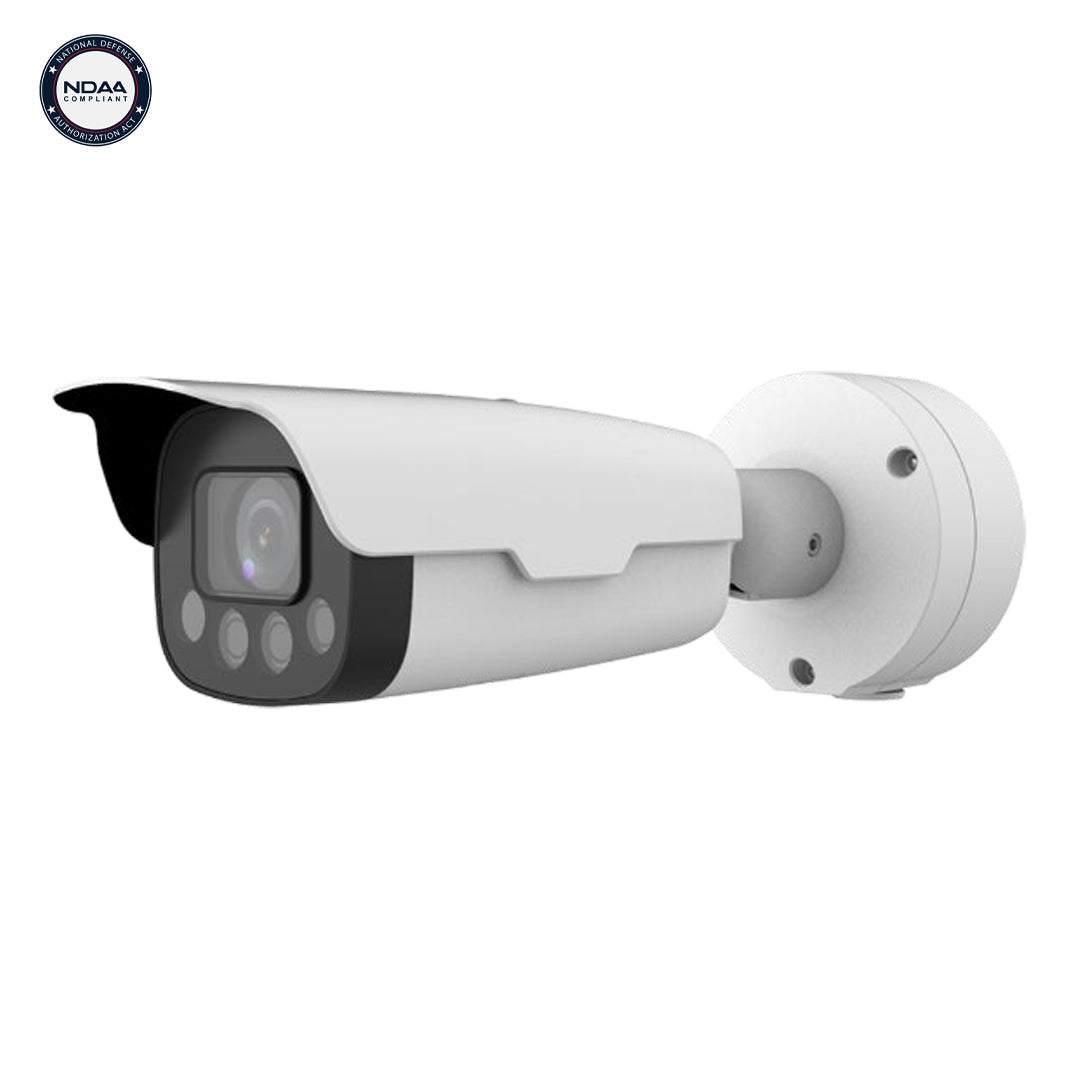

This 2MP license plate recognition bullet camera provides sharp, high definition images in daylight or nighttime color settings to capture the license plates of cars and record them for easy access. The camera has 4.7mm to 47mm motorized zoom lens. Its maximum resolution is 1920*1080 at 60 fps and supports H.265 video compression technology, which assures savings in bandwidth and storage. Its Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
Note: Certain LPR functions is only available when paired with LPR capable NVR.
 |
Features
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Specifications
| Camera | |
|---|---|
| Image Sensor | 1/2.8” 2MP CMOS |
| Focal length | 4.7 to 47mm, motorized zoom |
| Minimum Illumination | 0.001lux (F1.6) |
| Shutter | Auto/Manual, range: 1/25 to 1/100000 s |
|
Smart |
|
| Application scenario |
Vehicle speed ≤30km/h |
| Vehicle detection mode | Video (default) or inductive loop |
| Capture vehicle head only |
Support |
| License plate number recognition |
Supports recognition of license plates with numbers and letters by default |
| List configuration |
Supports allowlist and blocklist configuration, each list allows 20,000 items |
| Barrier opening policy |
Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID |
| Image | |
| Image collection format | 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60 |
| Resolution |
Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Frame rate | 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1 |
| Video compression | H.264 (default), H.265 |
| ROI | Supports up to 8 regions |
| Video OSD | Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents |
| Image OSD | Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location |
| Structure | |
| Illumination | Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control |
| Sunshield | Long sunshield |
| Bracket | 3-axis mounting bracket |
| Junction box | The camera comes with a junction box for storing tail cable |
| Storage | |
| Edge Storage |
Supports ANR with a Micro SD card, up to 128GB |
| Interface | |
| Network interface | 1 × 10M/100M RJ45 |
| Serial port | 1 × RS485 |
| Boolean output | 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A |
| Boolean input | 2 inputs, supports level/Boolean, with max level up to DC 5V |
| Audio interface | 1 × audio input, 1 × audio output |
| Storage interface | 1 × Micro SD card slot |
| General | |
| Power |
DC 12V±25%, |
| Power Interface |
Ø 5.5mm coaxial power plug |
| Dimensions (Ø x H) |
386mm x 126mm x 130mm |
| Weight | 2.00kg (4.40lb) |
| Working Environment |
-40℃ to 60℃, ≤90% RH |
| Ingress protection | IP67, IK10 |
| Certification | |
| NDAA Compliant | Yes |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SC-HC121-TS8CR-Z-NB | 4.4 lb |
