Description
Overview

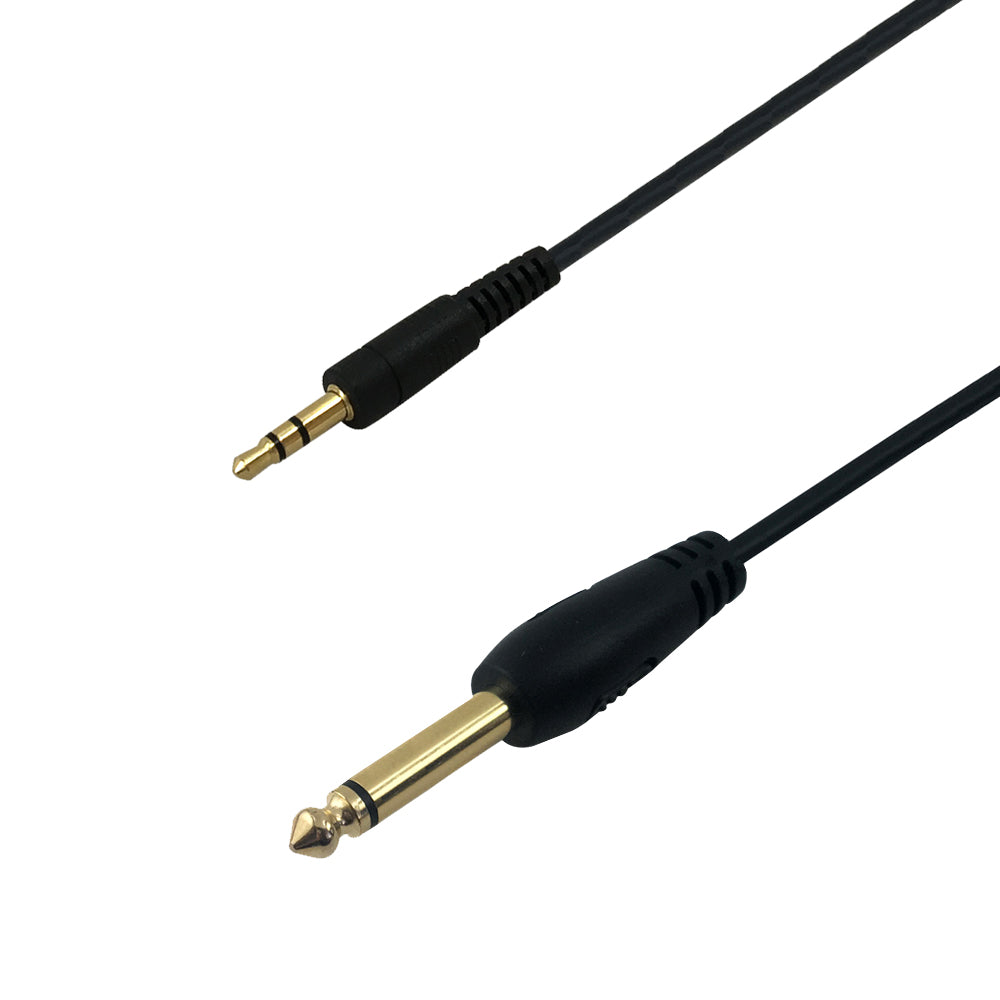

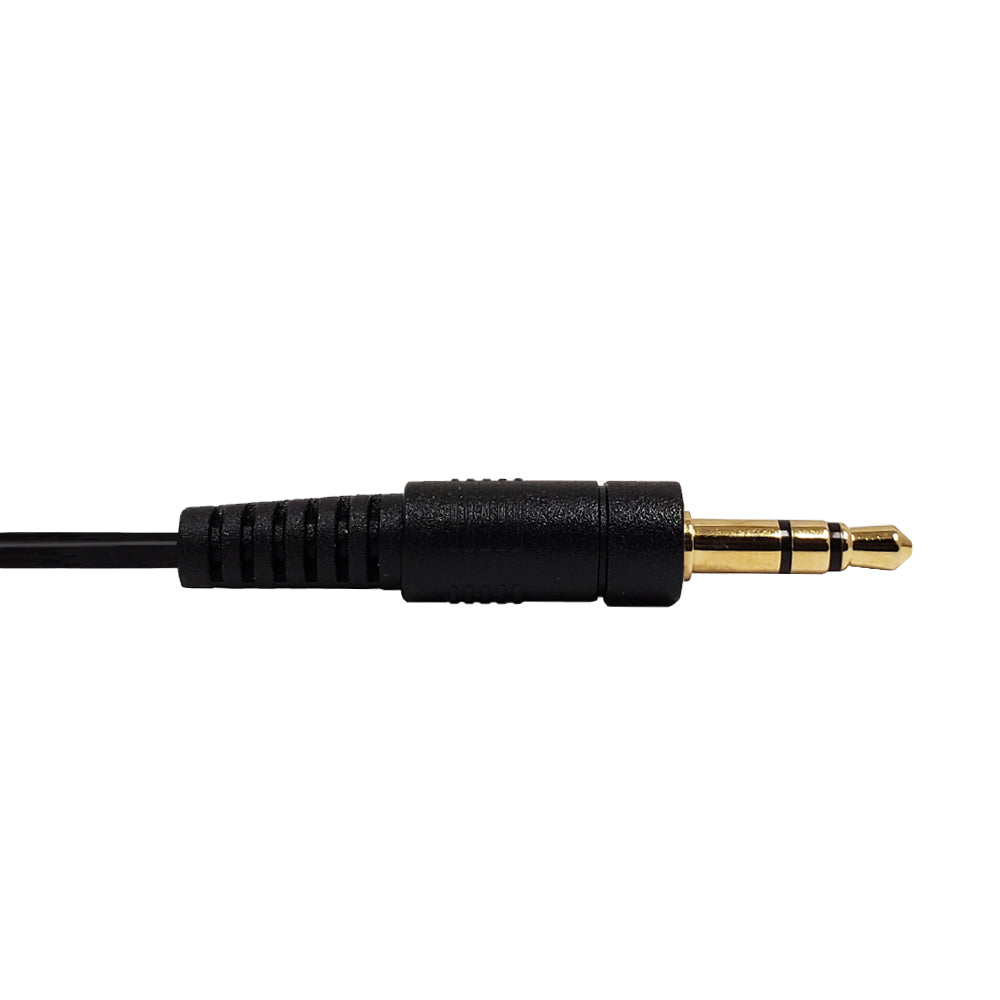

This premium stereo audio cable has a 1/4 inch TS male on one end and a 3.5mm male on the other. It is typically used to connect 3.5mm devices such as PCs and stereo systems to 1/4 inch mono inputs.
|
|
Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CL3/FT4 (Riser CMR) |
| Cable Shielding | 85% Tin Copper Spiral Braid |
| Strain Relief | Molded PVC |
| Storage Temperature | -10 „ƒ to +70 „ƒ |
| Operating Temperature | 0 „ƒ to +45 „ƒ |
| Connectors | |
| Connector A | 3.5mm Stereo Male |
| Connector B | 1/4 Inch TS Mono Male |
| Connector A Diameter | 7.6mm |
| Connector B Diameter | 15mm |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| AUD-410-01 | 1ft | 0.07 lb |
| AUD-410-03 | 3ft | 0.15 lb |
| AUD-410-06 | 6ft | 0.21 lb |
| AUD-410-10 | 10ft | 0.33 lb |
| AUD-410-15 | 15ft | 0.5 lb |
| AUD-410-25 | 25ft | 0.77 lb |
| AUD-410-35 | 35ft | 1.1 lb |
| AUD-410-50 | 50ft | 1.55 lb |
