Description

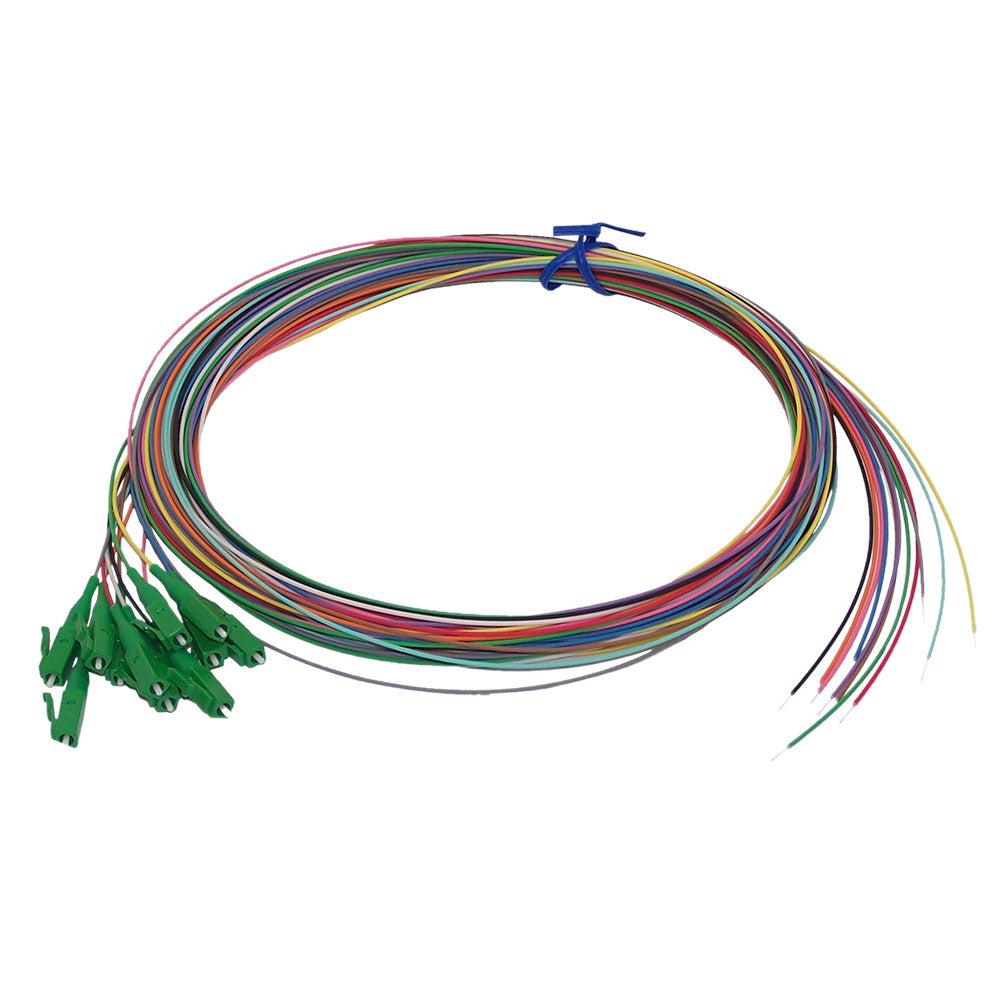

These 9 micron (OS2) fiber optic pigtails have terminated LC/APC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
| Physical Characteristics | |
|---|---|
| Cable Length | 3m [9.84 foot] |
| Color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Cable Diameter | 900 micron |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OS2 |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) |
| Connector(s) | |
| Connector A | 1 - LC/APC Simplex Male |
| Connector B | Un-Terminated |
| Performance | |
| Insertion Loss | ¹0.3db @ 1550nm |
| Return Loss | €°¥55db |
| Speed | 10 Gbps |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 Pack of 12 Cables |
| Product Weight | 0.20 lbs [0.09kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
| SKU | Weight | |
| FO-PT608-10AR-12PK | 0.2 lb |
