Description

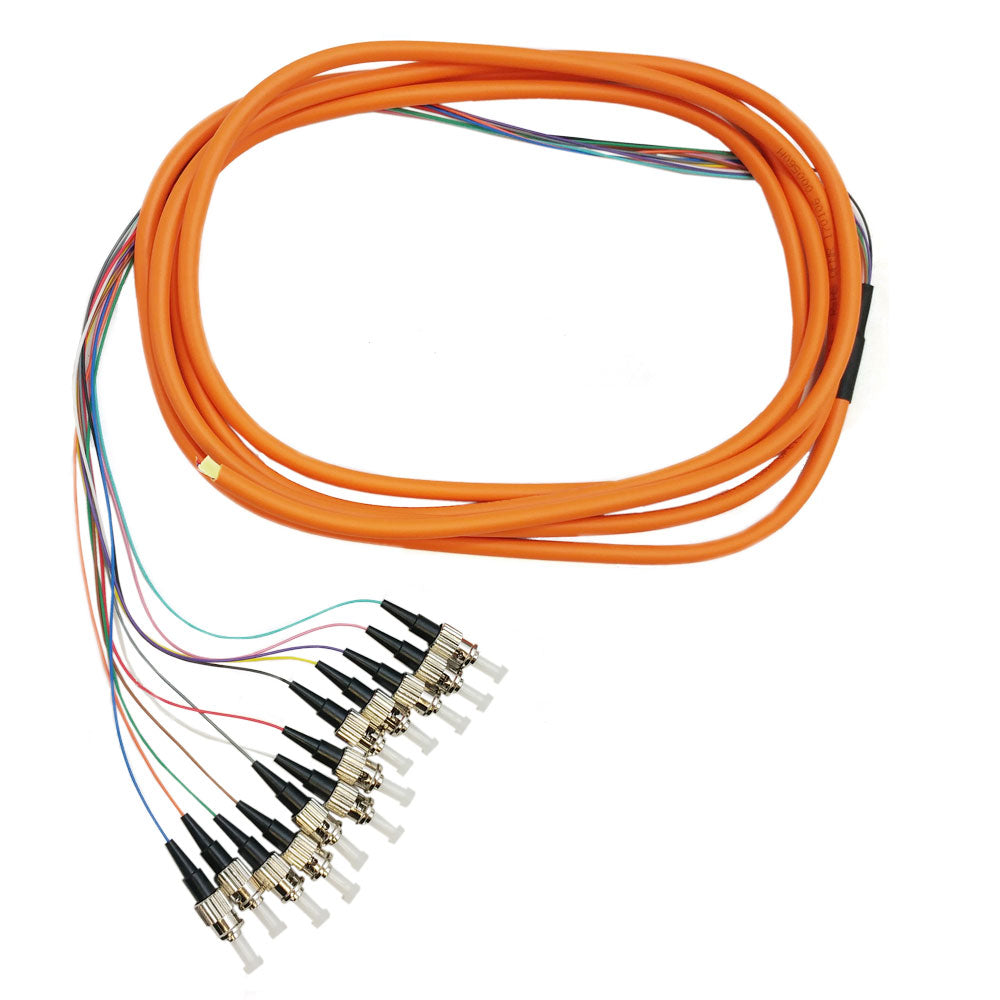

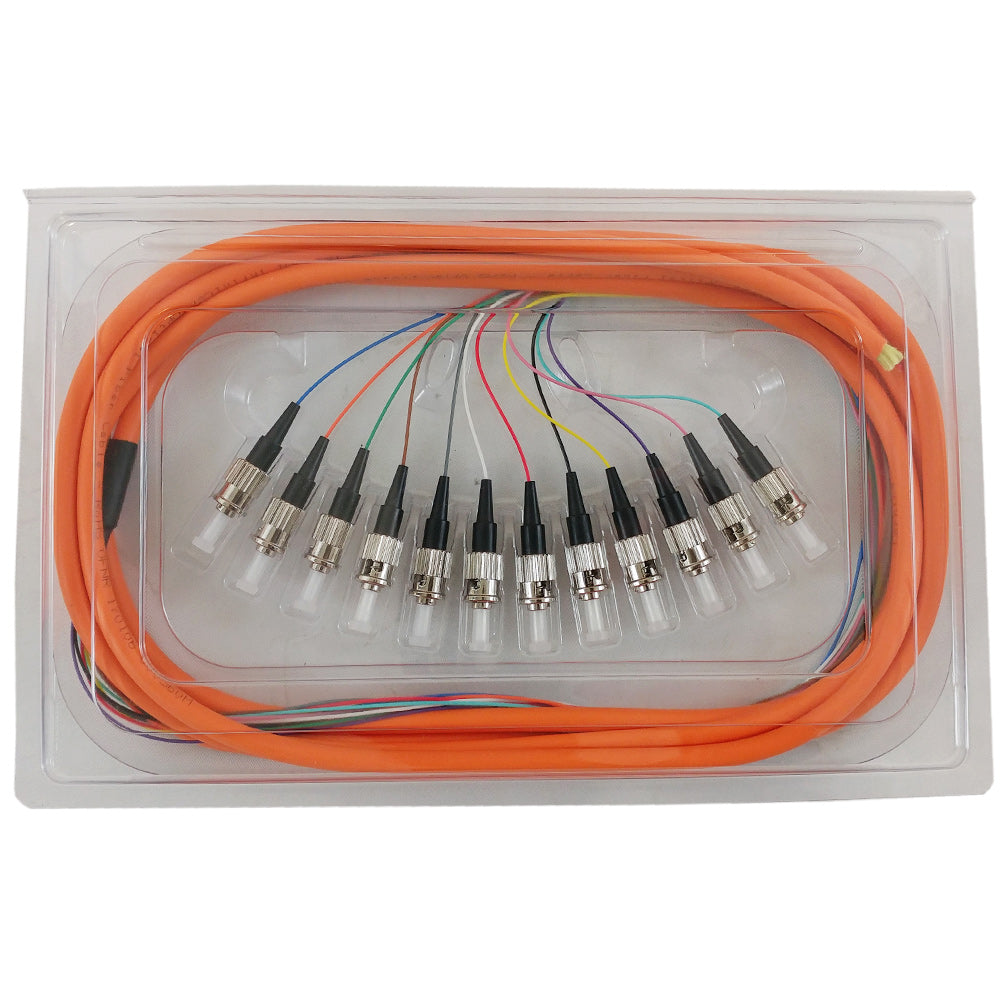

These 62.5 micron (OM1) fiber optic jacketed pigtails have terminated ST fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
| Physical Characteristics | |
|---|---|
| Cable Length | 3m [9.84 foot] |
| Color | Orange |
| Cable Diameter | 6.2mm |
| Sub-Unit Diameter | 900 micron |
| Fiber Size | 62/125 micron |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM1 |
| Jacket Rating | Riser OFNR |
| Connector(s) | |
| Connector A | 1 - ST/PC Simplex Male |
| Connector B | Un-Terminated |
| Performance | |
| Insertion Loss | ¹0.3db @ 1300nm |
| Speed | 1 Gbps |
| Endface Geometry | 100% Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Product Weight | 0.20 lbs [0.09kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Product Weights
| SKU | Weight | |
| FO-PT500-10J-12F | 0.2 lb |
