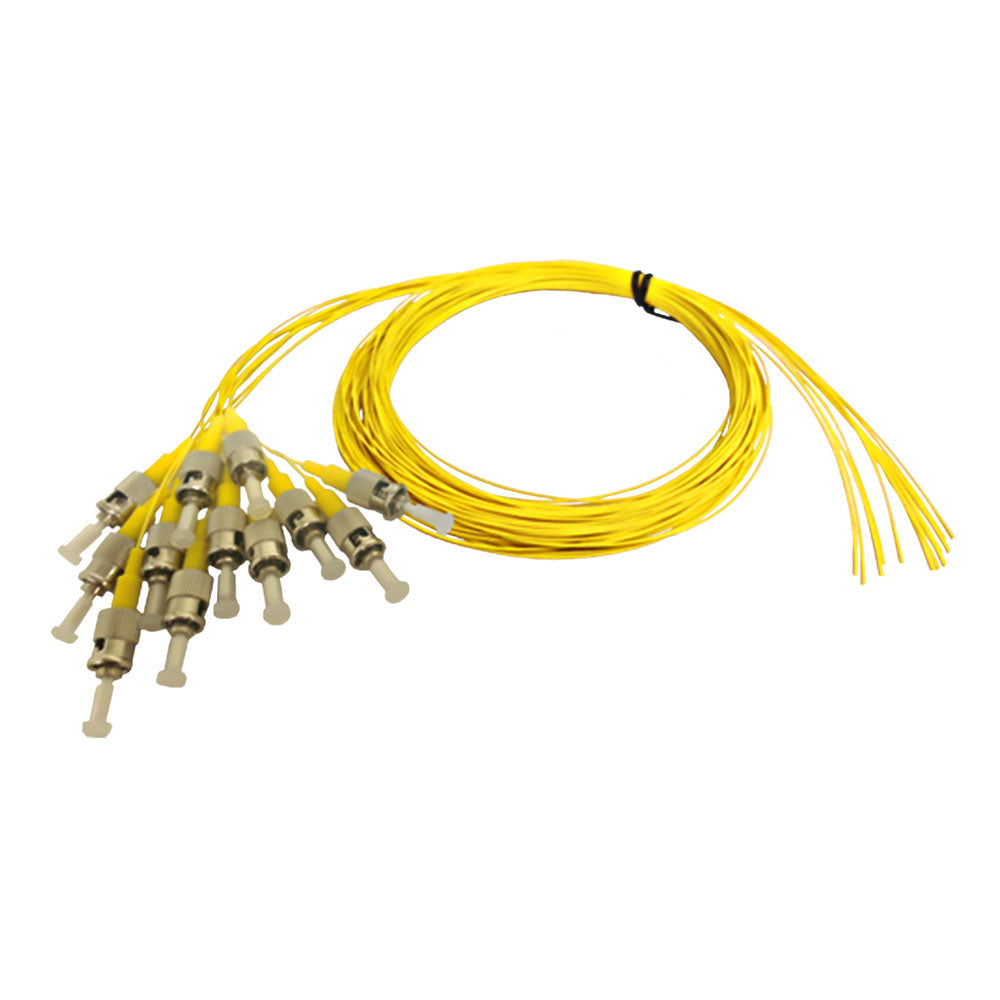

These 9 micron (OS2) fiber optic pigtails have terminated ST fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.
Physical Characteristics |
Cable Length | 3m [9.84 foot] |
Color | Yellow |
Cable Diameter | 900 micron |
Fiber Size | 9/125 micron |
Fiber Type | Singlemode |
Glass Manufacturer | Corning Glass |
Connector Ferrules | Ceramic |
Fiber Classification | OS2 |
Jacket Rating | Low Smoke Zero Halogen (LSZH) |
Connector(s) |
Connector A |
1 - ST/UPC Simplex Male |
Connector B |
Un-Terminated |
Performance |
Insertion Loss | €¹0.3db @ 1550nm |
Return Loss | ‰¥55db |
Speed | 10 Gbps |
Environmental |
RoHS | Yes |
Conflict Minerals | Yes |
Packaging Information |
Package Quantity |
1 Pack of 12 Cables |
Product Weight | 0.20 lbs [0.09kg] |
Warranty Information |
Warranty | Limited Lifetime |
