Description

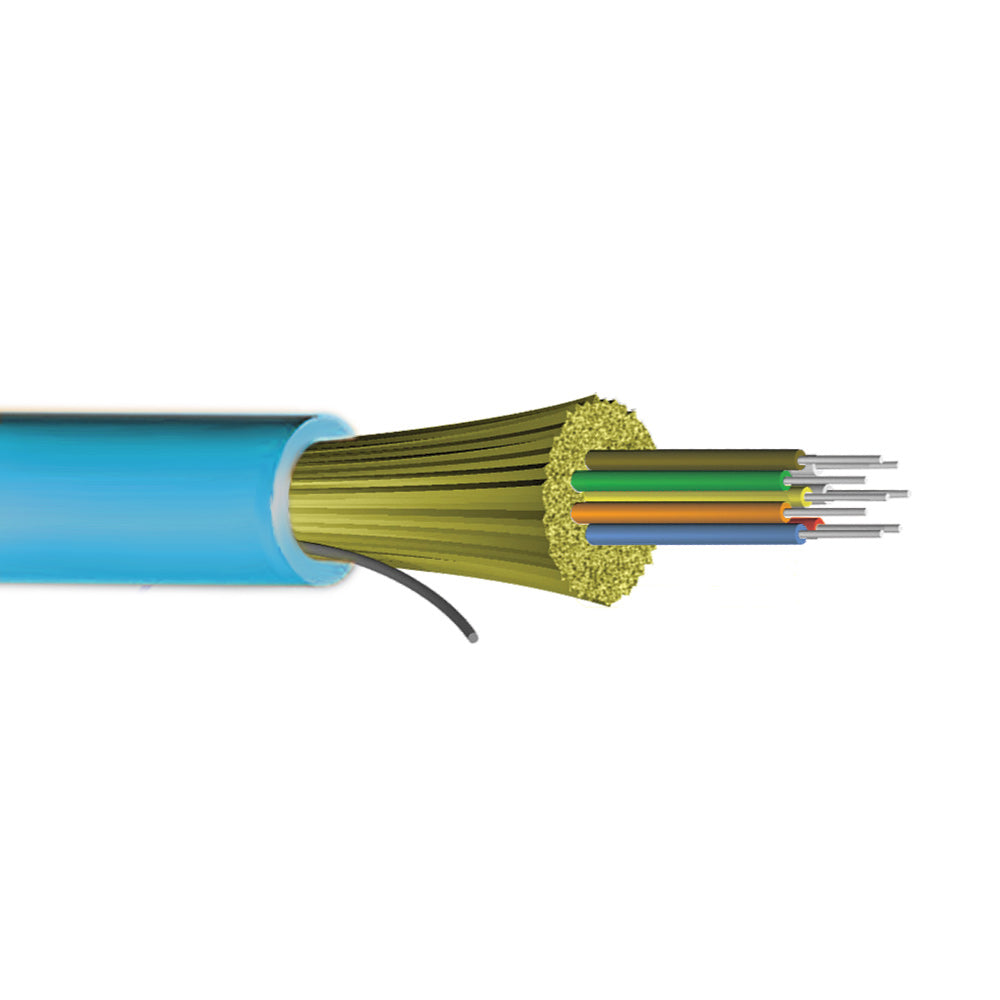

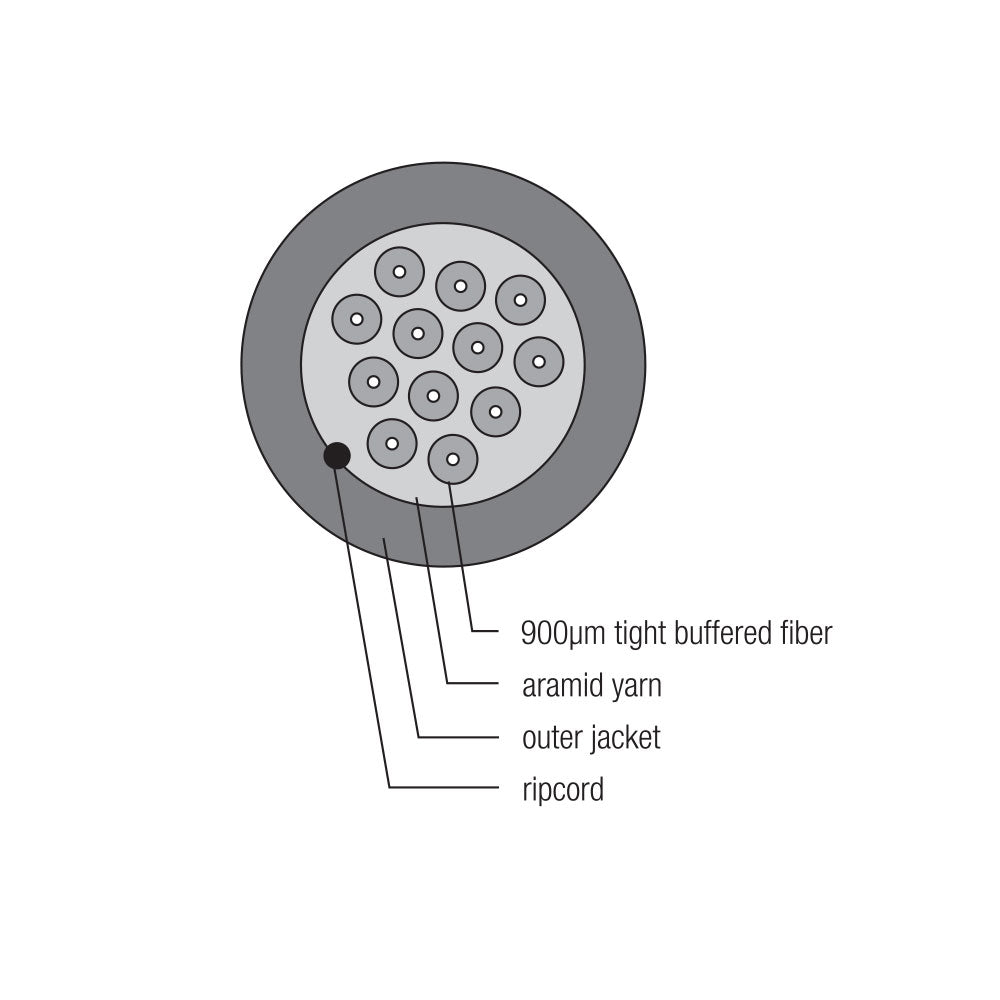

This bulk OM4 fiber cable is indoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It is ideal for routing between communications closets and equipment rooms.
Features
- Tested to meet or exceed ICEA-S-83-596, GR-409-I2, CSA 22.2#232, UL 1666.
- With a riser rating, this cable can be used in riser and general inside plant applications.
- Compliant to Directive 2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50 micron Multimode Riser Indoor Tight Buffered Cable |
| Fiber Count | 24-Strand |
| Glass Fiber | Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 8.4mm (24-Strand) |
| Tension(Installation) | 300 lbs (24-Strand) |
| Tension(Long Term) | 90 lbs (24-Strand) |
| Bending Radius(Installation) | 12.6cm (24-Strand) |
| Bending Radius(Long Term) | 8.4cm (24-Strand) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation | -10℃ ~ +60℃ |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.0dB/km |
| Bandwidth Range | @850nm > 3500 MHz/km @1300nm > 550 MHz/km |
| EMBc (MHz-km) | 4700 |
| Gigabit Ethernet Min. Link Distance | 850nm = 1040 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 550 |
| Fire Rating | OFNR, FT4 |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Manufacturer Information | |
| AFL Part Numbers | CR024C842C01-CRG |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-F24CP-OM4-R | 0.11 lb |
