Overview

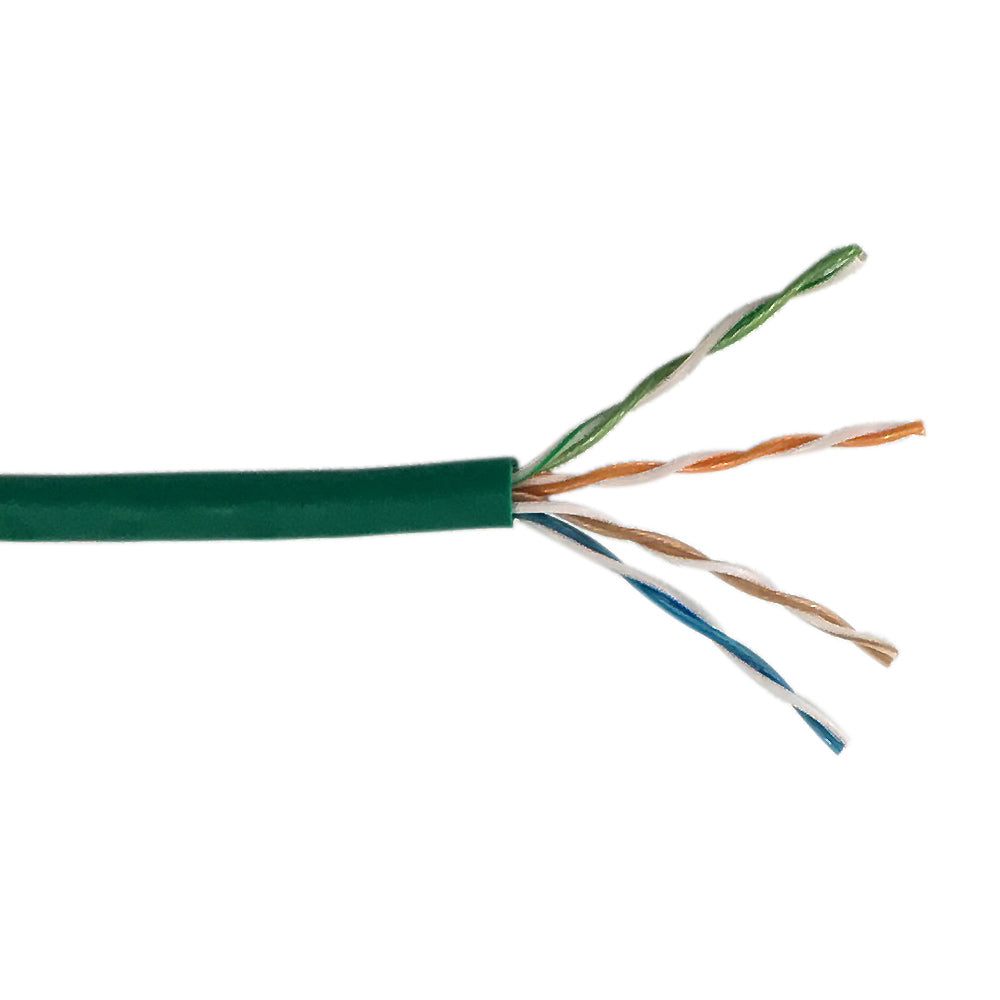

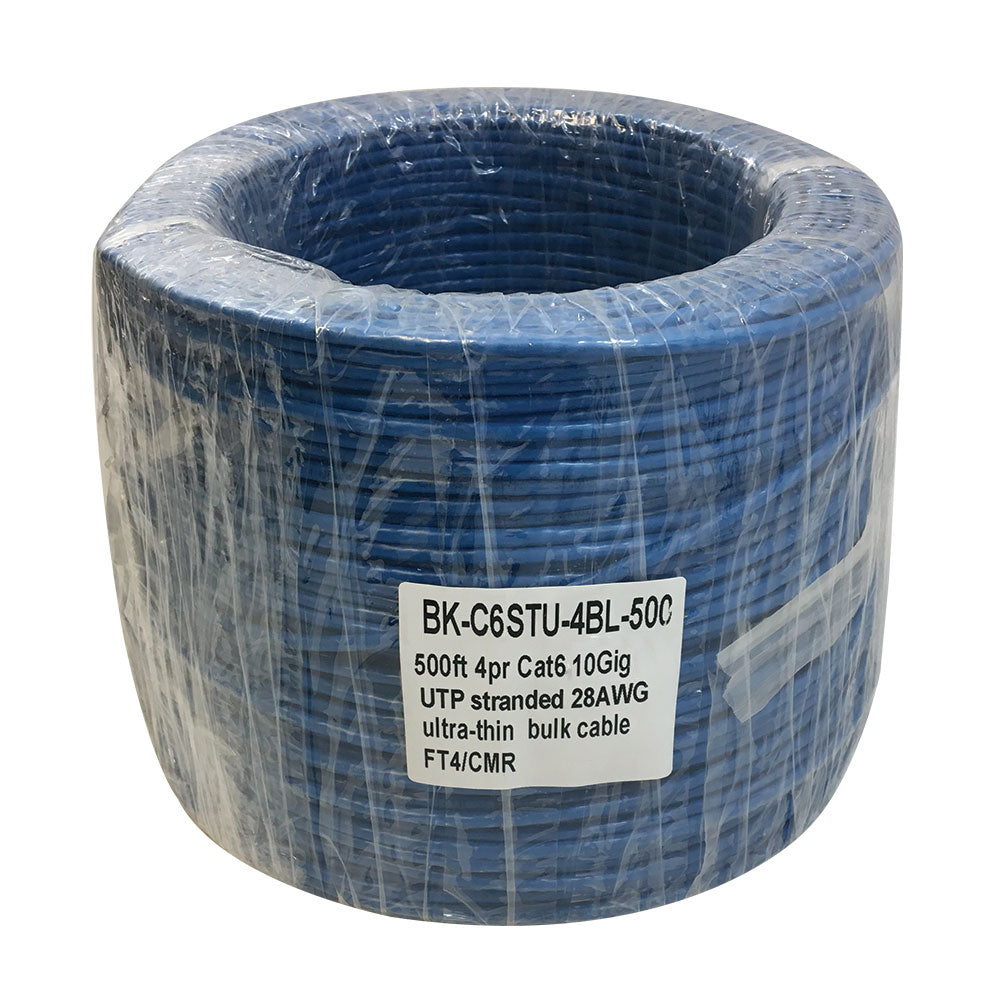

This riser rated Cat6 bulk cable is 500 feet in length and consists of 4 pairs of 28AWG stranded wires. It is typically used to manufacture Cat6 ultra-thin patch cables and terminated with Cat6 RJ45 plugs designed for ultra-thin cable.
Note: Longest recommended terminated length using this cable is 35ft.
 |
100% Bare Copper Stranded ConductorsThis cables is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The stranded wires gives the cable more flexibility, makes it easier to handle and makes it perfect for touring and short patch links. Save Space and Improve AirflowOur CAT6 ultra-thin bulk cable is 60% thinner than the regular CAT6 bulk cable, it is perfect for high-density telecom rooms and data centers to reduce clutter and increase efficiency. More open space means better airflow and equipment cooling for optimal performance, it also easier to patch and handle, and provides a clearer view of port assignments The Quality and Convenience You NeedThis cable features color striped pairs for easy identification. also it uses an unshielded twisted pair (UTP) structure to reduce outside interference.it provides 550 MHz of bandwidth, and offers high speed, uninterrupted connection.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Cable Diameter | 3.6mm |
| Number of Pairs | 4 Pairs |
| Color of Pairs | White-Blue White-Green White-Orange White-Brown |
| Wire Gauge | 28AWG Stranded |
| Stranding Count & Diameter | 7/0.13 BC |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Cable Shielding | None |
| Temperature Rating | 75ºC |
| Approvals | |
| c(UL) | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
|
Product Weight |
6.17 lb |
| SKU | Options | Weight |

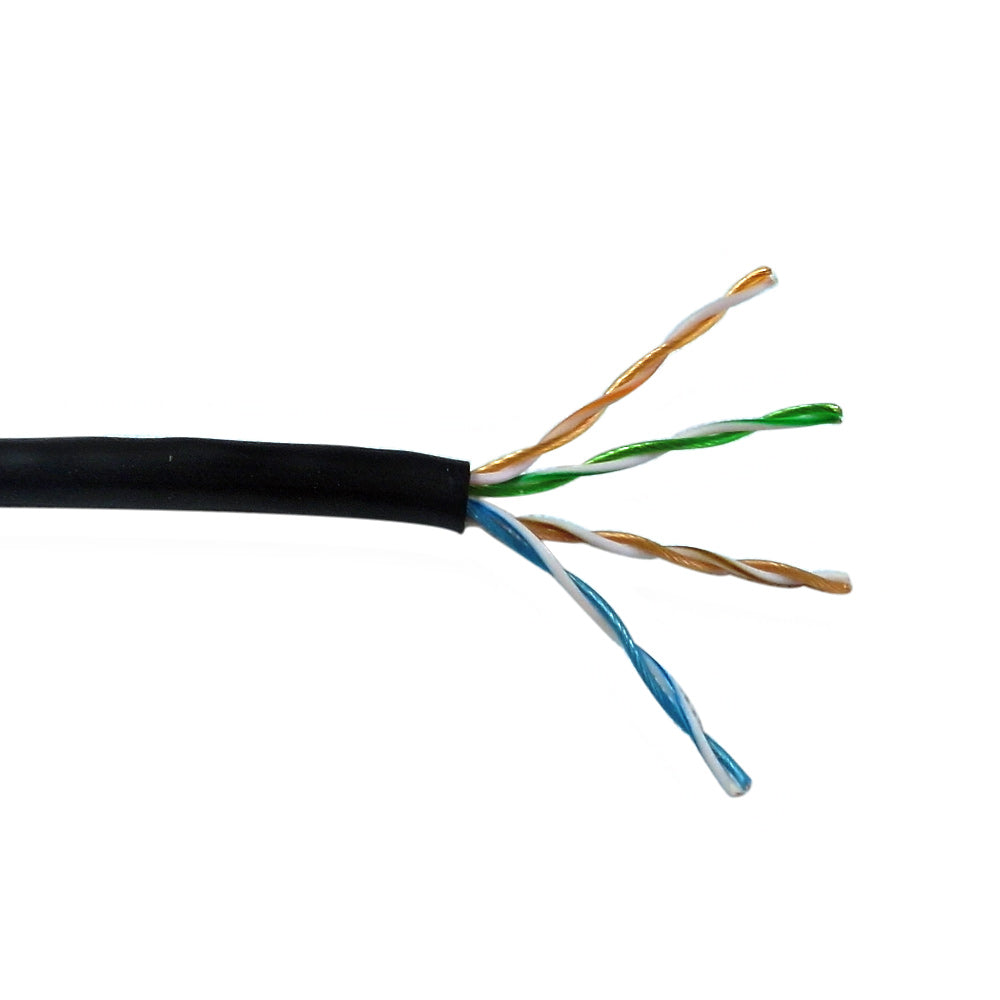

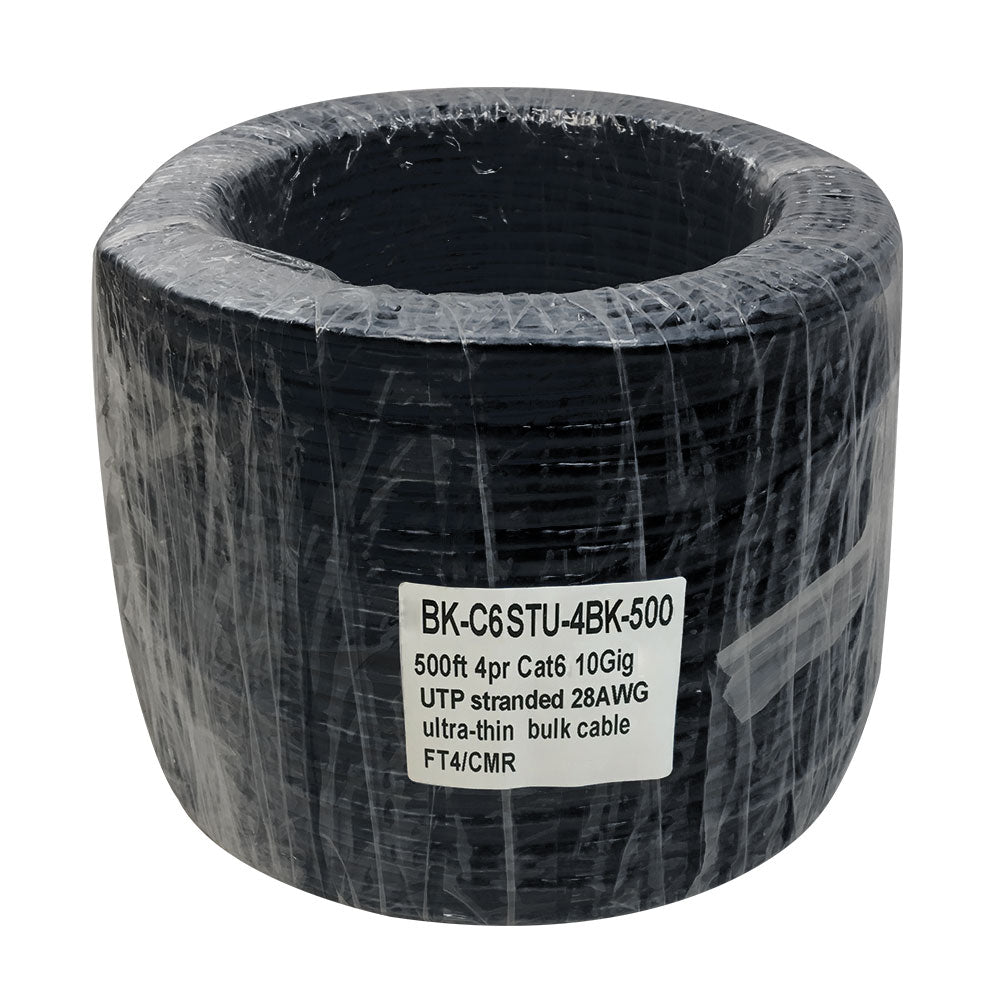

| BK-C6STU-4BK-500 | Black | 6.17 lb |

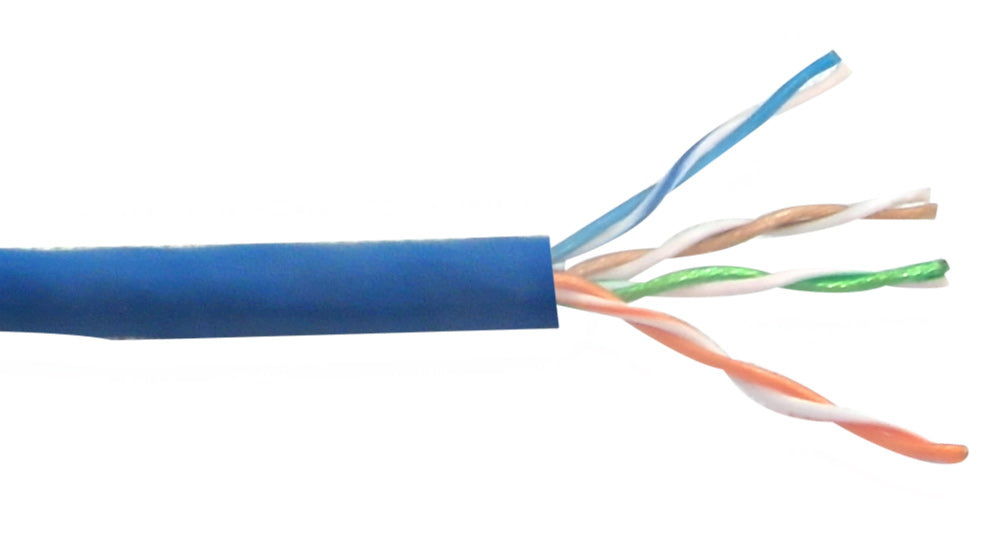

| BK-C6STU-4BL-500 | Blue | 6.17 lb |

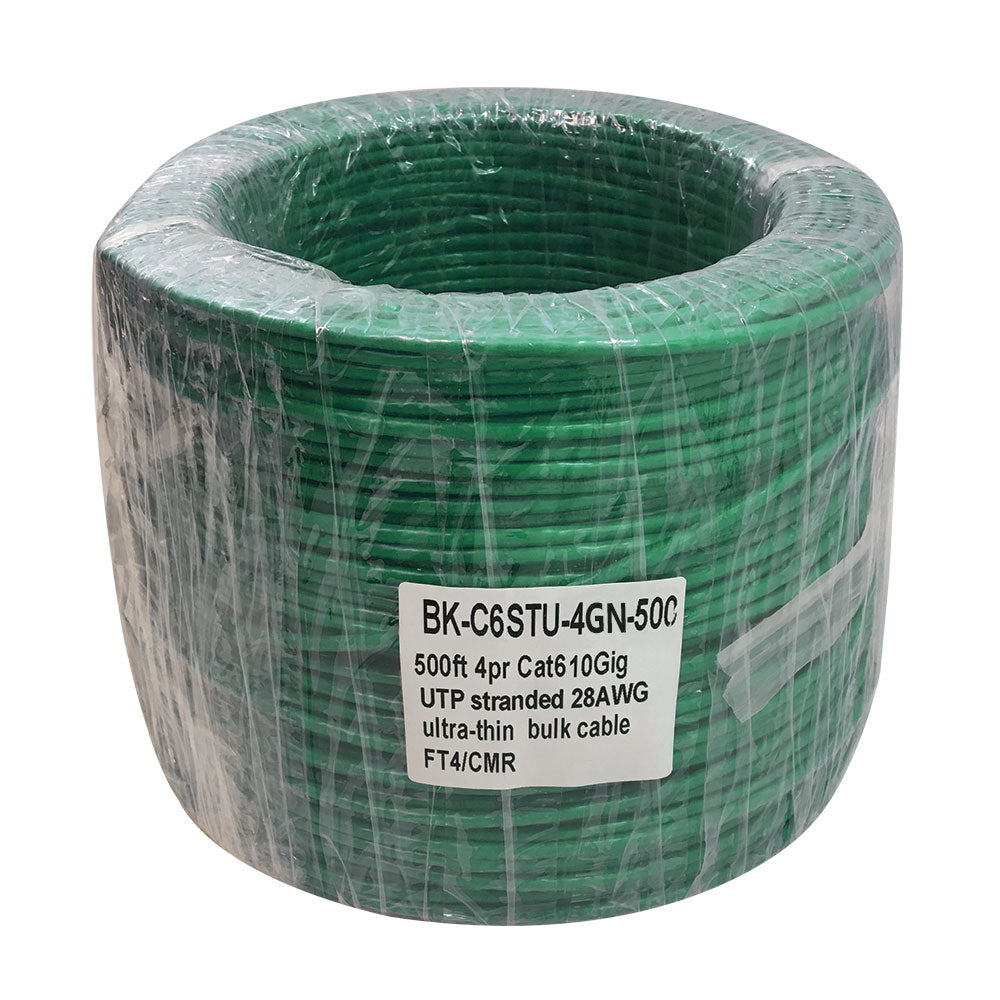

| BK-C6STU-4GN-500 | Green | 6.17 lb |

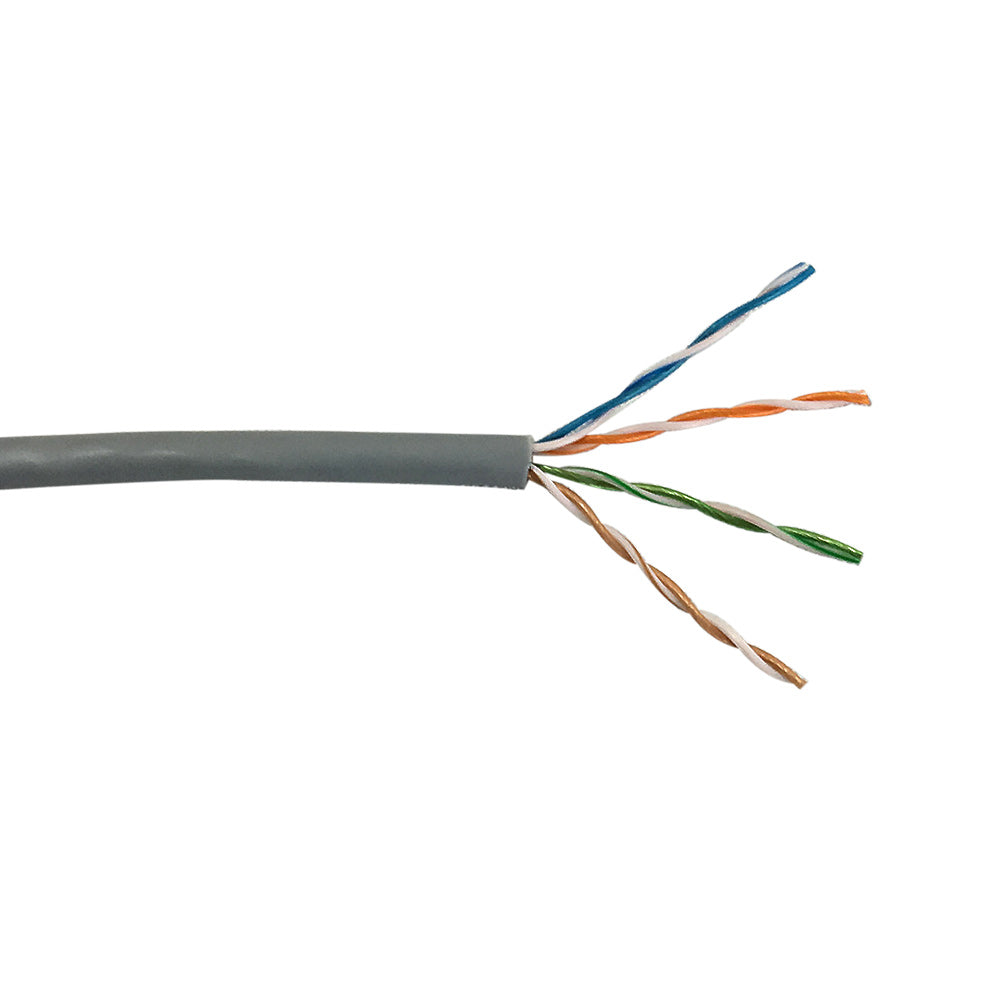

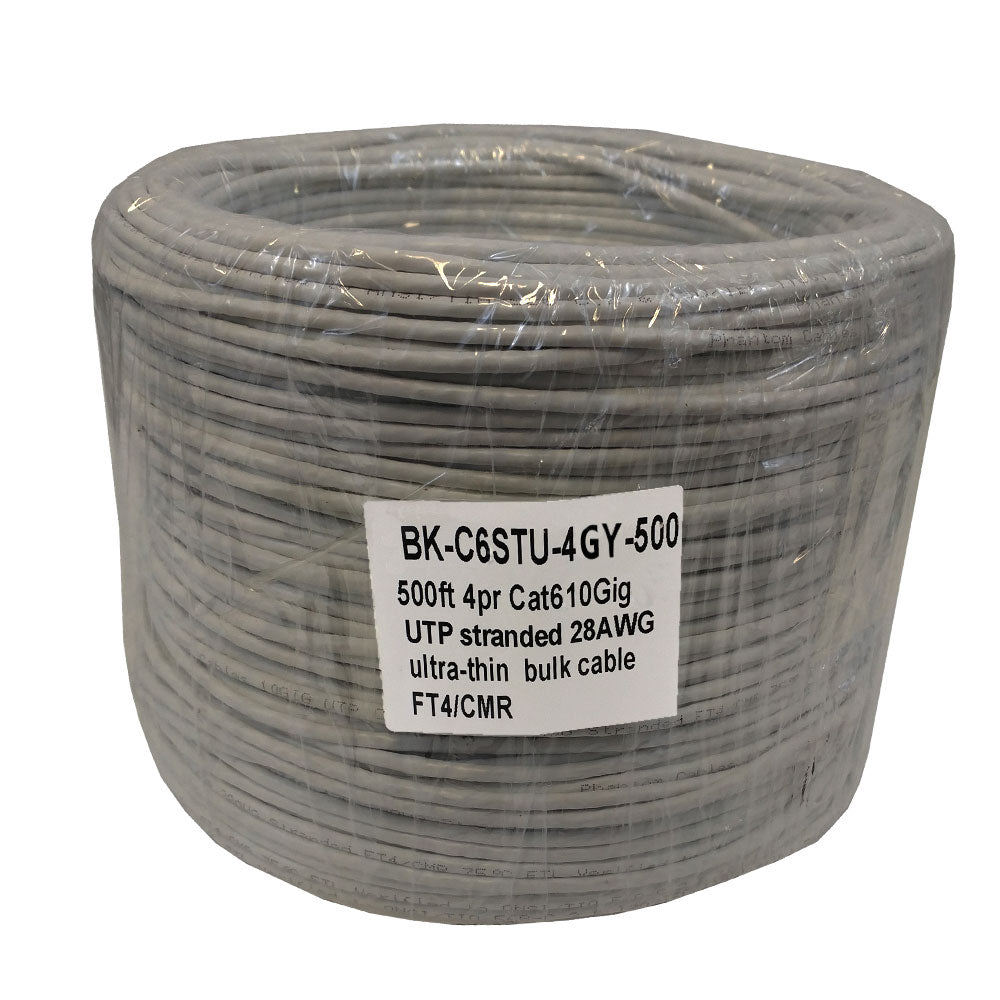

| BK-C6STU-4GY-500 | Grey | 6.17 lb |

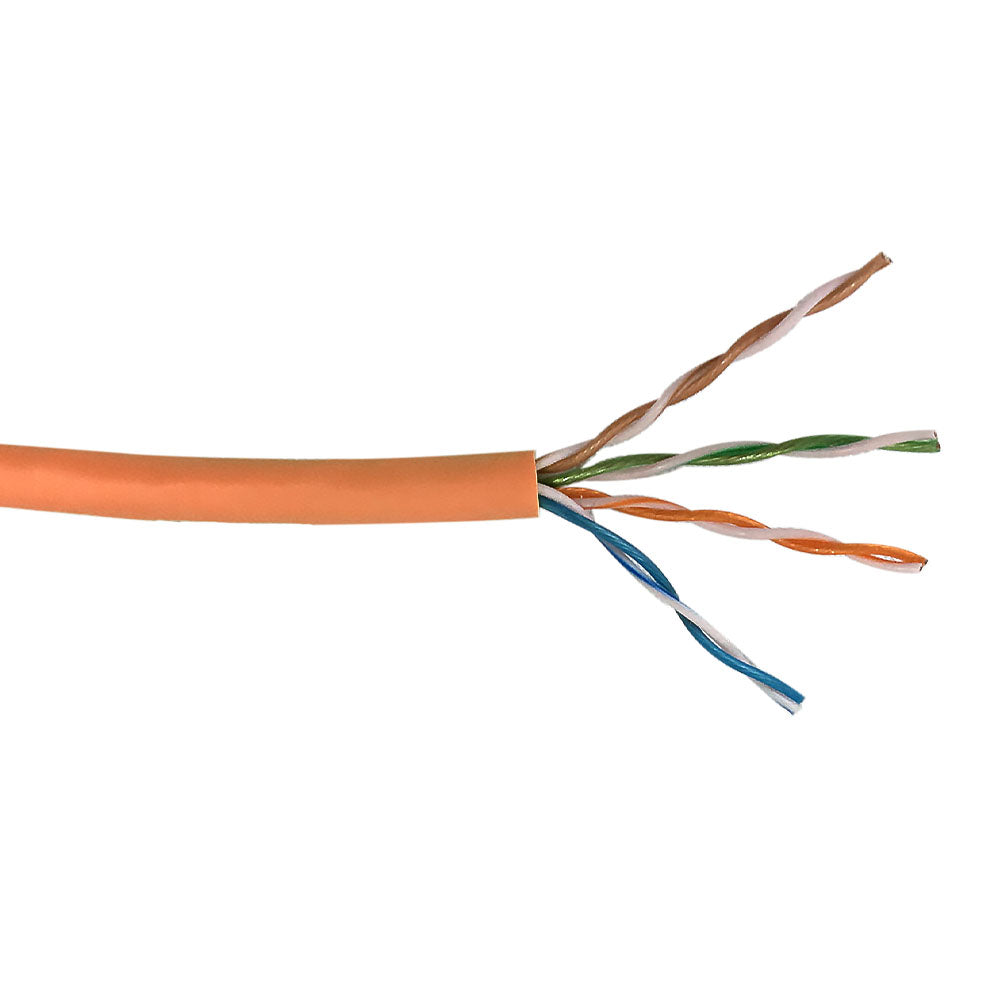

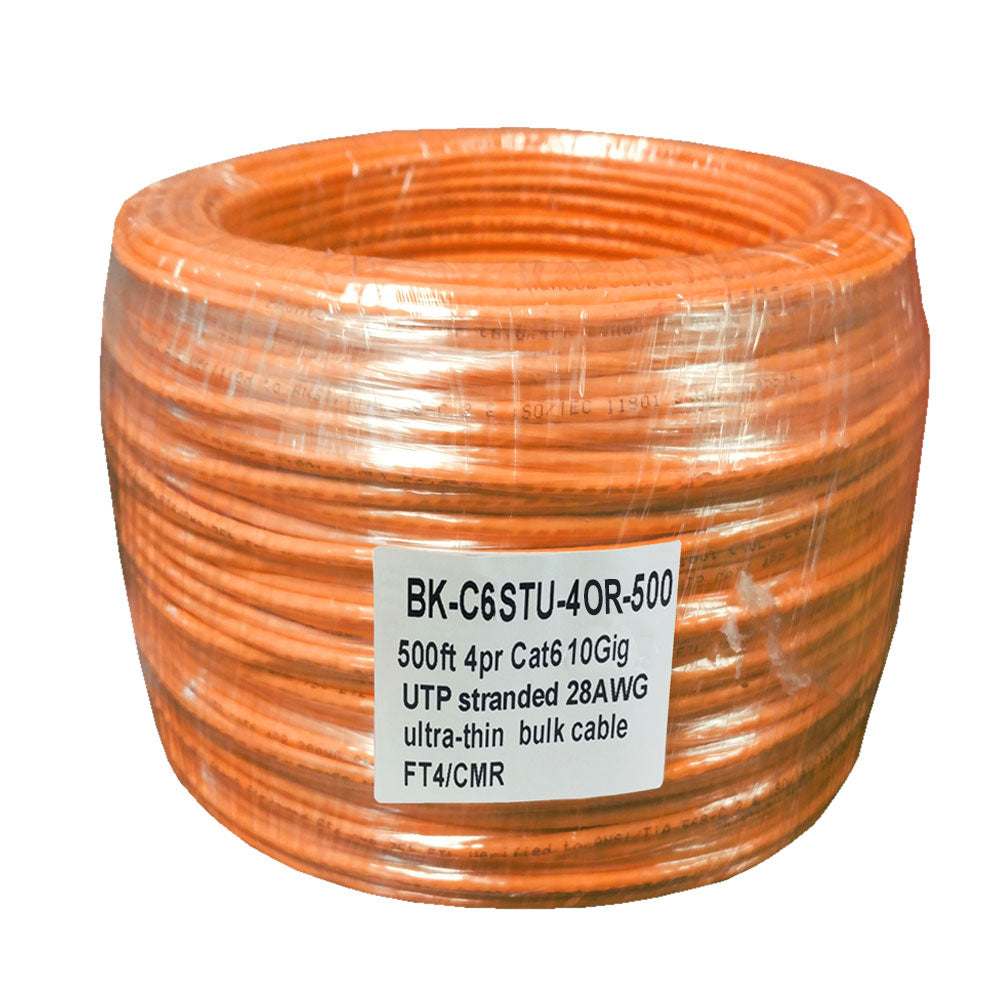

| BK-C6STU-4OR-500 | Orange | 6.17 lb |

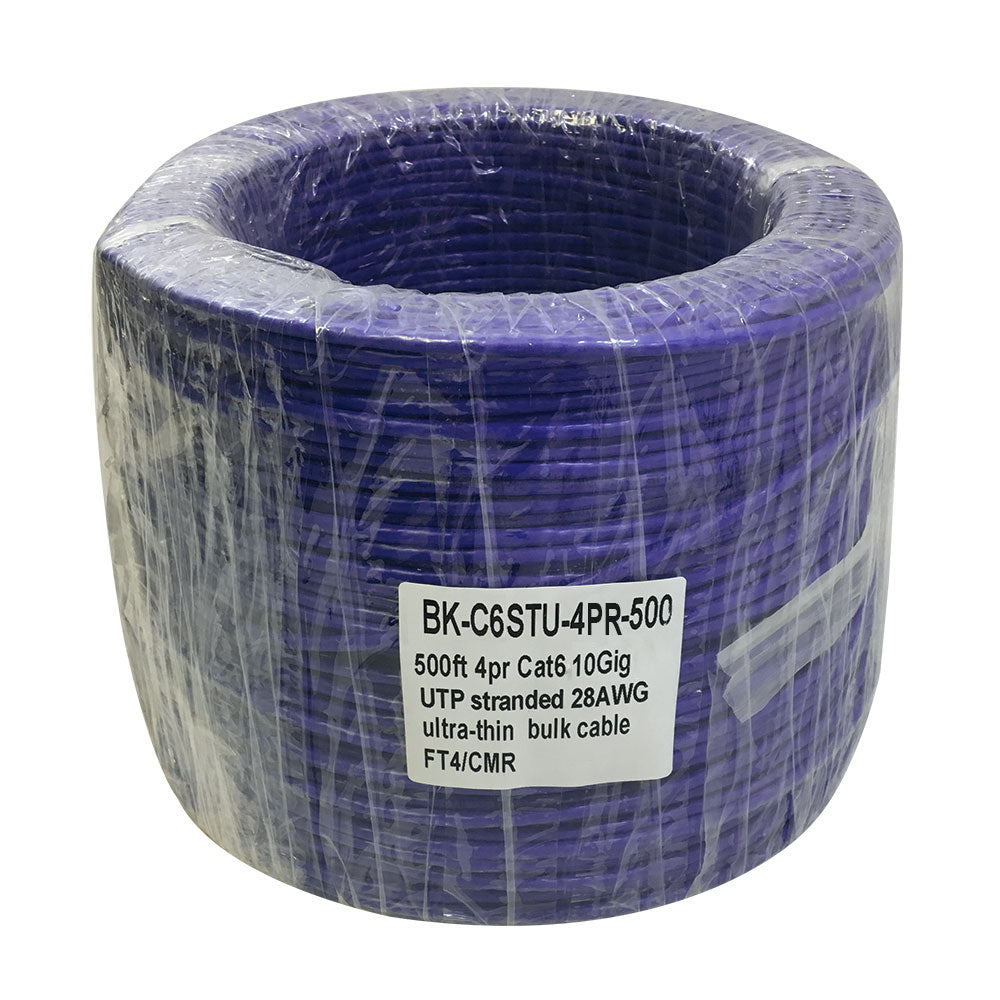

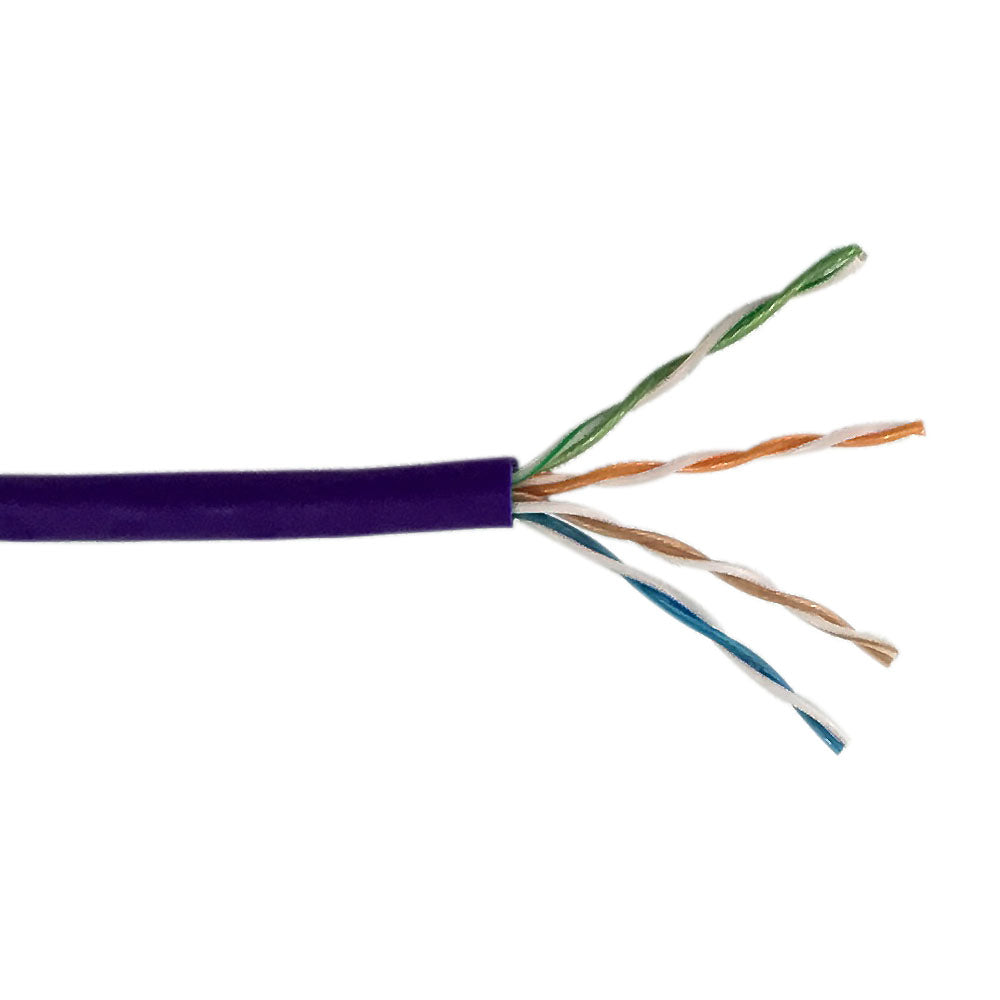

| BK-C6STU-4PR-500 | Purple | 6.17 lb |

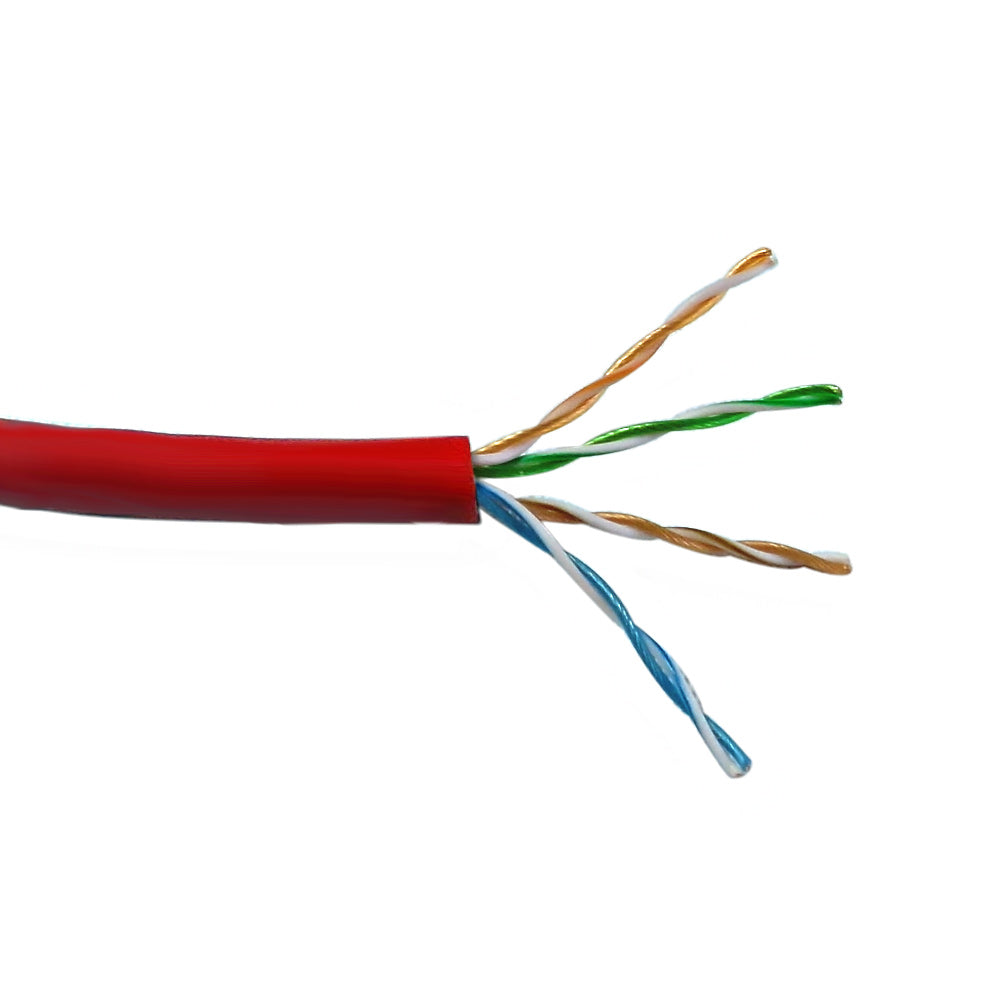

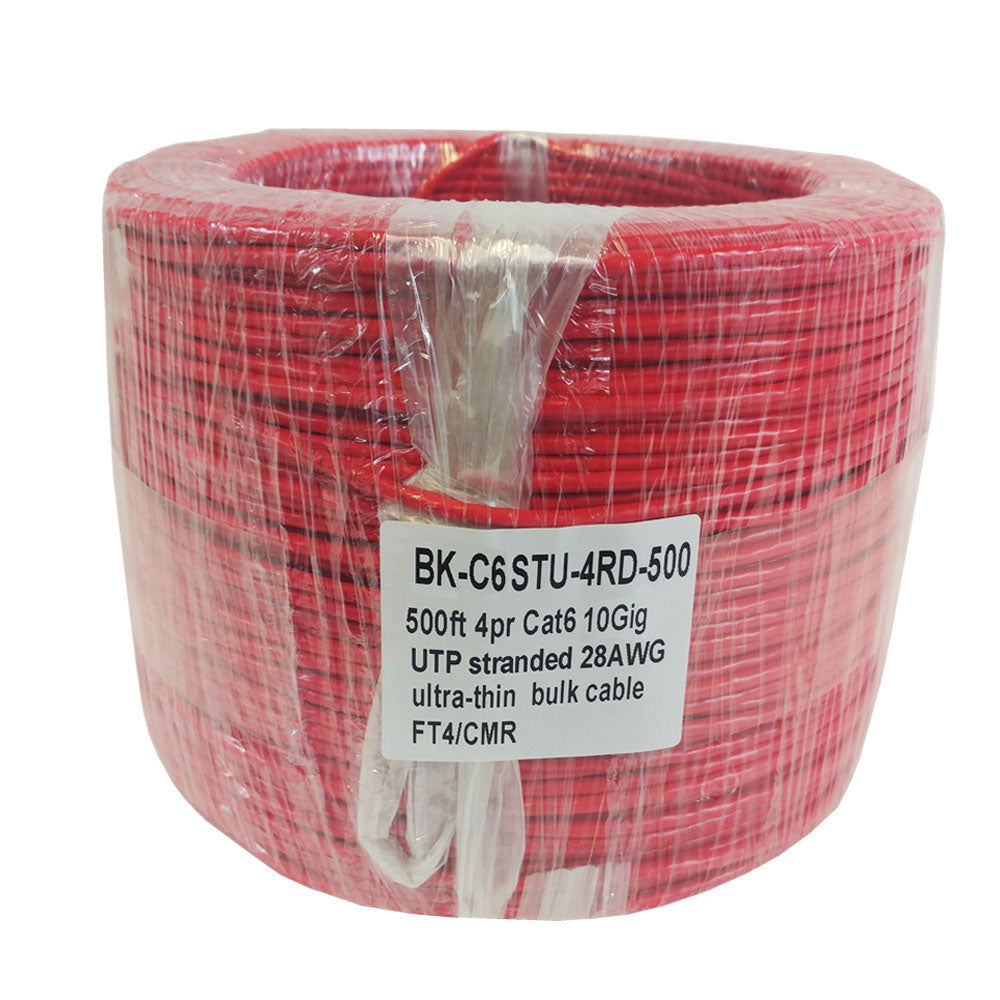

| BK-C6STU-4RD-500 | Red | 6.17 lb |

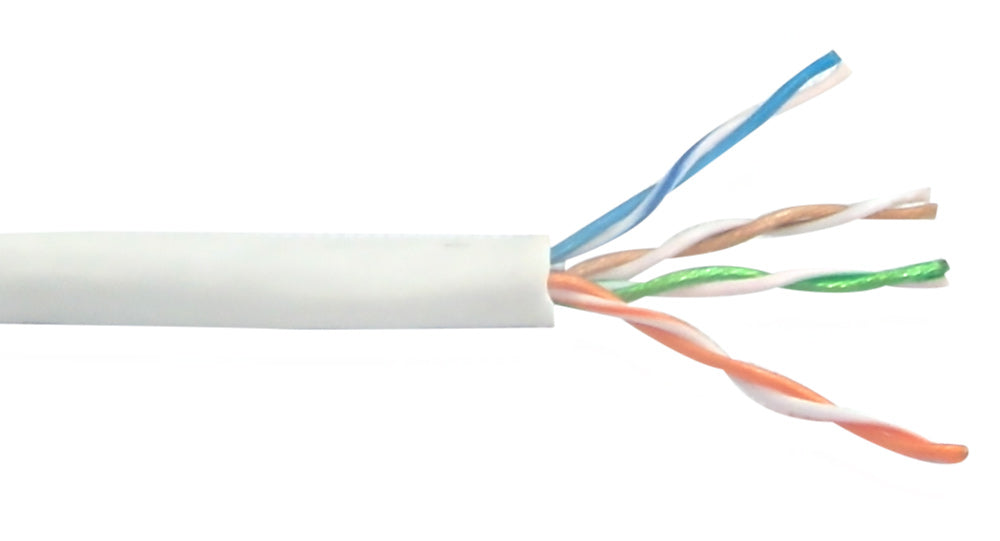

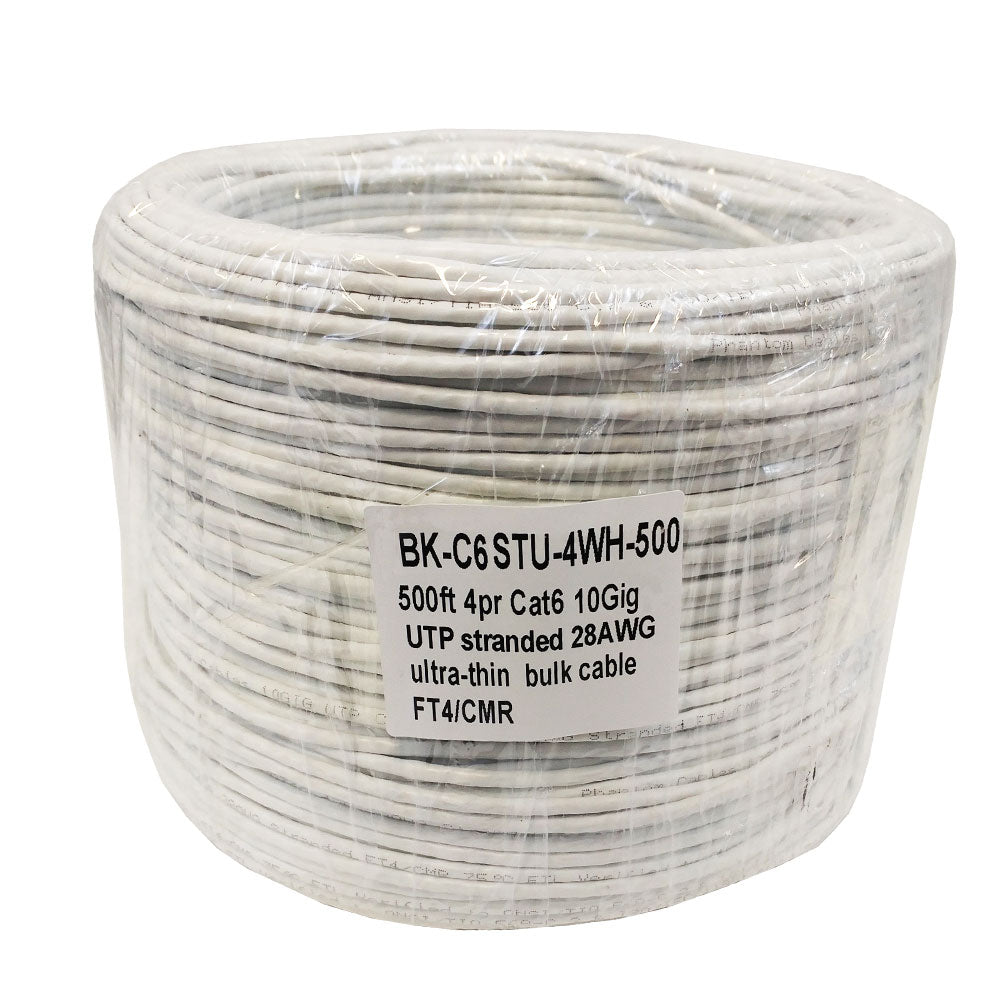

| BK-C6STU-4WH-500 | White | 6.17 lb |

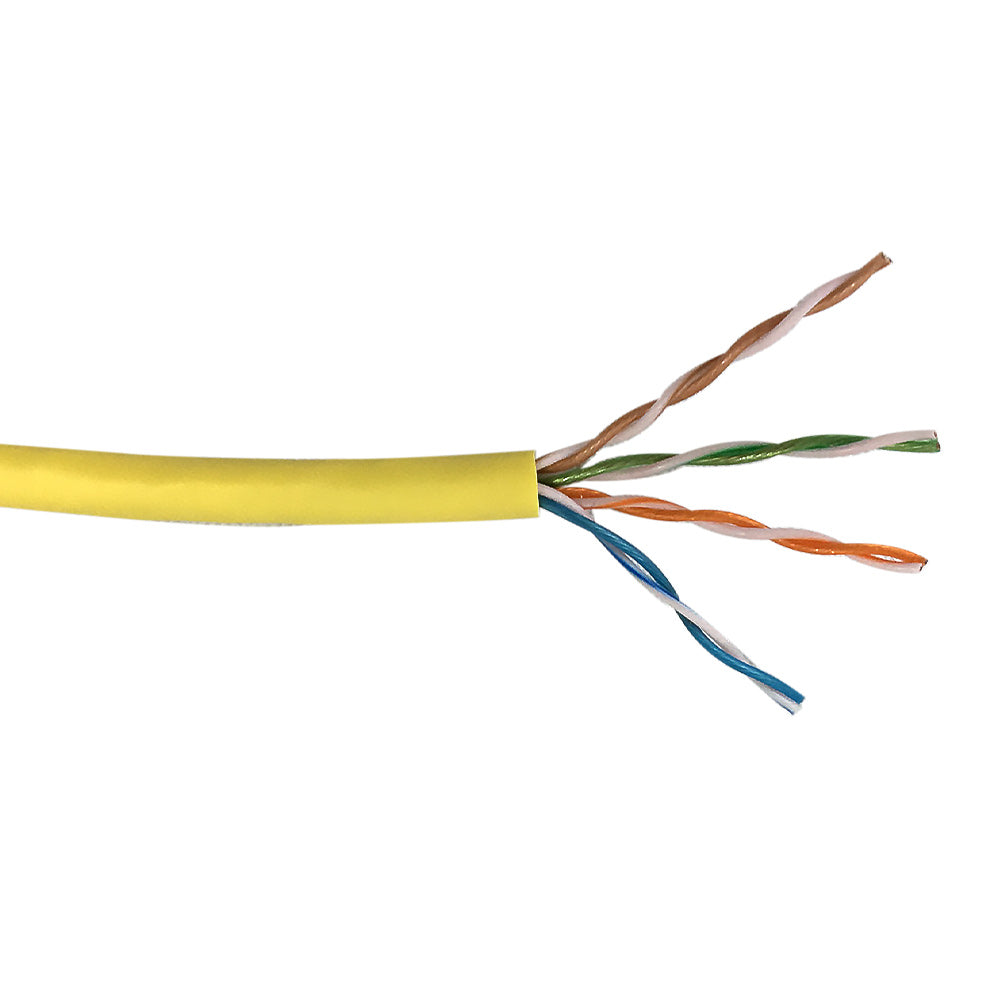

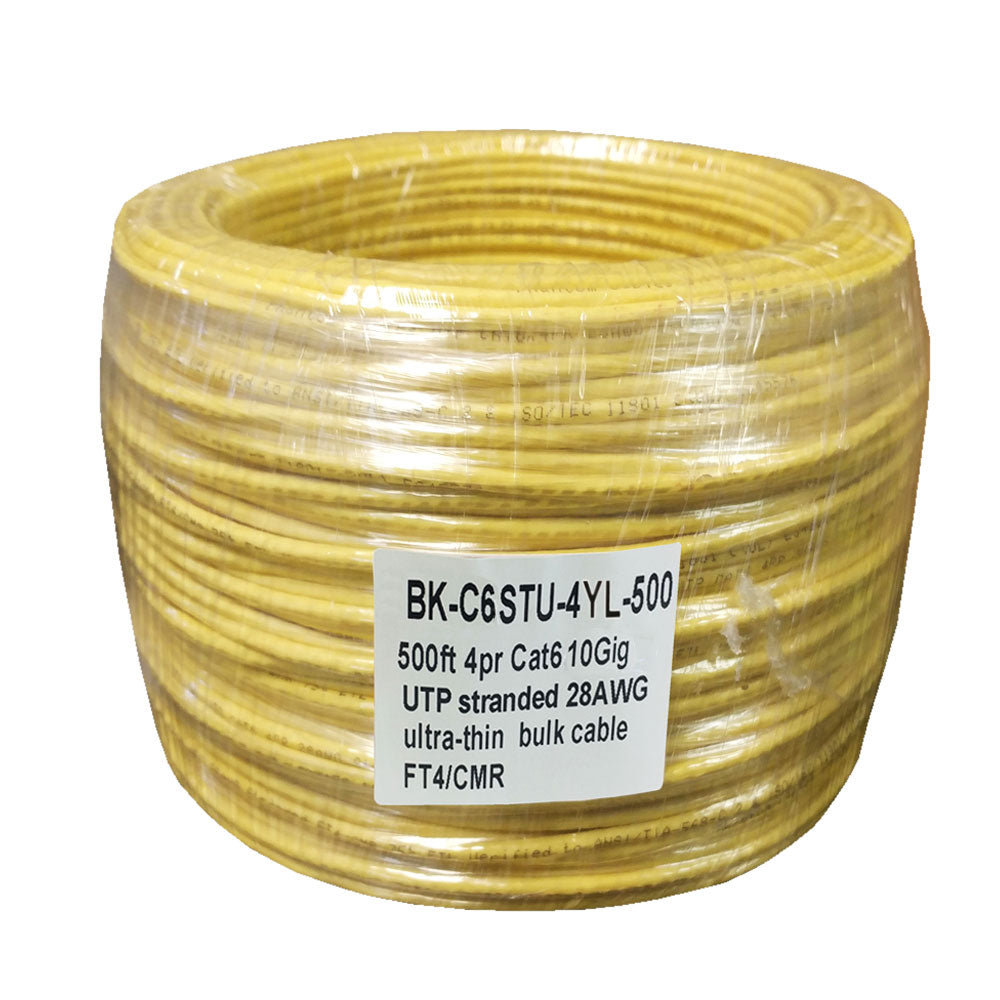

| BK-C6STU-4YL-500 | Yellow | 6.17 lb |
