Description
This riser rated Cat6a bulk cable is 500 feet in length and consists of 4 pairs of 28AWG stranded wires. It is typically used to manufacture Cat6a ultra-thin patch cables and terminated with Cat6a RJ45 plugs designed for ultra-thin cable.
Note: Longest recommended terminated length using this cable is 25ft.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Cable Diameter | 3.6mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 28 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 7/0.13 BC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Shielding | None, UTP |
| Temperature Rating | 75°C |
| Approvals | |
| c(UL) | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 7.0 lb |
Spec Sheets
Product Weights
| SKU | Options | Weight |

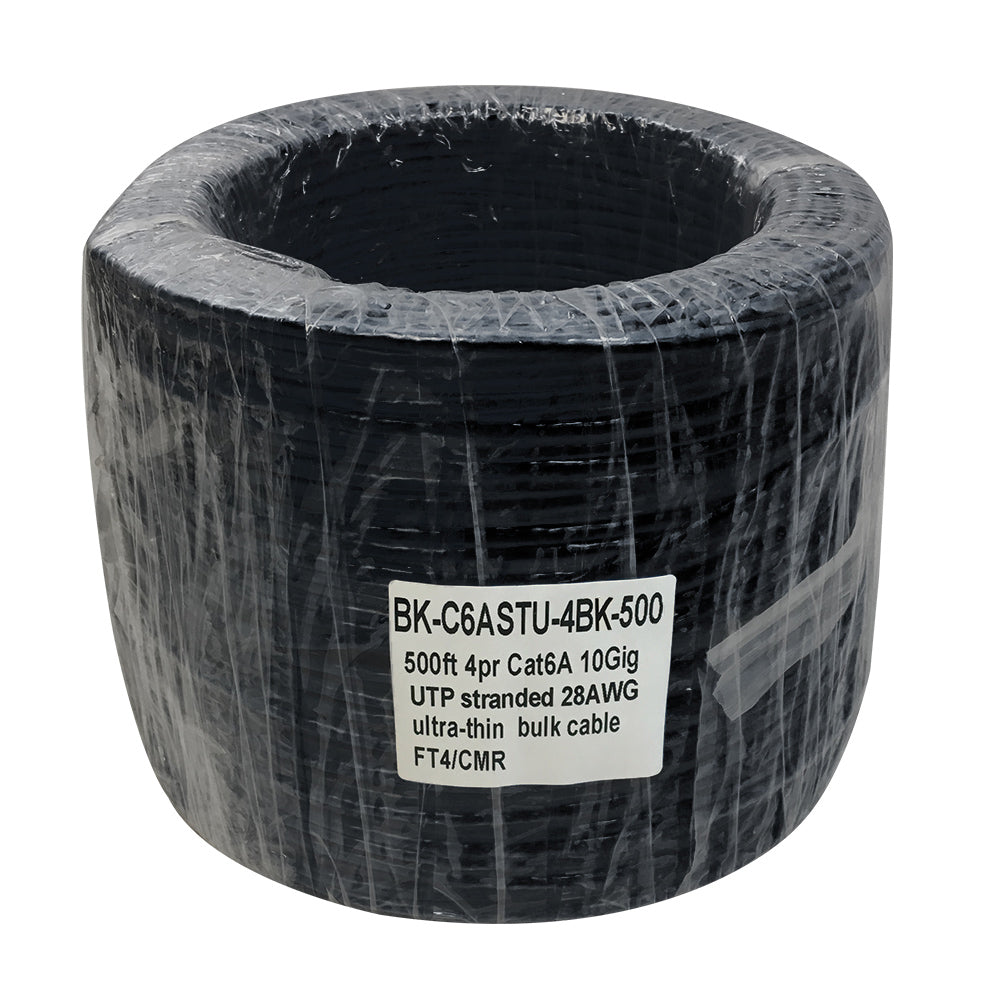

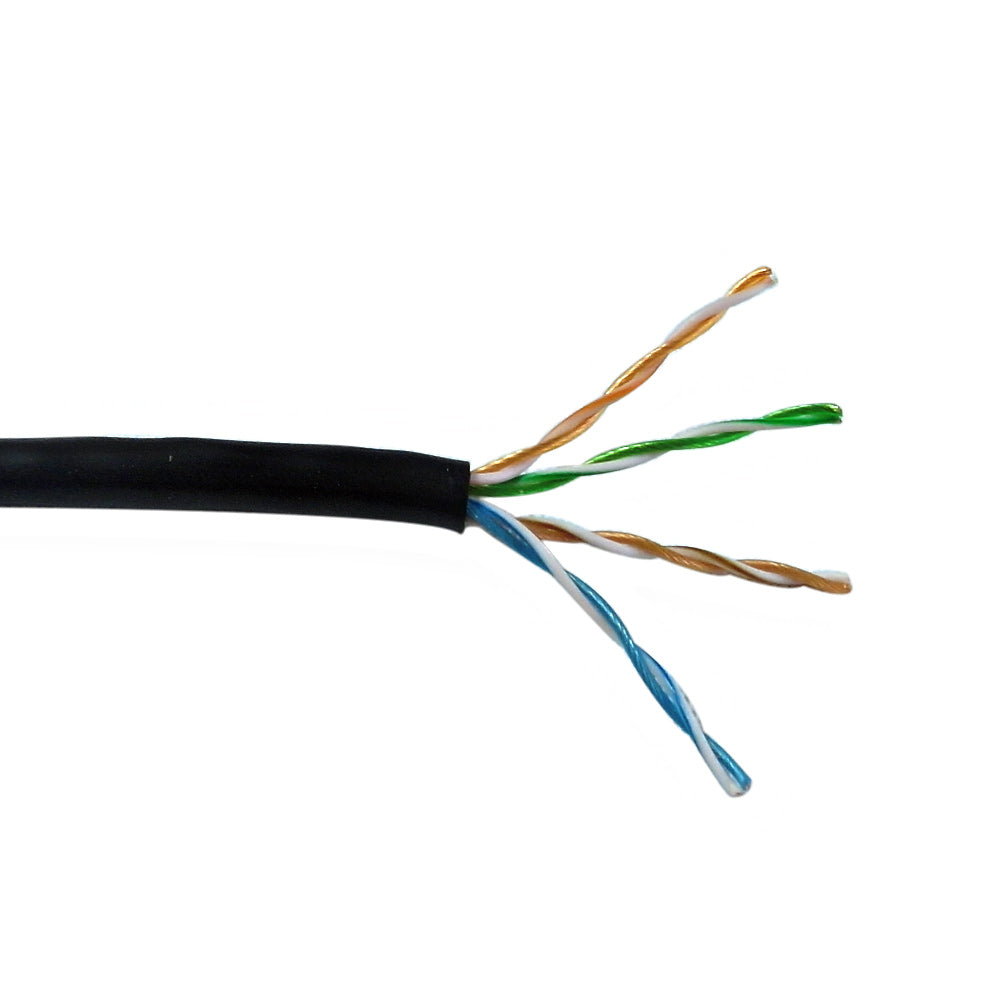

| BK-C6ASTU-4BK-500 | Black | 7.0 lb |

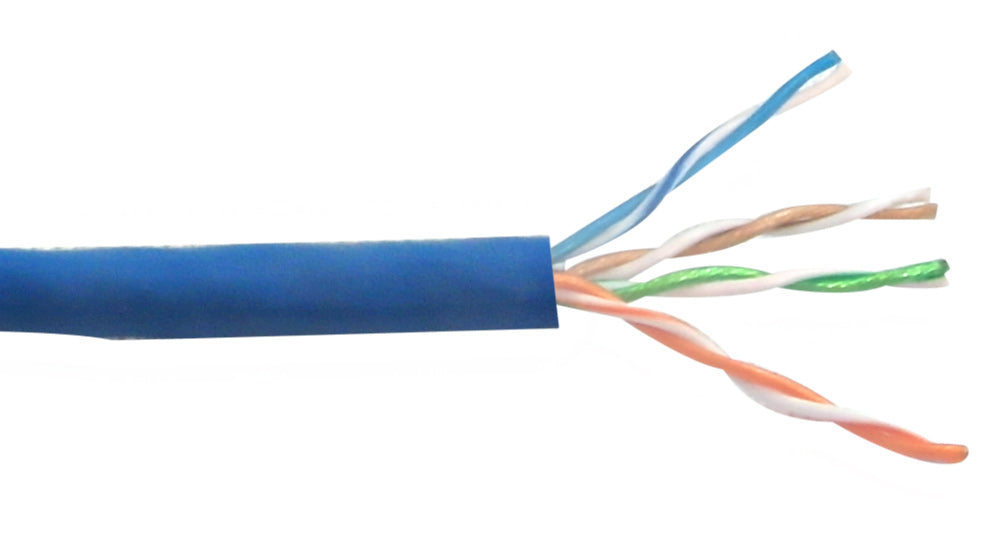

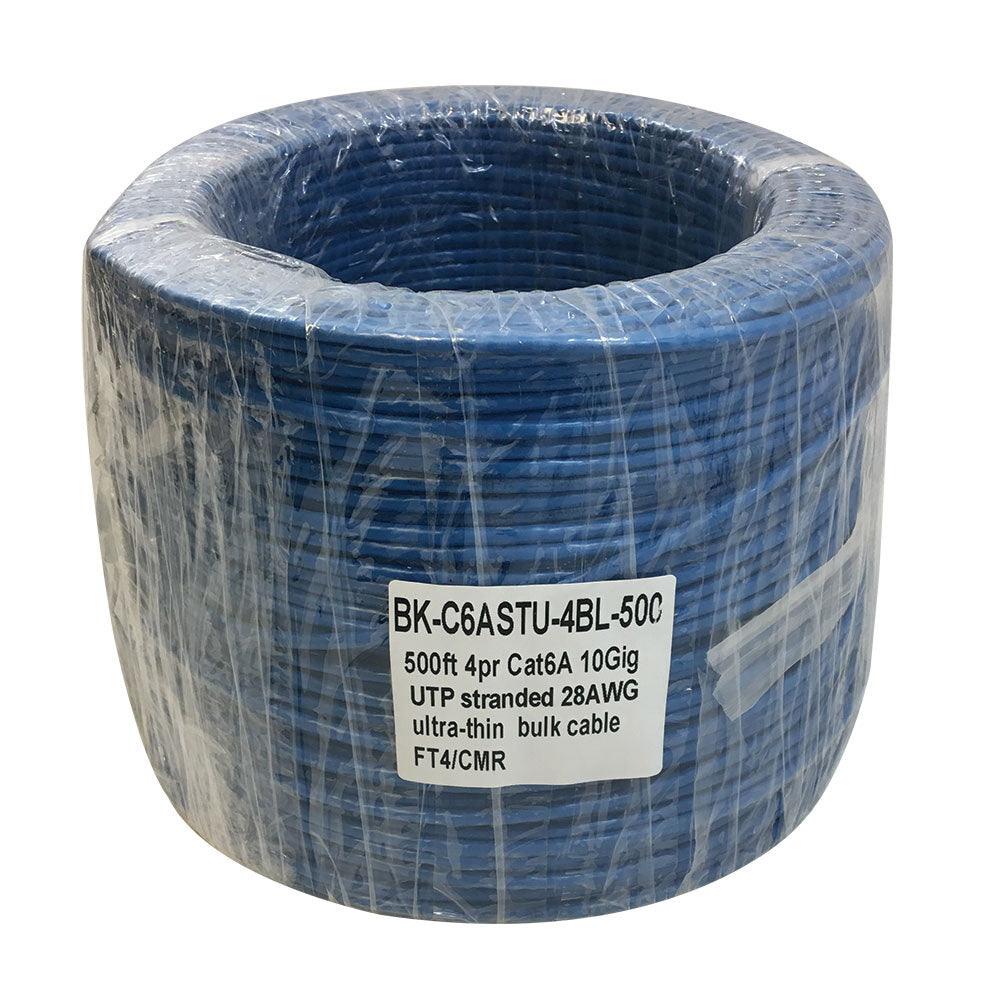

| BK-C6ASTU-4BL-500 | Blue | 7.0 lb |

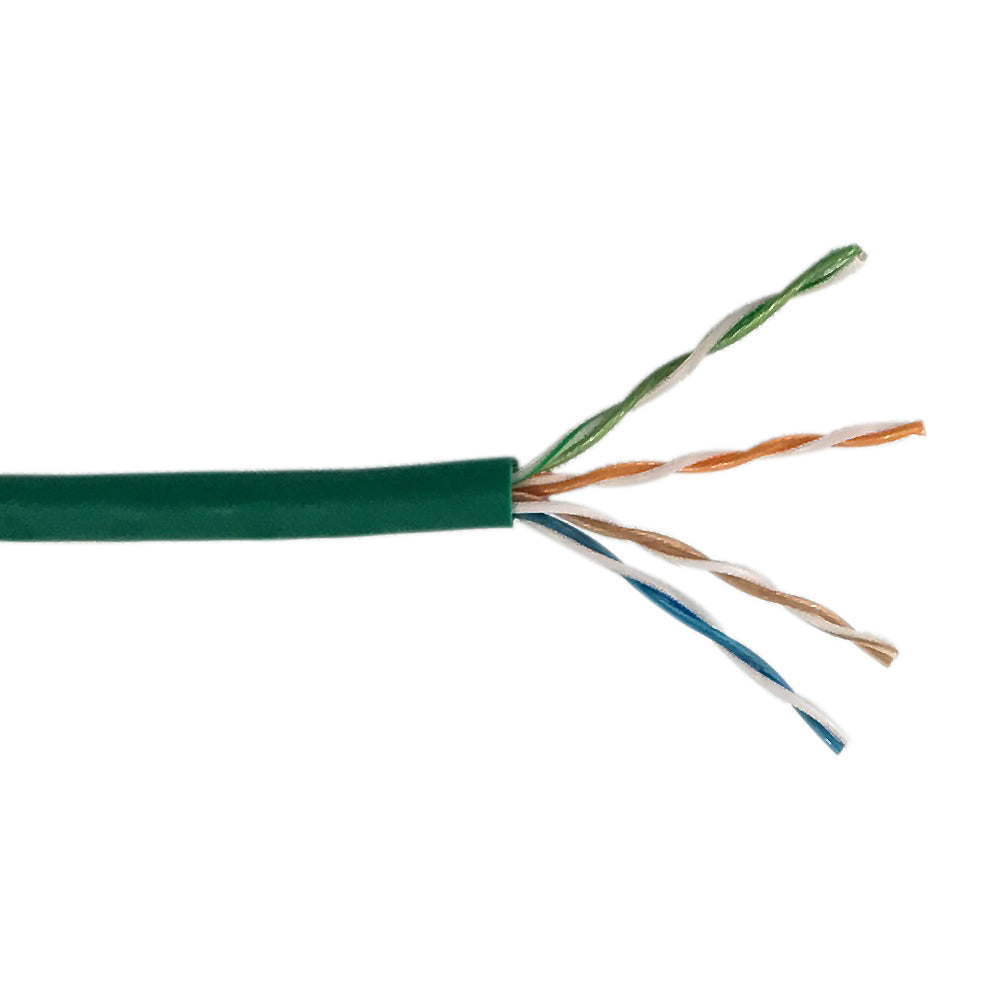

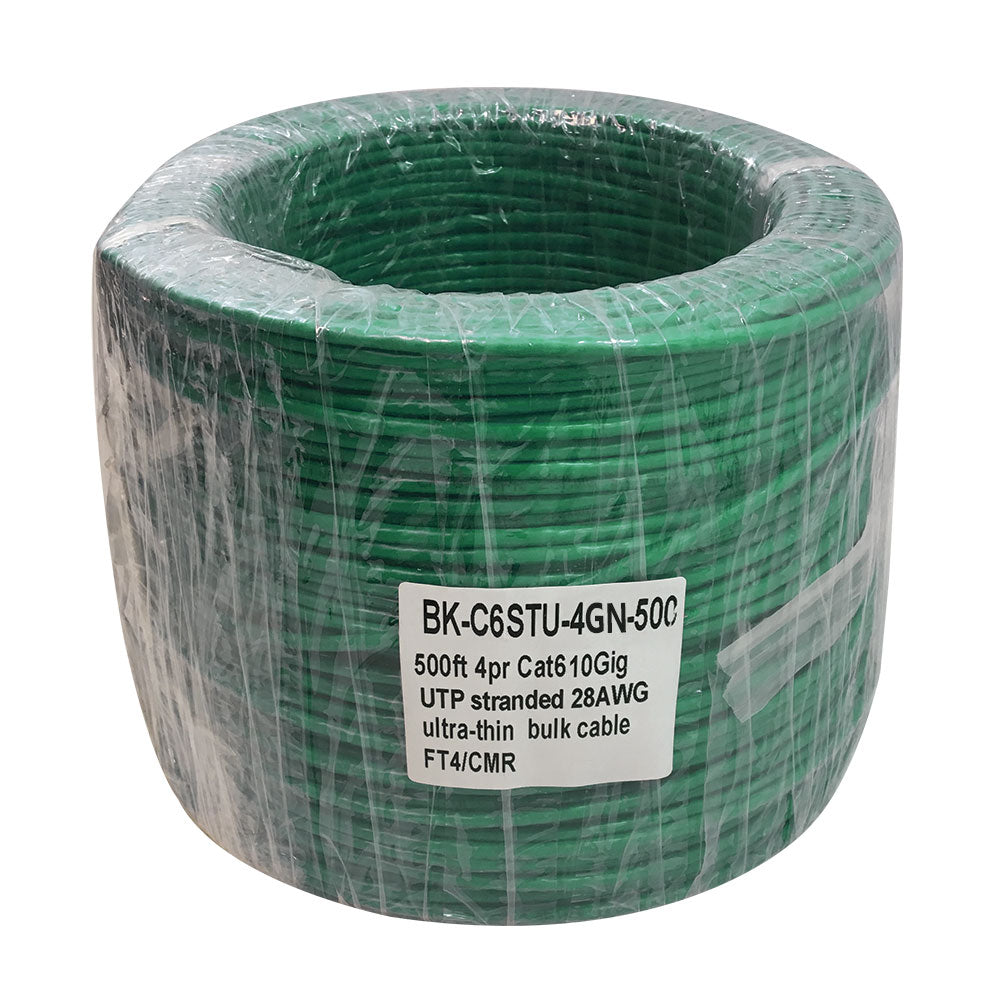

| BK-C6ASTU-4GN-500 | Green | 7.0 lb |

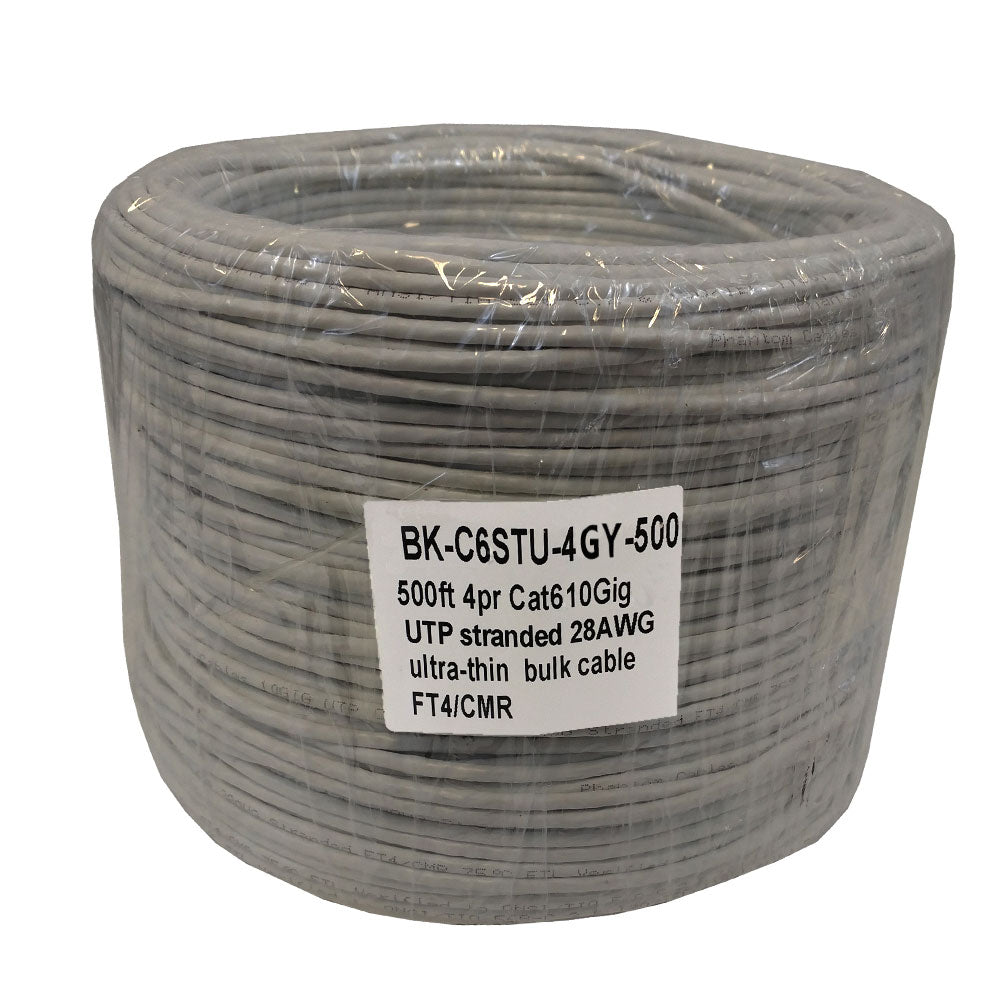

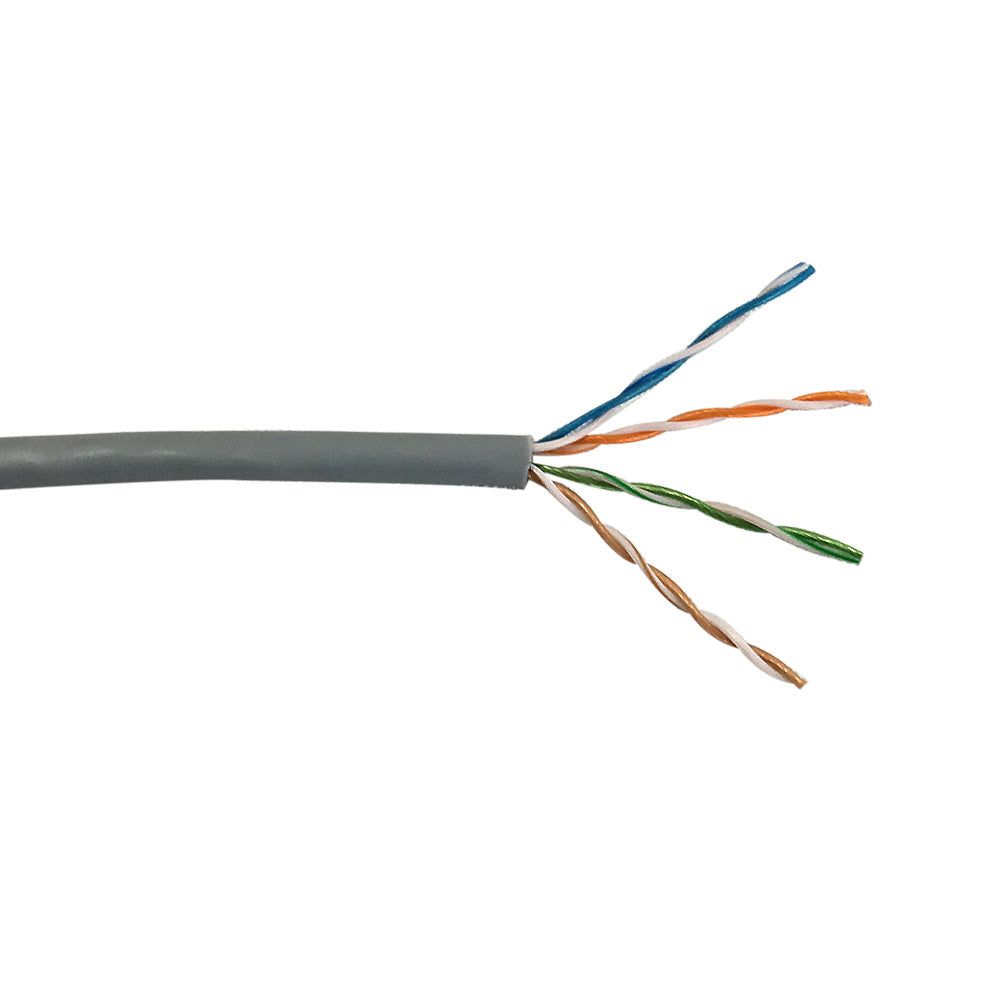

| BK-C6ASTU-4GY-500 | Grey | 7.0 lb |

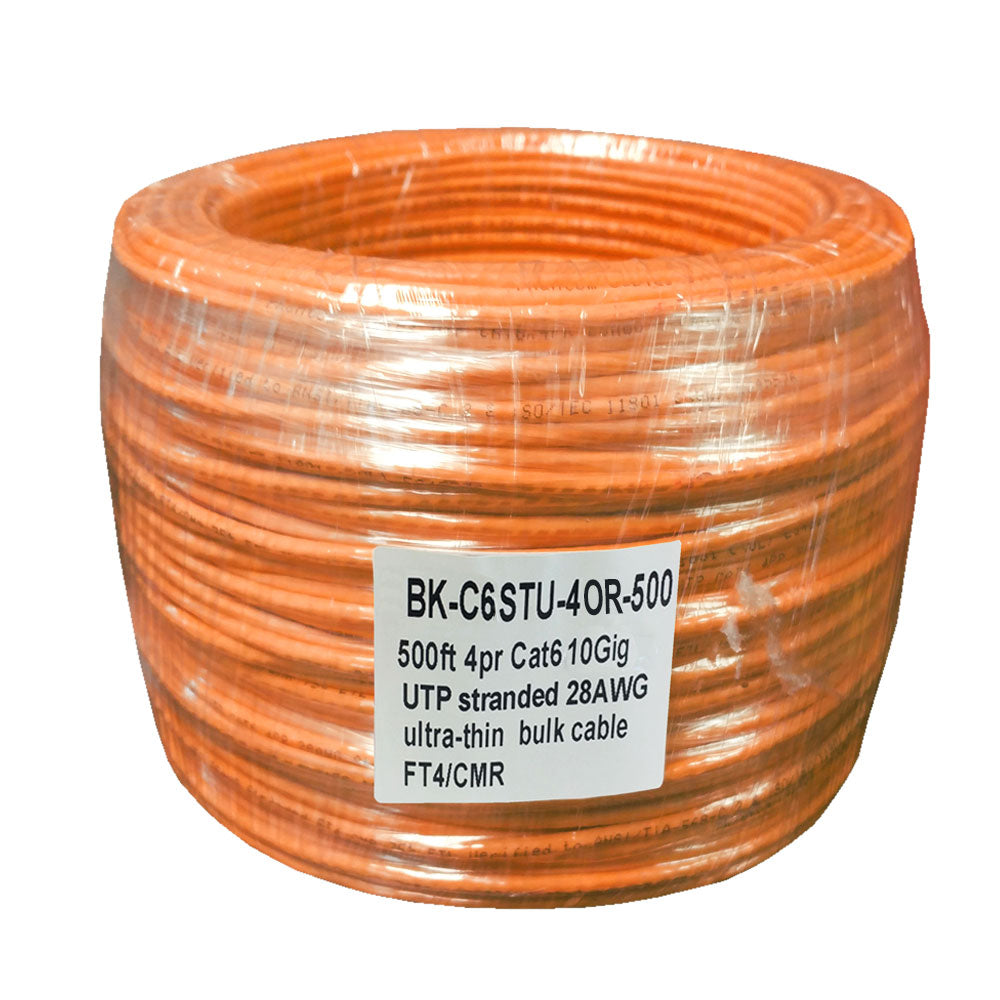

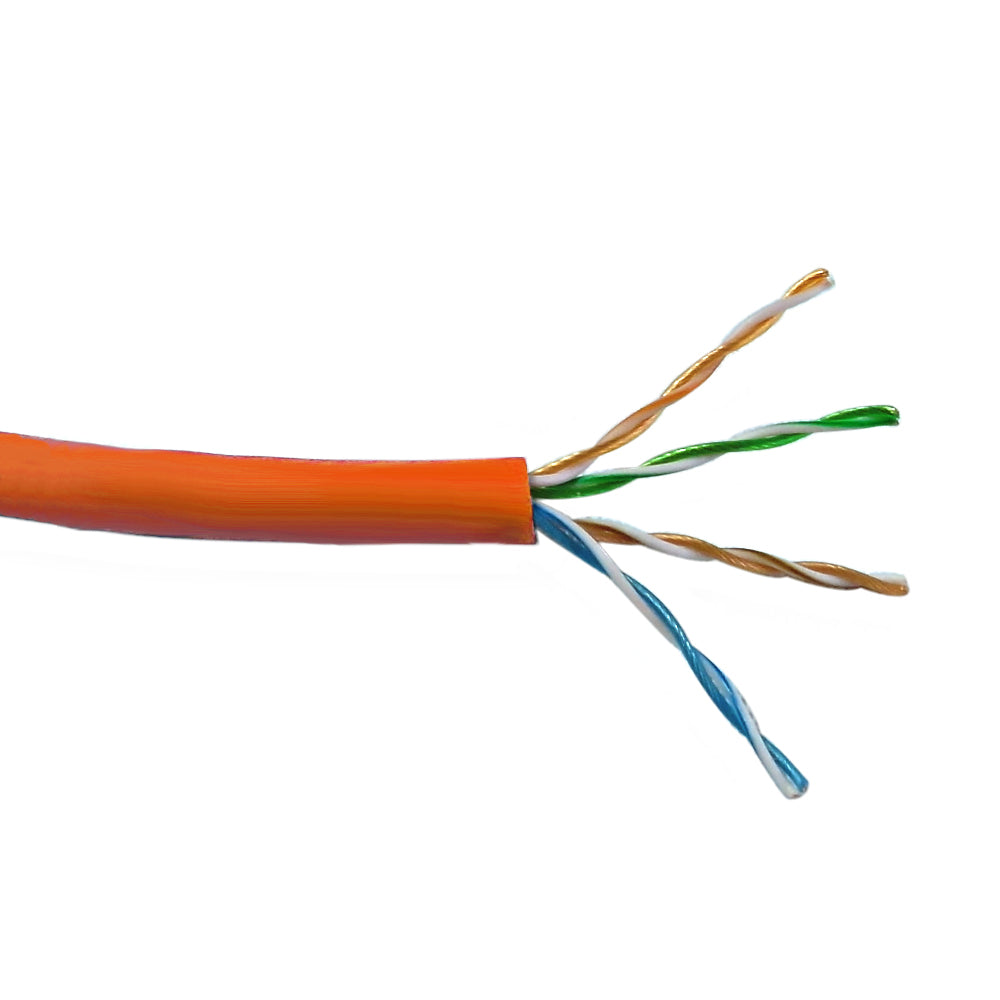

| BK-C6ASTU-4OR-500 | Orange | 7.0 lb |

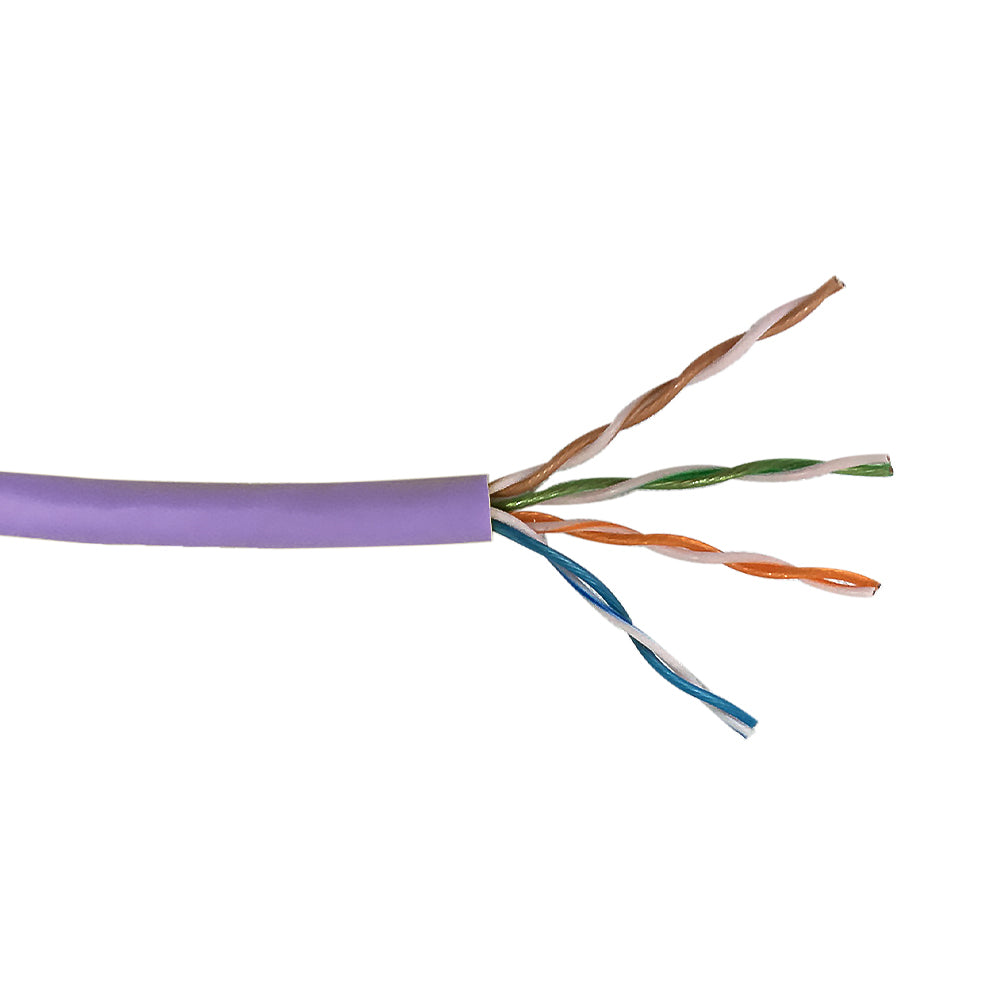

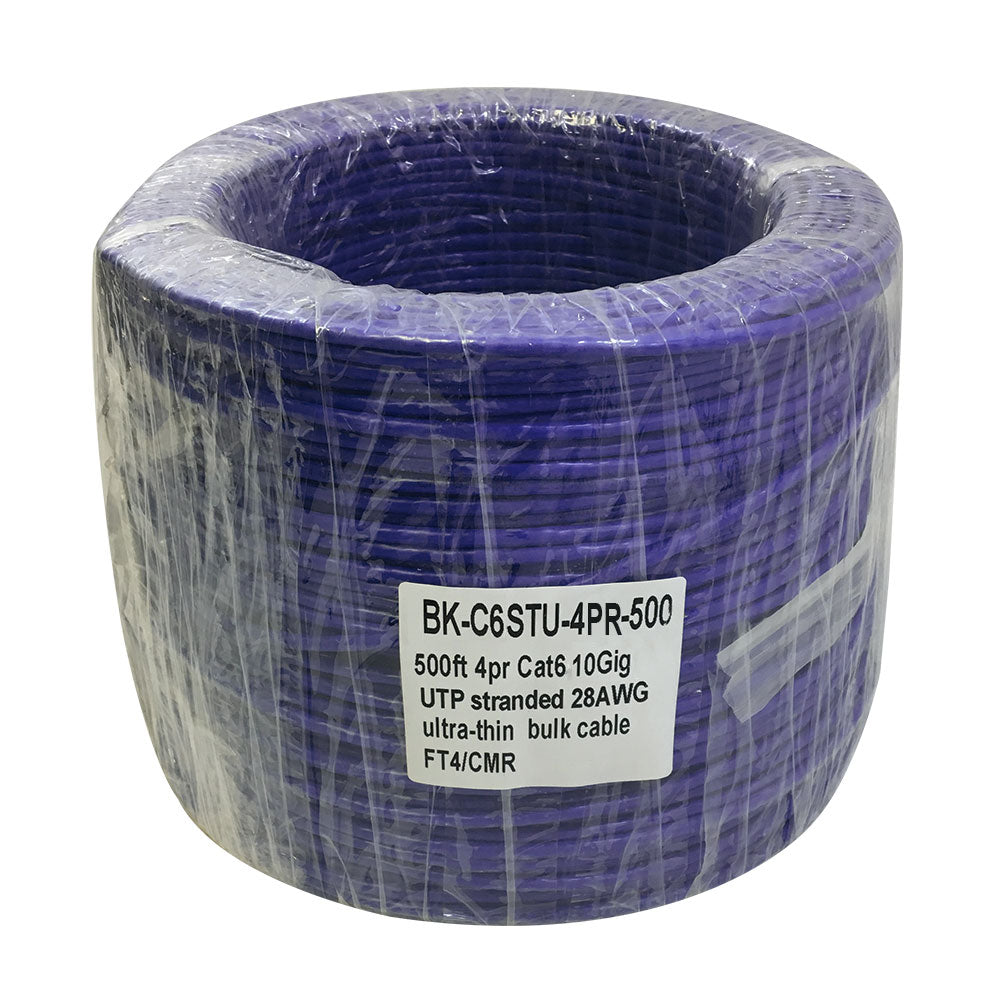

| BK-C6ASTU-4PR-500 | Purple | 7.0 lb |

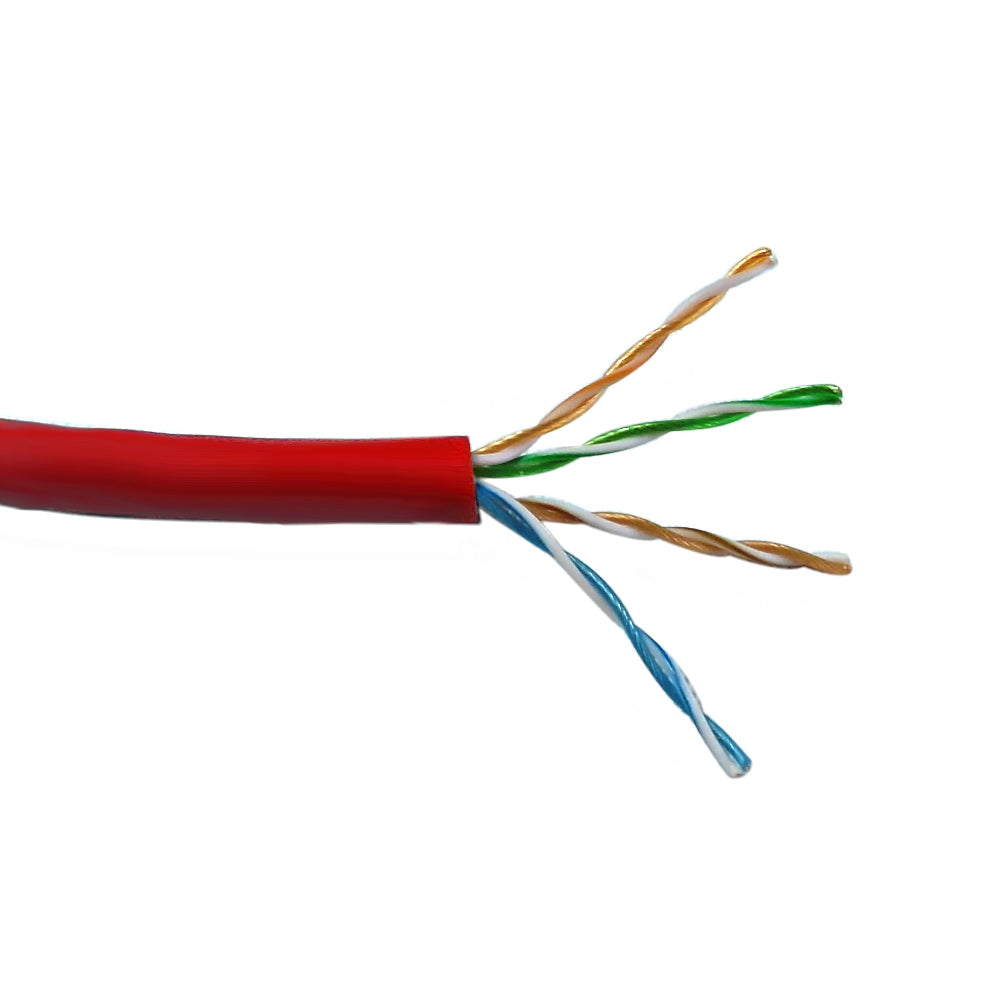

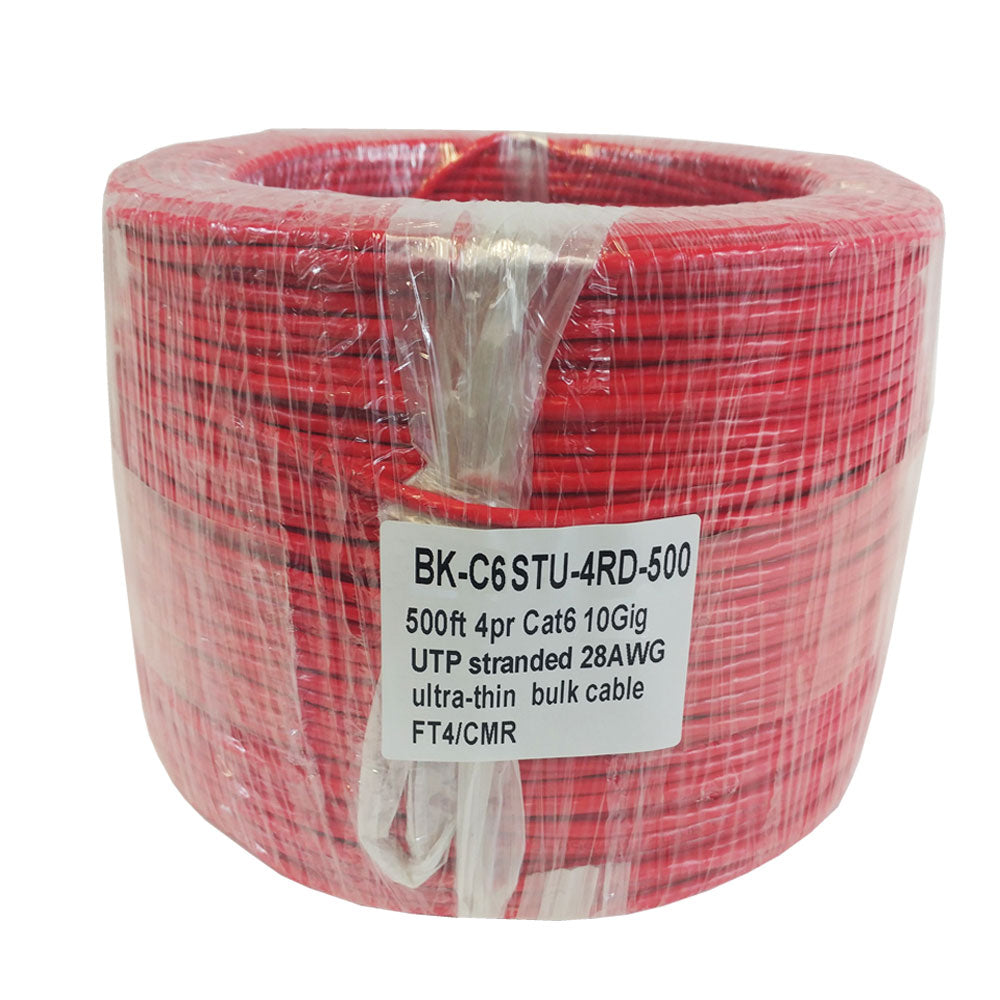

| BK-C6ASTU-4RD-500 | Red | 7.0 lb |

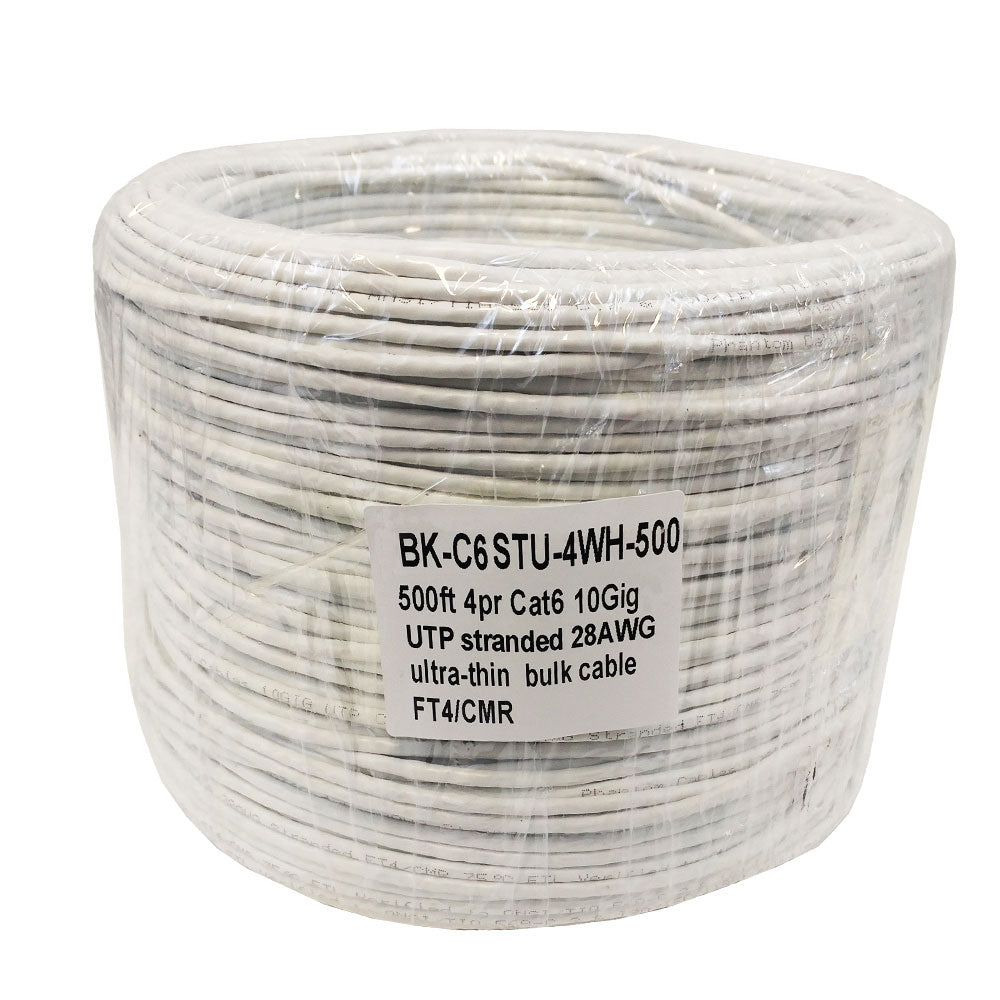

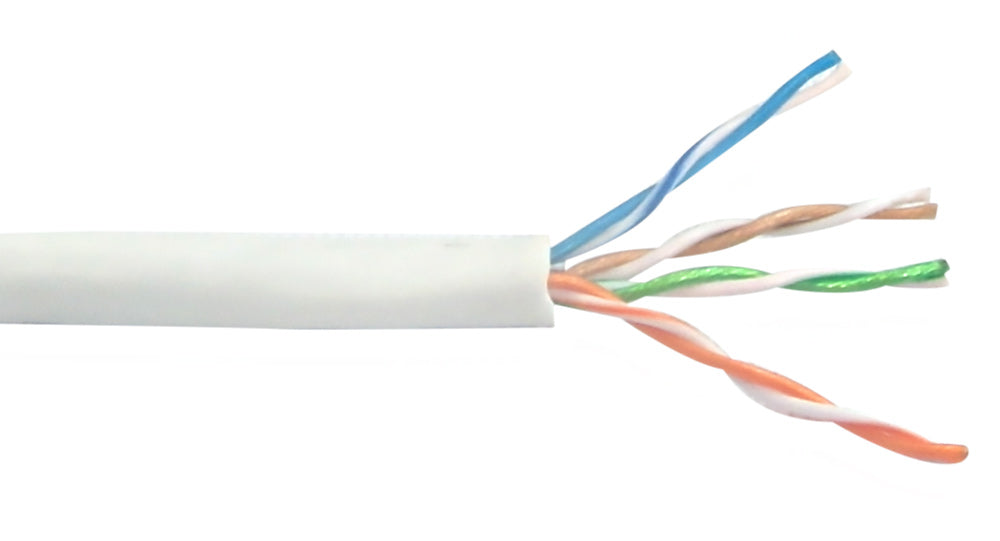

| BK-C6ASTU-4WH-500 | White | 7.0 lb |

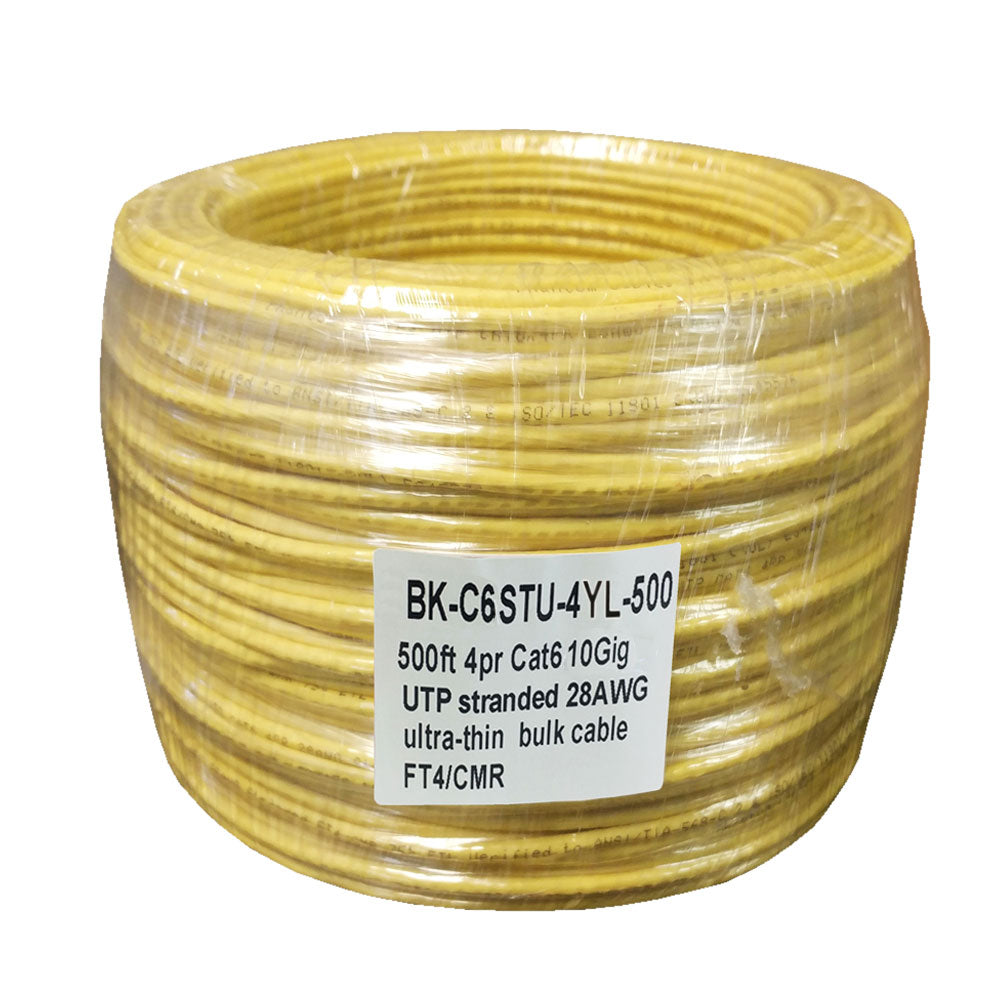

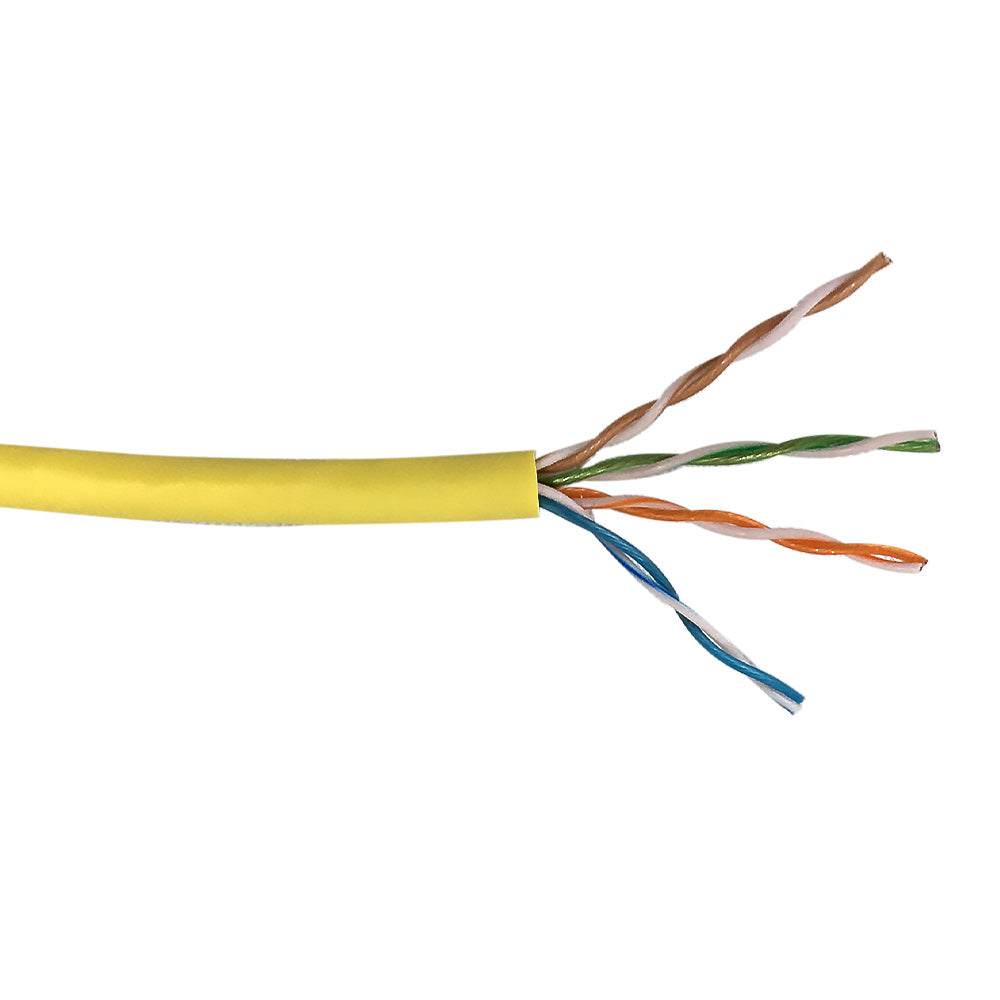

| BK-C6ASTU-4YL-500 | Yellow | 7.0 lb |
