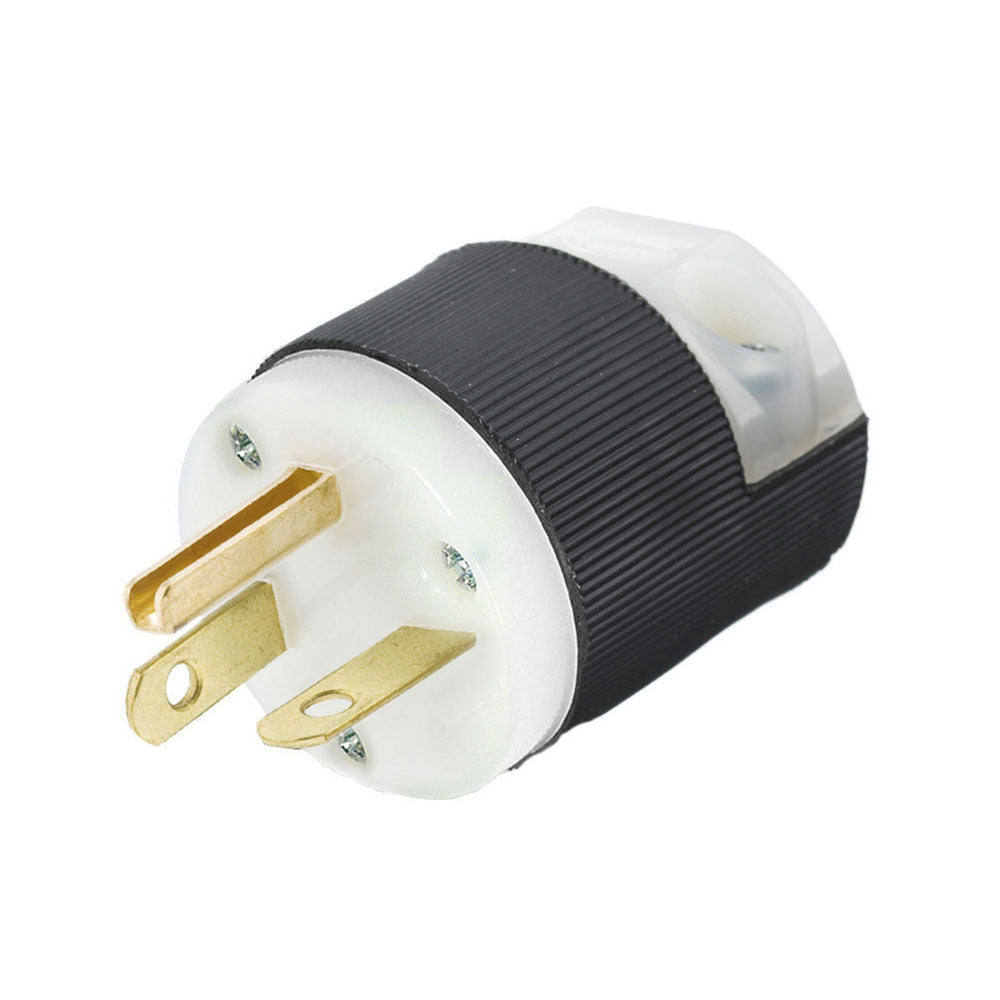

This 6-20P power cord connector is a 2-pole 3-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics
|
|---|
| No. of Poles
|
2-Pole
|
| No. Of Conductor |
3 Conductor |
| Connectivity |
Screw Terminals |
| Material | Polycarbonate |
| Operating Temperature | Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range | 0.230 - 0.720 inch |
| Wire Gauge Compatibility |
10-18AWG |
| Power Rating
|
20A 250V
|
| Phase |
Single Phase |
| Manufacturing Information |
|---|
| Hubbel Part No. |
HBL5466C |
| Connectors
|
|---|
| 6-20P
|
Male
|
| Approvals
|
|---|
| UL |
Yes |
| CSA
|
Yes |
| Environmental |
|---|
| RoHS |
Yes |
| Packaging Information |
|---|
| Package Quantity
|
1
|
| Product Weight
|
0.15 lbs [0.06kg]
|
