Overview

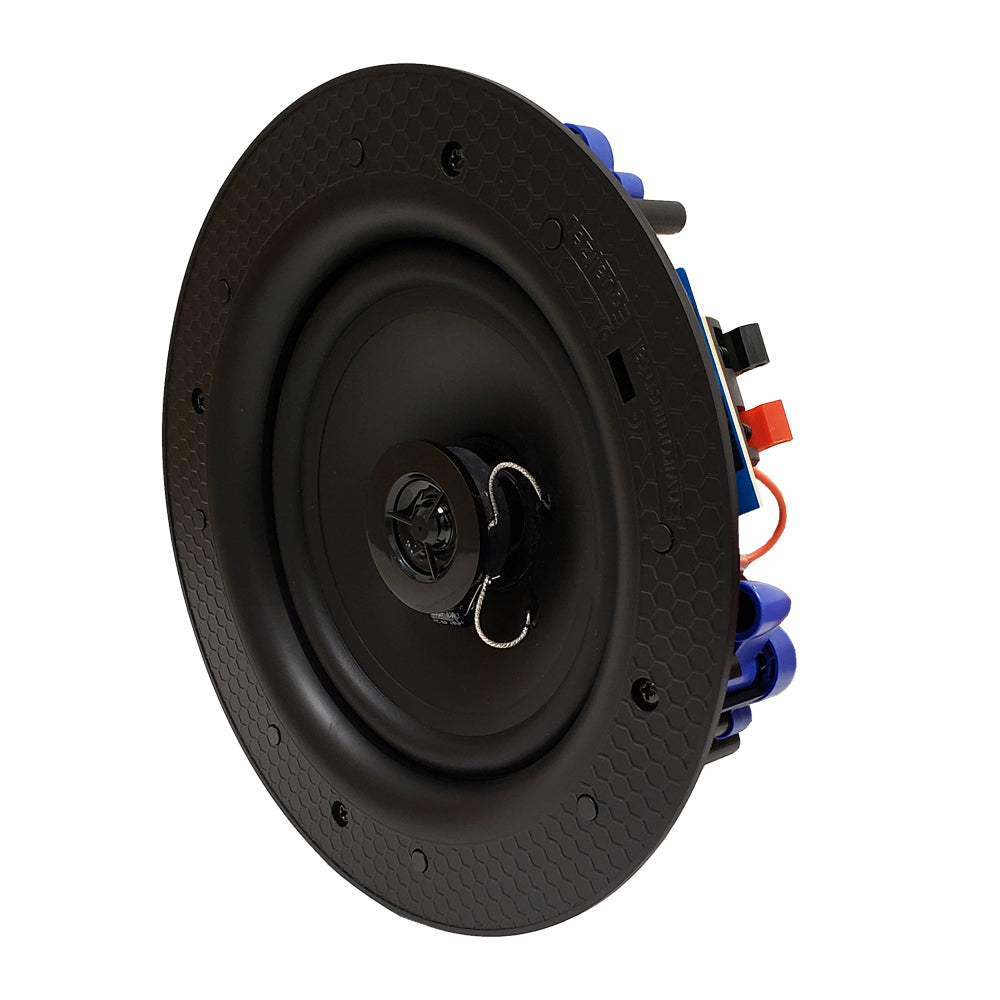

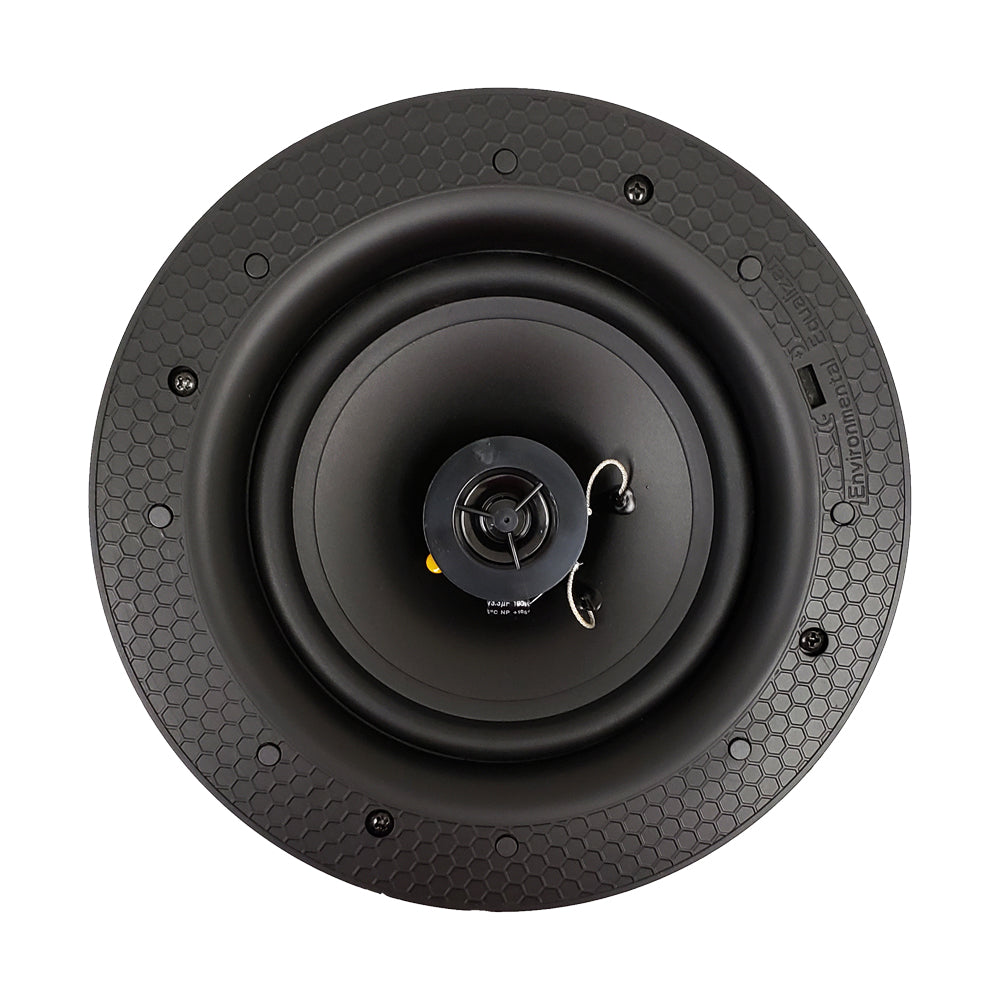

This 2-way in-ceiling speaker has a 6.5 inch woofer and has a frameless design with a magnetic grille. The woofer is made of polypropylene and has a 0.50 inch Mylar dome tweeter which provides high quality, long-lasting and smooth sound over a wide area. As well, there is a +/- 3dB adjustment to further customized the listening experience. Installation is quick and easy as each speaker comes with a cut-out template for post construction installation. The speakers are secured with swing-out dog legs and can be installed in both residential and commercial applications. This 2-way in-ceiling speaker can be used in indoor environments. It is able to pivot to direct sound at listeners while offering high quality, long-lasting sound over a wide area. It can be used in residential and commercial applications.
 |

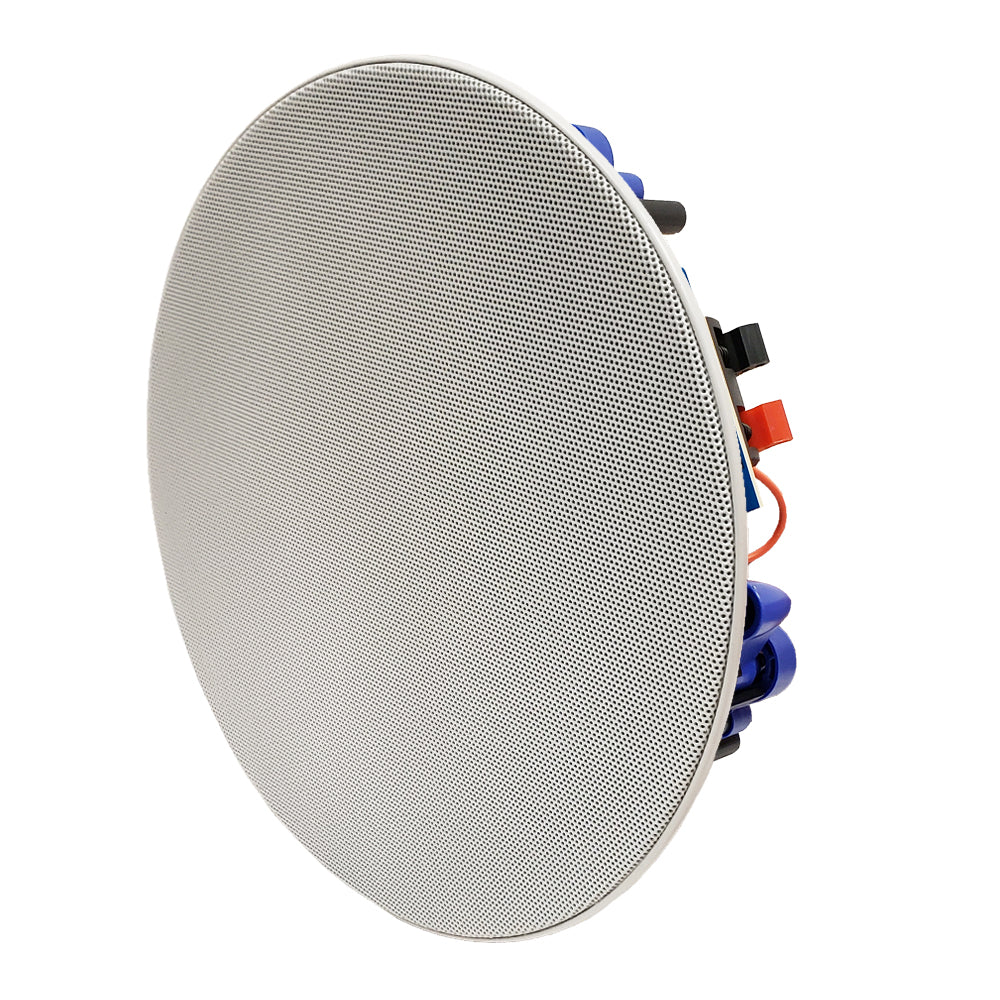

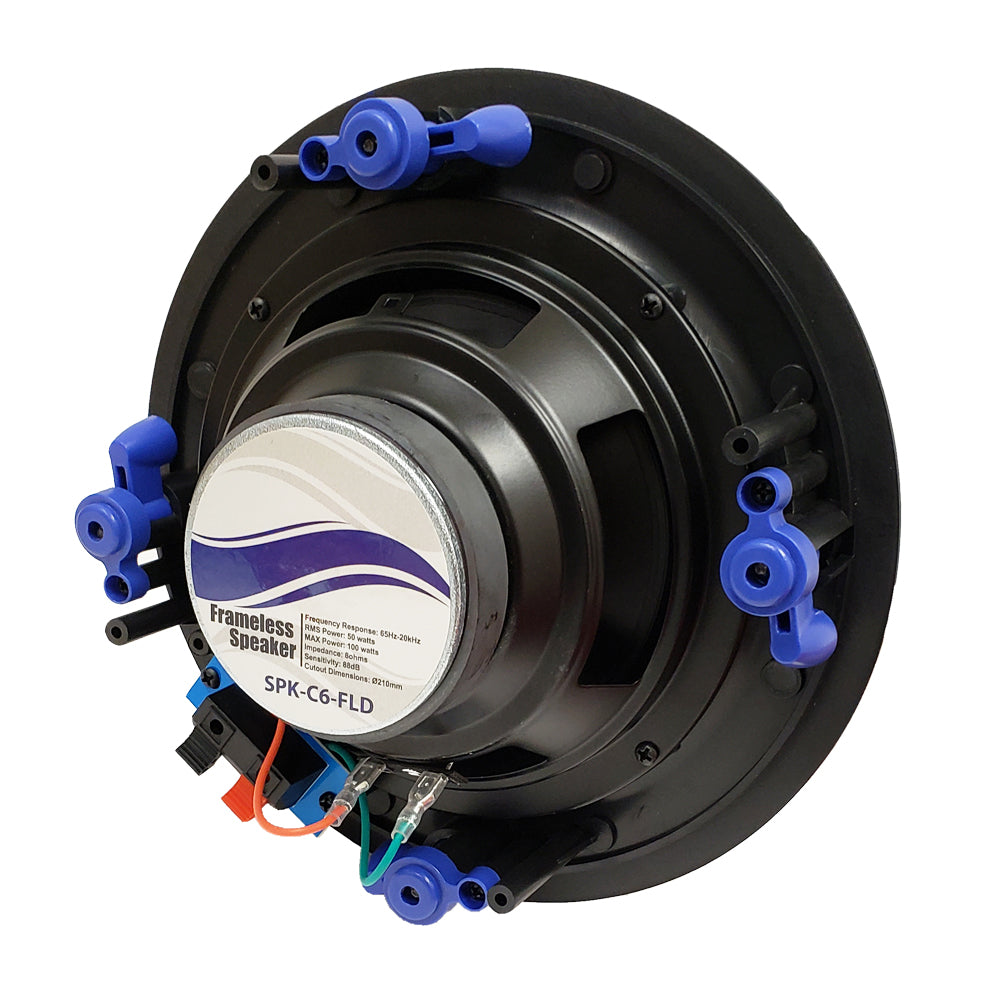

Modern Frameless DesignThis compact in-ceiling speaker provides premium performance in background, foreground music sound systems. It has an attractive frameless design and micro-perforated grille which give it minimum visibility for a clean and built-in look. The Best Sound QualityThis speaker has the ability to handle high power, it also has wide frequency response and low distortion make it ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. Quality Components and featuresThis speaker has a front accessible +/- 3dB adjustment for fine tuning to the installation environment, gold plated terminals and quality crossover components. Easy and Flexible InstallationThis speaker is designed to offer greater flexibility in terms of application. It is equipped with dog leg mounting system for a fast and easy installation. The magnetic grille provides dust prevention and also protection from damage. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | In-Ceiling Mount |
| Speaker Color | Black |
| Grille Color | White |
| Dimensions | 227 x 87mm (8.9" x 3.4") |
| Cutout Size | 210mm (8.3") |
| Woofer | 6.5" Polypropylene Cone |
| Tweeter | 0.50" Mylar Dome |
| Magnetic Grille | Yes |
| Frameless Design | Yes |
| Dispersion Angle | 120° |
| Performance | |
| Frequency Response (+/- 3dB) |
65Hz - 20KHz |
| Efficiency | 88dB |
| RMS Power | 50W (each) |
| Max Power | 100W (each) |
| Nominal Impedance | 8Ω |
| Compatible Brackets | |
| WP-CLIP-SP6 | Speaker Ceiling Rough In Bracket - Plastic For 6.5" Speaker |
| Packaging Information | |
| Package Quantity | 1 Pair |
| Product Weight | 6.6 lbs [3kg] |
10-YEAR WARRANTY
Infinite Cables Inc. offers a 10-year warranty on standard stock speakers to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SPK-C6-FLD | 3.68 lb |
