Overview

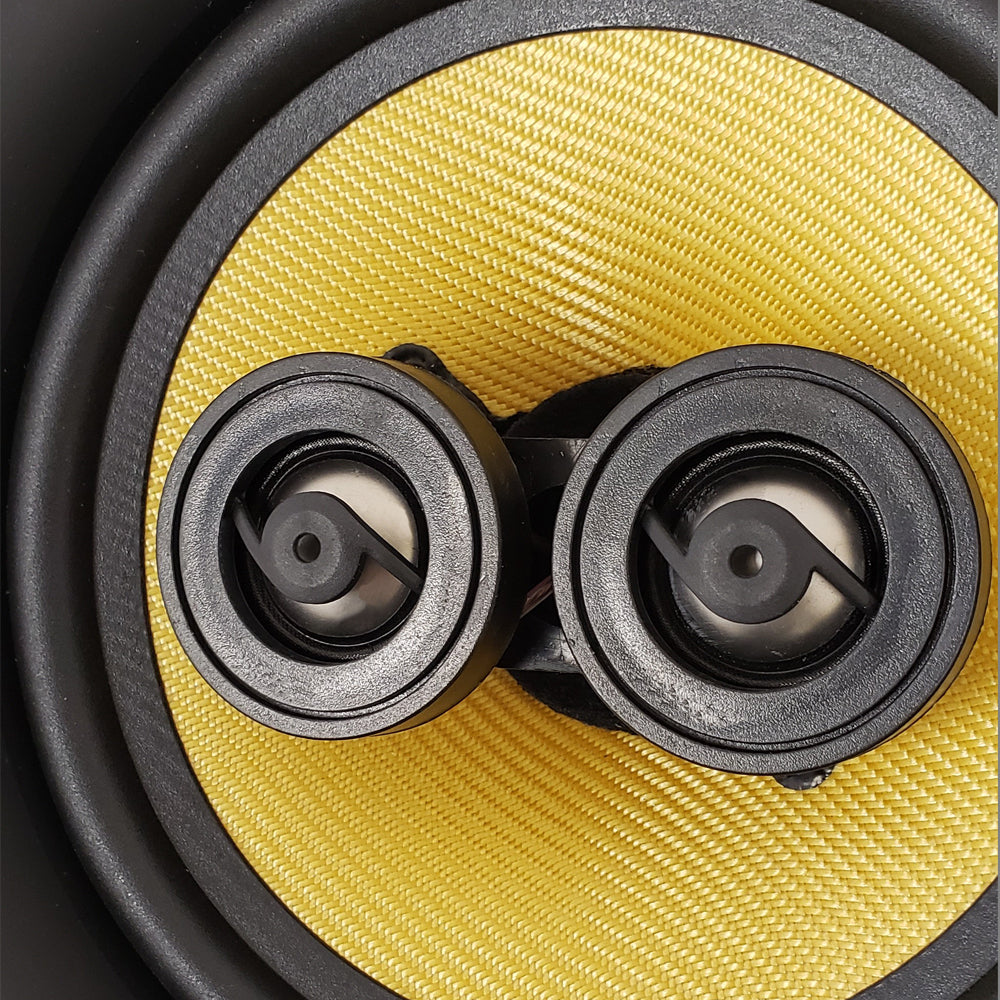

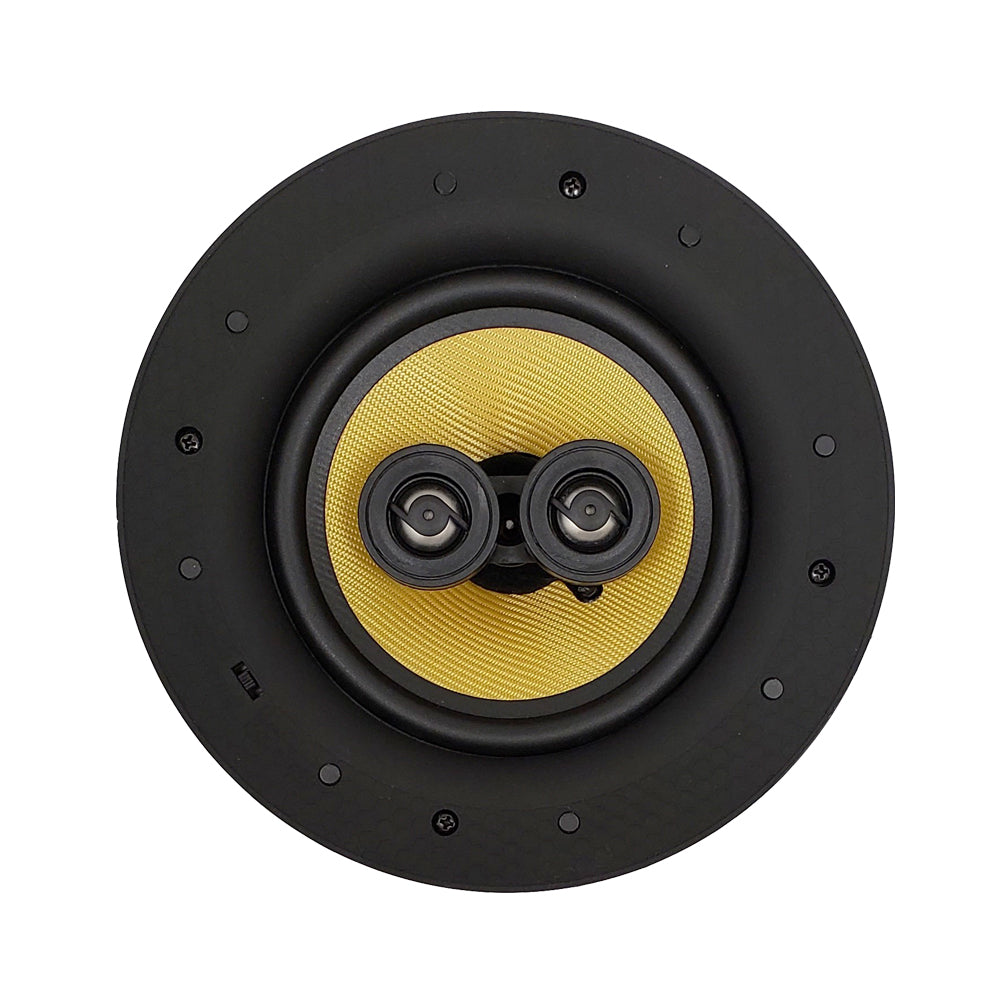

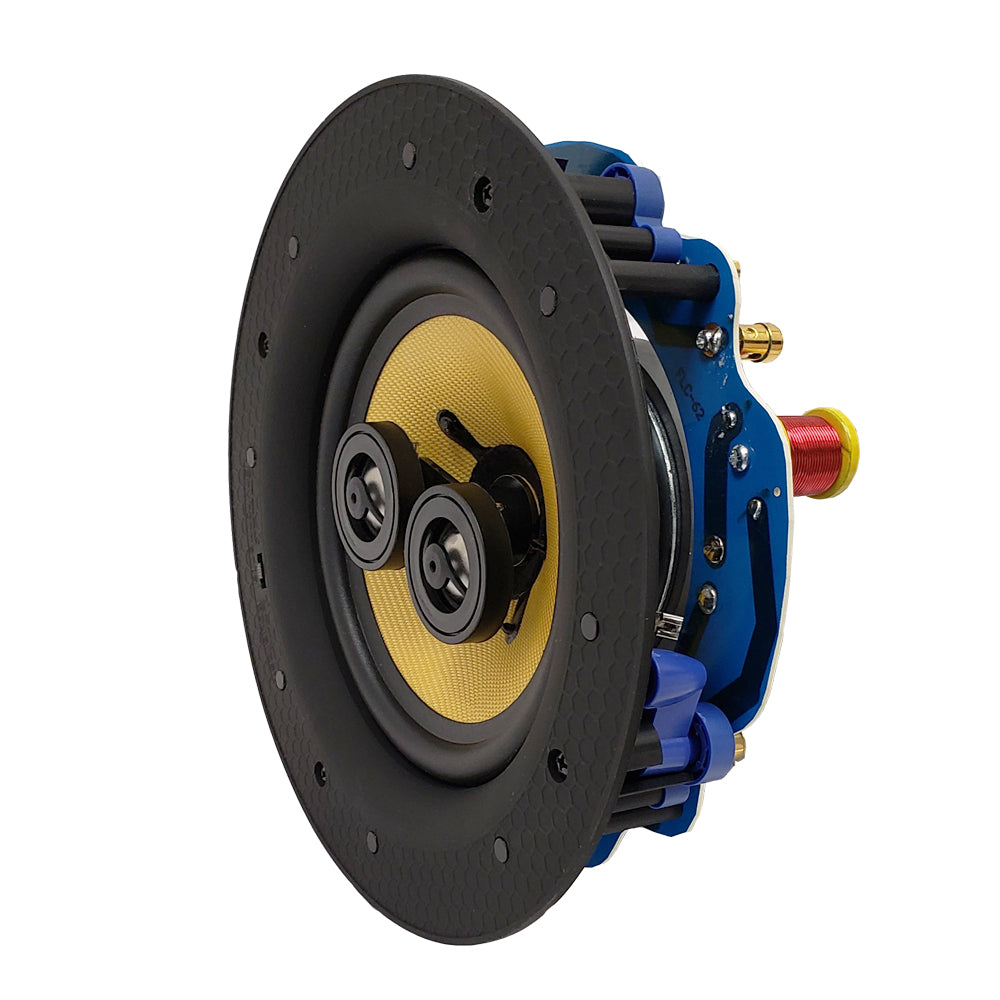

This 2-way in-ceiling stereo speaker has a 6.5 inch woofer and has a frameless design with a magnetic grille. The woofer is made of woven glass fiber cone and has two 0.75 inch titanium dome tweeters which provide premium and long lasting stereo sound quality along with an extremely smooth high frequency response. High-grade rubber edges increase the speakers performance and quality while the sophisticated crossover works to deliver deep bass. The speaker is ideal for achieving stereo sound in confined locations where there is room for only one in-ceiling speaker. Installation is quick and easy as the speaker comes with a cut-out template for post construction installation. The speaker is secured with swing-out dog legs and can be installed in both residential and commercial applications. This 2-way in-ceiling speaker can be used in indoor environments. The woven cone and high-grade rubber edge offer high quality, long-lasting sound. This speaker also offers a +/- 3dB adjustment for further customized listening.
 |

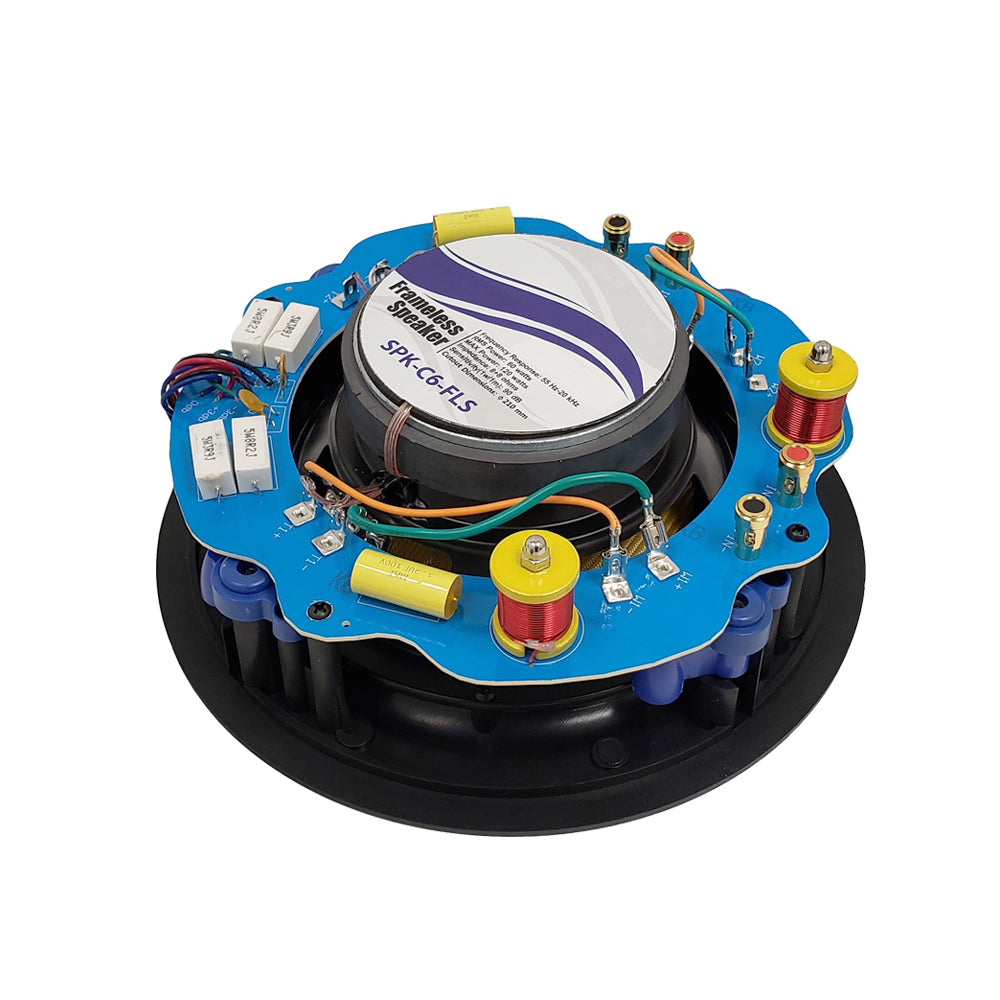

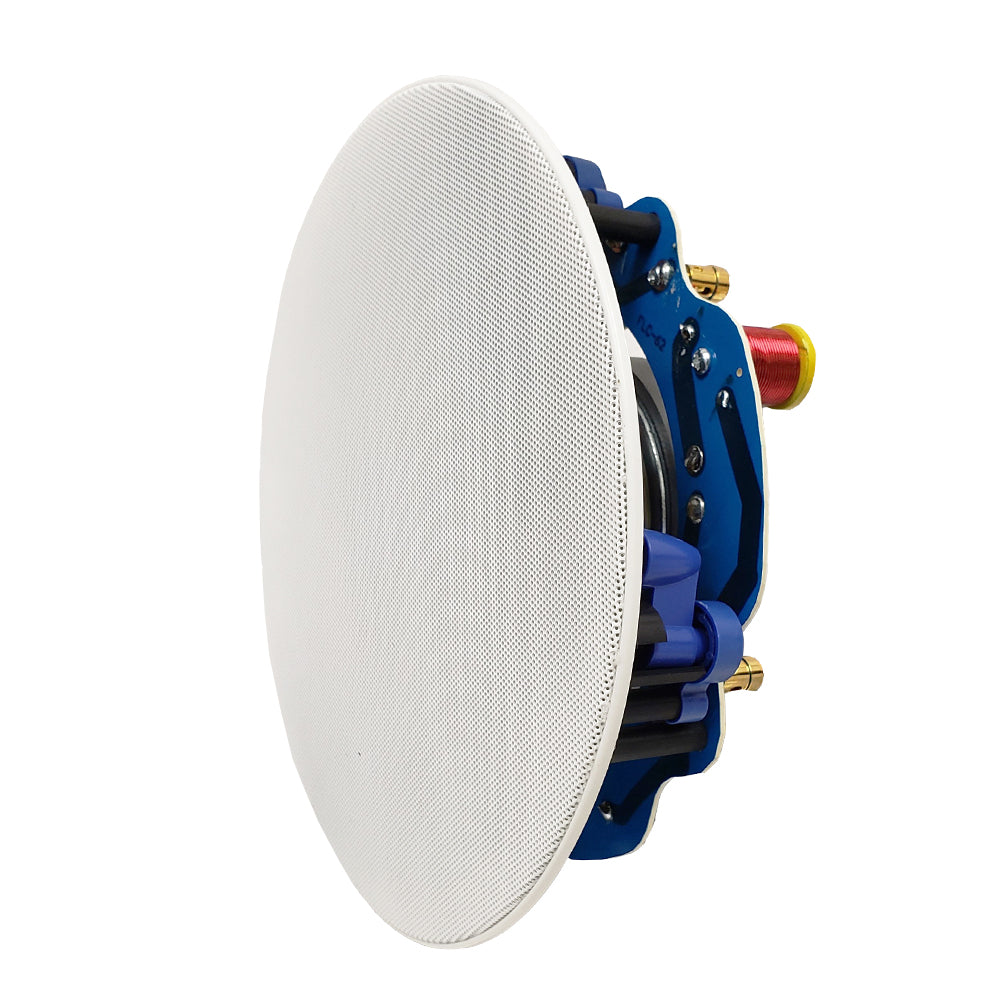

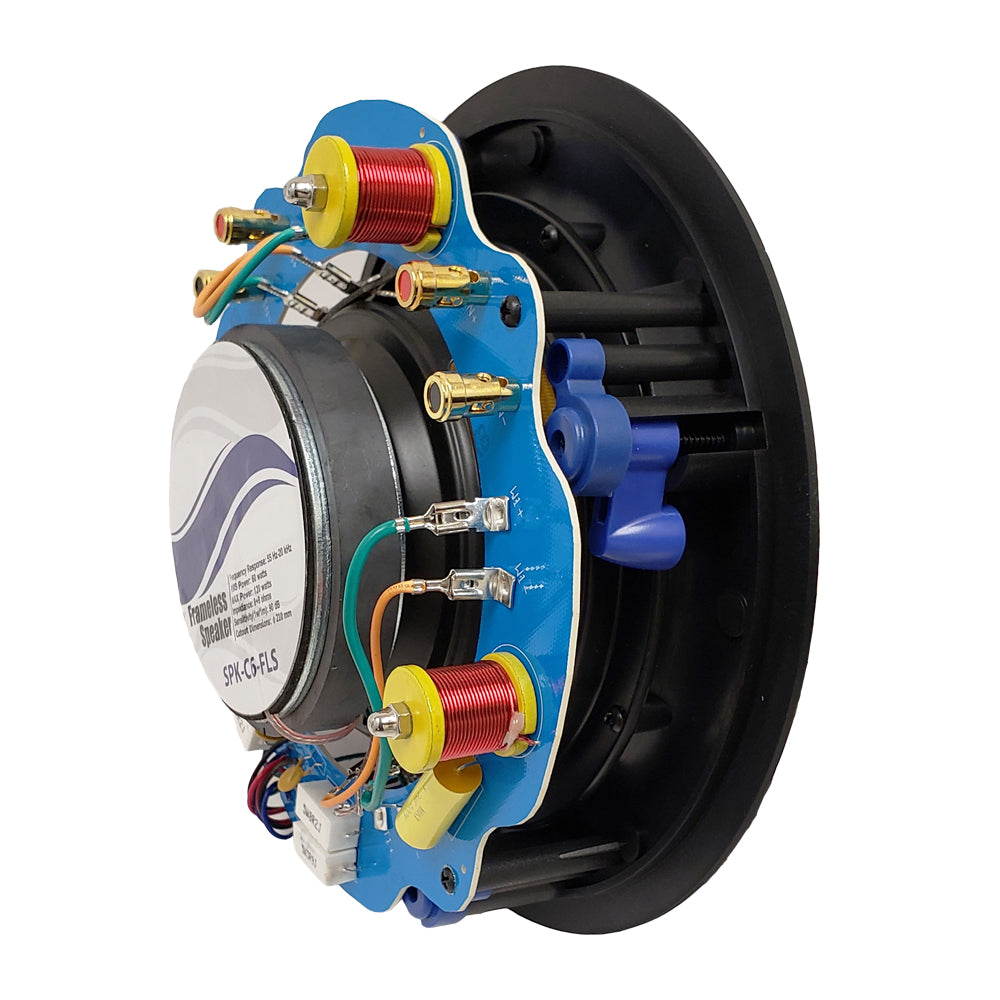

Modern Frameless DesignThis compact in-ceiling speaker provides premium performance in background, foreground music sound systems. It has an attractive frameless design and micro-perforated grille which give it minimum visibility for a clean and built-in look. The Best Sound QualityThis speaker has the ability to handle high power, it also has wide frequency response and low distortion make it ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. It's equipped with woven glass fiber cone woofer to delivers deep clear bass, titanium dome tweeters to delivers pristine highs and butyl rubber surround for longevity and excellent bass performance. Quality Components and FeaturesThis speaker has gold plated terminals, a woven glass fiber cone woofer, titanium dome tweeters and quality crossover components. Easy and Flexible InstallationThis speaker is designed to offer greater flexibility in terms of application. It is equipped with dog leg mounting system for a fast and easy installation. The magnetic grille provides dust prevention and also protection from damage. |
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | In-Ceiling Mount |
| Speaker Color | Black |
| Grille Color | White |
| Dimensions | ?234x87mm (?9.2"x3.4") |
| Cutout Size | Ø 210mm (8.27") |
| Woofer | 6.5" Woven Glass Fiber Cone |
| Woofer Quantity | 1 |
| Tweeter | 0.75" Titanium Dome |
| Tweeter Quantity | 2 |
| Magnetic Grille | Yes |
| Frameless Design | Yes |
| Dispersion Angle | 120° |
| Performance | |
| Frequency Response | (±3dB) 55Hz - 20KHz |
| Efficiency | 90dB |
| RMS Power | 60W |
| Max Power | 120W |
| Nominal Impedance |
8+8Ω |
| Associated Products | |
| SPK-W5C-FL |
5.25" 2-Way Frameless In-Wall LCR Speaker, 100W Max (Single) |
| SPK-W6-FL |
6.5" 2-Way Frameless In-Wall Speaker, 120W Max (Pair) |
| WP-CLIP-SP6 |
Speaker Ceiling Rough In Bracket - Plastic For 6.5" Speaker |
| Packaging Information | |
| Package Quantity | 1 Speaker |
| Product Weight | 3.5lbs lbs [1.59kg] |
10-YEAR WARRANTY
Infinite Cables Inc. offers a 10-year warranty on standard stock speakers to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| SPK-C6-FLS | 3.5 lb |
