Overview

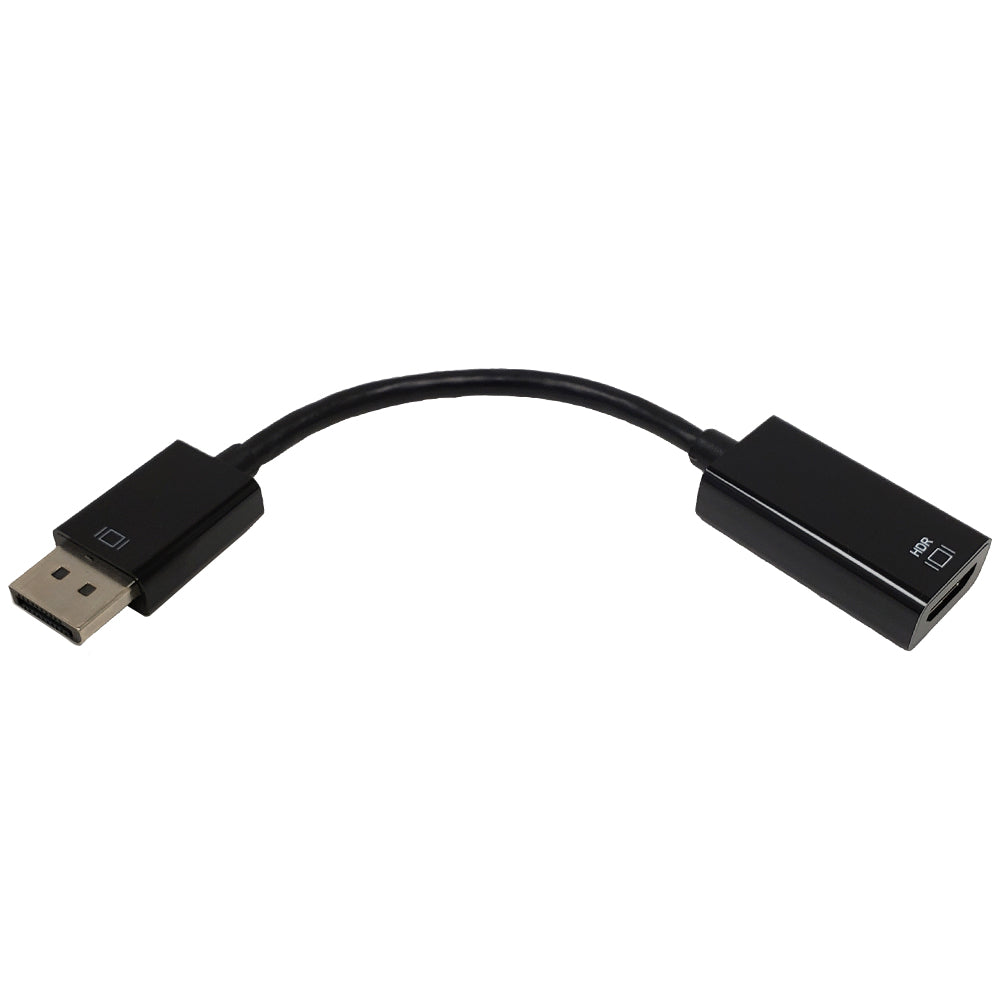

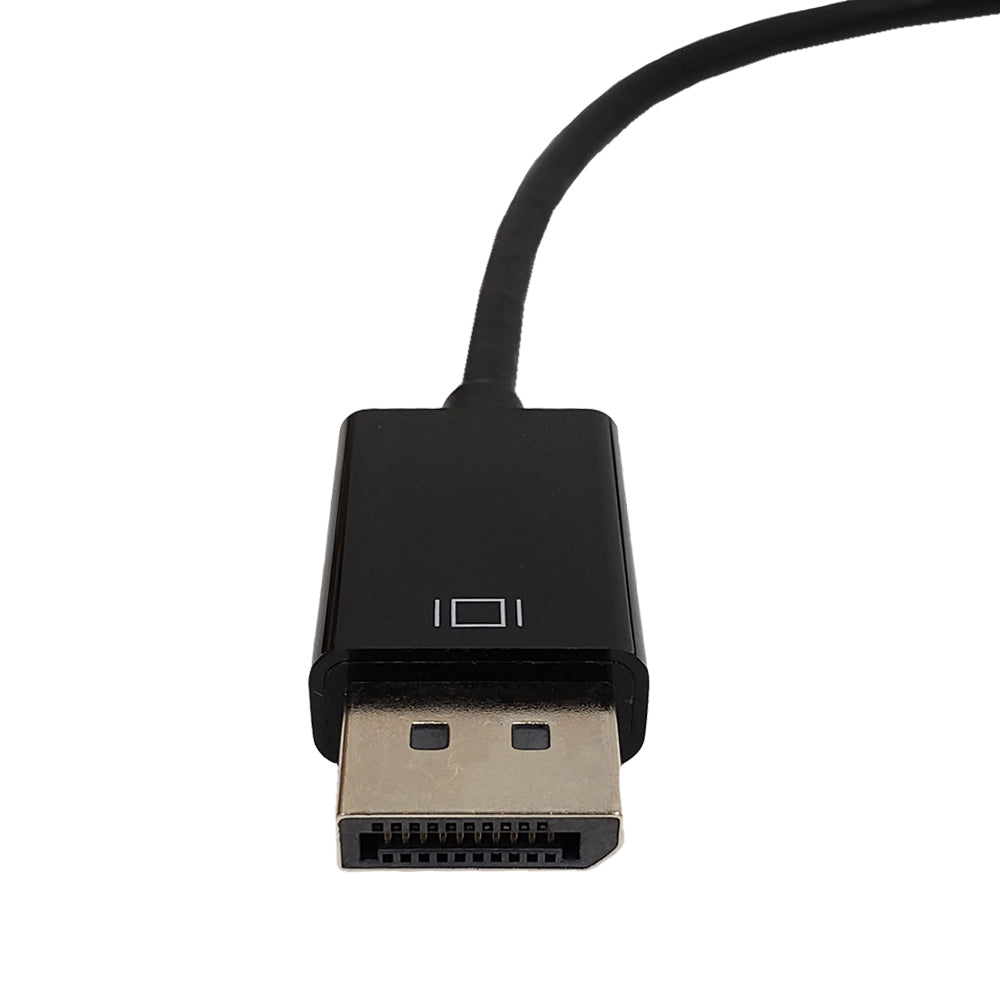

This adapter consists of a DisplayPort v1.2a male on one end and a HDMI v1.4b female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
|
|
Ultra High-Definition ResolutionThis adapter supports video resolutions up to Ultra HD 4K x 2K @ 60Hz. Supports Multiple Color FormatsThis adapter supports a variety of color formats - including RGB 6/8/10/12-bit per component and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component. Used in Common InstancesThis adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Operating Temperature | 0℃ to +45℃ |
| Connectors | |
| Connector A | DisplayPort Male v1.2a |
| Connector B | HDMI Female 1.4b |
| Performance | |
| Resolution | 4Kx2K@60Hz |
| Bandwidth | 18Gbps |
| DP Version | 1.2a |
| HDMI Version | 1.4b |
| HDR Function | HDR 10, Dolby Version |
| Supported Application | DisplayPort input and HDMI output |
| Color Format Supported | RGB 6/8/10/12-bit per component and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component |
| Power Consumption | 1W (Max), no external power supply needed |
| Audio | Supports up to 8 channel LPCM, compressed audio (AC-3, DTS) and HBR audio format Supports up to 192 kHz audio frame rate and up to 24-bit audio sample size |
| Approvals | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| AD-DP-HDMI2-A | 0.5 lb |
