6 inch DisplayPort v1.4 Male to HDMI Female 8K@60Hz Adapter, Active

Video AdaptersSKU: AD-DP-HDMI3-A

Price:
Sale price$36.60 CAD
Stock:
In stock


Description

Overview

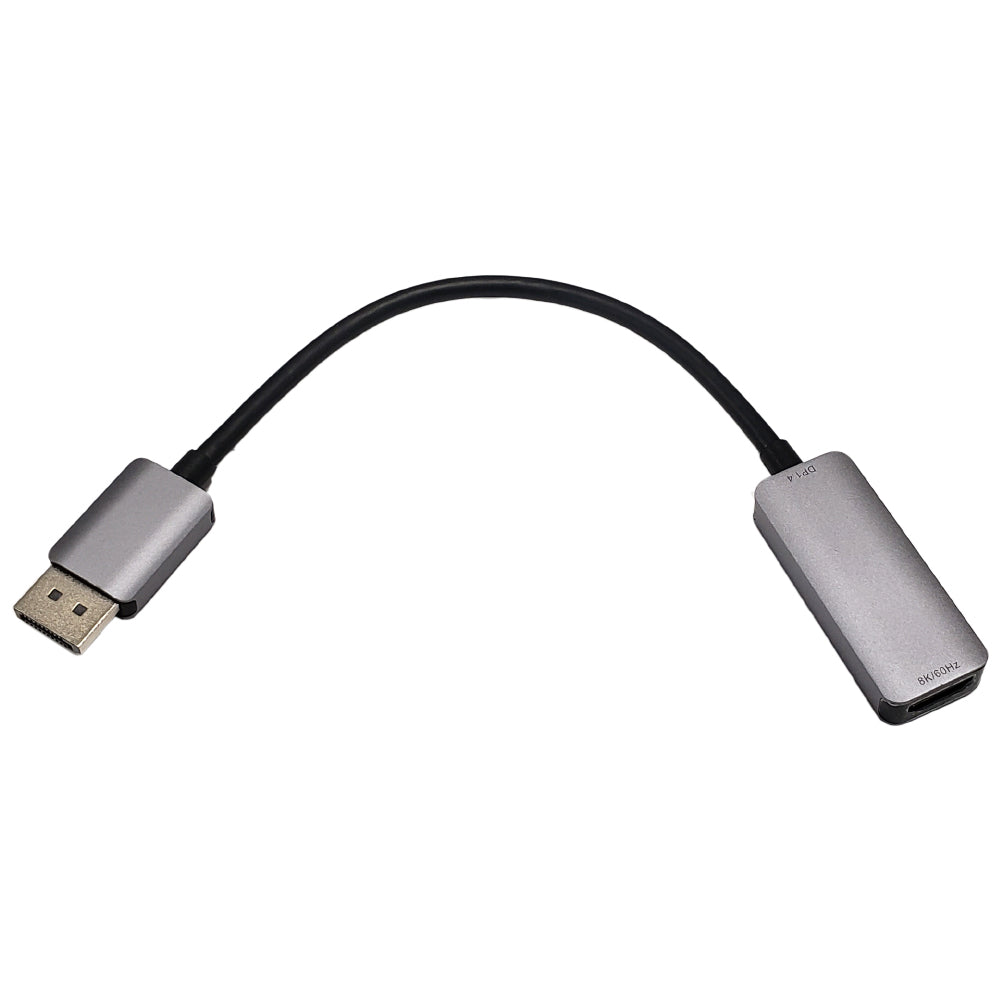

This adapter consists of a DisplayPort v1.4 male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.

Ultra High-Definition Resolution

This adapter supports video resolutions up to Ultra HD 8K @ 60Hz.

Supports Multiple Color Formats

This adapter supports a variety of color formats - including RGB and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component.

Used in Common Instances

This adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments.

Application

Specifications

Physical Characteristics

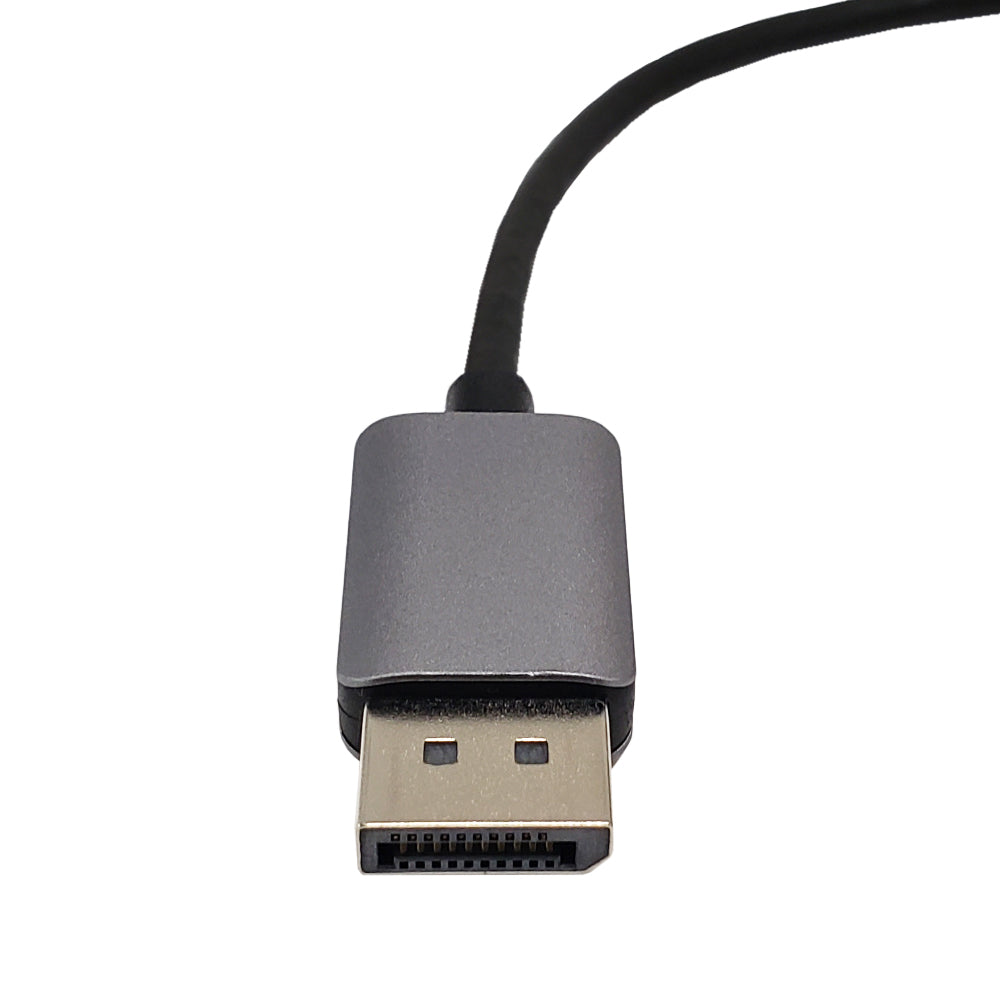

Connector A DisplayPort Male v1.4

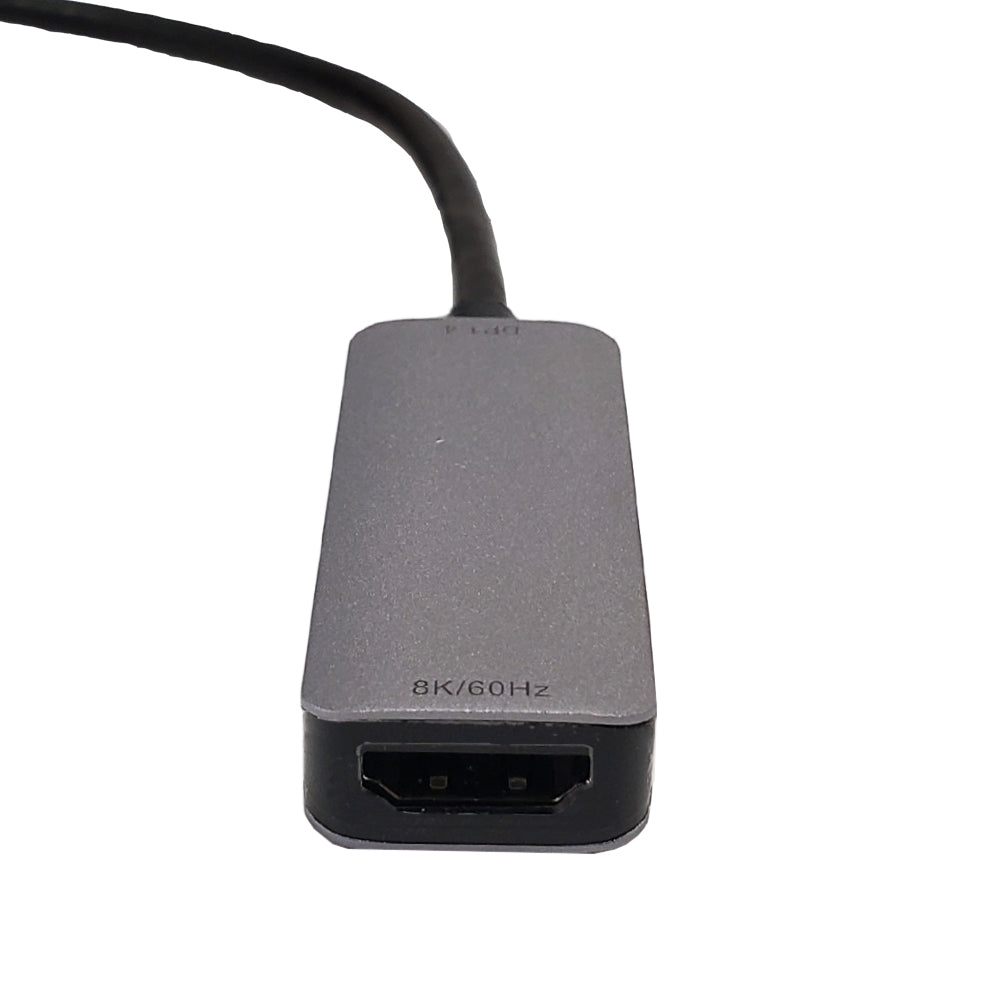

Connector B HDMI Female
Performance
Resolution 8K@60Hz
Supported Application DisplayPort input and HDMI output
DisplayPort Features Supports DP1.4
Supports DSC1.1/1.2a or uncompressed video
Supports DSC 1.1/1.2a decoder
Supports 8/10/12 bit color depth
Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
HDMI Features Supports Dynamic HDR10+
Supports HDCP1.4 and HDCP2.3 specification
Supports HPD
Supports DSC 1.1/1.2a decoder
Supports 8/10/12 bit color depth output
Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
Supports 1 to 32 channels LPCM 192kHz audio output
Supports HBR audio up to 1536kHz
Approvals
FCC Yes
CE Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Packaging Quantity 1
Product Weight 0.50 lbs [0.23 kg]

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
AD-DP-HDMI3-A 0.5 lb
