Description

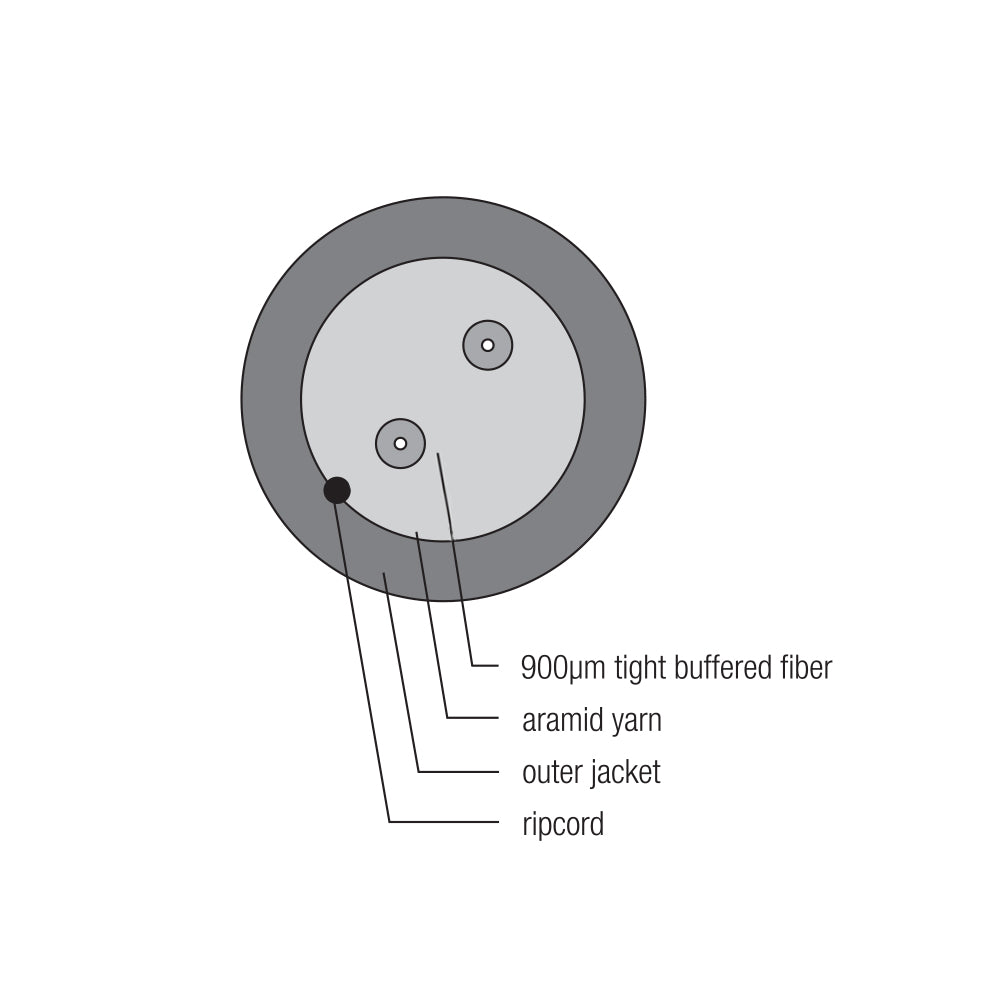

This bulk OM1 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
This cable can be used in all environments: riser, general inside plant and outside plant.
- Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
- Approved for mining applications.
- RoHS/REACH Compliant.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM1 62.5 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 2-Strand / 12-Strand |
| Glass Fiber |
Corning InfiniCor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 4.8mm (2-Strand) 6.5mm (12-Strand) |
| Tension(Installation) | 150 lbs |
| Tension(Long Term) | 45 lbs |
| Bending Radius(Installation) | 7.2cm (2-Strand) 9.0cm (12-Strand) |
| Bending Radius(Long Term) | 4.8cm (2-Strand) 6.5cm (12-Strand) |
| Operating Temperature | -40°C ~ +75°C |
| Storage Temperature | -40°C ~ +75°C |
| Installation | -20°C ~ +75°C |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 200 MHz/km @1300nm > 600 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 1300nm = 550 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 32 |
| Fire Rating | OFNR |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F2IO-OM1-R | 2-strand | 0.08 lb |
| BK-F12IO-OM1-R | 12-strand | 0.12 lb |
