Description

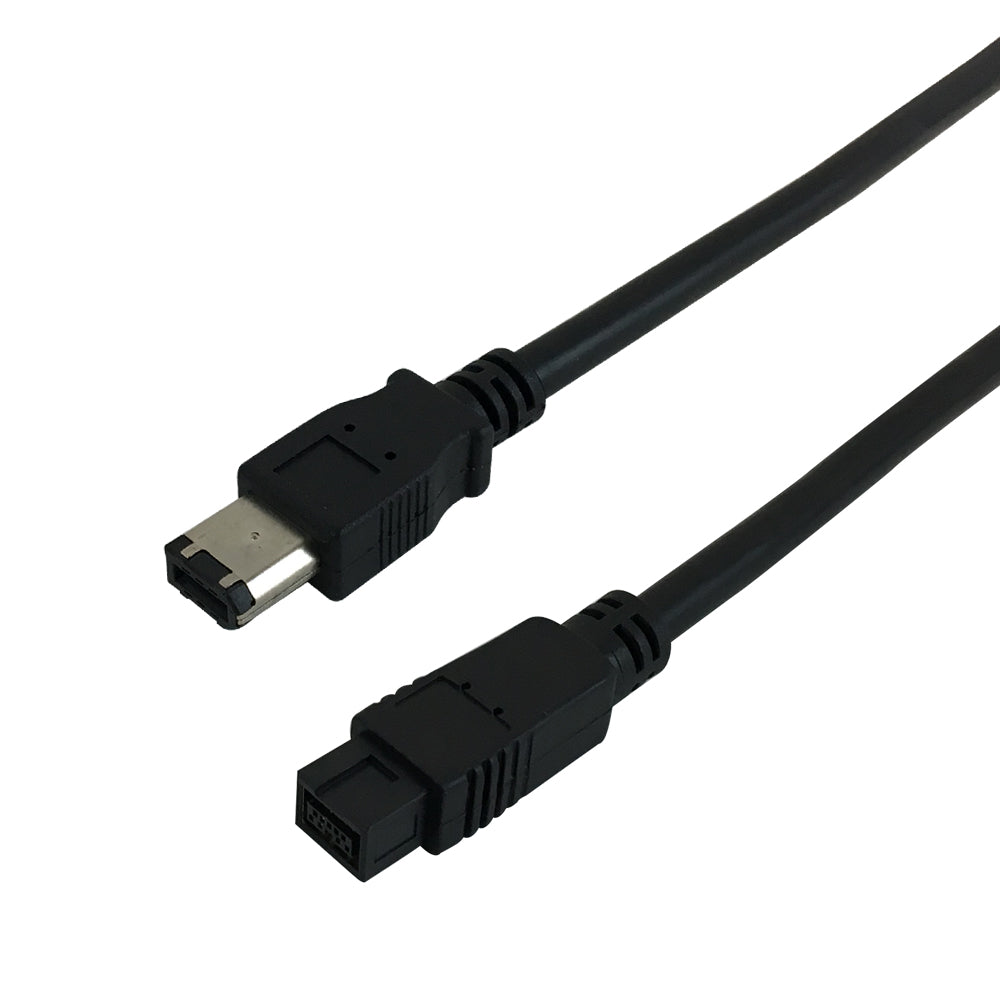

This IEEE 1394b FireWire cable consists of a 6 pin male connector on one end and a 9 pin male on the other. It is typically used to connect a 6 pin FireWire device to a 9 pin FireWire computer. It is capable of delivering data transfer rates of up to 800Mbps.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Contact Plating | Gold | |
| Jacket Material | PVC - Polyvinyl Chloride | |
| Connector(s) | ||
| Connector A | 1 - FireWire 6 pin Male | |
| Connector B | 1 - FireWire 9 pin Male | |
| Performance | ||
| Rating | IEEE 1394a & 1394b | |
| Speed | 400 Mbps to 800 Mbps | |
| Environmental | ||
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
| 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|
| 0.12 lbs [0.05kg] | 0.2 lbs [0.09kg] | 0.3 lbs [0.1kg] | 0.53 lbs [0.2kg] |
Product Weights
| SKU | Options | Weight |
| 1394B-69-03 | 3ft | 0.15 lb |
| 1394B-69-06 | 6ft | 0.21 lb |
| 1394B-69-10 | 10ft | 0.33 lb |
| 1394B-69-15 | 15ft | 0.5 lb |
