8-Port DVI Video Splitter, Resolution 4096x2160@30Hz

Video SplittersSKU: VP-DVI-103

Price:
Sale price$212.30 CAD
Stock:
In stock


Description

This 1x8 DVI splitter enables you to display one DVI source to eight DVI displays simultaneously. It is typically used to connect DVI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to DVI displays such as HDTVs, HD projectors or DVI monitors.

Features

  • 1x DVI input and 2xDVI output/ 4xDVI output/ 8xDVI output
  • Support resolution up to 4096x2160@30Hz
  • Support for long distance signal transmission
  • Installs in minutes, No loss of quality
  • Supports wide range voltage DC input (DC5V)
Physical Characteristics
Color Black
Housing Metal Enclosure
Operating Temperature -5 to +45?
Storage Temperature -15 to +55?
Operating Humidity 10 to 90%RH (No Condensation)
Storage Humidity 5 to 95%RH (No Condensation)
Connectors
Video Input Connector 1 - DVI-D 29-pin Female
Video Output Connector 8 - DVI-D 29-pin Female
Power
Max. working current 1.2A/5V
Power Supply AC 100V?240V 50HZ/60Hz, DC5V/2A/12V
Performance
DVI Resolution 4096x2160@30Hz
Max. Signal Bandwidth 340MHz
Max. Baud Rate 3.4Gbps Serial Link
Cable Distance 10 m (Max.)
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Approvals
Power Cable c(UL)us
Packaging Information
Package Quantity 1
Dimensions 440x130x44 (LxWxH) mm
Product Weight 5.6 lbs [2.5kg]
Package Weight 6.6 lbs [3kg]
Contents
Included in Package 1 - DVI Splitter

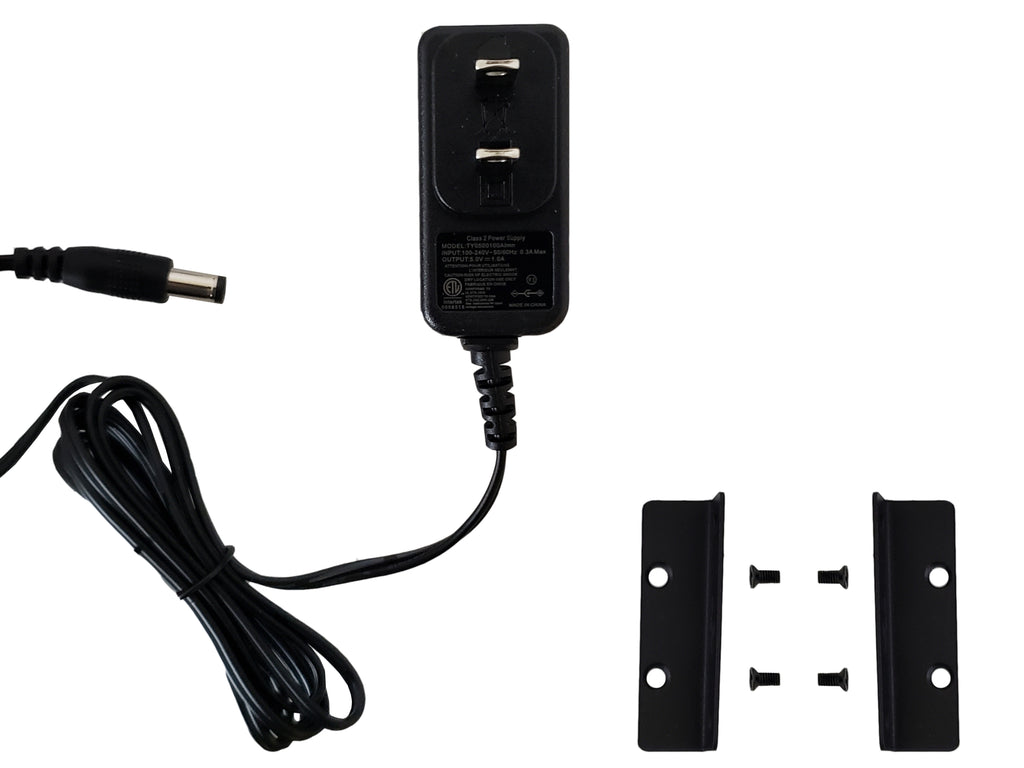

1 - Power Adapter
1 - User Manual

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
VP-DVI-103 6.6 lb
