Description
Overview

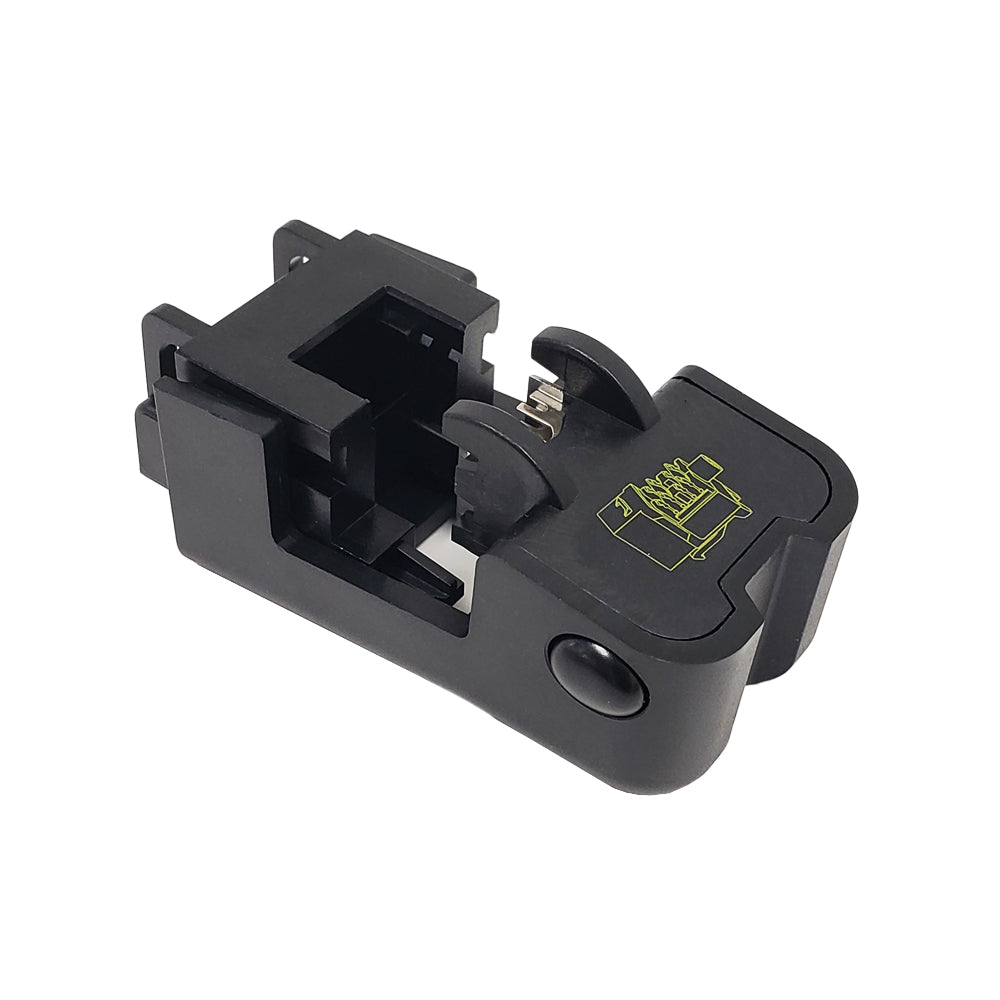

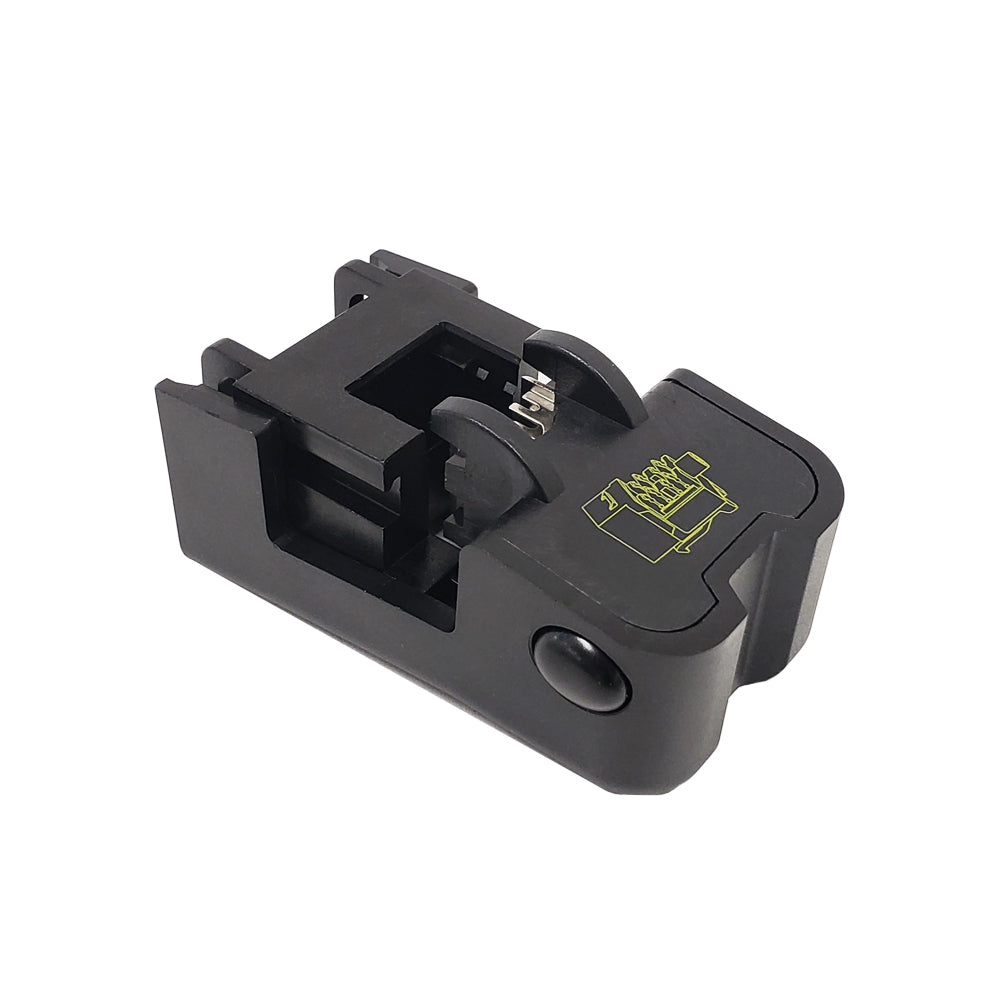

This die set is fits both the TL-PUM-180 and TL-PUM-90 handles. It can be used in terminating 90 degree 110 style jacks.
 |
Interchangeable with Punchdown ToolThis die set is interchangeable with the TL-PUM-90 punch-down tool; which can terminate all wires at once / terminate jacks eight times faster. |
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Polycarbonate, UL 94V-2 SPCC,2.0mm thickness with 5~8um nickelage |
| Operating Function |
For Keystone Jacks |
| Connectors | |
| Terminal Block Type | 110 |
| Compatible Jacks | |
| JK-C5P1-xx JK-C6P1-xx JK-C6AP1-xx |
RJ45 Cat5e Slim Profile Jack, 110 Punch-Down RJ45 Cat6 Slim Profile Jack, 110 Punch-Down RJ45 Cat6a Slim Profile Jack, 110 Punch-Down |
| Compatible Tool | |
| TL-PUM-90 |
Multipair 110 Style Punch-Down Tool for 90 Degree Jacks |
| TL-PUM-180 | Multipair 110 Style Punch-Down Tool for 180 Degree Jacks |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.13 lbs [0.05 kg] |
Product Weights
| SKU | Weight | |
| TL-PUM-90-DIESET | 0.13 lb |
