Overview

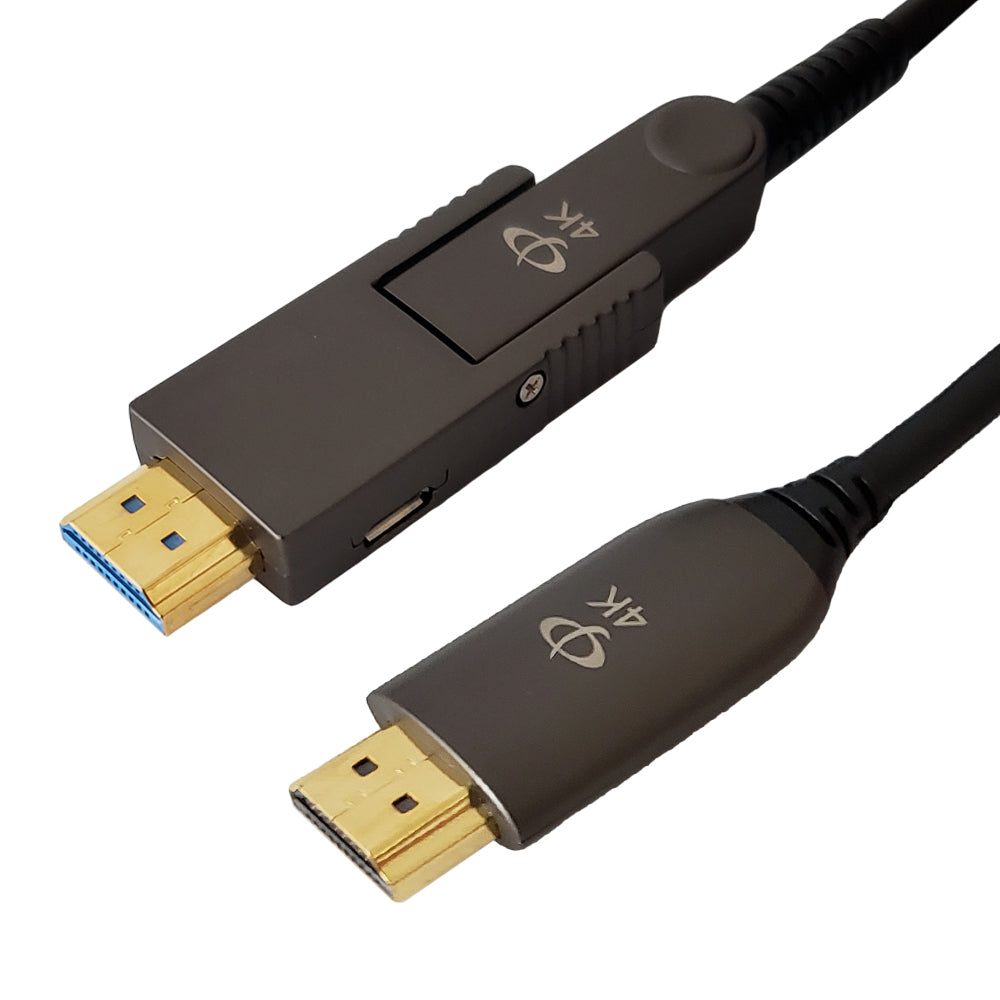

This active optical High-Speed HDMI® cable is plenum rated and consists of a HDMI male connector on both ends. It has a detachable head on one end which allows the cable to be pulled through smaller diameter conduit easily. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 4K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.

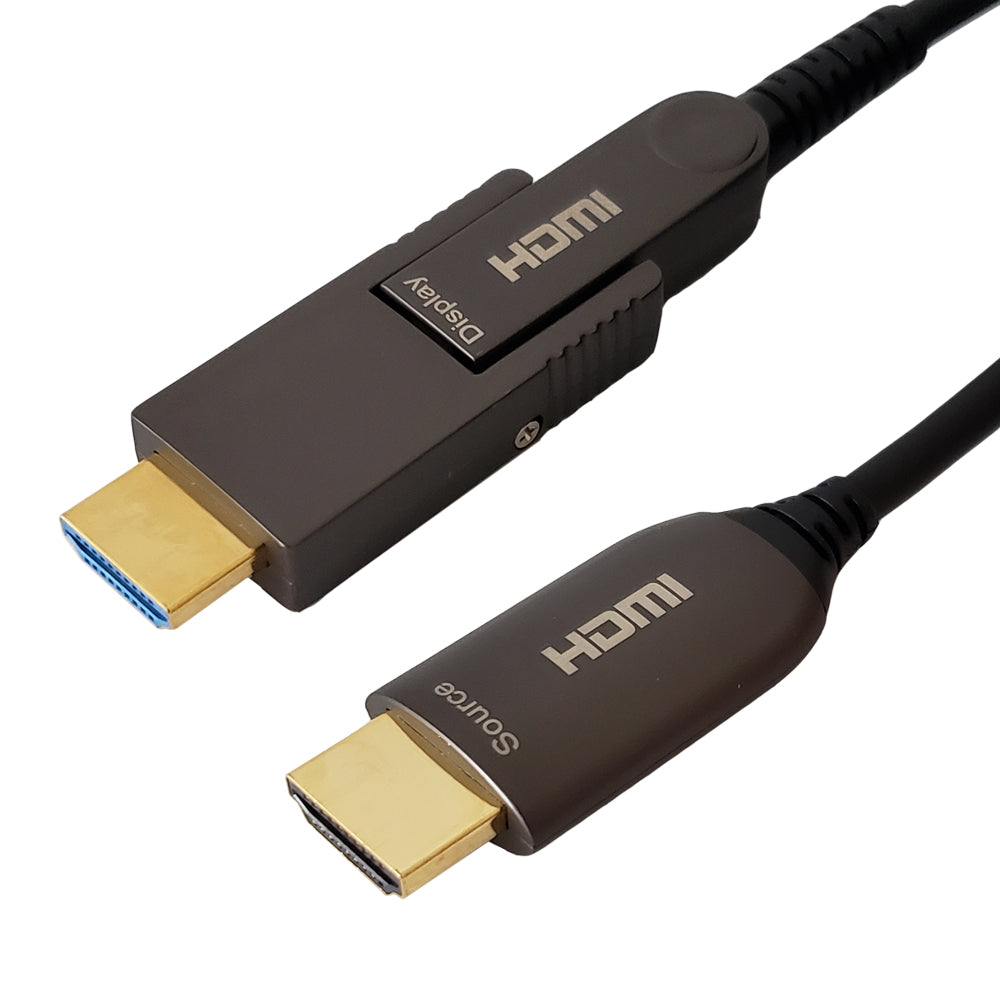

NOTE: This active optical HDMI® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
The product is supplied with an optional USB cable to supplement power if the HDMI source does not provide enough amperage.
This product also comes with a protective cover to protect the connector during installation.
 |
Extend HDMI Signals Over Optical CableThese cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 4K Ultra HD resolution and ensure a full 18Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length HDMI cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.
|
Applications
Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |

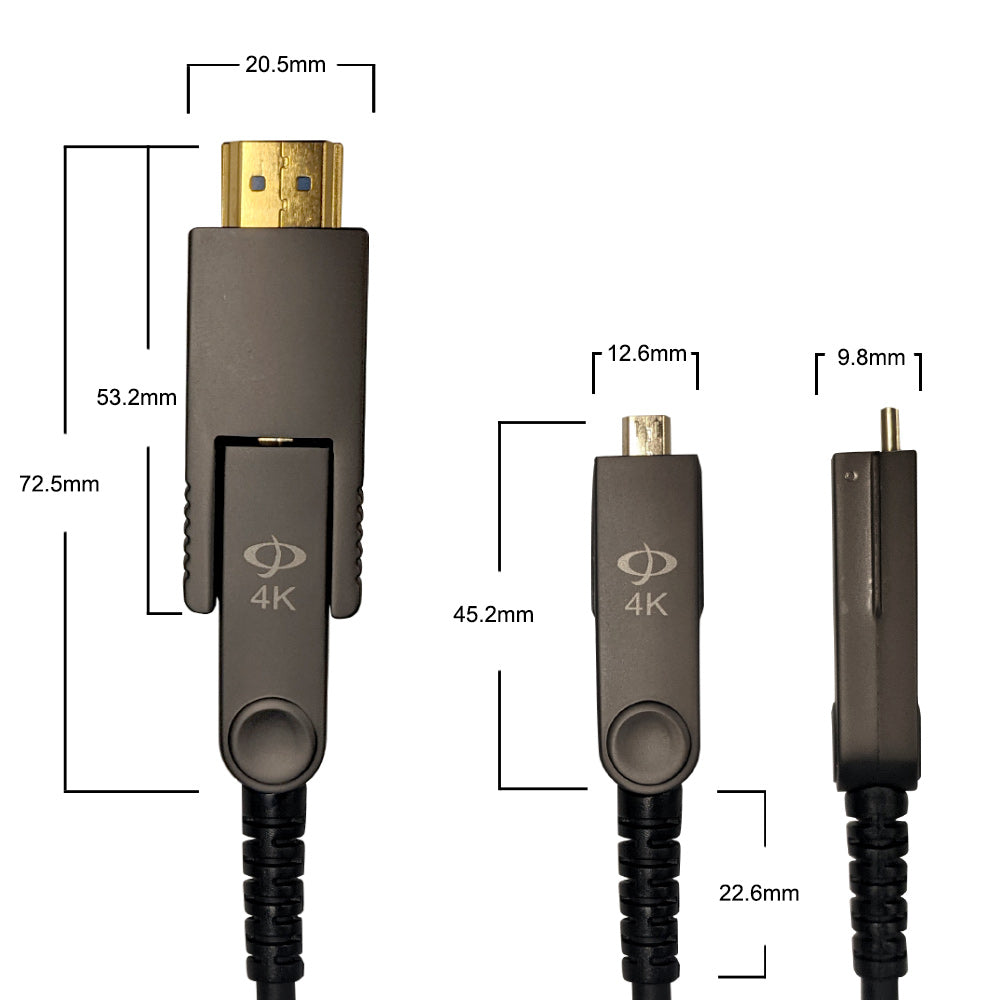

| Detachable Connector Dimensions (WxDxH) | Type A: 33mm x 20mm x 9mm Type D: 39.8mm x 13.8mm x 9.9mm Type D/A Adapter: 44mm x 20.6mm x 9.5mm Pulling Tool: 53.5mm x 19.2mm x 15mm |
| Shell Material | Zinc-Alloy |
| Cable Specs | Hybrid with OM3 Fiber / Copper |
| Cable Diameter | 4.5mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | Plenum Rated CMP |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Strain Relief Length | 22.6mm |
| Bend Radius | 48mm |
| Connectors | |
| Connector A | HDMI type A (19 pin) Male |
| Connector B | HDMI type D with HDMI D/Female to HDMI A/Male Adaptor |
| Compatible Product | |
| HDMI-235-DH | Replacement HDMI Detachable Head for AOC 2.0 - Active Optical Cable (Cable Series HDMI-235-xxPL) |
| Performance | |
| Supported Resolution | HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters |
| Video Bandwidth | 6 Gbps x 3 Channel (max) + Clock |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | 32 Channel Audio with ARC |
| O/E Converter | 4 channel 850 nm VCSEL array (Transmitter) 4 channel GaAs PD array (Receiver) |
| Support | CEC, EDID, HDCP |
| Built in Ethernet Channel | Yes |
| HDCP 2.2 Compliant | Yes |
| HDMI Version | HDMI 2.0, Backward Compatible with HDMI 1.4 |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| CPR | Yes |
| ATC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
| 25ft | 35ft | 50ft | 75ft | 100ft | 150ft | 200ft | 300ft |
|---|---|---|---|---|---|---|---|
| 0.52 lbs |
0.69 lbs | 0.93 lbs | 1.37 lbs | 2.25 lbs | 3.50 lbs | 4.50 lbs | 7.00 lbs |
