Overview

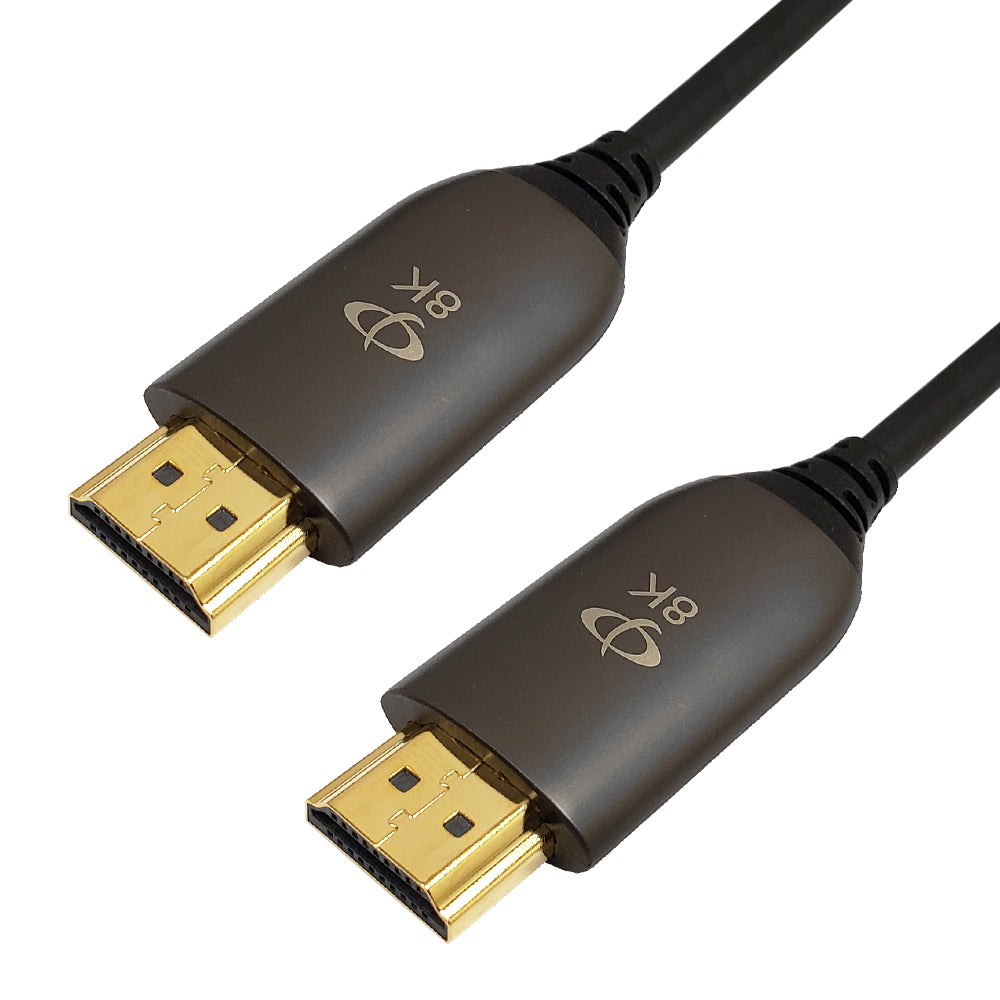

This active optical (AOC) Ultra High-Speed HDMI® cable is certified under the Ultra High Speed HDMI Certification Program and consists of a HDMI male connector on both ends. The cable is also plenum rated for use in plenum air spaces for industrial applications. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.1 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 8K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.

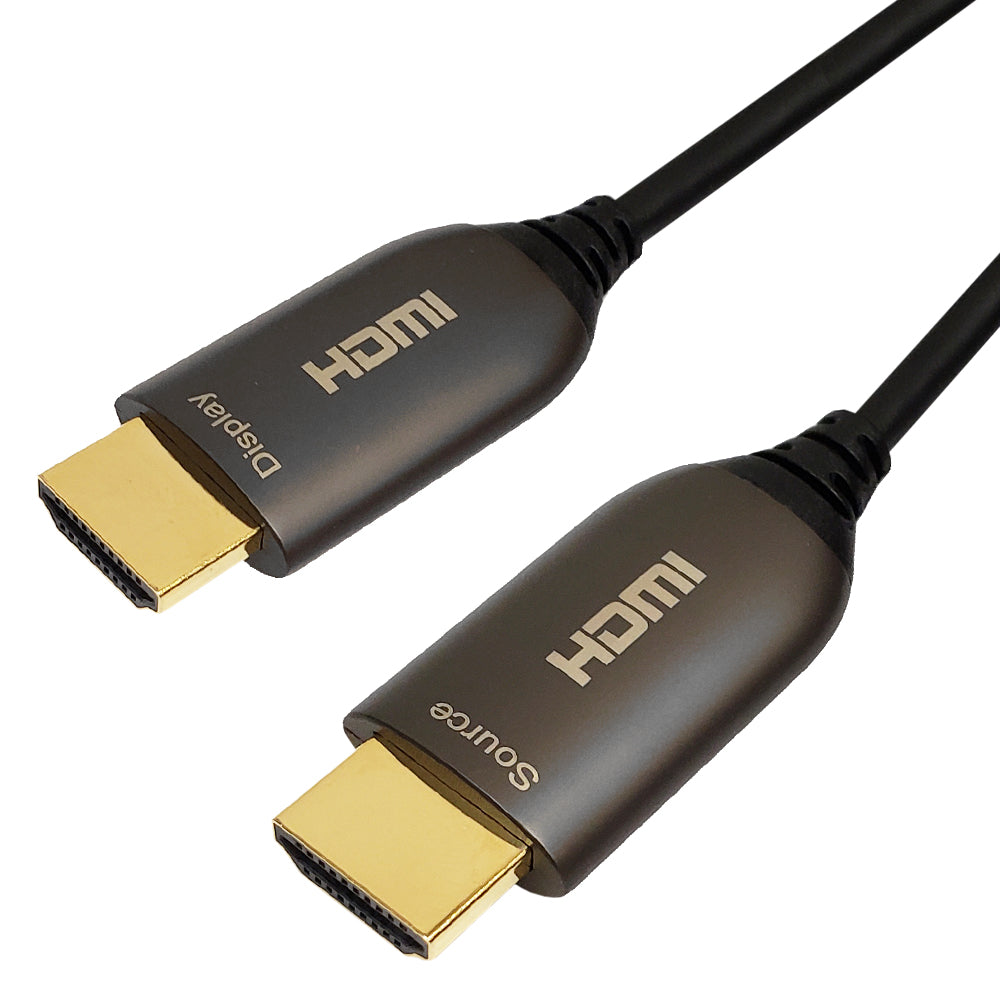

NOTE: This active optical HDMI® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
 |
Extend HDMI Signals Over Optical CableThese cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 48Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length HDMI cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments. Certified Ultra High-SpeedThese Ultra High-Speed cables are certified under the Ultra High Speed HDMI Certification Program and ensures quality Ultra High Speed HDMI Cables reach the market and support 4K and 8K video, HDR, VRR, eARC and all other HDMI 2.1b features.
|
Applications
Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Hybrid with OM3 Fiber / Copper |
| Cable Diameter | 4.5mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | Plenum Rated CMP |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Bend Radius | 45mm |
| Differential Input | 100 ohm |
| Power Consumption | 250mW (Max) |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Chipset | Silicon Line SL82811 (TX) / SL82821 (RX) |
| Maximum Resolution | Ultra HD 8K (50/60Hz) up to 30m, 4K (50/60/100/120Hz), 1080p Deep Color, 1080i, 720p, 480p |
| Maximum Bandwidth | 12 Gbps x 4 Channel |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | Supports eARC |
| O/E Converter | 4 channel 850 nm VCSEL array (Transmitter) 4 channel GaAs PD array (Receiver) |
| Support | EDID (Self-Detecting) VBR (Variable Refresh Rate) QMS (Quick Media Switching) QFT (Quick Frame Transport) ALLM (Auto Low Latency Mode) DSC (Display Stream Compression) CEC (Consumer Electronics Control) |
| Built in Ethernet Channel | Yes |
| HDCP 2.2 Compliant | Yes |
| HDMI Version | HDMI 2.1b, Backward Compatible with HDMI 2.0/1.4 |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| CPR | Yes |
| ATC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |

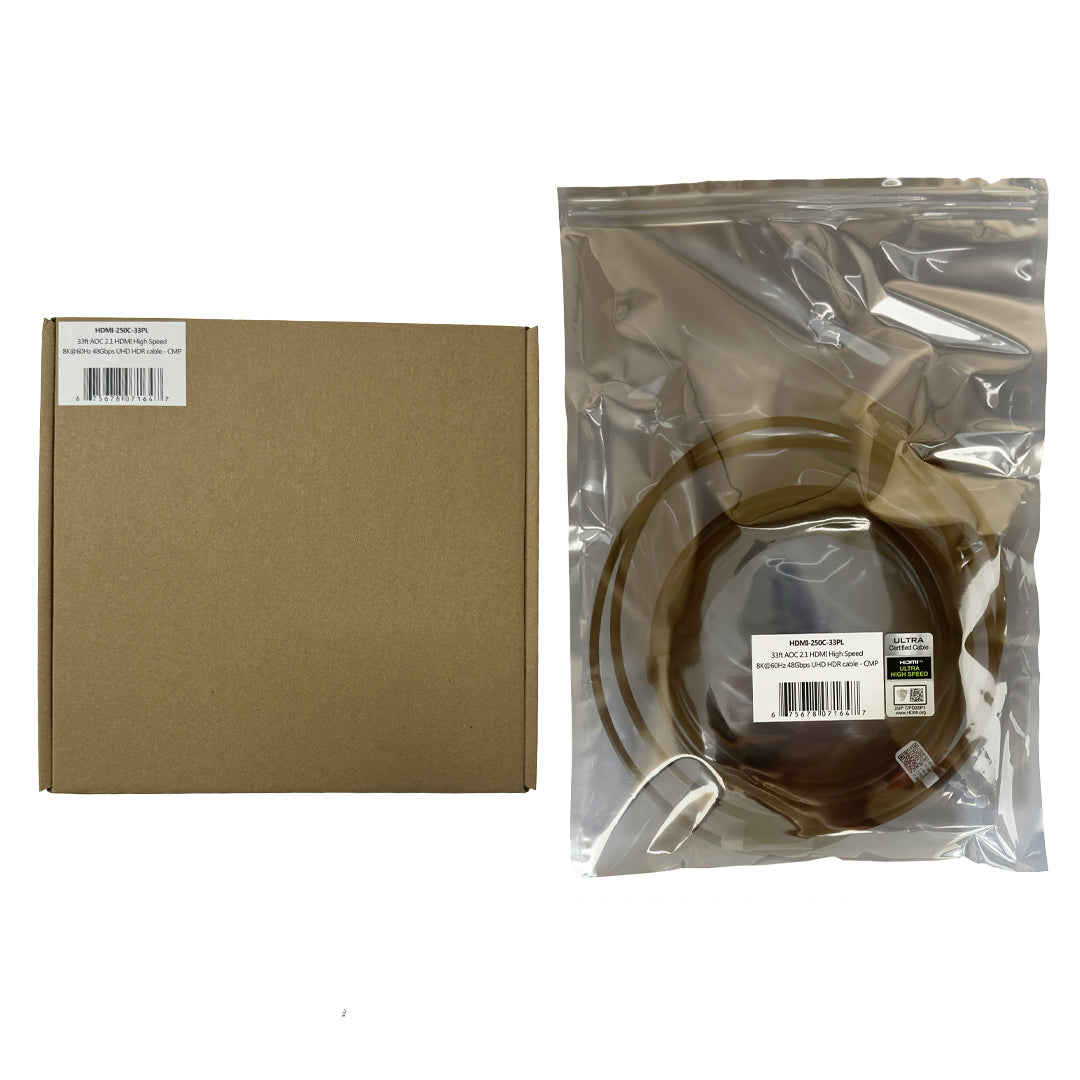

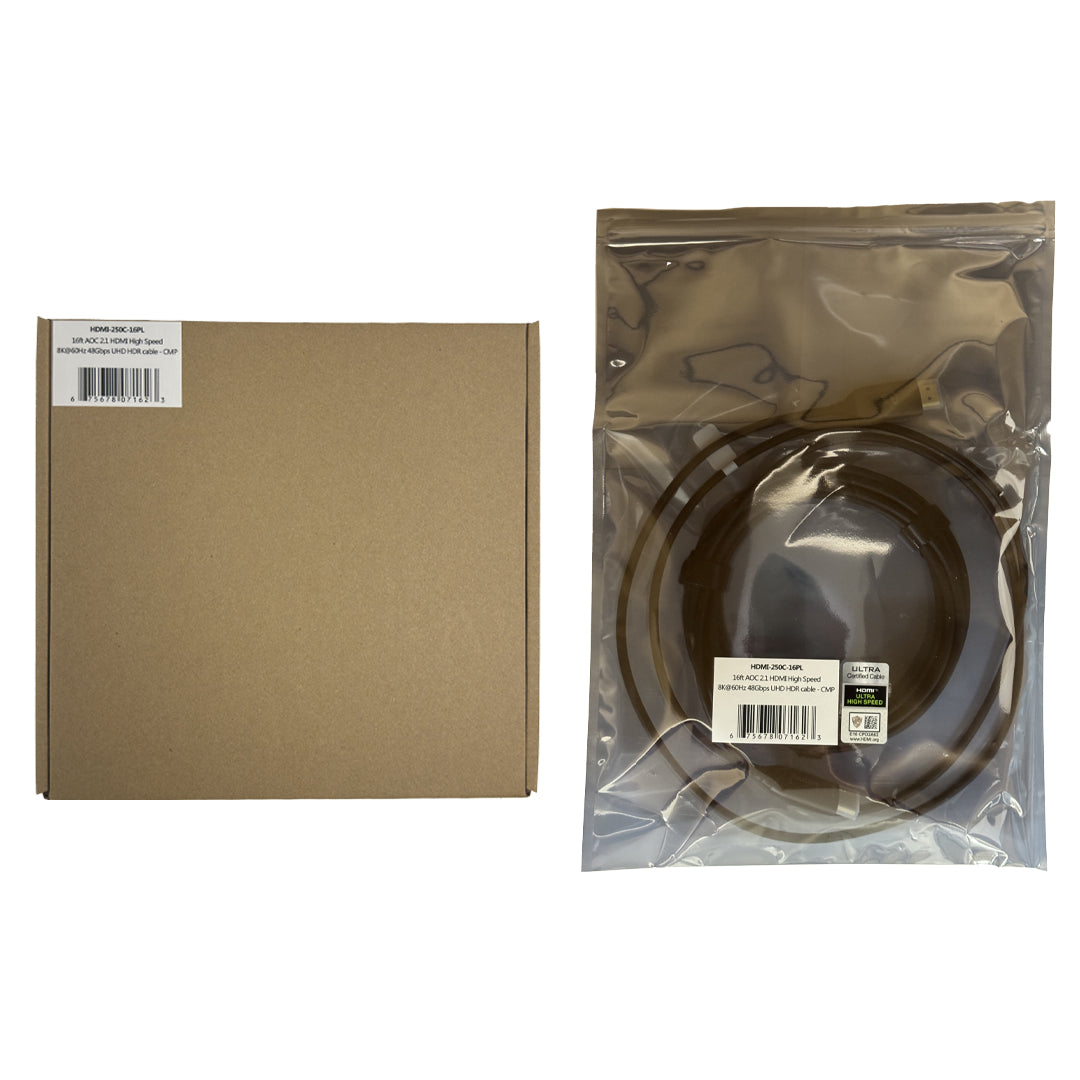

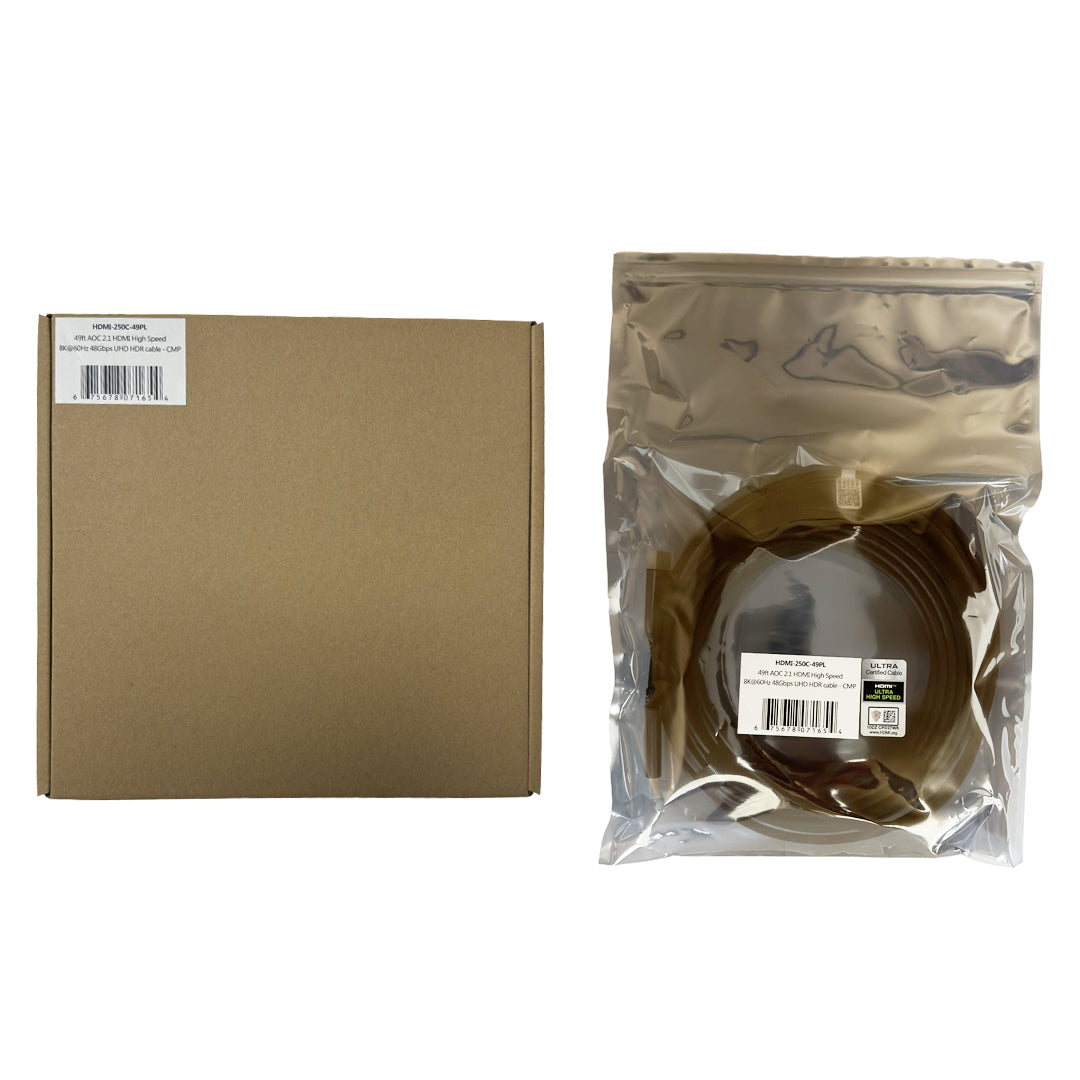

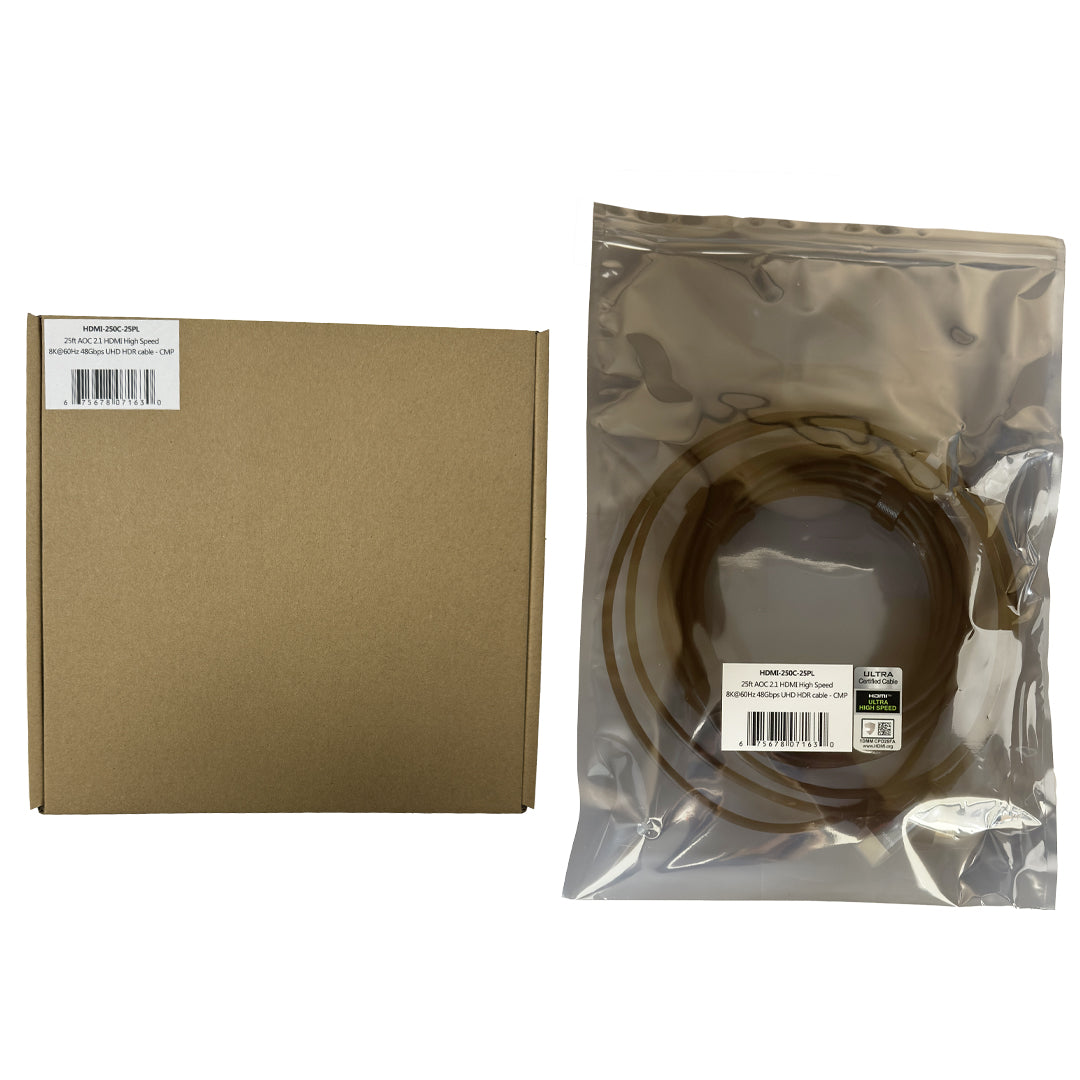

| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| 16.4ft | 24.6ft | 32.8ft | 49.2ft |
|---|---|---|---|
| 0.36 lbs |
0.51 lbs | 0.64 lbs | 0.92 lbs |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| HDMI-250C-16PL | 5m | 0.2 lb |
| HDMI-250C-25PL | 7.5m | 1.5 lb |
| HDMI-250C-33PL | 10m | 0.33 lb |
| HDMI-250C-49PL | 15m | 0.5 lb |
