Overview

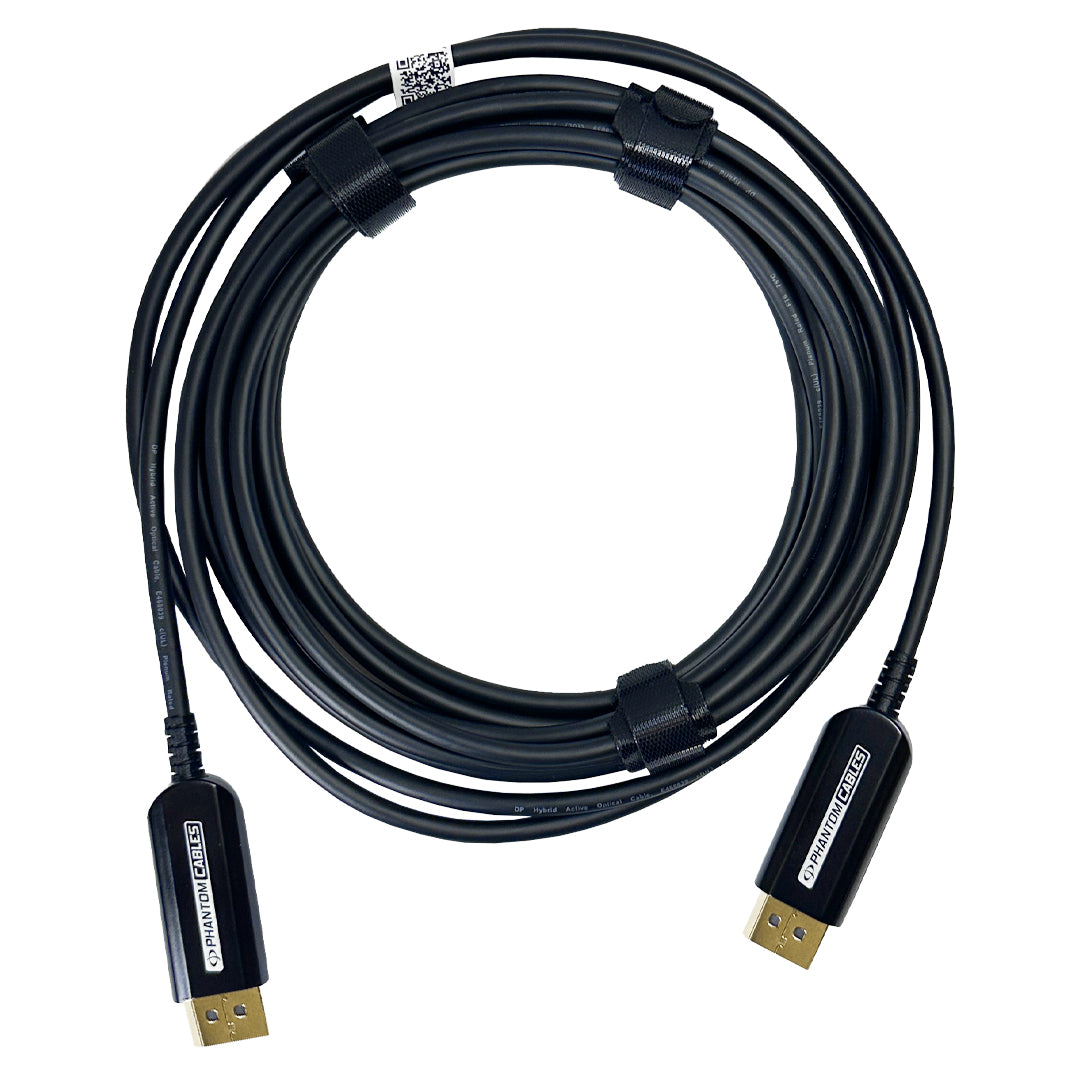

This active optical DisplayPort cable is plenum rated and consists of a DisplayPort male connector on both ends. The cable has a built-in signal booster chipset which supports DisplayPort 2.0 and provides a wide range of features in a compact, lightweight form-factor. These cables are fully HDCP 1.4 / 2.2 compliant and supports signals with data rates up to 40 Gbps (HBR3). It is typically used to connect a DisplayPort source such as a PC or laptop to a monitor and supports full 8K Ultra HD resolution at 60Hz (4:4:4) up to 100 meters.
This active optical DP cable is directional. Each end of the cable is marked "Source" and "Display" to indicate the direction of the signal flow. Always test the cable before permanently installing in a wall or ceiling to be sure that the signal flow is correct and for device compatibility.
Feature
- External power not required
- Hybrid optical cable with fiber and copper wire
- Plug and Play
- Support computer resolutions to 8K@60Hz with 40Gbps bandwidth
|
|
Extend DisplayPort Signals Over Optical CableThese cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 40Gbps bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length DisplayPort cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Fiber Optic 50/125um multimode / Copper |
| Cable Diameter | 4.8mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CMP |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Performance | |
| Resolution | Ultra HD 8K @ 60Hz |
| Chroma Sampling | 4:4:4 |
| Bandwidth | 40Gbps, 8.1 Gbps per channel |
| Supported Distance | 100m |
| Support | HBR3, HDCP |
| HDCP Compliant | Yes, 1.4 / 2.2 |
| DisplayPort Version | v2.0 |
| Approvals | |
| c(UL)us | Yes, Cable |
| CE | Yes |
| FCC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | 3 Years Warranty |
| 15ft | 25ft | 35ft | 50ft | 75ft | 100ft | 150ft |
|---|---|---|---|---|---|---|
| 0.50 lbs (0.22 kg) | 0.70 lbs (0.32 kg) | 0.80 lbs (0.36 kg) | 1.05 lbs (0.47 kg) | 1.50 lbs (0.68 kg) | 2.65 lbs (1.20 kg) | 3.50 lbs (1.58 kg) |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| DP-205-15PL | 15ft | 0.5 lb |
| DP-205-25PL | 25ft | 0.77 lb |
| DP-205-35PL | 35ft | 1.1 lb |
| DP-205-50PL | 50ft | 1.55 lb |
| DP-205-75PL | 75ft | 2.26 lb |
| DP-205-100PL | 100ft | 3.0 lb |
| DP-205-150PL | 150ft | 6.2 lb |
