Overview

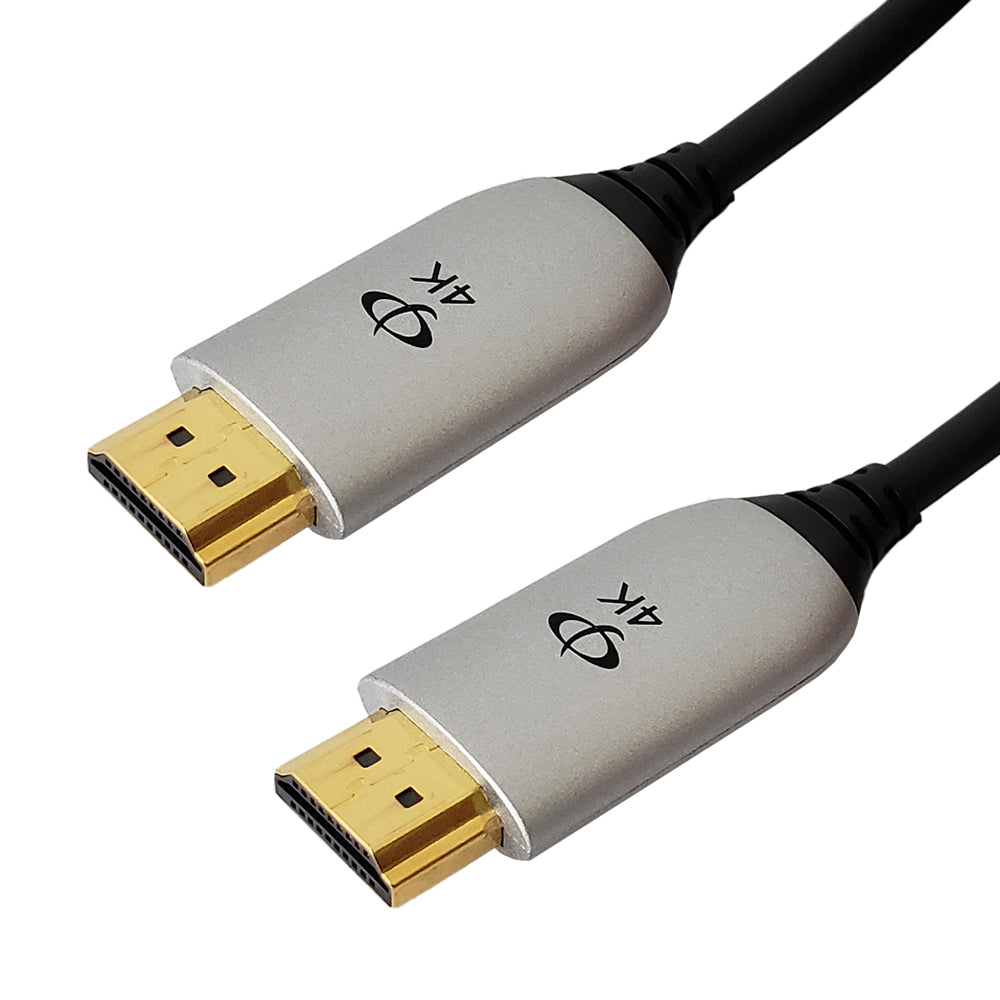

This active optical High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 4K Ultra HD resolution and High Dynamic Range (HDR), and works with splitters, switches and other video sharing devices.

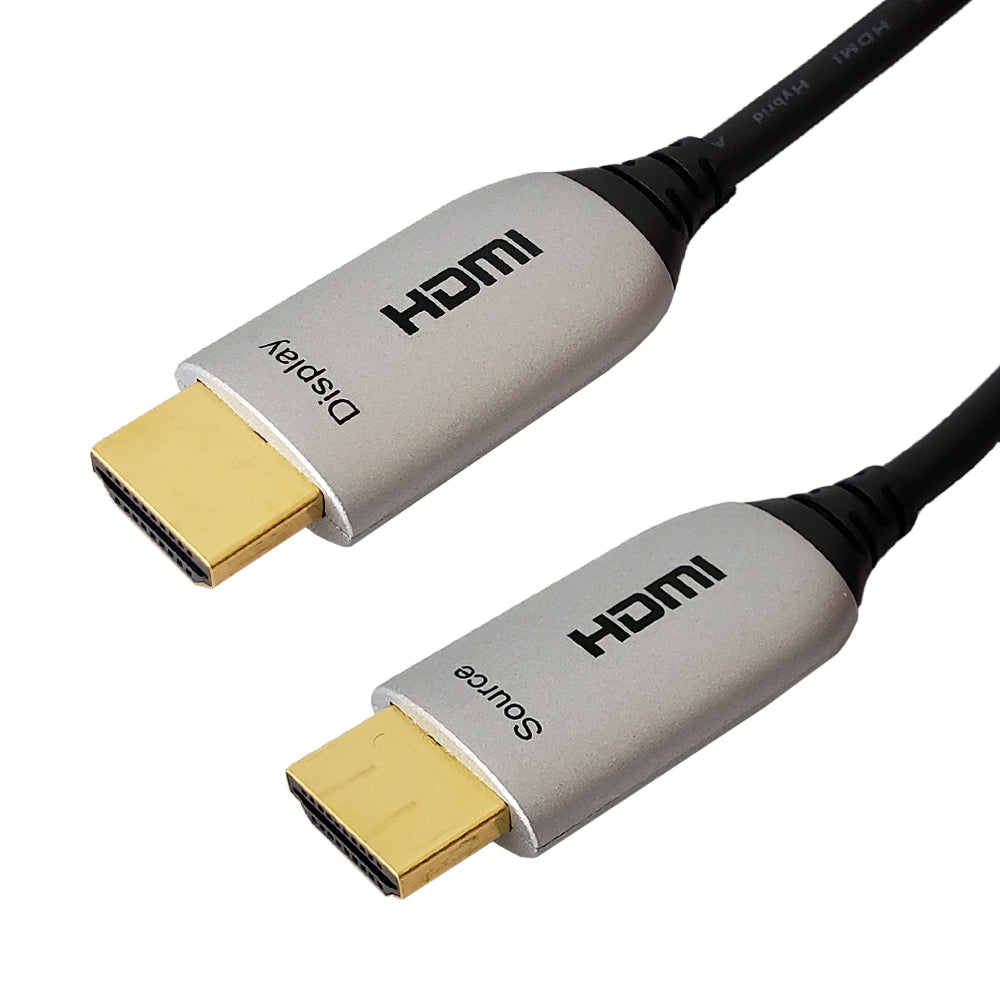

This active optical HDMI® cable is directional, each connector has a marking to indicate whether it should be connected to the source or the display. Always test the connection before installing the cable within a wall.
 |
Extend HDMI Signals Over Optical CableThese cables are constructed from both copper and optical fiber, they feature a built-in booster chipset ideal for maintaining 4K Ultra HD resolution and ensure a full 18Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length cables, making them easier to install in walls or run around tight corners. The fiber reduces the risk of EMI/RFI so performance is stable when used in high interference environments.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Fiber Optic 50/125um multimode / Copper |
| Cable Diameter | 4.8mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Bend Radius | 48mm |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| Active Chipset Technology | Silicon SL82817/SL82827 |
| Chroma Sampling | 4:4:4 |
| Bandwidth | 18Gbps |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | 32 Channel Audio with ARC |
| Support | CEC, EDID, and HDCP |
| Built in Ethernet Channel | Yes |
| HDCP 2.2 Compliant | Yes |
| HDMI Version | HDMI 2.0 |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| CPR | Yes |
| ATC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | 3 Years Warranty |
| 25ft | 35ft | 50ft | 75ft | 100ft | 150ft | 200ft | 300ft |
|---|---|---|---|---|---|---|---|
| 1.00 lbs (0.45 kg) | 1.25 lbs (0.56 kg) | 1.53 lbs (0.69 kg) | 2.48 lbs (1.12 kg) | 2.94 lbs (1.33 kg) | 4.07 lbs (1.84 kg) | 4.99 lbs (2.26 kg) | 7.00 lbs (3.18 kg) |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on range of USB cables, HDMI cables, Display Port Cables and various adapters to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Options | Weight |
| HDMI-230-35N | 35ft | 1.1 lb |
| HDMI-230-50N | 50ft | 1.55 lb |
| HDMI-230-75N | 75ft | 2.26 lb |
| HDMI-230-100N | 100ft | 3.0 lb |
| HDMI-230-150N | 150ft | 6.2 lb |
| HDMI-230-200N | 200ft | 7.28 lb |
| HDMI-230-300N | 300ft | 15.0 lb |
