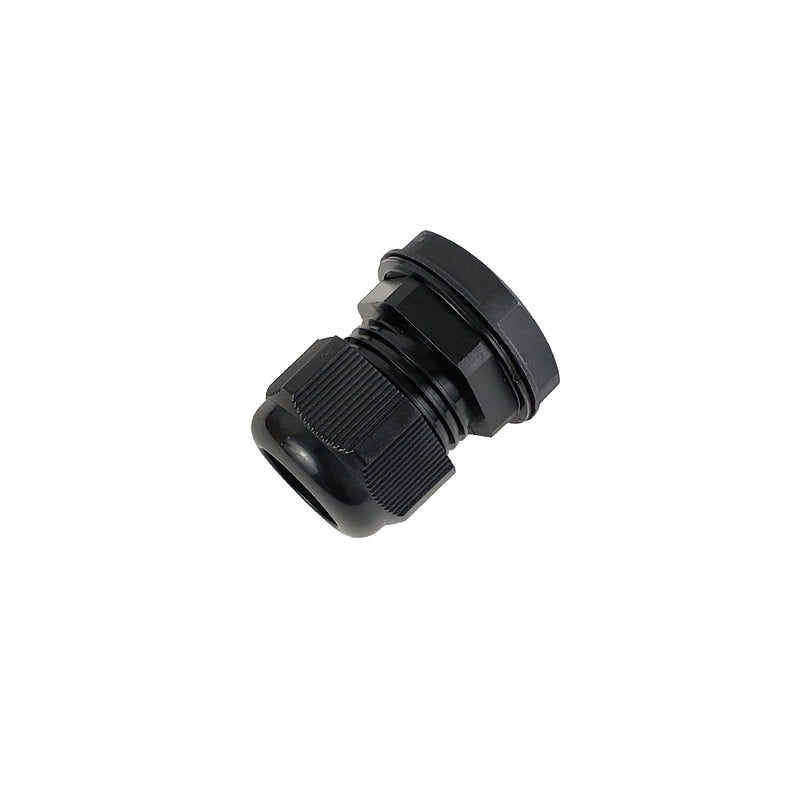

Cable Gland M25x1.5 Thread - Cable OD 11~17mm - IP68 - Black

Cable GlandsSKU: CG-M25-S

Price:
Sale price$3.35 CAD
Stock:
In stock


Description

This cable gland has a metric thread pattern of M25xP1.5 and accommodates a cable size of 11 to 17mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.

Physical Characteristics
Color Black
Material Nylon 66
Thread M25xP1.5
Mounting Hole 25.0 ~ 25.4 mm[0.98 ~ 1.00 inches]
Cable Range 11 ~ 17 mm[0.43 ~ 0.67 inches]

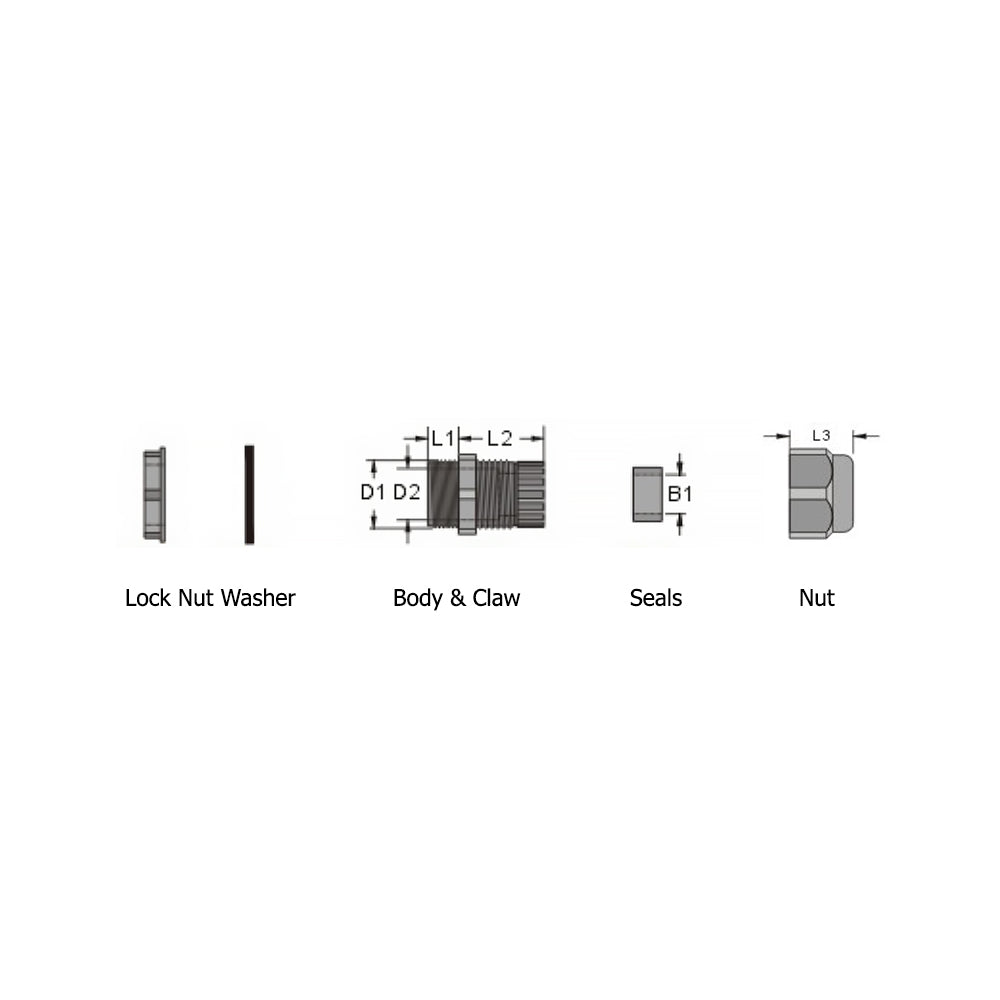

Dimensions (mm)

D1 D2 B1 L1 L2 L3
25.0mm 18.0mm 17.1mm 10.0mm 30.0mm 20.0mm
0.98in 0.71in 0.67in 0.39in 1.18in 0.78in
Flammability Rating UL94V-2
IP68 Rated Yes
Approvals
UL Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
SKU Weight
CG-M25-S 0.2 lb
