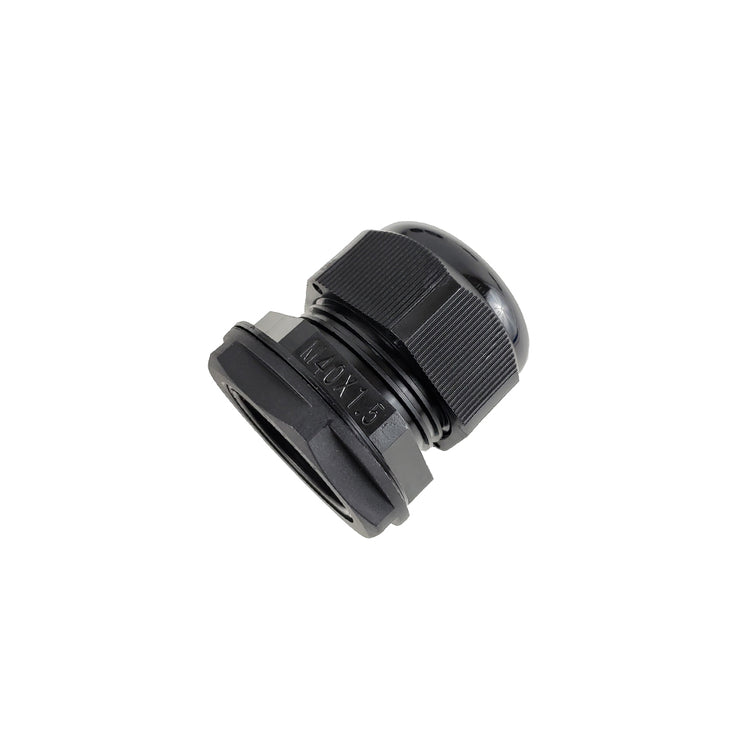

This cable gland has a metric thread pattern of M40xP1.5 and accommodates a cable size of 20 to 28mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
Physical Characteristics
|
Color |
Black |
Material |
Nylon 66 |
Thread |
M40xP1.5 |
Mounting Hole |
40.0 ~ 40.4 mm[1.57 ~ 1.59 inches] |
Cable Range |
20 ~ 28 mm[0.79 ~ 1.10 inches] |

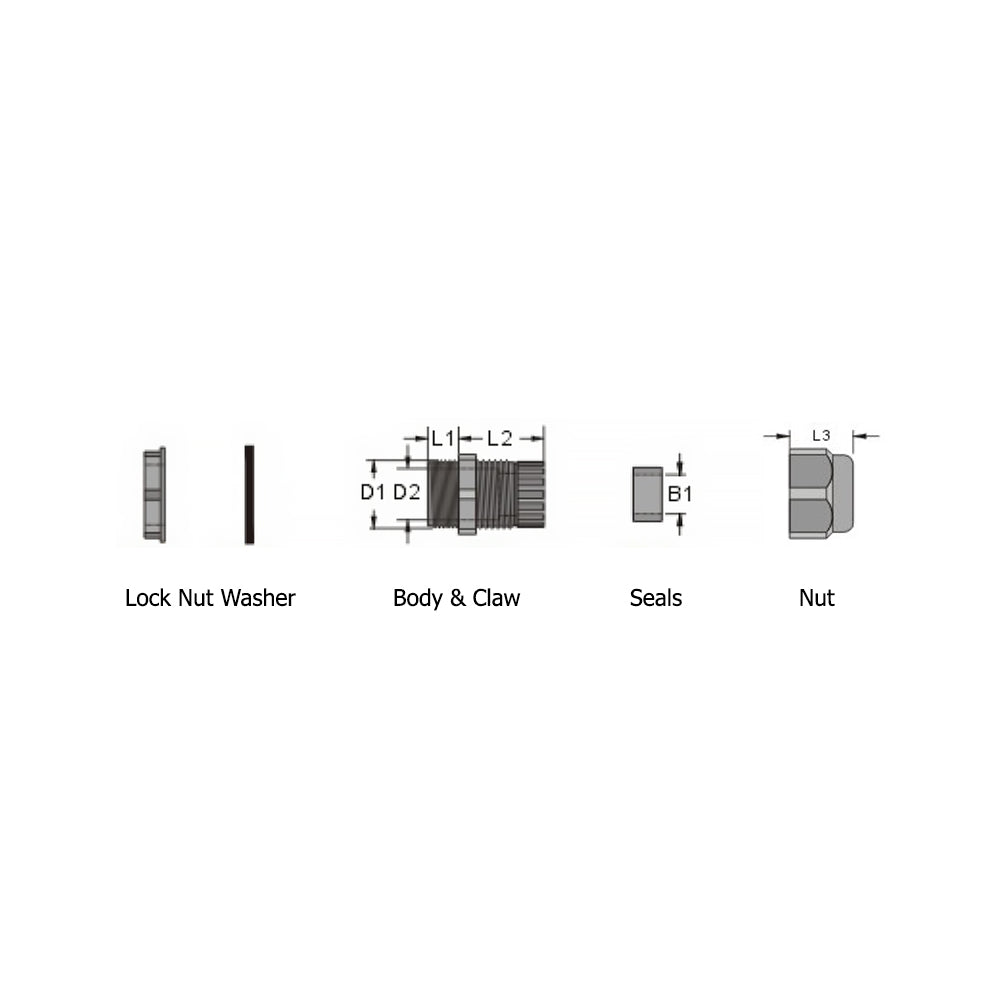

Dimensions (mm)
|
D1
|
D2
|
B1
|
L1
|
L2
|
L3
|
40.0mm
|
32.7mm
|
28.2mm
|
10.0mm
|
39.4mm
|
27.5mm
|
1.57in
|
1.29in
|
1.11in
|
0.39in
|
1.55in
|
1.08in
|
|
Flammability Rating |
UL94V-2 |
IP68 Rated |
Yes |
Approvals
|
UL |
Yes |
RoHS |
Yes |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.2 lbs [0.09kg] |
