Description

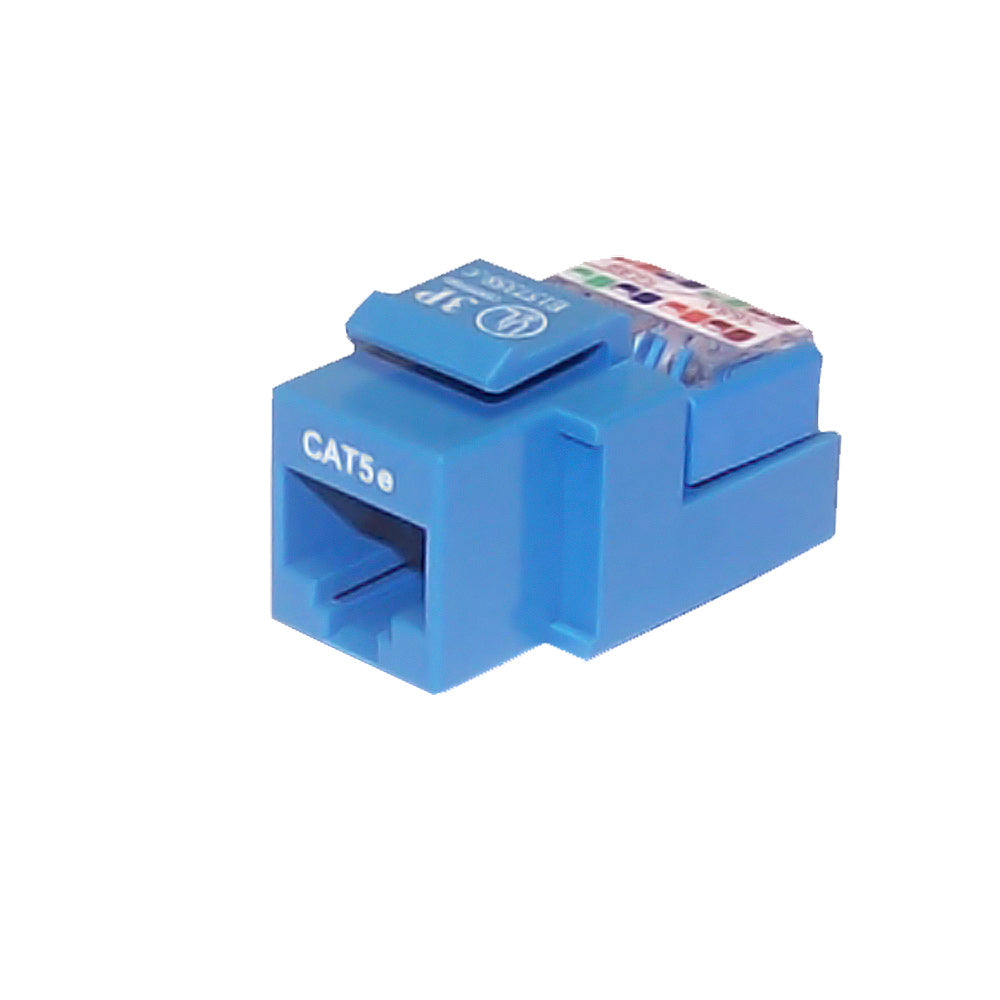

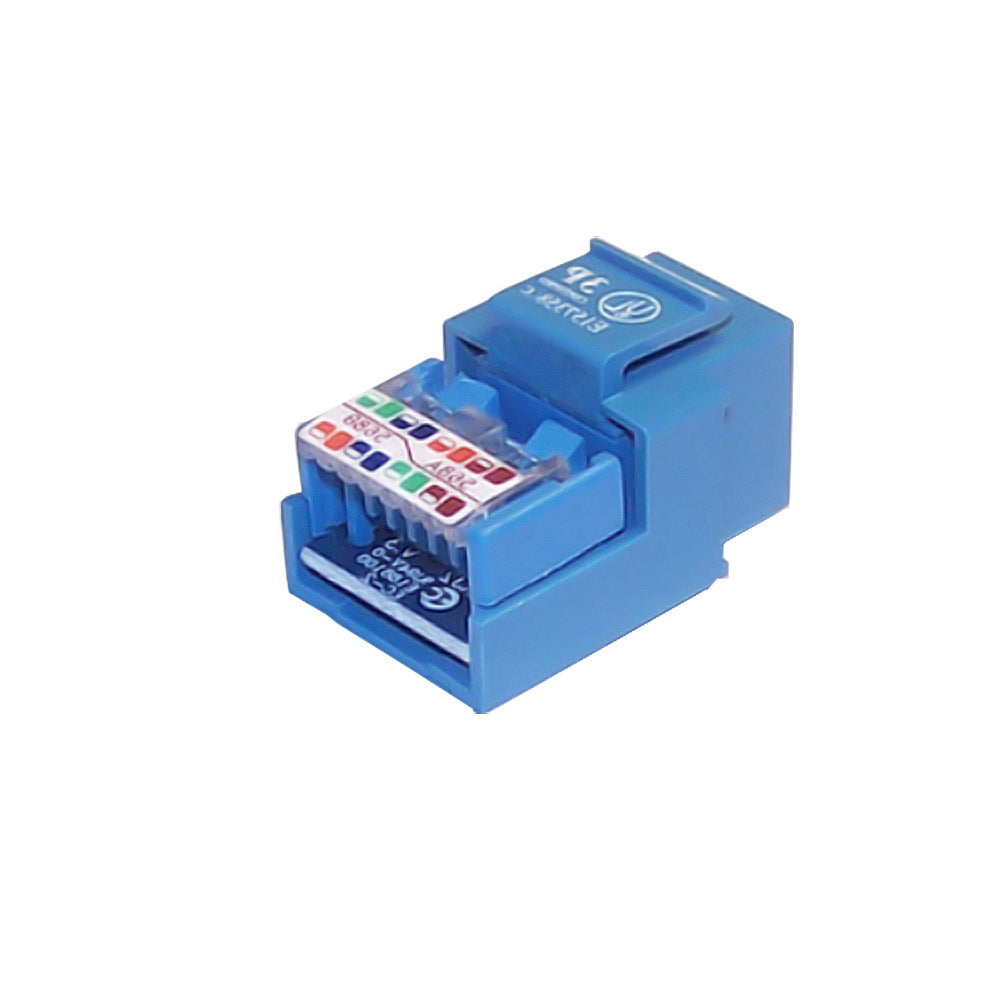

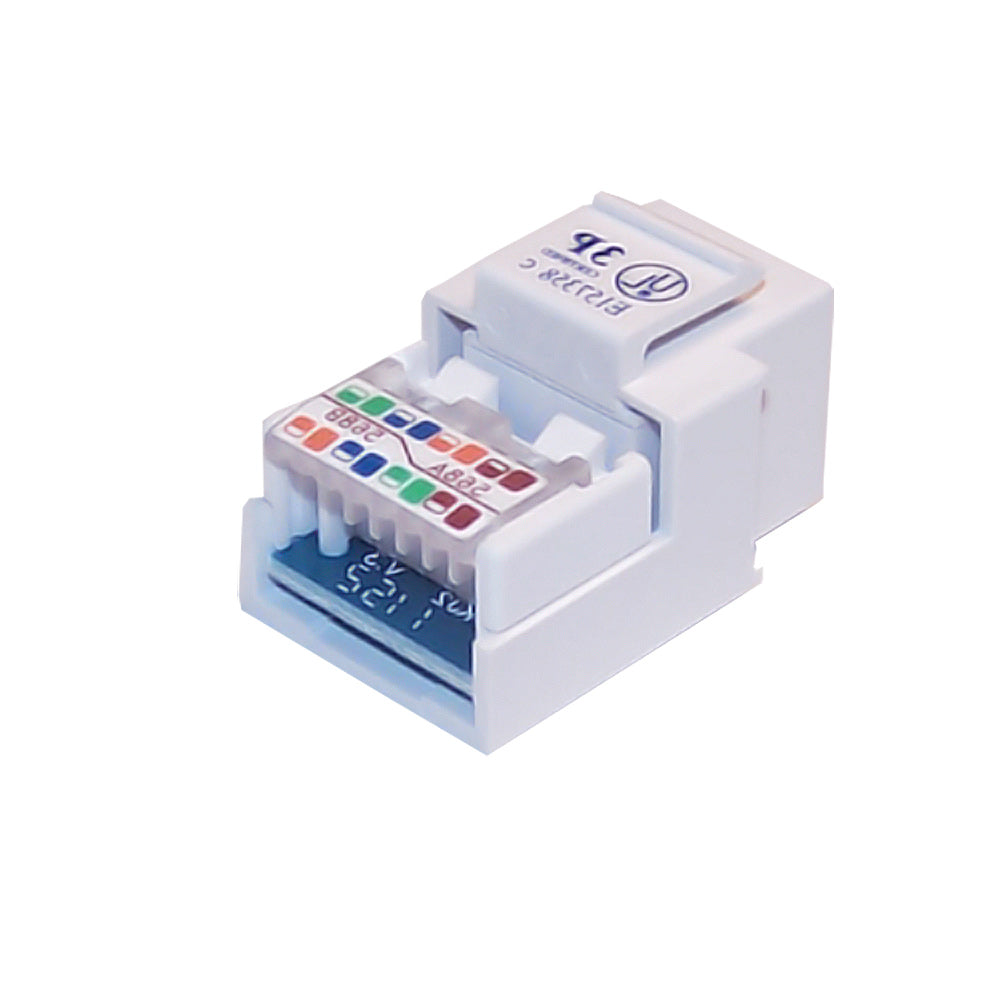

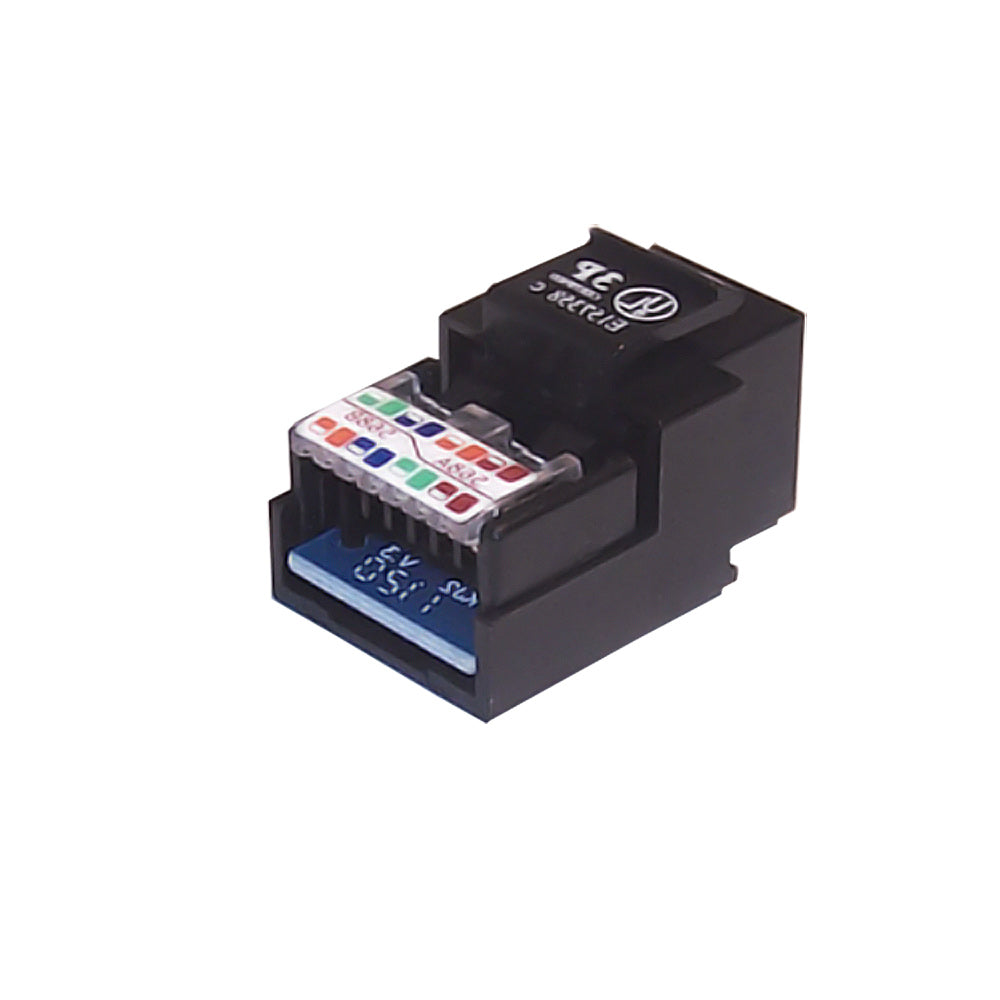

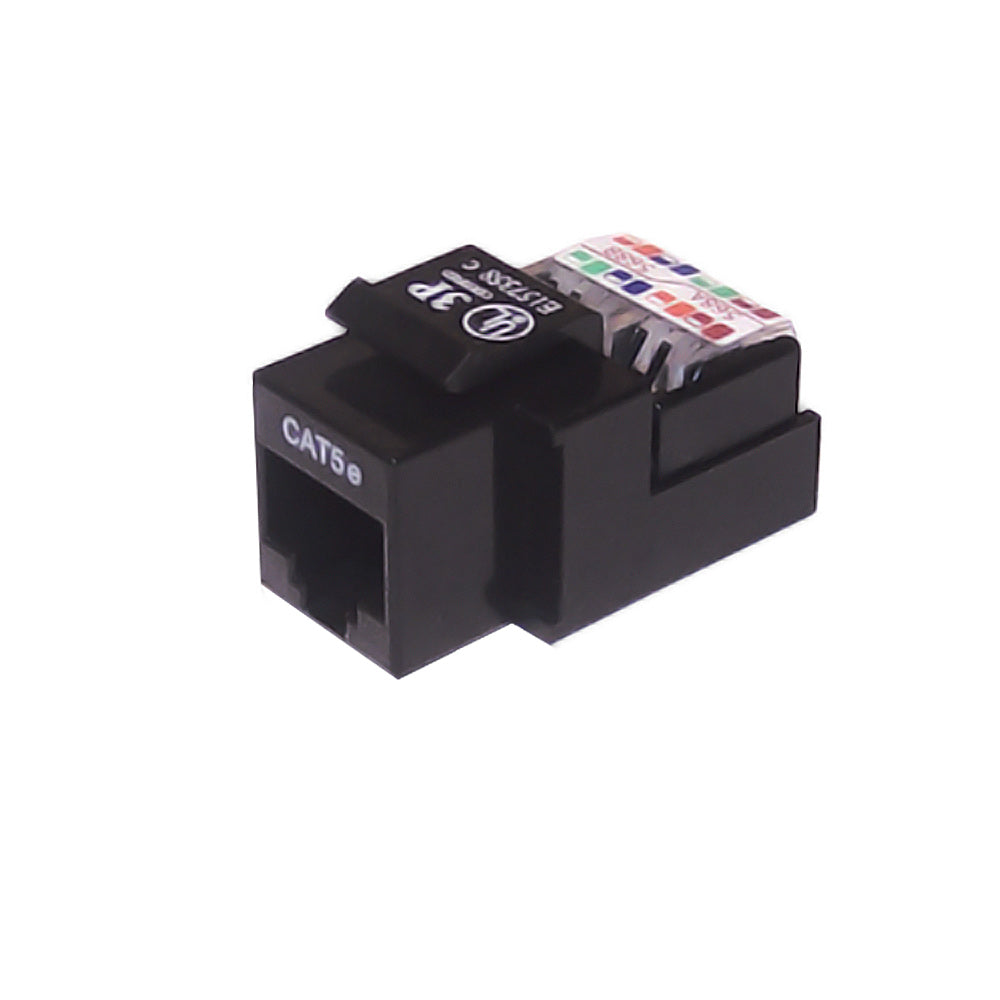

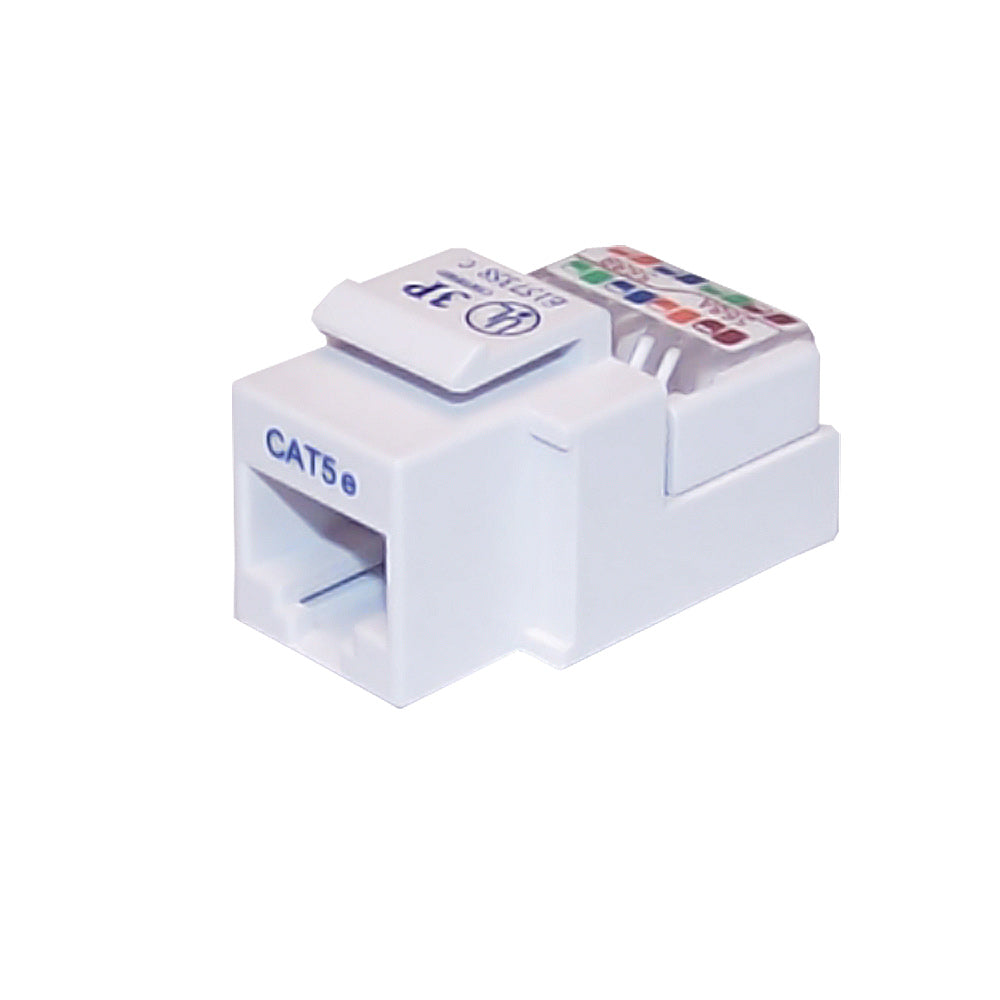

This keystone jack consists of a RJ45 Cat5e female on one end and a tool-less punch-down connection on the other. It is typically used to terminate a CAT5e UTP cable and snap into a standard keystone opening.
| Physical Characteristics | |
|---|---|
| Color | Black / Blue / White |
| Material |
ABS |
| Termination |
Tool-Less |
| Connector Plating | Nickel |
| Size | Standard Keystone |
| Connector(s) | |
| Connection A |
RJ45Female |
| Connection B | Tool-Less Punch |
| Color Codes Supported | |
| T568A wiring | Yes |
| T568B wiring | Yes |
| Approvals | |
| c(UL)us | Yes |
| CE |
Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
| Contents | |
| Included in Package | 1 Jack |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| JK-8C5S-BK | Black | 0.02 lb |
| JK-8C5S-BL | Blue | 0.02 lb |
| JK-8C5S-WH | White | 0.02 lb |
