Overview

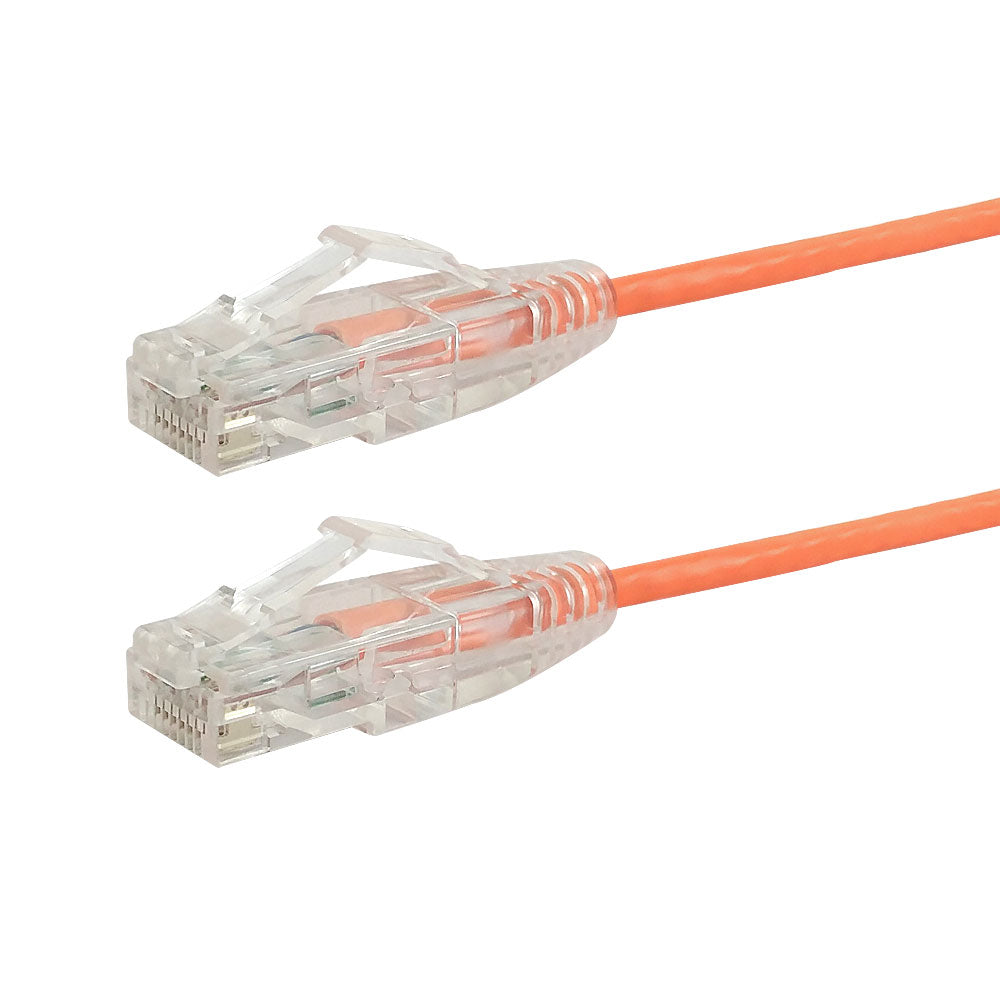

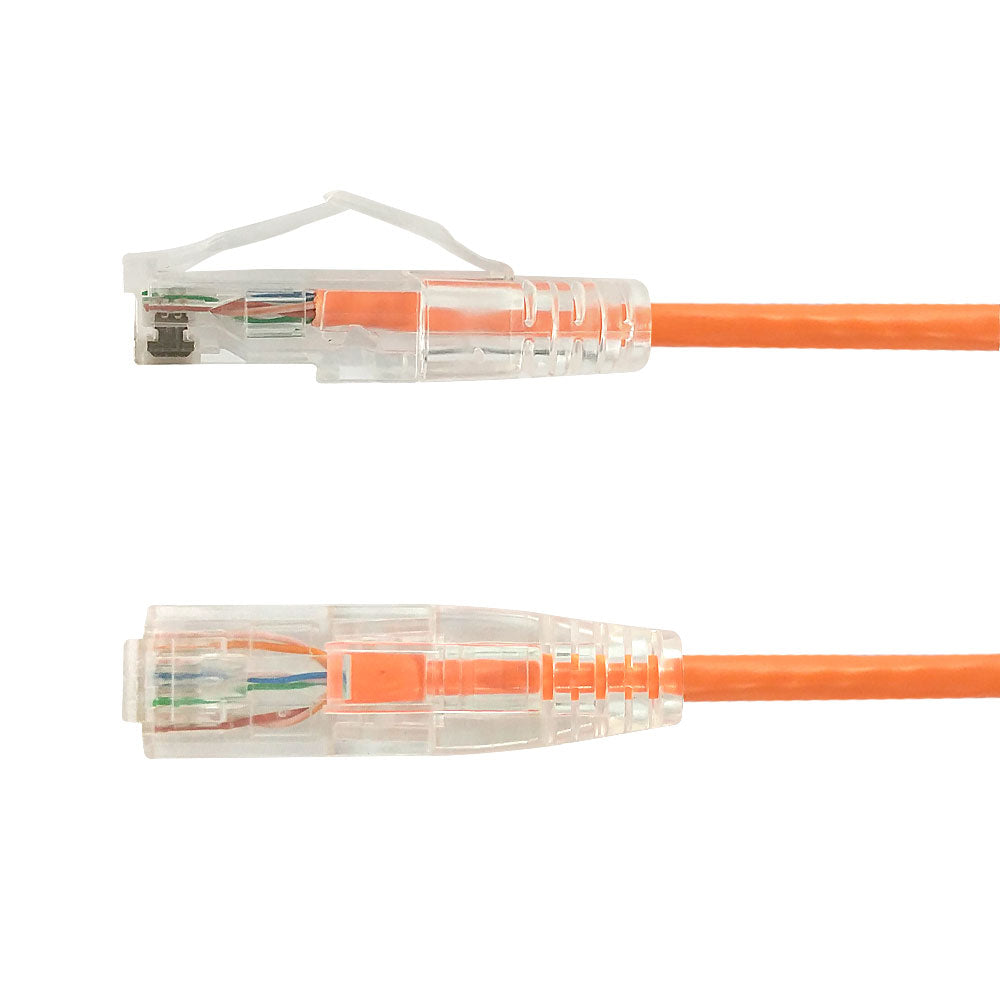

This Cat6a Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for 10Gb Ethernet network connections such as patch panels, switches, computers and routers. Its ultra-thin cable design works perfectly in high density server room applications. These cables are Fluke® Cat6a patch cable certified. The cable jacket is also CMR (riser) fire rated.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Performance in High Density Applications.This ultra slim cable is 60% thinner than the regular CAT6A cable which makes it the perfect solution for high density server rooms and data centers. It is also light weight, flexible and can be easily routed. Fluke® Patch Cable CertifiedOur cables are 100% tested to pass a Fluke® CAT6A patch cable test.
|
Specifications
| Physical Characteristics | |
|---|---|
| Colors Available | Black / Blue / Green / Grey / Orange / Purple / Red / White / Yellow |
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 3.6mm |
| Wire Gauge | 28AWG Stranded |
| Shielding | UTP (Unshielded) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Strain Relief | Assembled, Clear Boot |
| Jacket Type | PVC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke® CAT6A Patch Cable Test | Yes |
| Speed | 10Gb |
| Approvals | |
| c(UL)us | Yes - Cable |
| ISO/IEC 11801 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6 inch | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 10ft | 12ft | 15ft | 20ft | 25ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.04 | 0.05 lbs | 0.06 lbs | 0.07 lbs | 0.08 lbs | 0.09 lbs | 0.10 lbs | 0.11 lbs | 0.12 lbs | 0.14 lbs | 0.16 lbs | 0.20 lbs | 0.24 lbs | 0.30 lbs |
| SKU | Options | Weight |
| CAT6AUT-6INOR | 6 inch | 0.05 lb |
| CAT6AUT-01OR | 1ft | 0.07 lb |
| CAT6AUT-02OR | 2ft | 0.1 lb |
| CAT6AUT-03OR | 3ft | 0.15 lb |
| CAT6AUT-04OR | 4ft | 0.17 lb |
| CAT6AUT-05OR | 5ft | 0.2 lb |
| CAT6AUT-06OR | 6ft | 0.21 lb |
| CAT6AUT-07OR | 7ft | 0.24 lb |
| CAT6AUT-08OR | 8ft | 0.26 lb |
| CAT6AUT-10OR | 10ft | 0.33 lb |
| CAT6AUT-12OR | 12ft | 0.38 lb |
| CAT6AUT-15OR | 15ft | 0.5 lb |
| CAT6AUT-20OR | 20ft | 0.63 lb |
| CAT6AUT-25OR | 25ft | 0.77 lb |
