Overview

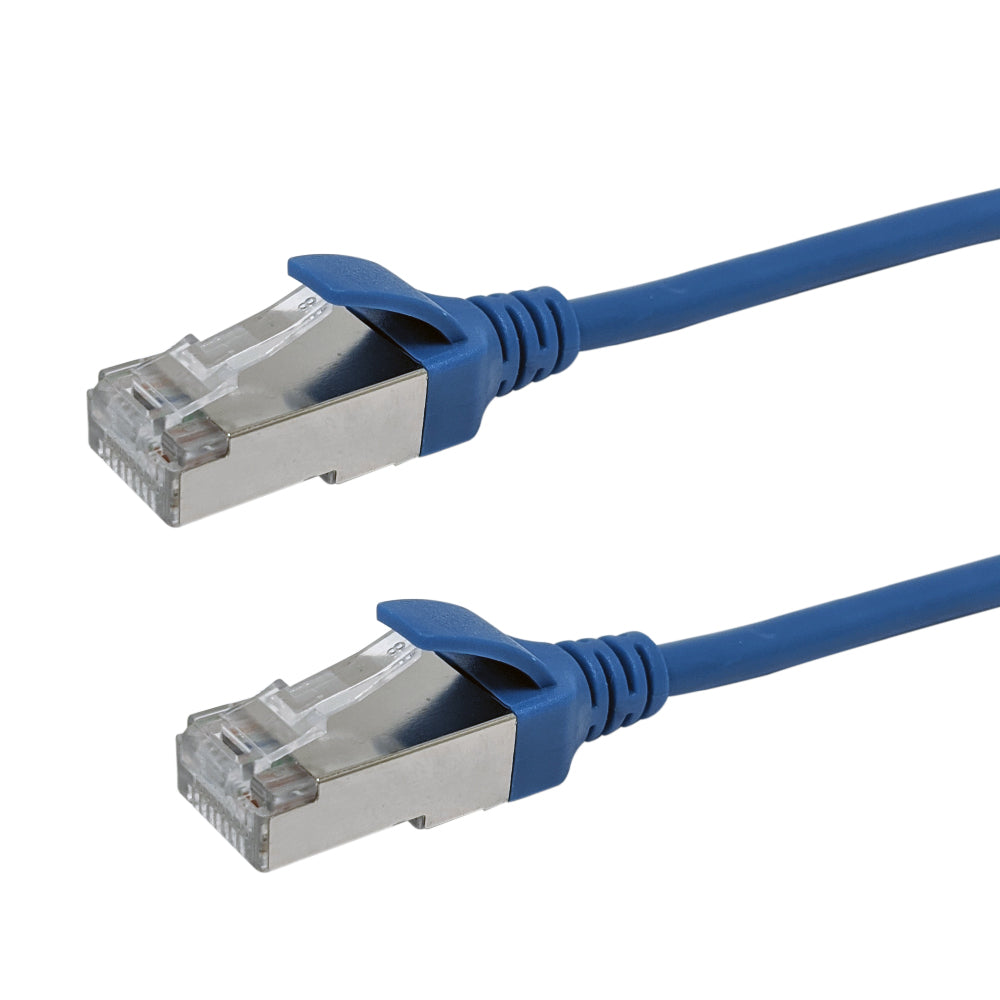

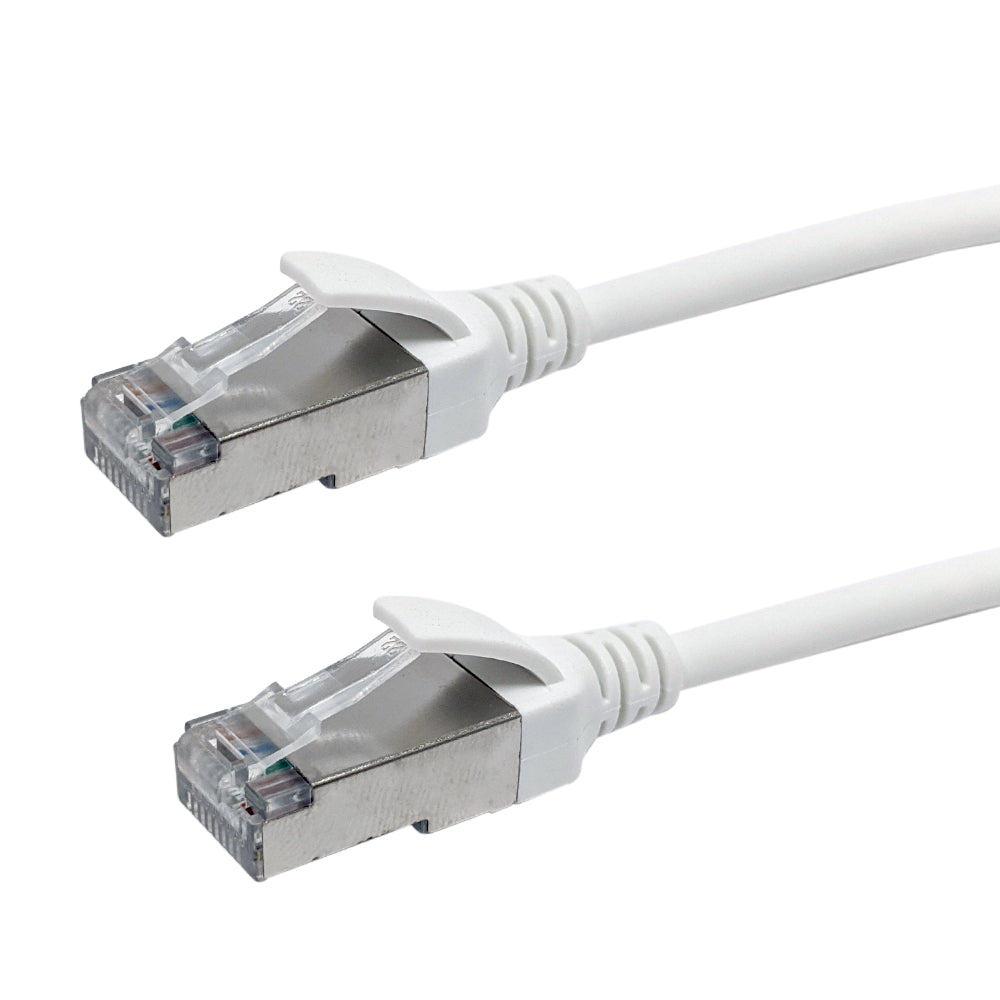

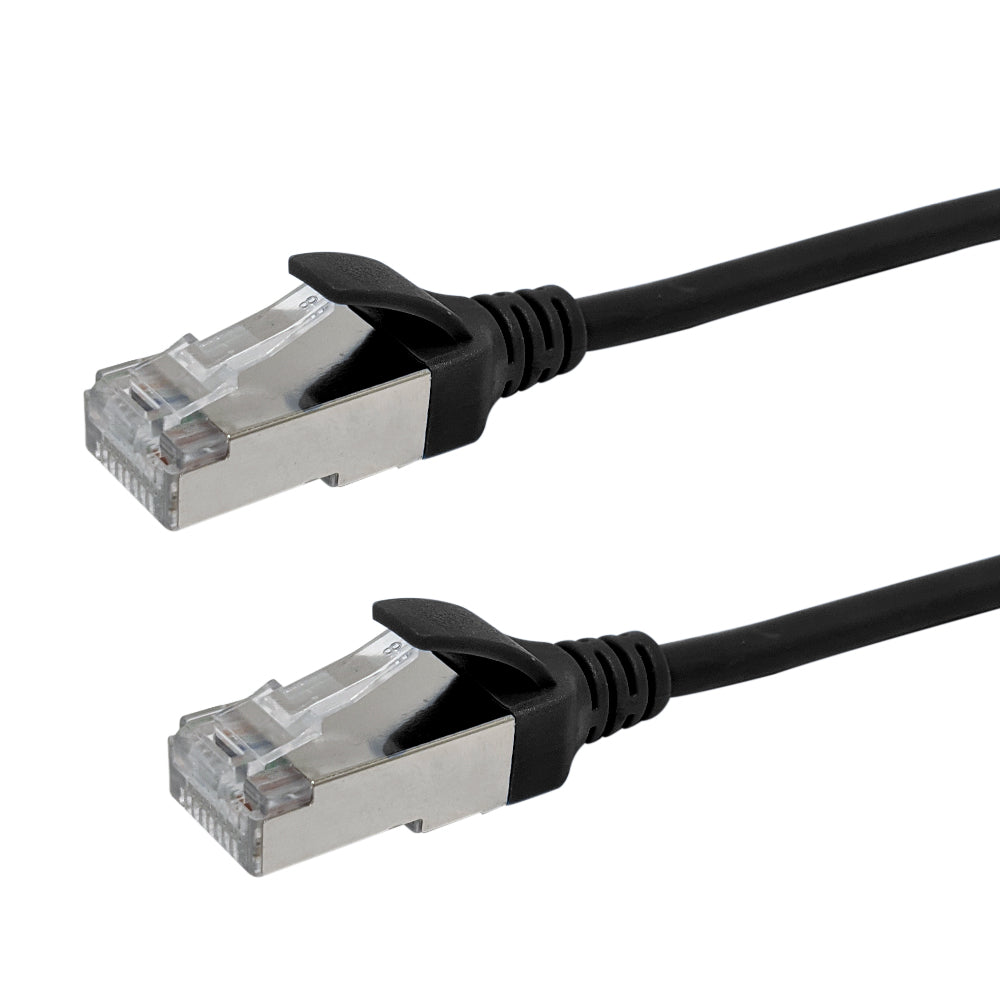

This Cat8 Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for Ethernet network connections such as patch panels, switches, computers and routers. It's ultra-thin cable design works perfectly in high density server room applications.
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Performance in High Density Applications.This ultra slim cable is 60% thinner than the regular Cat8 cable which makes it the perfect solution for high density server rooms and data centers. It is also light weight, flexible and can be easily routed. Fluke CAT8 Channel TestOur cables are 100% tested to pass a fluke CAT8 channel test, and come with a printed test report.
|
Specifications
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Cable Diameter | 4.5mm |
| Wire Gauge | 30AWG Stranded |
| Shielding | FFTP (Overall Foil and
Individually Foil Shielding Pairs) |
| Pairs | 4 |
| Fire Rating | CMR (FT4 Riser Rated) |
| Strain Relief | Molded Tab Style Strain Relief |
| Jacket Type | PVC |
| Temperature Rating |
-20oC to +75oC |
| Connectors | |
| Connector A | RJ45 Long Body Male |
| Connector B | RJ45 Long Body Male |
| Performance | |
| Fluke CAT8 Channel Test | Yes |
| Frequency | 40Gb |
| Color Code | 568A/568B Compatible |
| Approvals | |
| c(UL)us | Yes - Cable |
| ISO/IEC 11801 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Materials | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 6 inch | 1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 10ft | 15ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.02 | 0.02 lbs | 0.03 lbs | 0.07 lbs | 0.04 lbs | 0.04 lbs | 0.05 lbs | 0.06 lbs | 0.08 lbs | 0.11 lbs |
| SKU | Options | Weight |
| CAT8UTS-6INBK | 6 inch / Black | 0.05 lb |
| CAT8UTS-01BK | 1ft / Black | 0.07 lb |
| CAT8UTS-02BK | 2ft / Black | 0.1 lb |
| CAT8UTS-03BK | 3ft / Black | 0.15 lb |
| CAT8UTS-04BK | 4ft / Black | 0.17 lb |
| CAT8UTS-05BK | 5ft / Black | 0.2 lb |
| CAT8UTS-06BK | 6ft / Black | 0.21 lb |
| CAT8UTS-07BK | 7ft / Black | 0.24 lb |
| CAT8UTS-10BK | 10ft / Black | 0.33 lb |
| CAT8UTS-15BK | 15ft / Black | 0.5 lb |
| CAT8UTS-6INBL | 6 inch / Blue | 0.05 lb |
| CAT8UTS-01BL | 1ft / Blue | 0.07 lb |
| CAT8UTS-02BL | 2ft / Blue | 0.1 lb |
| CAT8UTS-03BL | 3ft / Blue | 0.15 lb |
| CAT8UTS-04BL | 4ft / Blue | 0.17 lb |
| CAT8UTS-05BL | 5ft / Blue | 0.2 lb |
| CAT8UTS-06BL | 6ft / Blue | 0.21 lb |
| CAT8UTS-07BL | 7ft / Blue | 0.24 lb |
| CAT8UTS-10BL | 10ft / Blue | 0.33 lb |
| CAT8UTS-15BL | 15ft / Blue | 0.5 lb |
| CAT8UTS-6INWH | 6 inch / White | 0.05 lb |
| CAT8UTS-01WH | 1ft / White | 0.07 lb |
| CAT8UTS-02WH | 2ft / White | 0.1 lb |
| CAT8UTS-03WH | 3ft / White | 0.15 lb |
| CAT8UTS-04WH | 4ft / White | 0.17 lb |
| CAT8UTS-05WH | 5ft / White | 0.2 lb |
| CAT8UTS-06WH | 6ft / White | 0.21 lb |
| CAT8UTS-07WH | 7ft / White | 0.24 lb |
| CAT8UTS-10WH | 10ft / White | 0.33 lb |
| CAT8UTS-15WH | 15ft / White | 0.5 lb |
