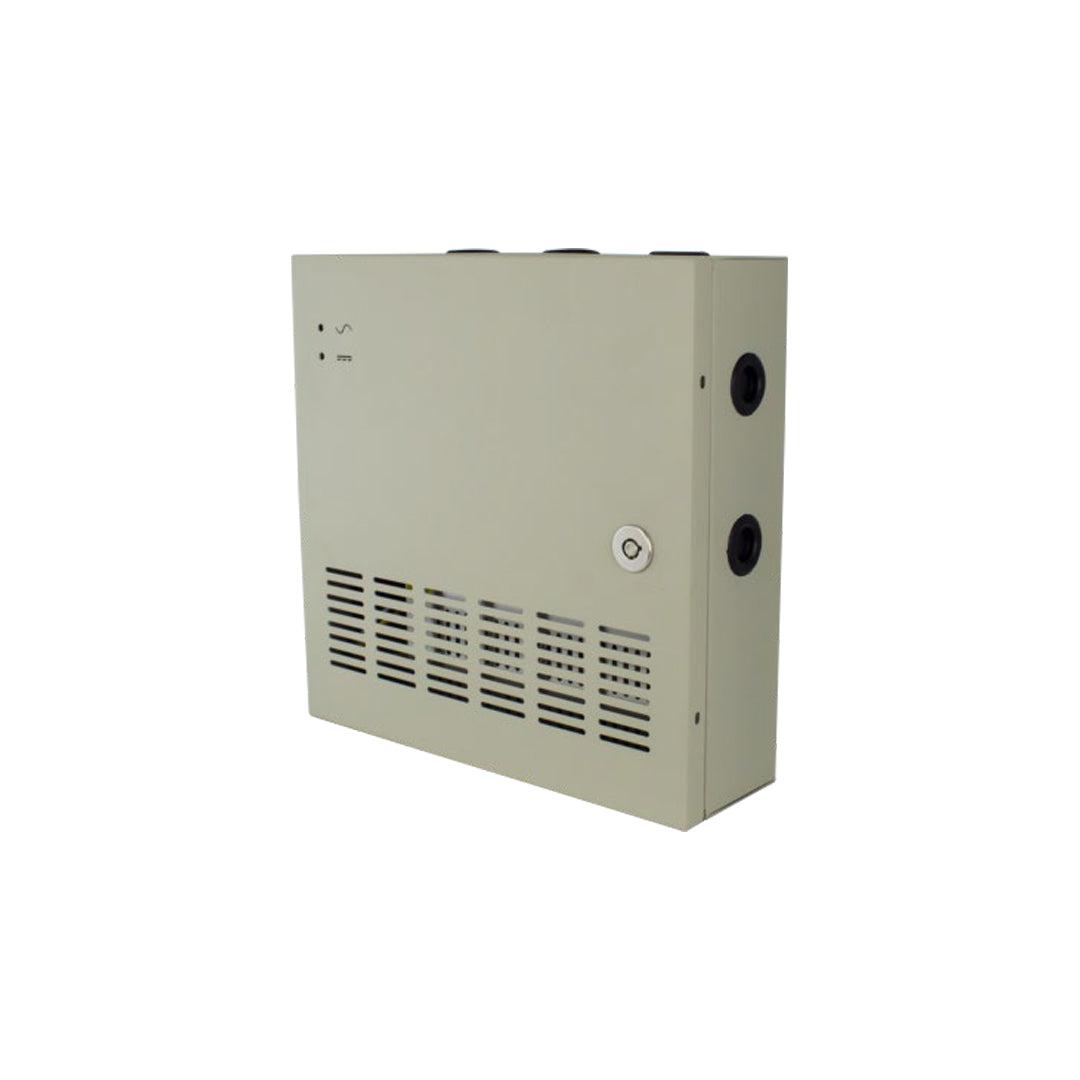

DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 20A - c(UL)us

Power SuppliesSKU: PDC-12V20A-18

Price:
Sale price$99.55 CAD
Stock:
In stock


Description

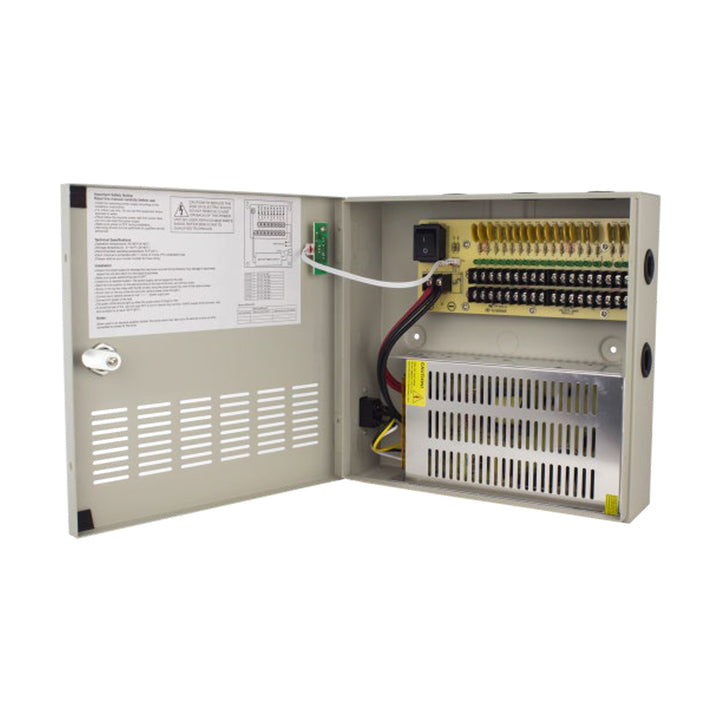

This power supply has an input voltage of 100V to 240V AC with an auto switch function. It also has an output voltage of 12V DC +/- 5%. Its total output current is 20A with a total of 18 channels. It features thermal cut-offs protection - each output has an independent PTC fuse and LED indicator so that other outputs function if one output has an issue. It also has short circuit protection, high voltage protection and over current protection. Typical applications for this power supply include using it with CCTV cameras, IP cameras, PTZ, IR illuminators, DVRs and access control.

Features:

  • Wall type baking finished shell, easy installation
  • AC Input Range: 110V or 220V, 50/60Hz
  • Output voltage adjustable 11-15V
  • Short circuit Protection, Over Voltage Protection, Over Current Protection, Over Temp Protection
  • PTC output protection for each port
  • External LED indicator for each output
  • 100% full load burn-in test, High efficiency, Long service life, high reliability
Performance
Input Voltage 100V to 220V AC 5A 50/60Hz
Output Voltage 12V DC 20A
Output Current 20A
Channels 18
Fuse Type PTC (Resettable)
Fuse Rating 2500MA
Short Circuit Protection Yes
High Voltage Protection Yes
Under/Over Current Protection Yes
Over Temperature Protection  Yes
Operating Temperature  -10~40℃
Efficiency  ≥82%
Load Regulation  A ±5%
Life  10000 hours
Approvals
CE Yes
FCC Yes
c(UL)us Yes
Environmental
RoHS Yes
Warranty Information
Warranty 2 Years
Packaging Information
Package Quantity 1
Product Weight 6.5 lbs

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
PDC-12V20A-18 6.5 lb
