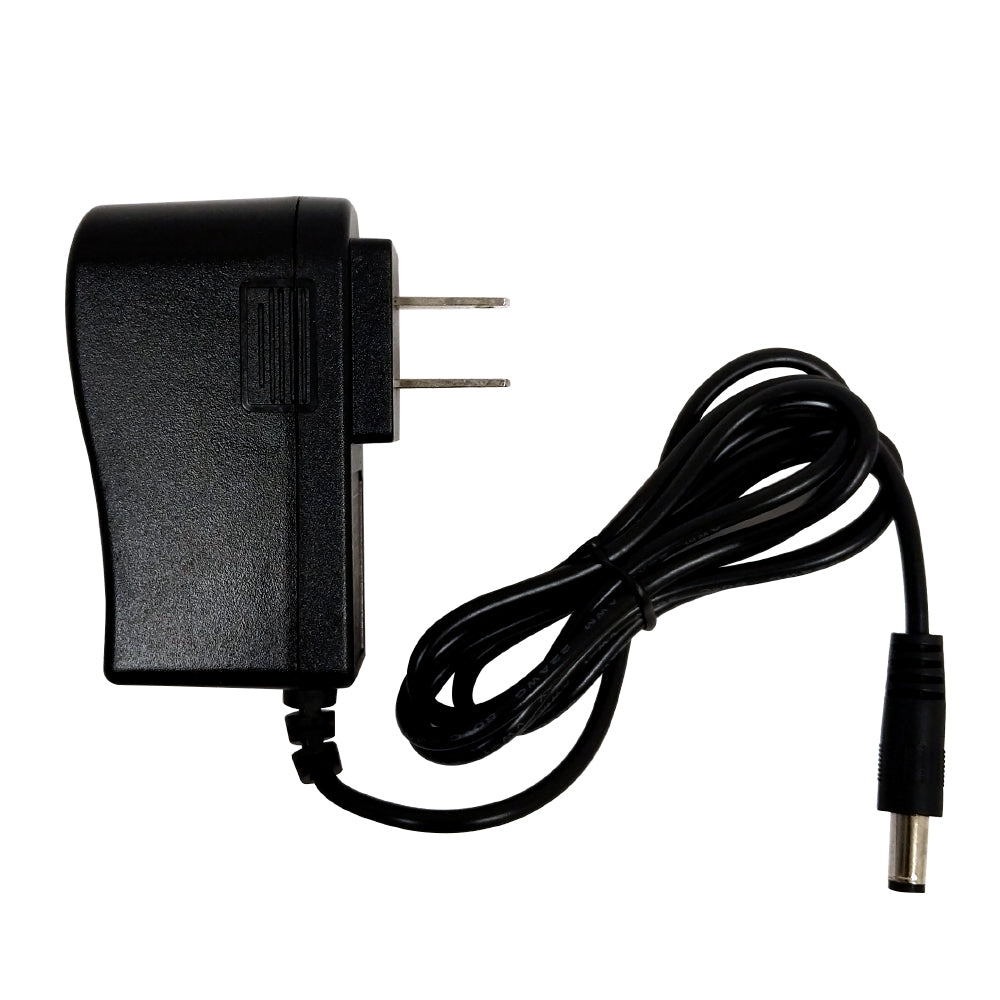

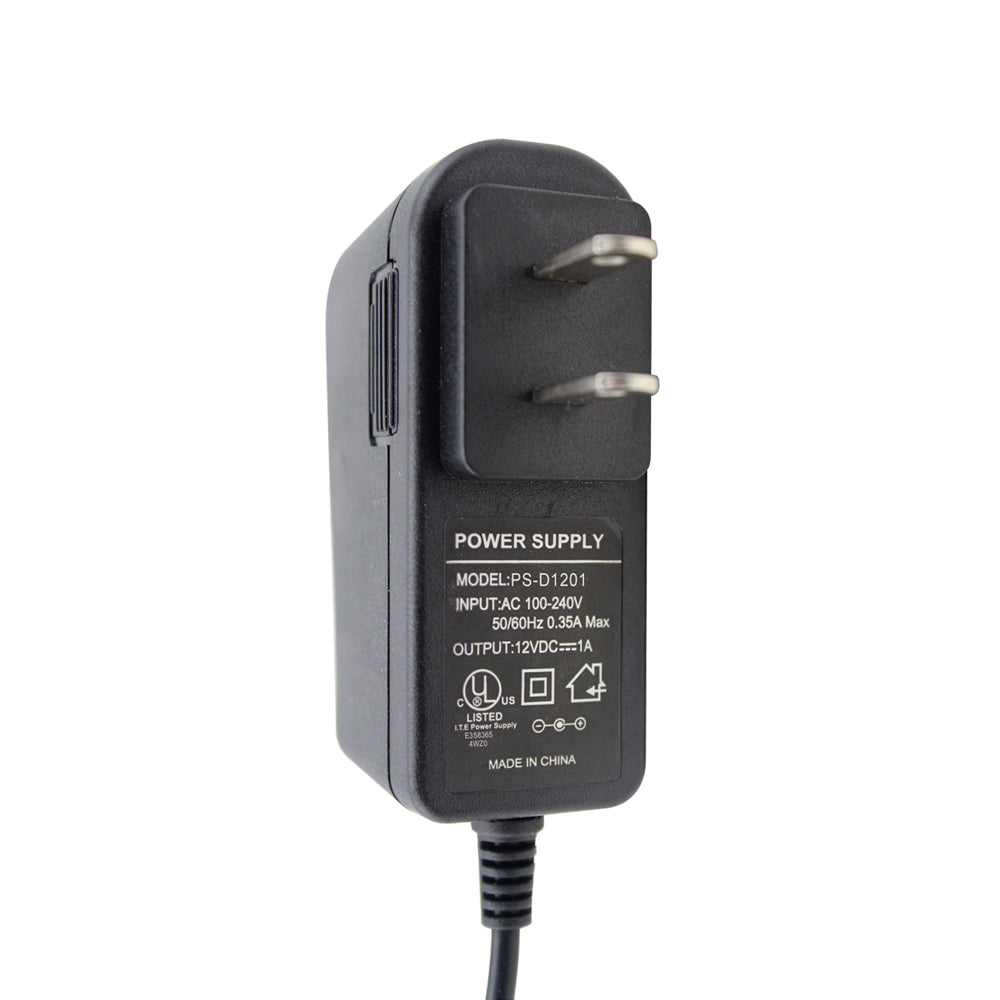

DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us

Power SuppliesSKU: PDC-12V1A-01

Price:
Sale price$7.65 CAD
Stock:
In stock


Description

This power supply has an input voltage of 100V to 240V AC and an output voltage of 12V DC. Its input current is 350mA and its output current is 1A. It has surge protection, over load protection and short circuit protection in which the output is shut down and automatically restarted.

Cable Length 4ft [1.2m]
Performance
Input Voltage 100V to 240V AC
Input Current 350mA RMS Maximum
Output Voltage 12V DC
Output Current 1A
Frequency Rated 50-60Hz
Efficiency 82% Minimum
Leakage Current 0.25mA
Over Voltage Protection 15
Ripple 50Mv
Load Regulation A± 5%
Short Circuit Protection Yes
Surge Protection Yes
Over Load Protection Yes
Connectors
DC Connector 2.1mm x 5.5mm
Approvals
c(UL)us Yes
Environmental
RoHS Yes
Warranty Information
Warranty 2 Years
Packaging Information
Package Quantity 1
Product Weight 0.5 lbs

2-YEAR WARRANTY

Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.

SKU Weight
PDC-12V1A-01 0.5 lb
