Description

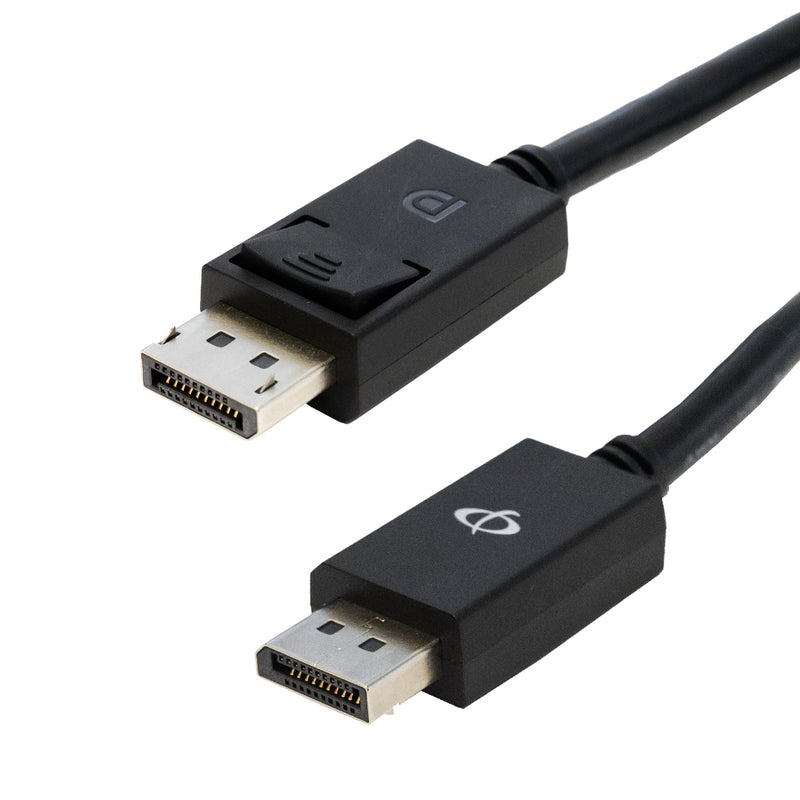

This cable has a DisplayPort male on one end and a DisplayPort male on the other. It is typically used to connect a DisplayPort source to a DisplayPort monitor. The cable supports 16K UHD resolution and is backwards compatible to previous DisplayPort versions.
Features:
- Bandwidth 40G
- Support 1080P@360Hz,2K@240Hz,4K@165Hz,8K@60Hz(DSC),16K@30Hz(DSC) resolution.
- Support 32-bit audio channels and 1536KHz audio sample frequency
- Support PCM, AC-3, DTS and other audio formats
- Support Multi-Stream Transport (MST)
- Support 3D visual effects and Dynamic HDR
|
| Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 16K @ 30Hz. This cable can be used in instances where high definition resolution is needed - for example, connecting your PC or laptop to a 16K monitor.
|
Application
Specifications
| Physical Characteristics | |||||
|---|---|---|---|---|---|
| Lengths | 1.5ft | 3ft | 6ft | 10ft | 15ft |
| Wire Gauge | 30AWG | 30AWG | 30AWG | 24AWG | 24AWG |
| Outer Diameter | 6.5mm | 6.5mm | 6.5mm | 8.2mm | 8.2mm |
| VESA Certified | Yes | Yes | Yes | Yes | No |
| Color | Black | ||||
| Material | PC + ABS | ||||
| Connector Plating | Nickel Plated | ||||
| Jacket Fire Rating | CL3 | ||||
| Temperature Rating | 80°C | ||||
| Connectors | |||||
| Connector A | DisplayPort Male | ||||
| Connector B | DisplayPort Male | ||||
| Performance | |||||
| Maximum Resolution | 1080P@360Hz, 2K@240Hz, 4K@165Hz, 8K@60Hz(DSC), 16K@30Hz(DSC) | ||||
| Bandwidth | 40G | ||||
| DP Version | v2.1 | ||||
| Audio | 32-bit audio channels and 1536KHz audio sample frequency | ||||
| Voltage | 30V | ||||
| Contact Resistance | 3 ohm max | ||||
| Insulation Resistance | 10M ohm Min.300V DC/10ms. | ||||
| 3D Support | Yes | ||||
| Dynamic HDR Support | Yes | ||||
| Packaging Information | |||||
| Warranty | Lifetime Limited | ||||
| 1.5ft | 3ft | 6ft | 10ft | 15ft |
|---|---|---|---|---|
| 0.10 lbs | 0.15 lbs | 0.25 lbs | 0.69 lbs | 1.00 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DP-103-01.5 | 1.5ft | 0.1 lb |
| DP-103-03 | 3ft | 0.15 lb |
| DP-103-06 | 6ft | 0.25 lb |
| DP-103-10 | 10ft | 0.69 lb |
| DP-103-15 | 15ft | 1.0 lb |
