Description
Overview

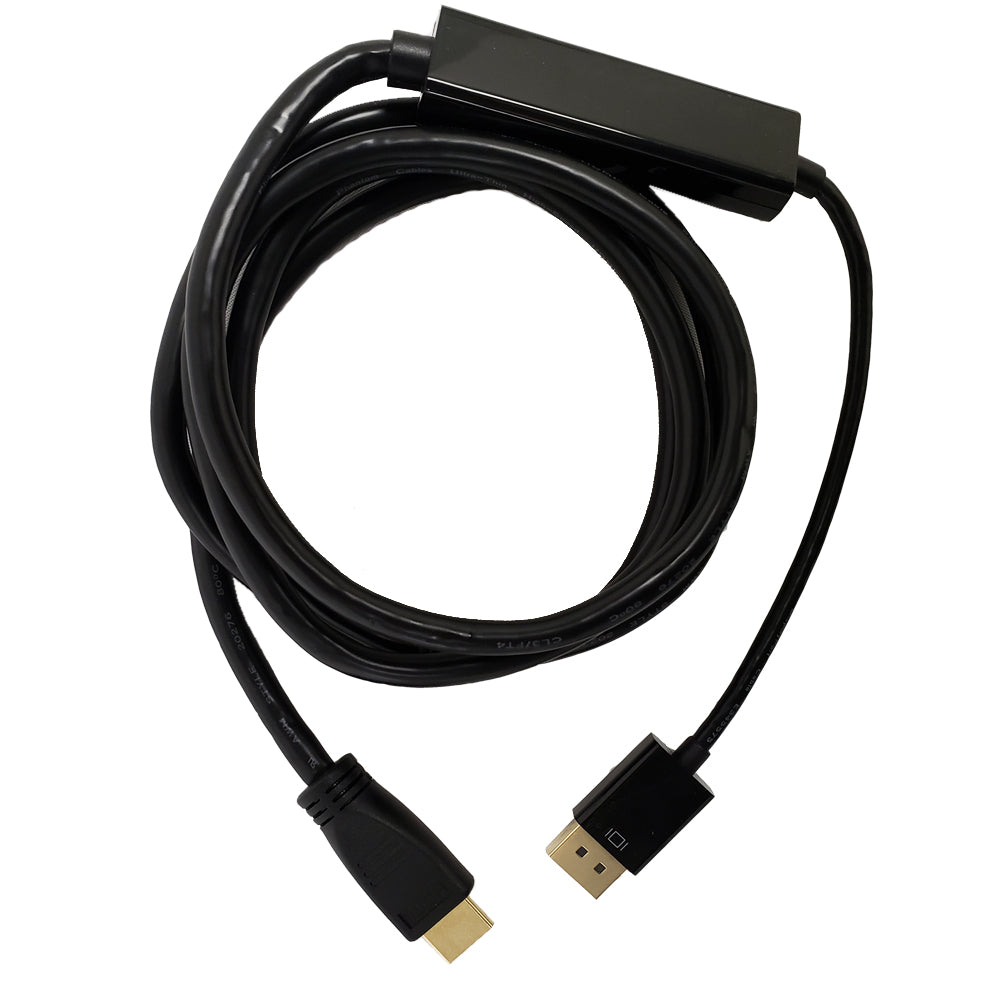

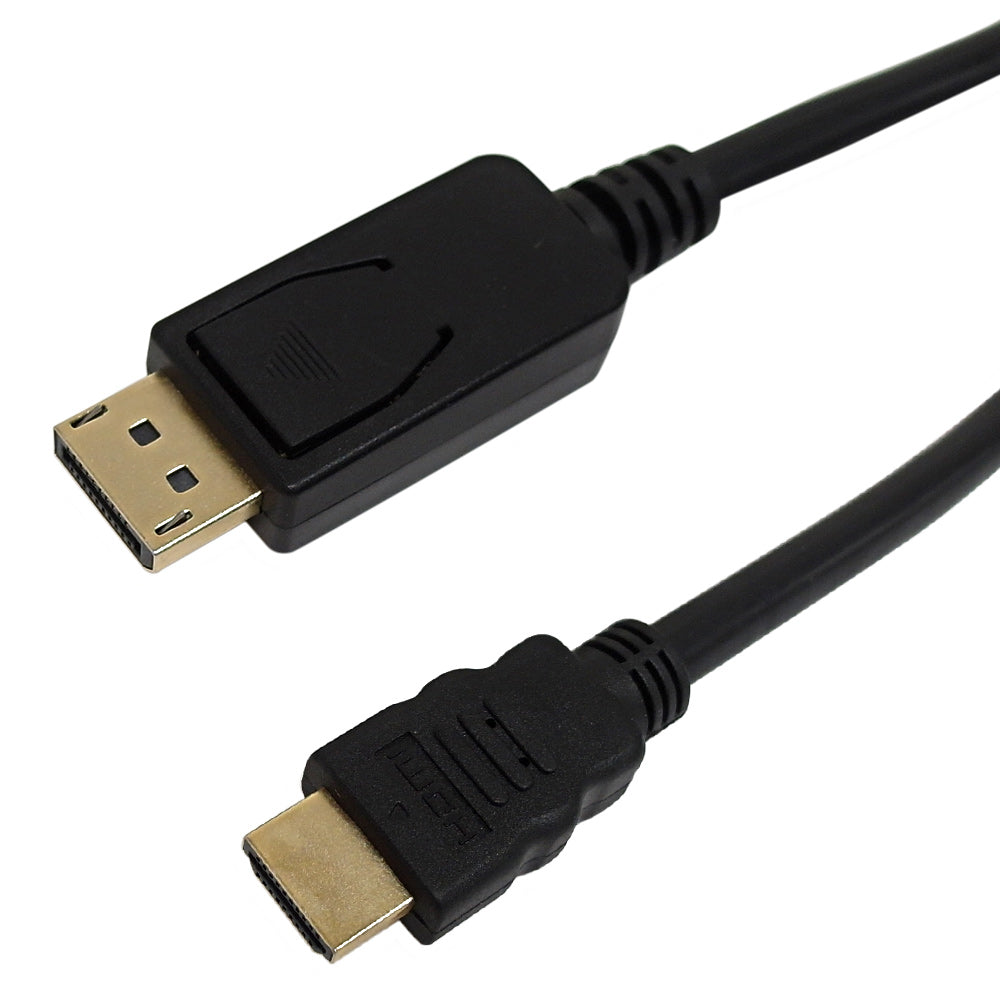

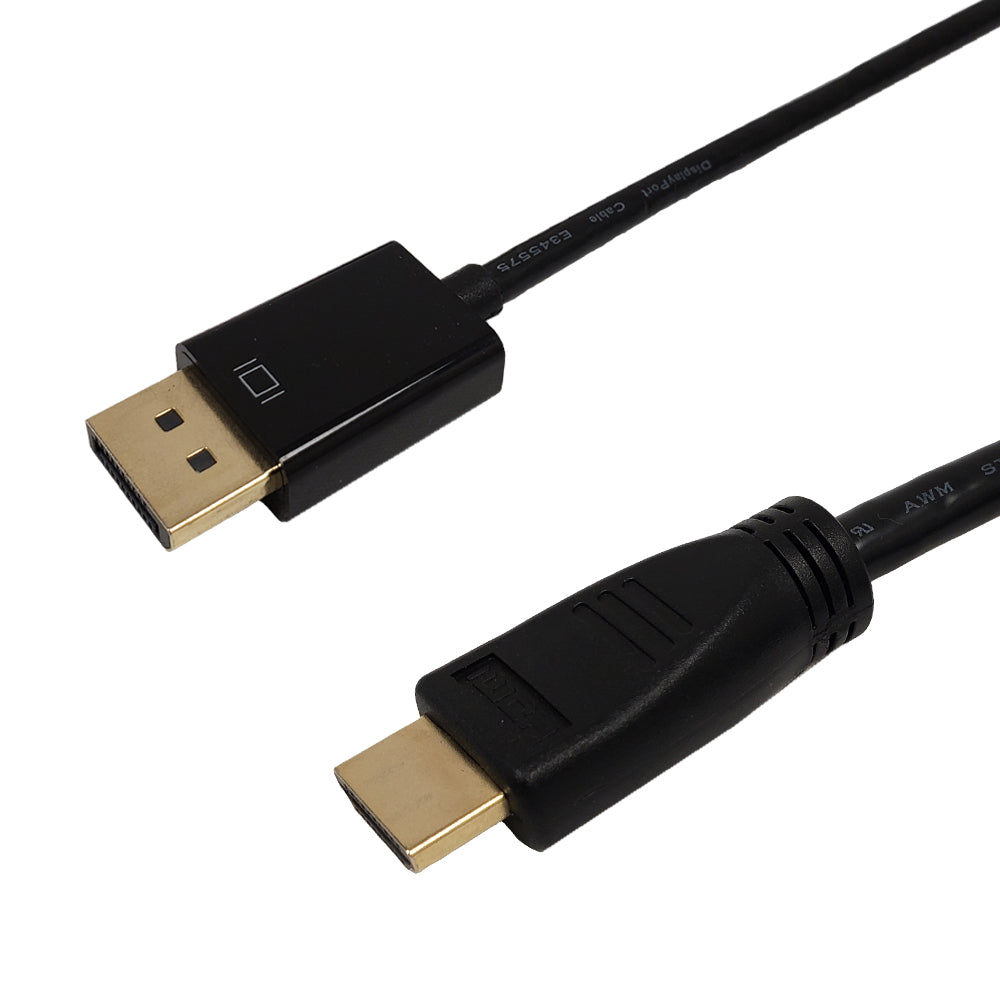

This DisplayPort male to HDMI male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a DisplayPort source (PC, Laptop, etc.) to a HDMI display ( 4K HD TVs, Projectors, etc.). This cable is uni-directional, therefore it will only work from a DisplayPort source to a HDMI display and not in the reverse direction.
|
|
Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Used in Common InstancesThis cable can be used in common instances - for example, connecting your PC to a TV, at the highest possible resolution available.
|
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge | 28 AWG |
| Jacket Fire Rating | CL3/FT4 |
| Cable Type | Active |
| Temperature Rating | 80℃ |
| Connectors | |
| Connector A | HDMI Male |
| Connector B | DisplayPort Male |
| Performance | |
| Bandwidth | 18 Gbps |
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| 3D Support | Yes |
| DP Version | v1.2 |
| HDMI Version | v2.0 |
| Content Protection | HDCP2.2 Compliant |
| Built in Ethernet Channel |
Yes |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Warranty | |
| Warranty | Lifetime Limited |
| 10ft | 15ft |
|---|---|
| 0.5 lbs | 0.73 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| DP-HDMI2-10 | 10ft | 0.33 lb |
| DP-HDMI2-15 | 15ft | 0.5 lb |
