Description

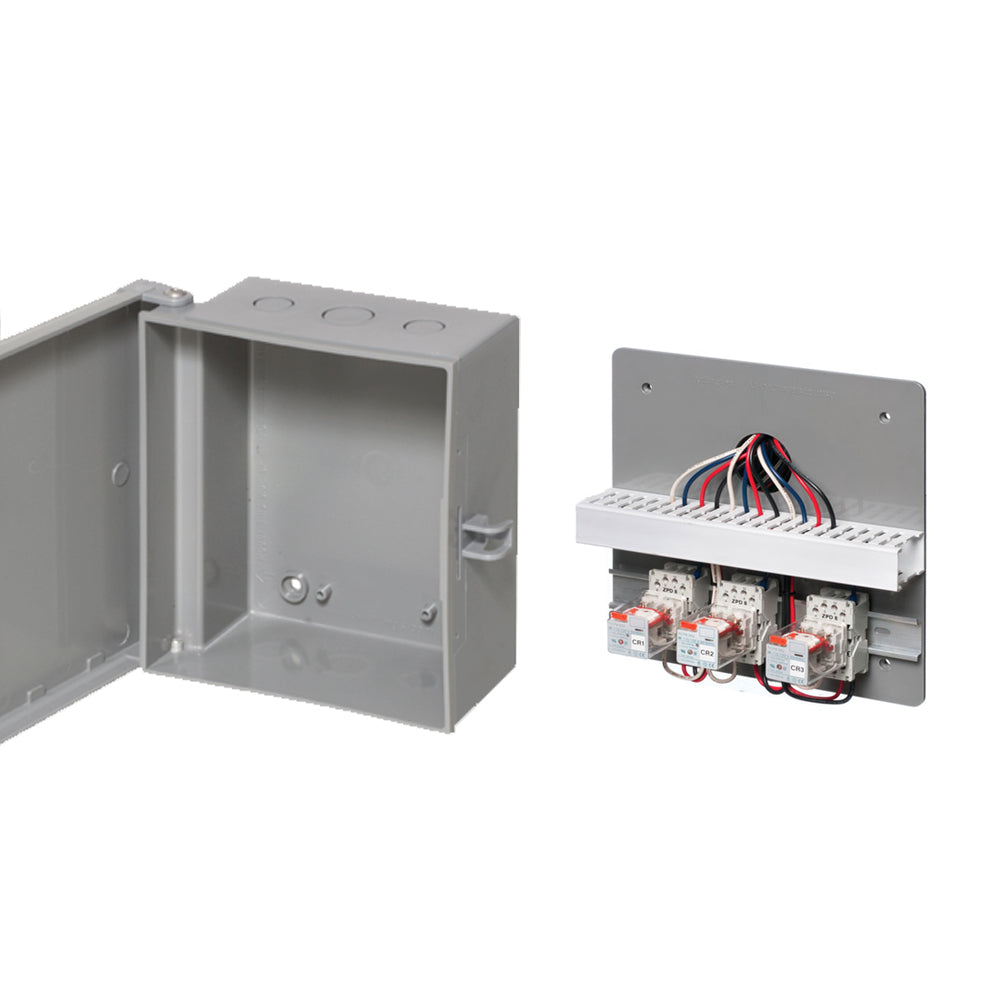

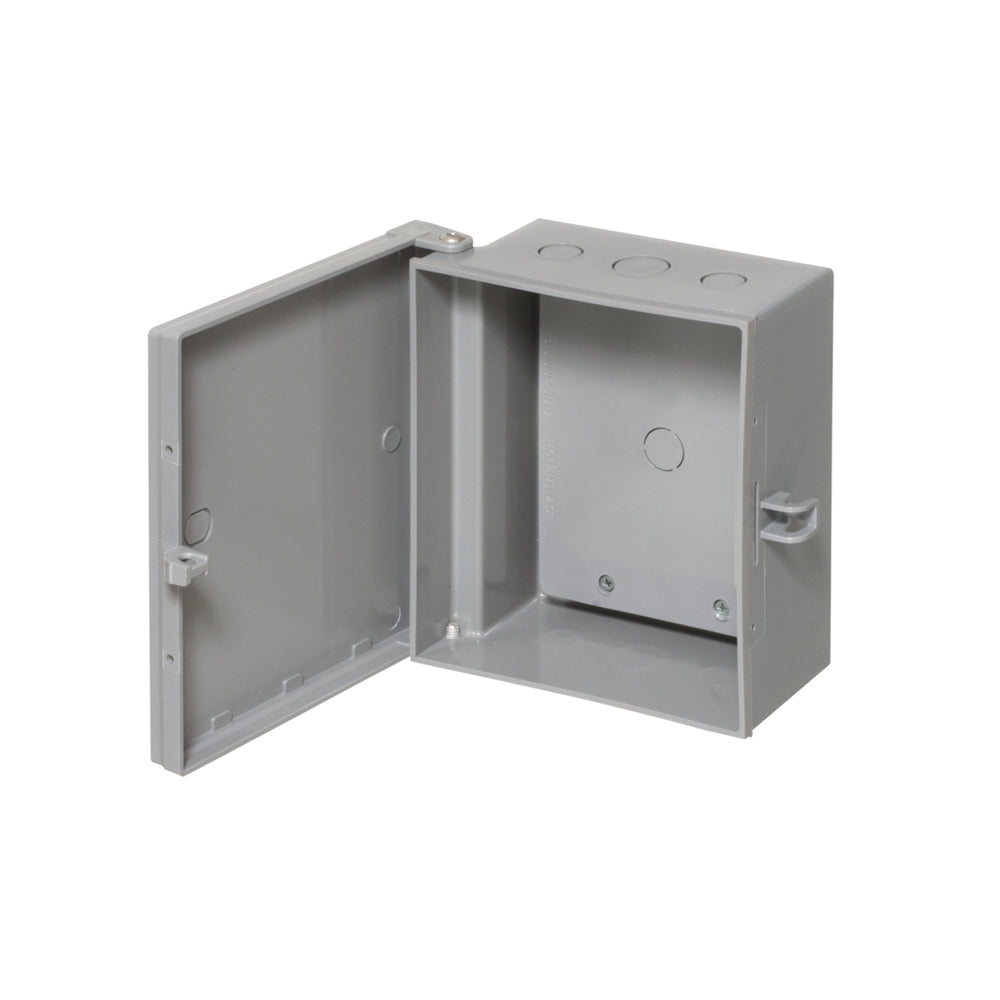

This enclosure box is made of heavy-duty, UV rated non-metallic material and has 1/2" and 3/4" knockouts on either side. It can be used indoors or outdoors to protect and secure power backups, security devices and other valuable equipment. When mounted in a vertical position, it meets NEMA 3R outdoor requirements. The back plate allows an installer to mount components to the plate even after the enclosure box is mounted.
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Material | Non-Metallic |
| Product Dimensions | 7" L x 8" W x 3.5" D |
| Backplate | Yes |
| Lockable | Padlock or Optional Cam Lock Knockout (EB-CAM-LOCK) |
| Manufacturing Information | |
| Arlington Industries Number | EB0708BP |
| Approvals | |
| NEMA | 3R Rated |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.7 lbs [0.77 kg] |
| Contents | |
| Included in Package | 1 - Enclosure Box |
Spec Sheets
Product Weights
| SKU | Weight | |
| EB-0708BP-GY | 1.7 lb |
