Description
Overview
This EOC (Ethernet Over Coax, also known as IP over Coax) converter is used to transmit audio, video and data over existing coaxial cables. This EOC converter is designed to upgrade traditional analogue video surveillance system cabling to IP surveillance system cabling without the need to replace any existing coaxial cables. Often used in homes, businesses and elevators for the following applications; POE IP cameras, POE Wi-Fi APs, VoIP phones and more.
Features
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards
- Supports IEEEB02.3af and IEEE802.3at power supply standards
- Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Supports MDI/MDIX self- adaption
- Supports long range power supply transmission via coaxial cable
Application
Specifications
| Physical Characteristics | ||||
|---|---|---|---|---|

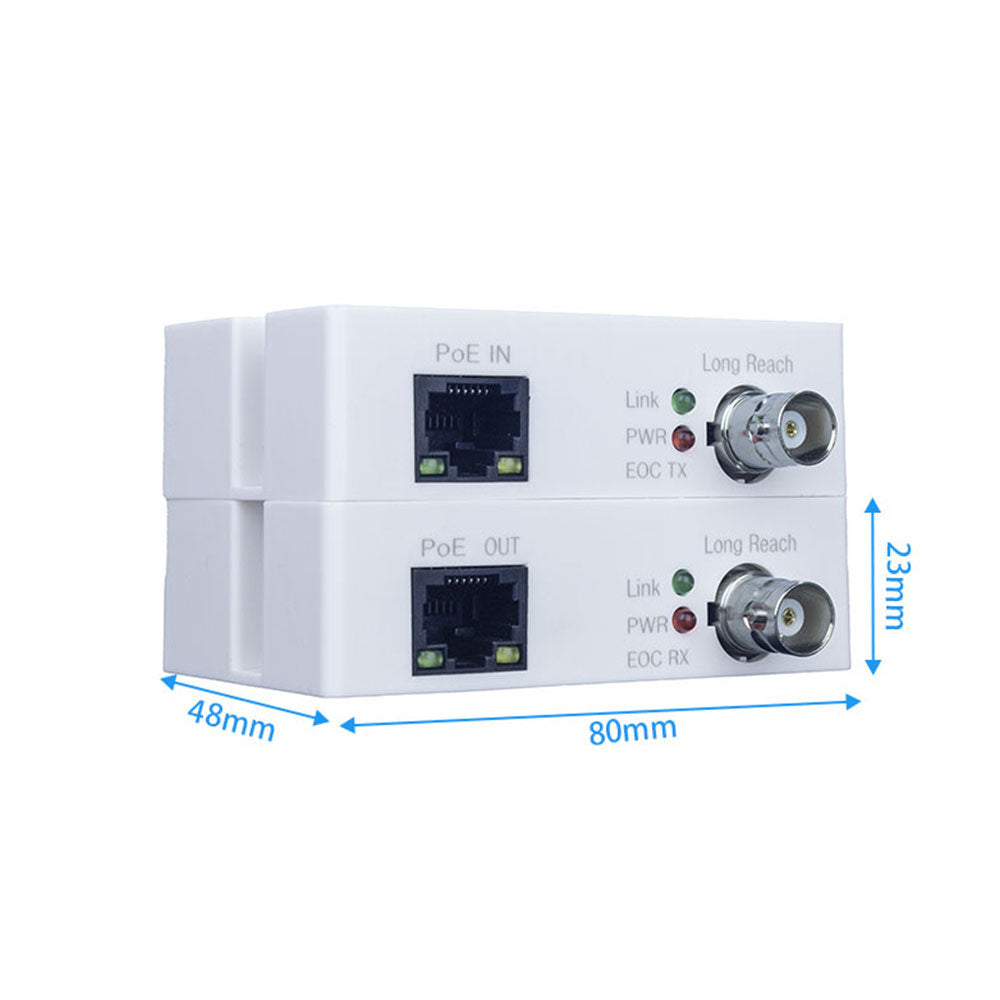

| No. of Channels | ePoE Transmitter : 1 x 10/100Mbps RJ45 Port (PoE IN), 1 x Coaxial Cable Port ePoE Receiver : 1 x 10/100Mbps RJ45 Port (PoE OUT), 1 x Coaxial Cable Port |
|||
| Body Material | White Polycarbonate | |||
| Environment | Indoor | |||
| Operating Temperature | -30°C to 70°C | |||
| Operating Humidity | 5 to 95% (no condensation) | |||
| Dimensions | 150 x 74 x 40mm | |||
| Indicators | Power Indicator: PoE Enabled Network Indicator: Link/Act |
|||
| Power Consumption | <2W | |||
| Max. power Consumption | 30W | |||
| Performance | ||||
| Transmission Bandwidth | RG59 coaxial cable : 400m/100Mbps, 1000m/10Mbps | |||
| PoE Protocol | IEEE8023af. IEEE802 3at | |||
| Network Standard | IEEE802 3, IEEE802 3u, IEEE802 3x | |||
| PoE Pin Assignment | V+(Rj45 Pin 12,45) V-(Rj45 Pin 36,78) |
|||
| Packaging Information | ||||
| Package Quantity | 1 - EOC/PoE Converter | |||
| Product Weight | 0.25 lbs | |||
Spec Sheets
Product Weights
| SKU | Weight | |
| POE-EC001 | 0.25 lb |
