Description
Overview

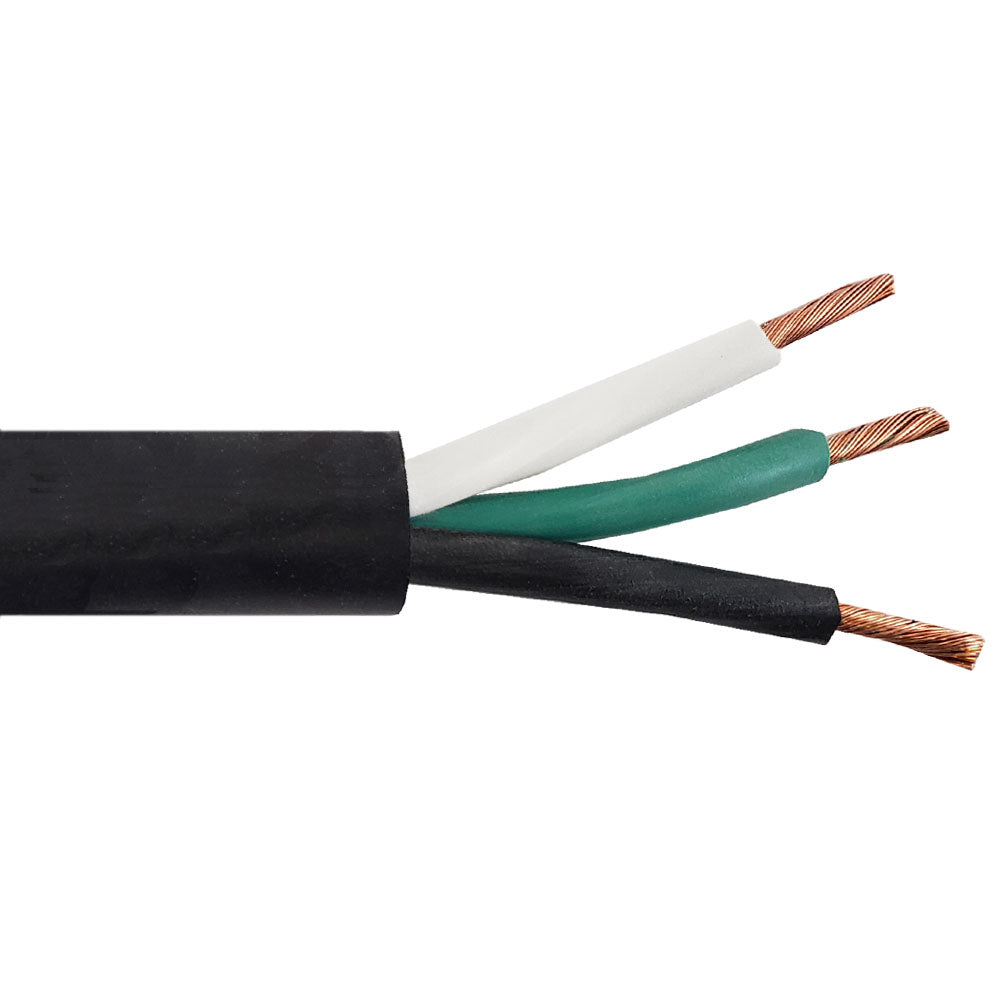

This bulk power cable consists of three 12 gauge conductors with a 600V SOOW jacket. It is typically used with industrial and processing equipment, cranes and hoists, track systems, construction equipment and other electrical equipment. It has excellent flexibility, resistance to oil, solvents, ozone, weather, sunlight and water. The cable is sold in bulk per meter.
Features:
- Suitable for shallow water immersion
- NEC Article 700 permitted use for specific applications.
- NFPA 70 permitted use in Hazardous Locations Classes I, II, III,
- Divisions 1 & 2 as outlined in Articles 501, 502, 503 section 140.
 |
Flexible Stranded Bare Copper ConductorsThis cable is manufactured using high quality pure bare copper to ensure maximum conductivity, optimal performance and longest lifetime. The Quality and Convenience You NeedThis cable is sold per meter so you can have the right amount of flexible electrical cord cable needed for your application.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Color Code | ICEA S-58-679, Method 1, table 1; black, white, green |
| Wire Gauge | 12AWG |
| Wire Standard | SOOW |
| Number of Conductors | 3 |
| Conductor Material | Flexible Stranded Bare Copper, ASTM B-174 and UL 62 |
| Insulation Material | EPR Compound, 90℃ compound class 3, table 8, UL 62 |
| Assembly | Insulated conductors cabled together with integral filled or rubber fillers |
| Separator | Talc for 18-10 AWG |
| Number of Power Conductor Stranding | 65 / 30 |
| Nominal Insulation Thickness | 1.14mm |
| Nominal Jacket Thickness | 2.41mm |
| Nominal Outer Diameter | 15.2mm |
| Jacket | Black CPE 90℃ compound class 1.4, table 22, UL 62 |
| Jacket Fire Rating | VW-1, FT2, and MSHA |
| Temperature Rating | -40℃ to 90℃ |
| Performance | |
| Rating Voltage | 600V |
| Approvals | |
| UL 62/CSA-C 22.2 No 49 |
Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.42 lbs/m |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-PW3C12-SOOW | 1.42 lb |
