Description

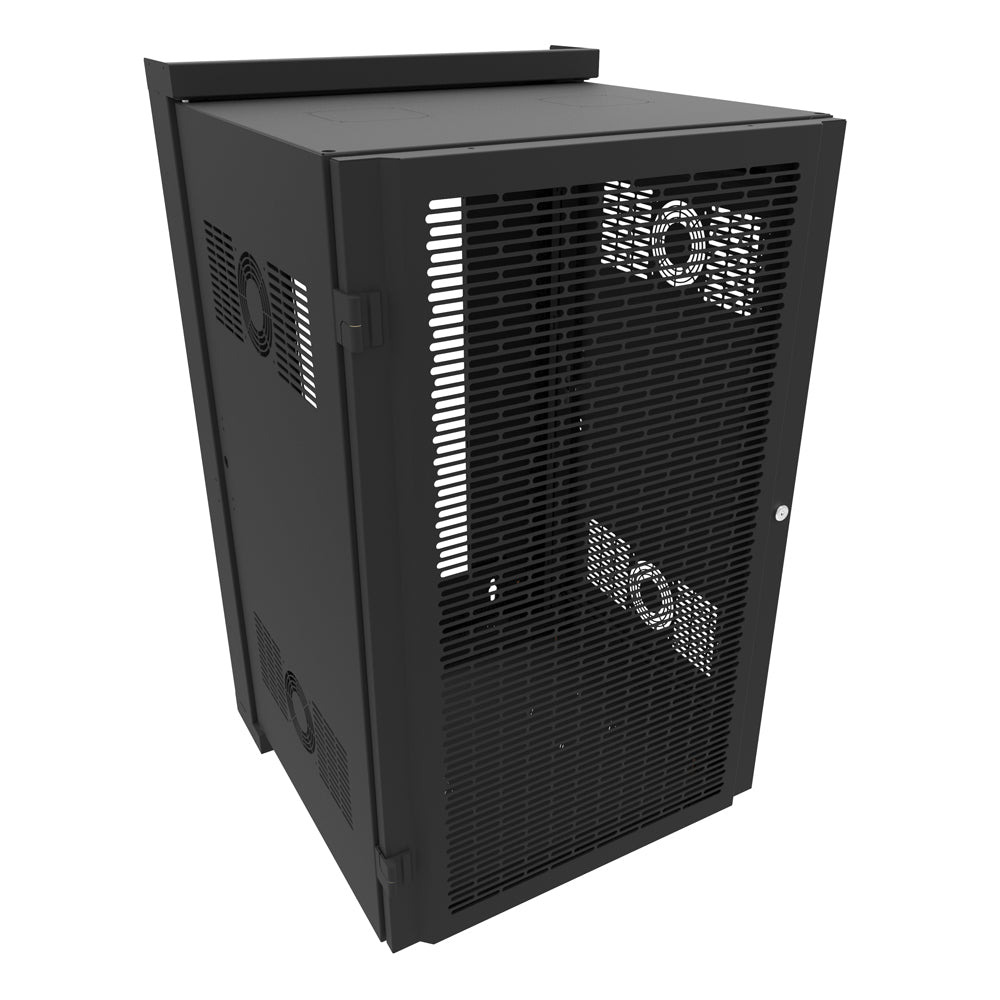

This 20U, heavy duty wall mount swing-out cabinet comes with a lockable vented front door. The swing-out feature allows for easy access during installation and maintenance. It is typically used for housing networking equipment. The vented door and side panels are specifically designed for high capacity servers, switches and power management devices.
Features:
- Center section has a heavy duty spring-hinge pin for easy installation and removal.
- Sides feature two vents and a fan grilles.
- The rear section has a 2.5 and 2 inch knockout on either side.
- The top and bottom of the rear section includes 3, 2, 1.38 and 1.12 inch knockouts.
- Cable management lances are located on the rear section as well as on the mounting rails.
- Mounting points for an outlet strip are located in the rear section of the cabinet.
- Heavy duty mounting keyholes for wall mounting.
- Large opening in the rear of the cabinet for cable access.
- Grounded lugs located on top and bottom of door, center and rear sections.
- UL Listed 2416 for up to 350 lbs (159 kg) static load rating.
- EIA compliant adjustable depth mounting rails.
- 14-gauge welded rear section; 16-gauge center section and doors.
| Physical Characteristics | |
|---|---|
| Color | Powdered Black |
| Material | 14 Gauge Steel Rear Section, 16 Gauge Steel Center Section and Doors |
| Swing-Out Door | Vented 63% perforated front door |
| Rails | One pair of tapped 10-32 mounting rails Supports multiple pairs of rails in both tapped and square hole options |
| Assembly Required | No |
| Loading Capacity | Maximum 350 lbs [159 kg] |
| Capacity | 20U |
| Product Dimensions | 41.75 H, 24.68 W, 25.7 D inches [106 H, 62.7 W, 65.3 D cm] |
| Usable Mounting Dimensions | 35" Height x 19" Wide x 23.52" Deep |
| Approvals | |
| UL Listed 2416 | Yes |
| Environmental | |
| RoHS | Yes |
| TAA Compliant | Yes |
| Packaging Information | |
| Package Quantity | 1 - Heavy Duty Wall Mount Swing-Out Cabinet 20U (Assembled) |
| Product Weight | 138 lbs [62.6kg] |
