Description

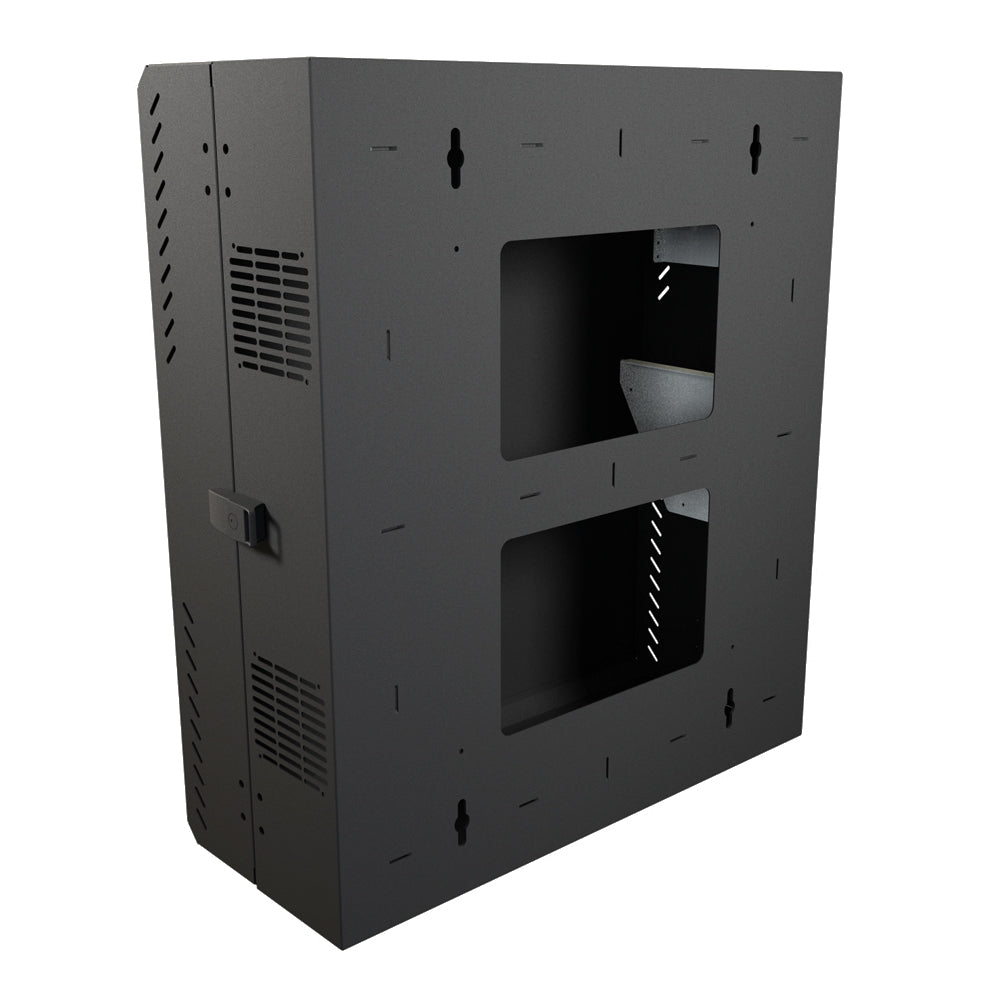

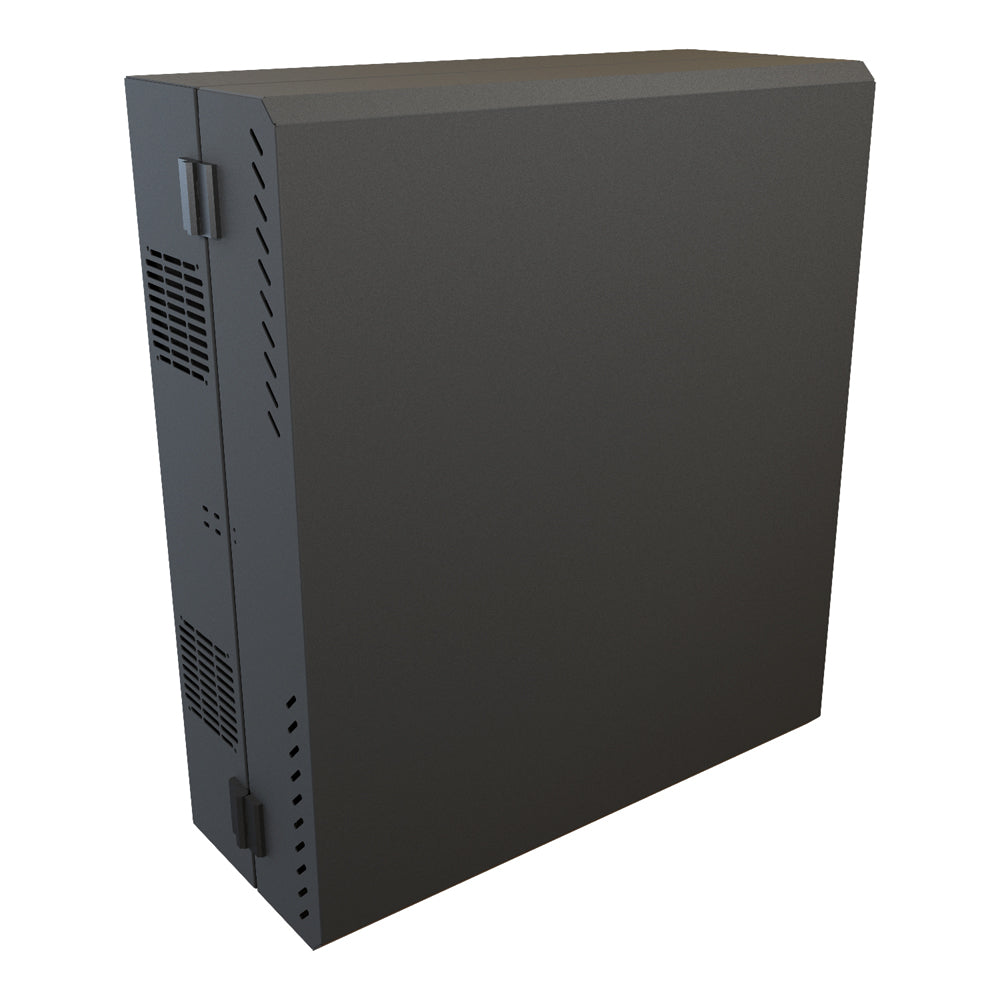

This 4U vertical wall mount cabinet comes with a lockable front door and side venting for airflow. It is typically used for housing network and DVR equipment used in small offices and homes.
| Physical Characteristics | |
|---|---|
| Body Color | Black - Powder Coated |
| Body Material | 16-Gauge Steel |
| Rack Color | White - Powder Coated |
| Rack Rail Material | 14-Gauge Steel |

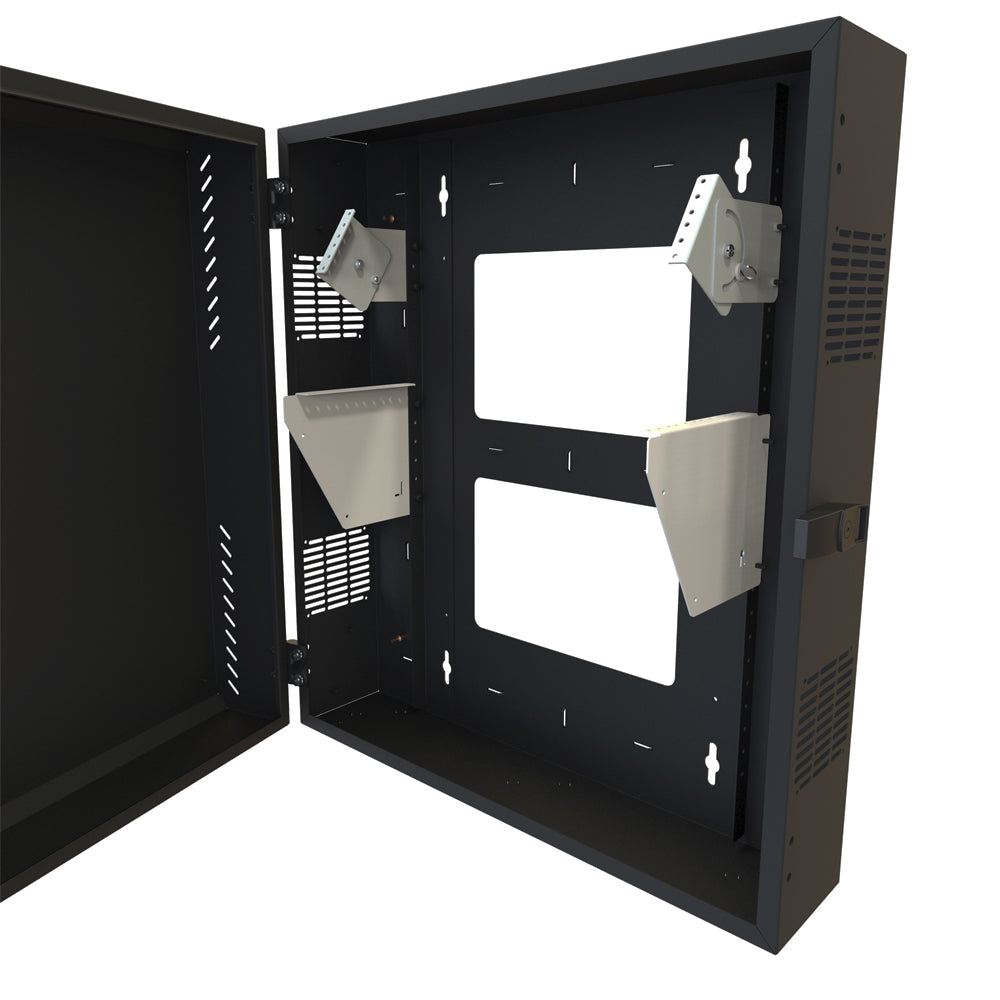

| Doors | Front door can be assembled to open in either direction Opening angle of front door is over 180ās |
| Locks | Locking front door and side panels |

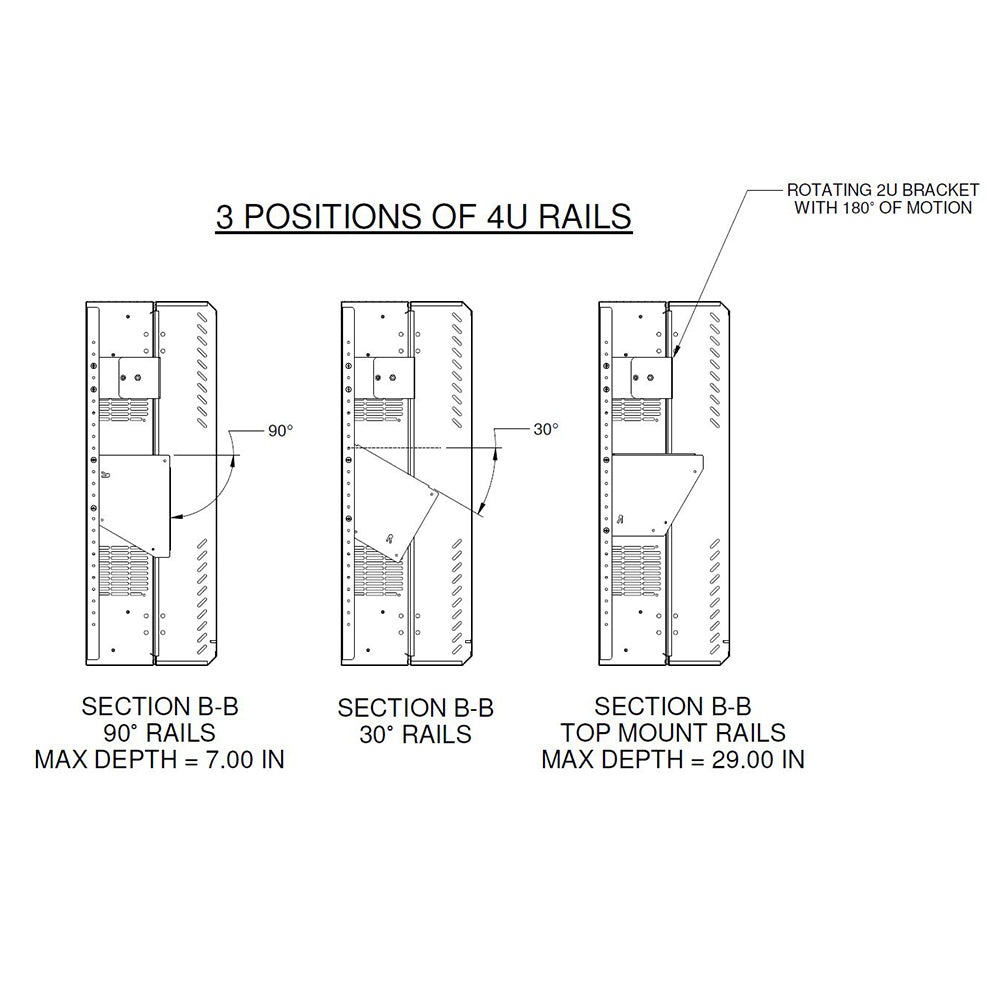

| Rails | Install in three positions, providing 180ās of equipment mounting options |
| Assembly Required | Yes (Flat Packed) |
| Loading Capacity | Maximum 200 lbs [91 kg] |
| Width | 27.5 inches |
| Capacity | 4U |

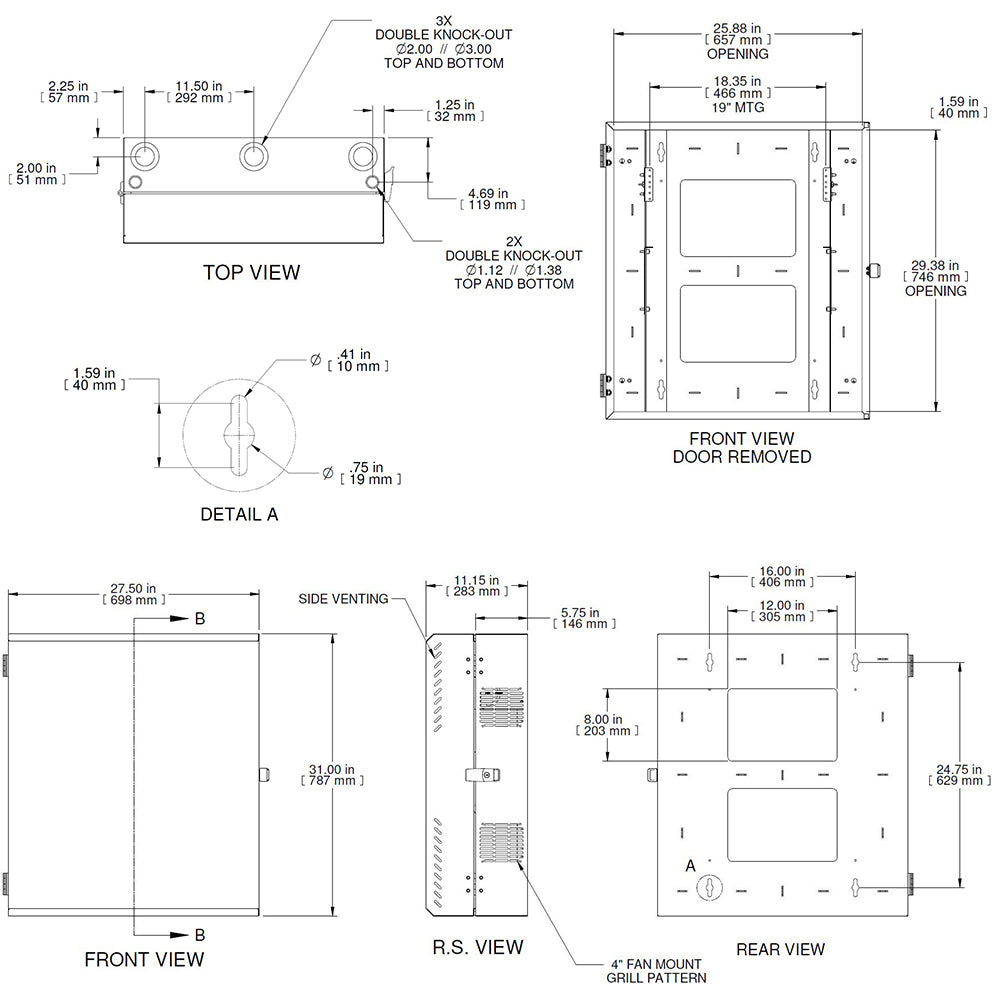

| Product Dimensions | 31 H, 27.5 W, 11.15 D inches [78.7 H, 69.9 W, 28.3 D cm] |
| Maximum Vertical Usable Depth | 29 inches |
| Cable Management | Yes |
| Approvals | |
| UL 2416 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| TAA Compliant | Yes |
| Packaging Information | |
| Package Quantity | 1 - Vertical Wall Mount Cabinet 4U (Unassembled) |
| Product Weight | 64 lbs [29.03kg] |
Product Weights
| SKU | Weight | |
| HLP4U31BK | 1000.0 lb |
