Description

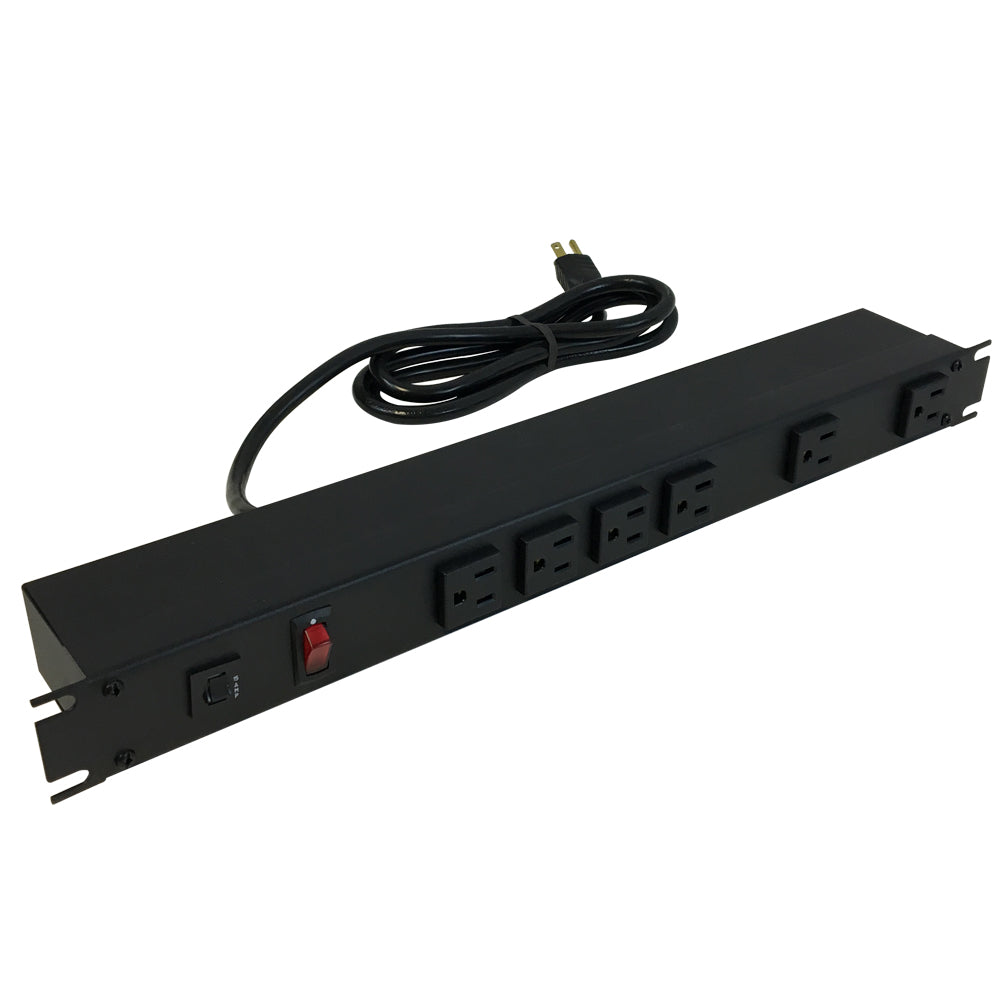

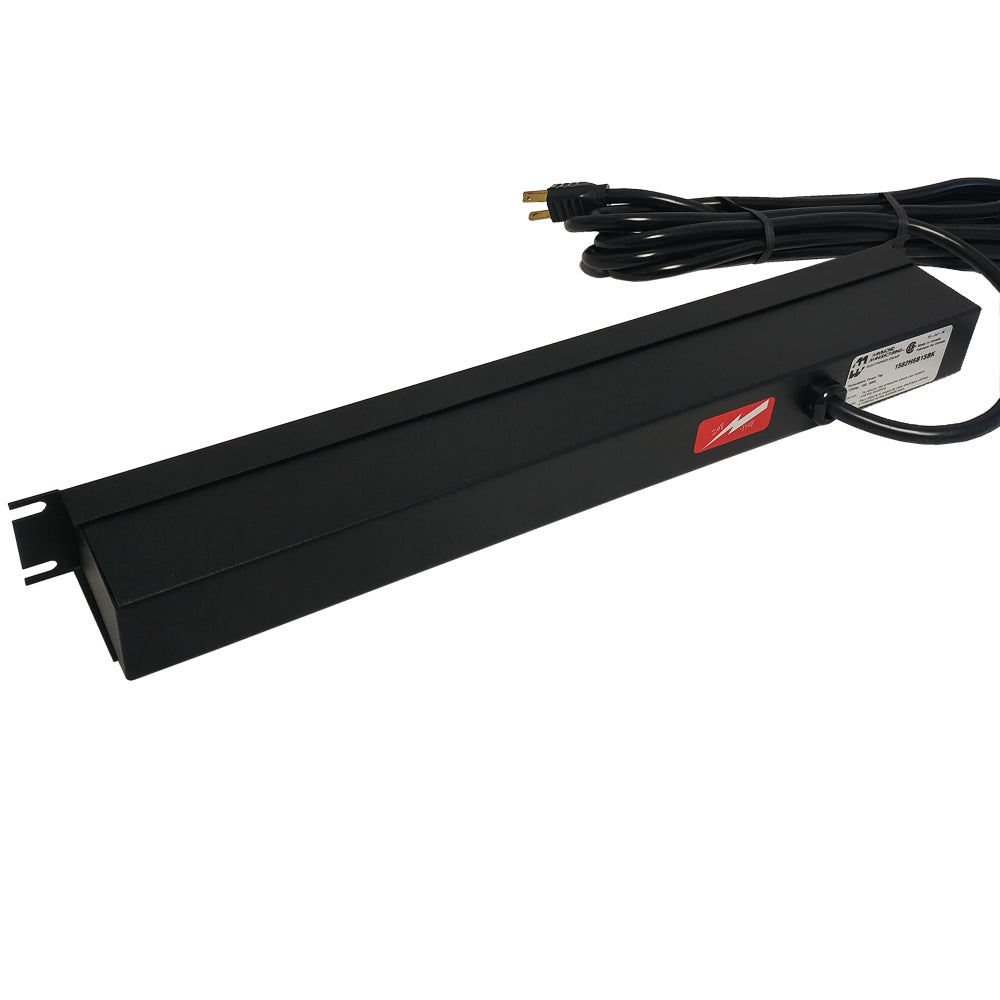

This 19 inch horizontal power strip with surge protection features 6 front outlets and a 15 foot cord. It is designed to be mounted on a 19 inch rack or cabinet and provide power distribution to networking equipment.
| Physical Characteristics | |
|---|---|
| Cable Length | 15 foot [4.5m] |
| Color | Black |
| Plug Type | Straight NEMA 5-15P |
| Cable Type | 14AWG 3C SJT - Black |
| Housing | Metal (Steel) |
| Panel Dimensions (HxWxD) | 1.72" x 19" x 2.66" |
| Joules Rating | 780 (max 54,00 Amp) |
| Voltage Protection Rating (VPR) | 400V |
| Surge Module Indicator Light | Yes |
| Mounting Type | 19" Rack, Horizontal |
| Circuit Breaker | Yes |
| Electrical Rating | 15A/125V |
| Connector(s) | |
| Power Outlets | 4 x 5-15R Standard Size Outlets 2 x 5-15R Standard Size Transformer Outlets |
| Approvals | |
| CSA | Yes |
| UL | Yes |
| RoHS | Yes |
| TAA Compliant | Yes |
| Manufacturing Information | |
| Hammond Part Number | 1582H6B1SBK |
| Warranty | 1 year manufacturer's warranty |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Bracket Kit with Hardware | No |
| Product Weight | 8 lbs [3.62kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| 1582H6B1SBK | 8.0 lb |
