Description
- Description
- Spec Sheets
- Product Weights
Description

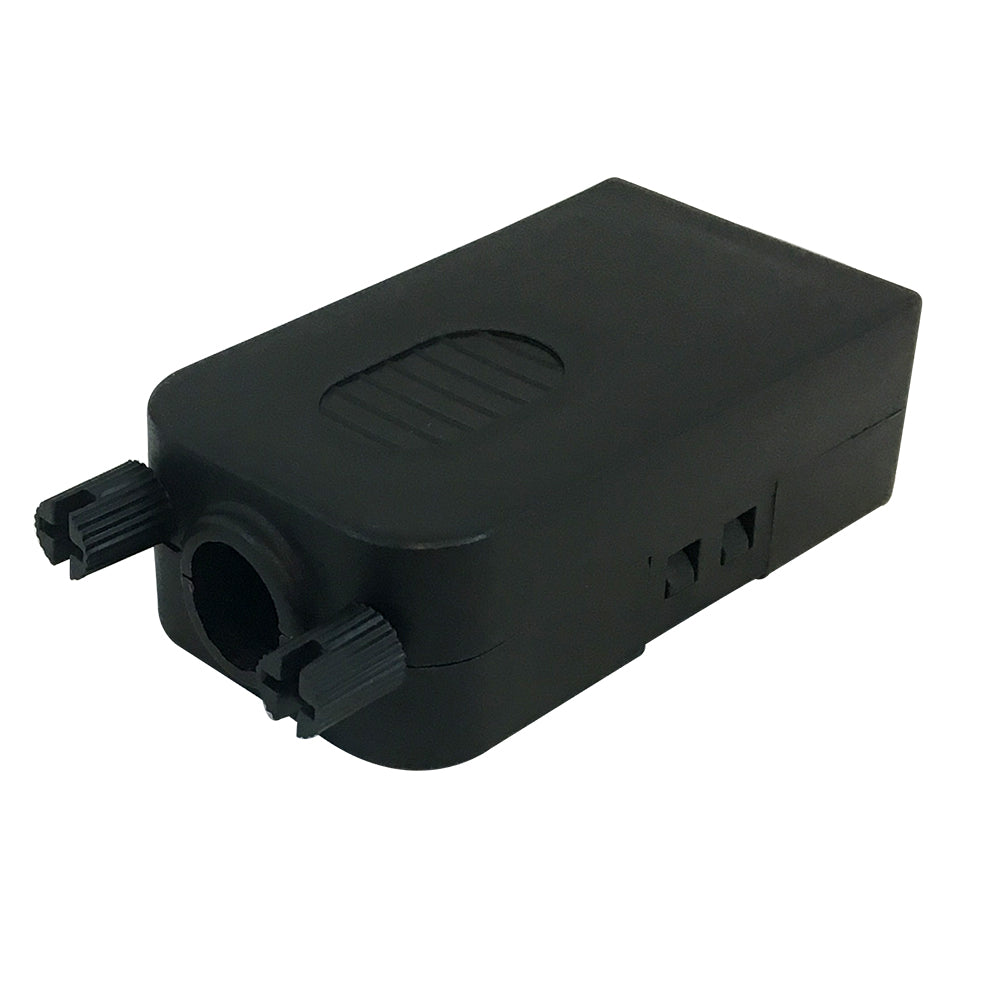

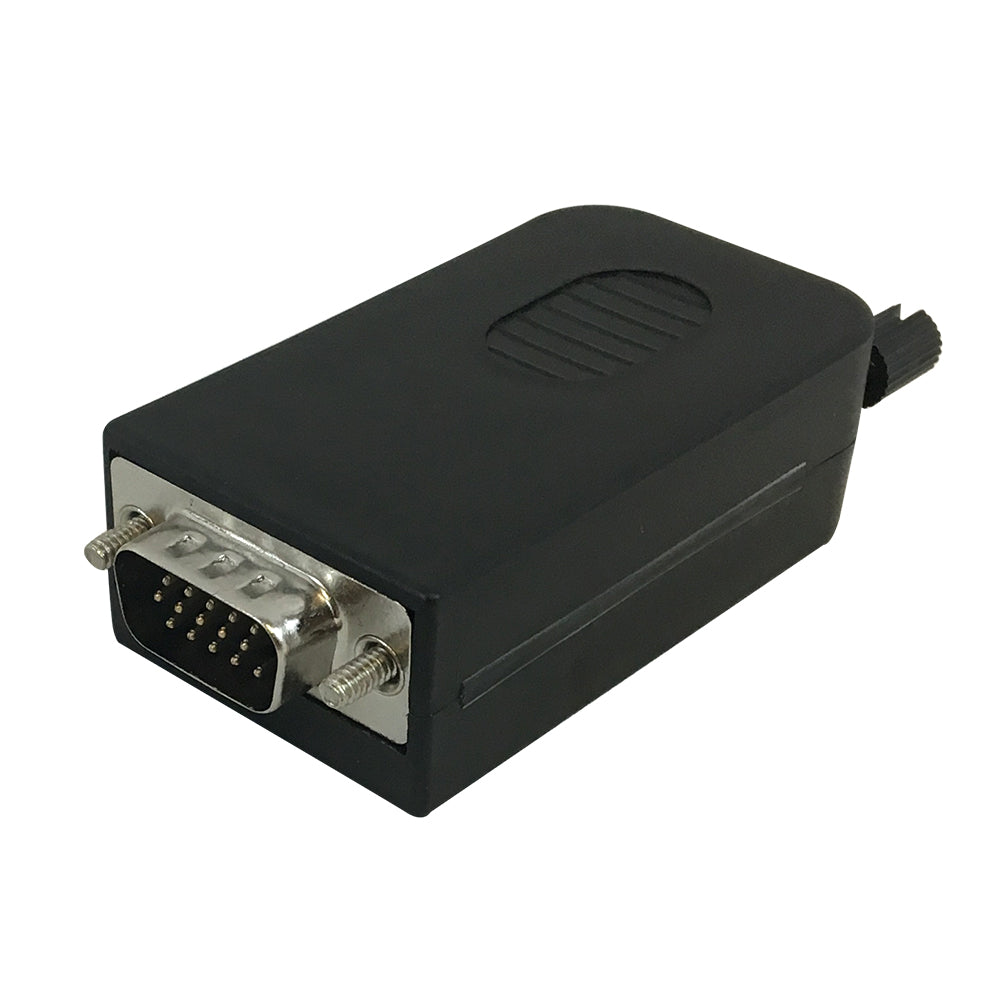

This field termination kit has a HD15 male connector on one end and accepts raw cable for a screw down termination on the other. It is typically used to terminate D-sub cables onsite quickly and easily without having to solder or crimp contacts.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing Material | PVC |
| Connector Plating | Nickel |
| Connector(s) | |
| Wire Gauge | 12AWG – 24AWG |
| Electrical Characteristics | |
| Max Voltage | 300V |
| Max Amperage | 2A |
| Connector | HD15 Male |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Product Weight | 0.08 lbs [0.04kg] |
| Contents | |
| Included in Package | 1 - Connector 1 - Cover 2 - Screws 1 - Dust Cap |
Spec Sheets
Product Weights
| SKU | Weight | |
| CN-HD15M-SD | 0.08 lb |
