Description
Overview

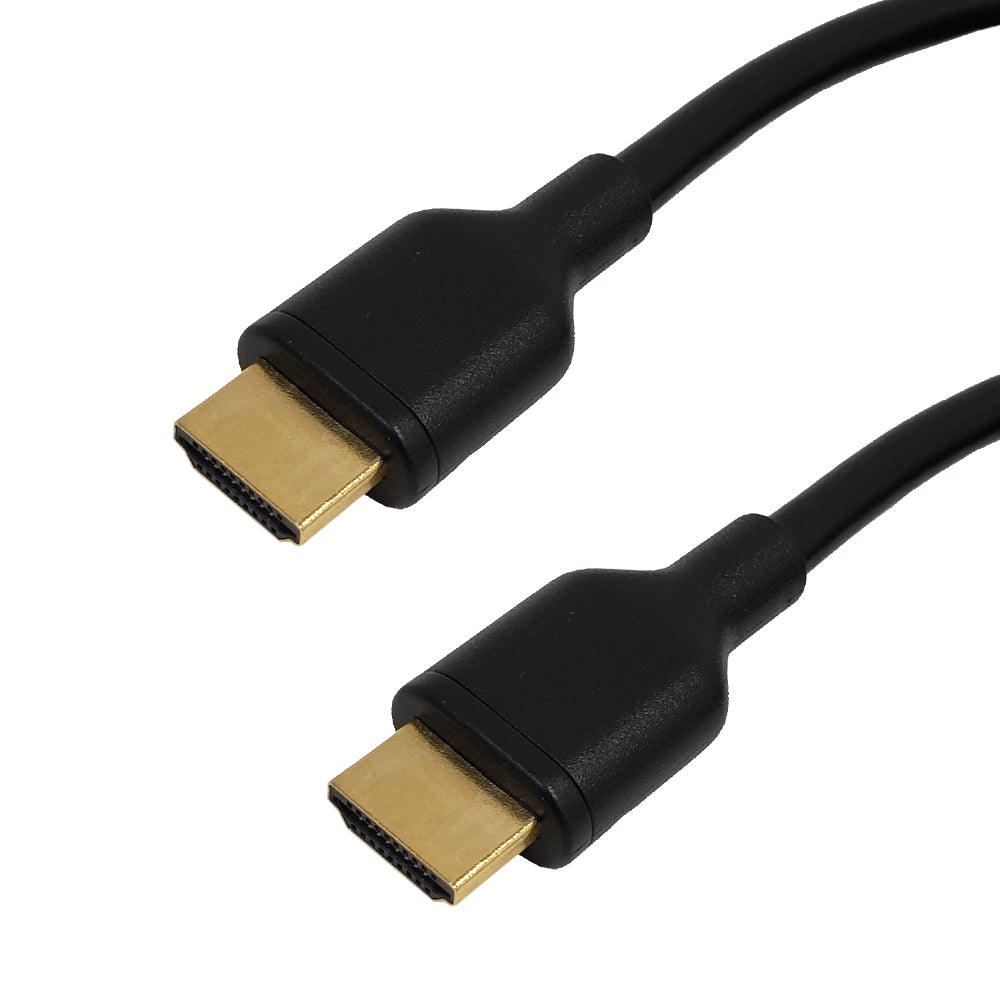

This High-Speed HDMI® cable consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source and display which supports 4K and 8K video, HDR, VRR, eARC, and all other HDMI 2.1b features. The cable is backwards compatible with HDMI 2.0 and lower and works with splitters, switches and other video sharing devices.
|
|
8K UHD ResolutionThis cable supports maximum video resolutions up to a breath-taking 8K@60Hz UHD. Gold Plated ConnectorsThe gold plated connectors deliver optimum conductivity and maintains a stable signal connection over time. Compact Mold, Thin DiameterThe compact mold and thin cable diameter fits well with today's slim, low profile TVs.
|
Applications
Specifications
| Physical Characteristics | |
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Wire Gauge | 30AWG |
| Jacket Fire Rating | CL3 |
| Connectors | |
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
| Performance | |
| Resolution | Supports 8K@60Hz/4K@120Hz/1080p/1080i/720p |
| Bandwidth | 48Gbps |
| Support | eARC, DHCP/EDID/CEC 2.0/DDC |
| Dynamic HDR | Yes |
| HDMI Version | HDMI 2.1b, Backward Compatible with HDMI 2.0/1.4 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.16 | 0.25 | 0.40 |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| HDMI-150-03 | 3ft | 0.15 lb |
| HDMI-150-06 | 6ft | 0.21 lb |
| HDMI-150-10 | 10ft | 0.33 lb |
