Description

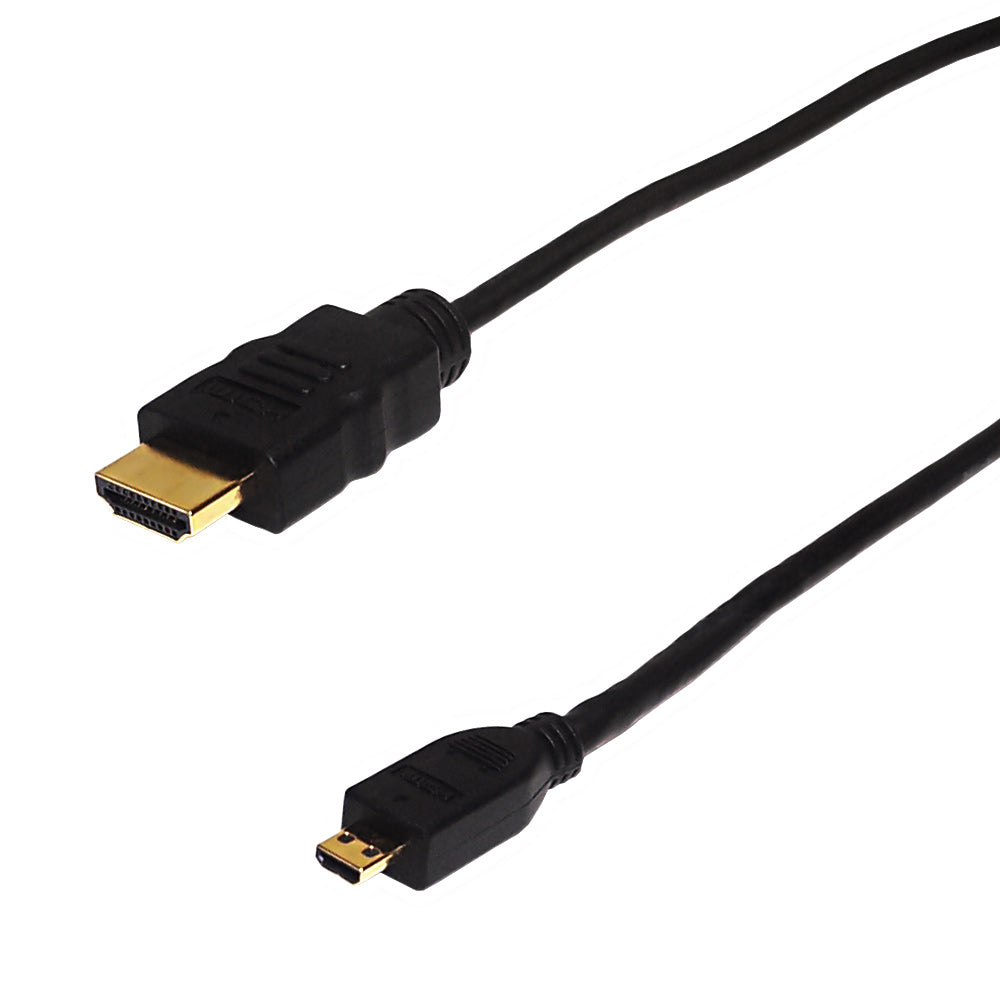

This High-Speed HDMI® cable consists of a HDMI male connector on one end and a micro-HDMI male on the other end. It is typically used to connect a micro HD source such as smart phone or tablet to a HDTV or monitor and supports ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 4.2 mm |
| Wire Gauge | 34 AWG |
| Shielding | 85% Braid + 100% Aluminum-Mylar Foil |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | HDMI Type A (19 pin) Male |
| Connector B | Micro HDMI Type D Male |
| Performance | |
| Resolution | Ultra HD 4k x 2k |
| Built in Ethernet Channel | Yes |
| 3D Compatible | Yes |
| Bandwidth | 13.8Gbps |
| Audio | Audio return channel |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft |
|---|---|---|
| 0.10 lbs | 0.15 lbs | 0.20 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| HDMI-144-03UT | 3ft | 0.15 lb |
| HDMI-144-06UT | 6ft | 0.21 lb |
| HDMI-144-10UT | 10ft | 0.33 lb |
